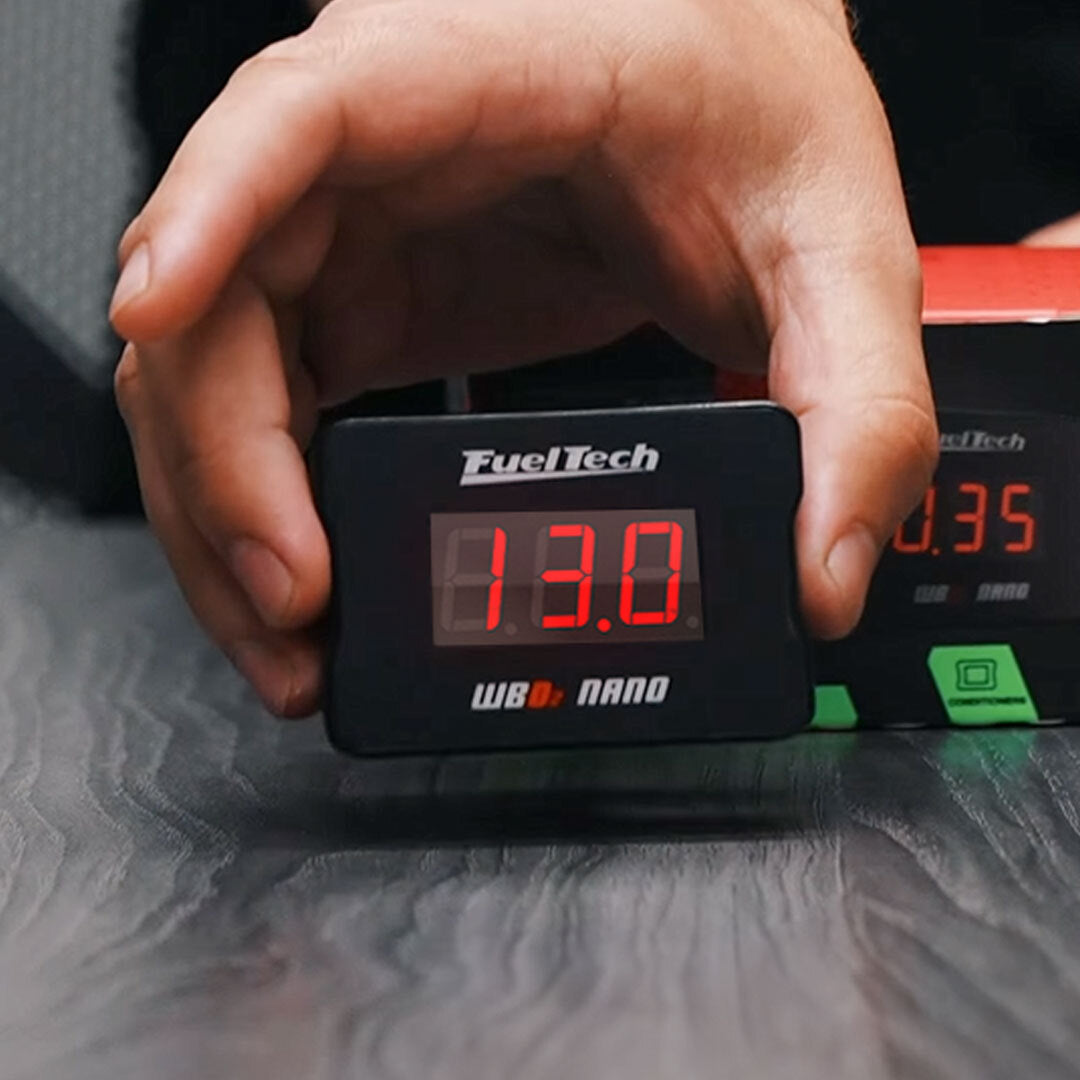

The New WB-O2 Nano O2 Conditioner is a wideband O2 sensor controller compatible with a wide range of O2 sensor options. It's compatible with 5 different wideband O2 sensors: Bosch 4.2, Bosch 4.9, Bosch 5.2, NTK ZFAS, and NTK Wideband O2 Sensor.

Download Software Version 5.36

Download Manual

The New WB-O2 Nano keeps your O2 sensor at the optimal temperature for accurate readings with 3 configurable heating modes via CAN; normal, fast, and current limited, in addition to auto startup. Additionally, it has an extended wideband reading scale with advanced hardware for fast and precise readings (reading range can reach values slightly lower than 0.21 λ).

Datalogs via CAN communication with our PowerFT and VisionFT line of ECUs, and allows multiple conditioners for bank to bank or individual cylinder O2s, all through the CAN network, preserving your ECU’s analog inputs for other sensors.

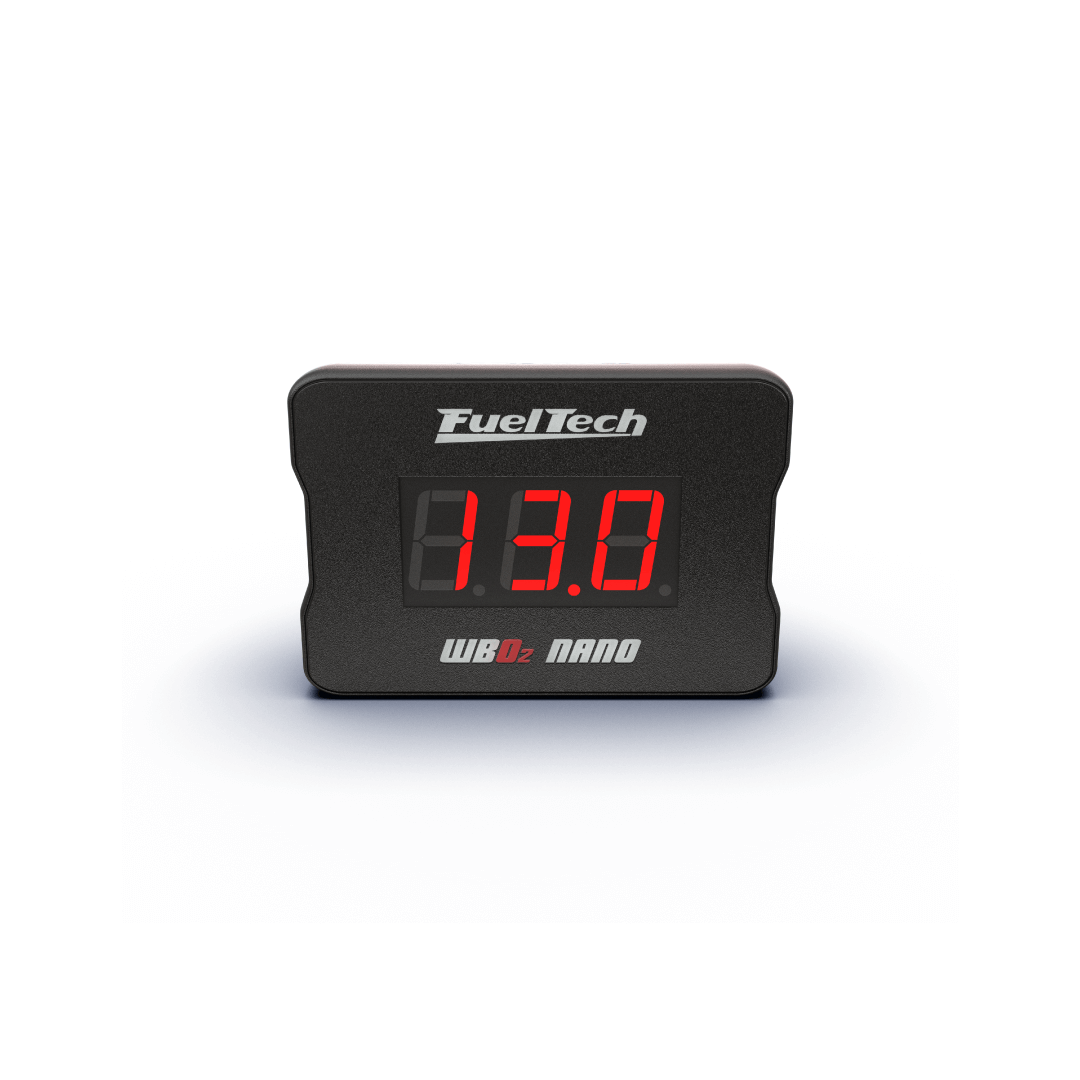

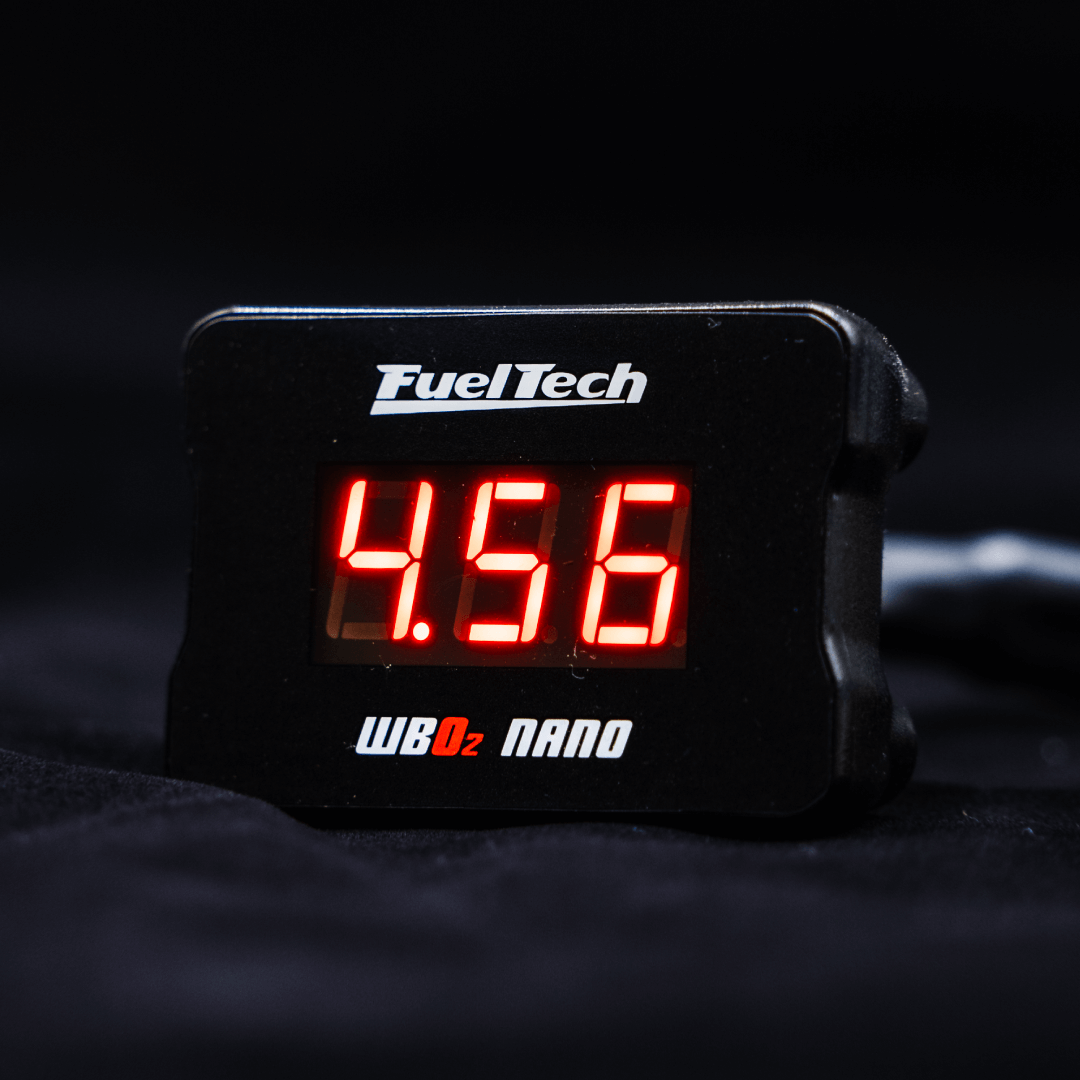

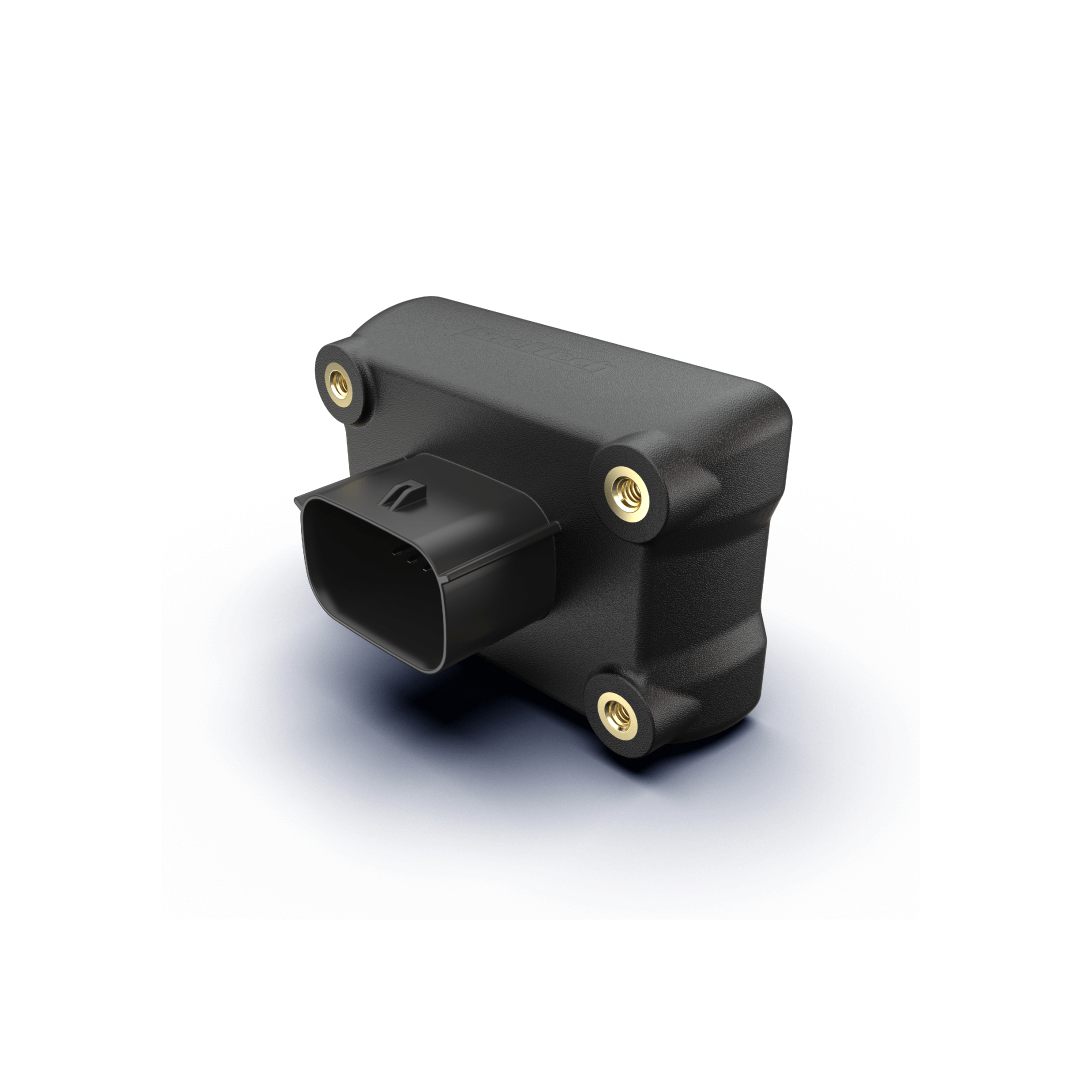

The display is a familiar look from our original nano, with some new options including day/night dimming configurability, shift light alert, and now is paired with an updated case to match the NanoPRO mounting points.

The New WB-O2 Nano is IP67 rated (when properly connected to the harness), making it perfect for marine, off-road, and automotive applications.

See harness & sensor options below. Harness and sensors not included with the WB-O2 Nano.

• BOSCH LSU 4.2 (sensor, harness)
• BOSCH LSU 4.9 (harness)
• BOSCH LSU 5.2
• NTK ZFAS (sensor, harness & adapter)
• NTK Wideband O2 Sensor
