Soundstream RN4-1400D | Rubicon Nano Series Class D 4-Channel Amplifier
Specifications
- Brand
- Soundstream
- UPC
- Category
- Car Audio Amplifier
- Shipping weight
- 0.0 lb
Links open in a new tab; return here to finish shopping. Select Klarna, Shop Pay or Sezzle to learn how they work before checkout. Eligibility applies.
Soundstream RN4-1400D is a car audio amplifier for an aftermarket vehicle audio installation. Match the specifications, connections and mounting requirements below to your system before ordering.
- Brand: Soundstream
- Manufacturer part number: RN4-1400D
Key specifications
- Max Power: 1,400 Watts
- RMS Power 4Ω: 125W x 4
- RMS Power 2Ω: 175W x 4
- RMS Bridged 4Ω: 350W x 2
- SPECIFICATIONS: RN4.1400D
Features and installation details
Rubicon Nano Class D 4Ch Amplifier
| Max Power | 1,400 Watts |
| RMS Power 4Ω | 125W x 4 |
| RMS Power 2Ω | 175W x 4 |
| RMS Bridged 4Ω | 350W x 2 |

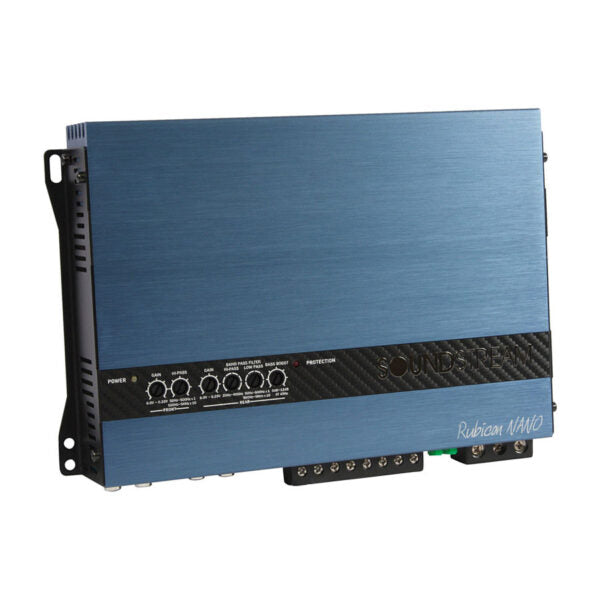

We’ve adopted the most optimum Class D performance, reliability, and smaller footprint platform for the Rubicon Nano series amplifiers and present to you Rubicon Nano. At first glance, you’ll notice several key improvements; Rubicon Nano’s signal inputs, power/ground, and speaker connections are all relocated to the leading edge of the chassis for an easier, more attractive install. All pre-amp & crossover options are appropriately located on the top surface, making adjustments after installation conceivable. You might not notice embellishments to the circuit board, including increased power supply & output stage components & Monoblock bridging capability. Are you using an original or factory radio? No problem, these amplifiers are equipped with an Automatic Hi-Level Signal Sensing Turn-On. There is no need to run a remote wire turn on; this amplifier will automatically detect the sound signal and turn on and off the amplifier. (Hi-Level Input only)
| SPECIFICATIONS | RN4.1400D |
|---|---|
| Max Power | 1,400 Watts |
| RMS Power @ 4Ω | 125W x 4 |
| RMS Power @ 2Ω | 175W x 4 |
| RMS Bridged @ 4Ω | 350W x 2 |
| Remote Gain Control | N/A |
| Low Pass Filter | 50Hz-500Hz / (x10) 500Hz-5KHz |
| High Pass Filter | 50Hz-500Hz / (x10) 500Hz-5KHz |
| Bass Boost | 0-6-18dB (Rear) |
| Bass Boost Frequency | 45Hz (Rear) |
| Subsonic Filter | N/A |
| Frequency Response | 10-50KHz |
| S/N | 104dB |
| Input Sensitivity | 200Mv-6V |
| THD | <0.05% |
| Operation Voltage | 9V-16V DC |
| Fuse Rating | 30A x 2 |
| Dimensions (8.25"W x 2.75"H) | 9" L |
Rubicon Nano Owners Manual [PDF]
