Soundstream PN4-5000DX | Picasso Nano Series 4 Channel Amplifier
Specifications
- Brand
- Soundstream
- UPC
- Category
- Car Audio Amplifier
- Shipping weight
- 0.0 lb
Links open in a new tab; return here to finish shopping. Select Klarna, Shop Pay or Sezzle to learn how they work before checkout. Eligibility applies.
Soundstream PN4-5000DX is a car audio amplifier for an aftermarket vehicle audio installation. Match the specifications, connections and mounting requirements below to your system before ordering.
- Brand: Soundstream
- Manufacturer part number: PN4-5000DX
Key specifications
- Max Power: 2,000 Watts
- RMS Power 4Ω: 250W x 4
- RMS Power 4Ω - Bridged: 900W x 2
- RMS Power 2Ω: 450W x 4
Features and installation details
Picasso Nano Series 2Ch Amplifier
| Max Power | 2,000 Watts |
| RMS Power 4Ω | 250W x 4 |
| RMS Power 4Ω - Bridged | 900W x 2 |
| RMS Power 2Ω | 450W x 4 |
| RMS Bridged 1Ω | N/A |
Designed for those who demand serious power and total system control, the Soundstream PN4.5000DX is a high-performance 4-channel Class D amplifier capable of delivering up to 5,000 watts max. Whether you're driving full-range speakers or bridging channels for subwoofers, this amp delivers the clean, dynamic sound your system deserves.
Equipped with an intelligent Clipping LED Indicator, the PN4.5000DX helps protect your speakers by signaling distortion in real time during tuning. Its robust 4-Way Protection Circuitry defends against thermal overload, short circuits, over-voltage, and DC offset—ensuring long-term reliability. Fine-tune your system using fully variable 12dB crossovers, including high-pass, low-pass, and band-pass configurations. A high-efficiency MOSFET power supply keeps output clean, stable, and distortion-free even under demanding loads.
This amp is built for pros and serious audiophiles looking to dominate the road with high-output, high-clarity sound.
4-Channel Full-Range Class D Amplifier
Max Power Output: 5,000W
RMS Power @ 4Ω Stereo: 250W x 4
RMS Power @ 2Ω Stereo: 450W x 4
RMS Power @ 4Ω Bridged: 900W x 2
Clipping LED Indicator for Real-Time Output Monitoring
4-Way Protection: Short, Thermal, Overload & DC Offset
Variable 12dB Crossovers: High-Pass, Low-Pass, Band-Pass
12dB Bass Boost @ 45Hz for Deeper Low-End Punch
Frequency Response: 20Hz–20kHz
Total Harmonic Distortion: <0.05%
Signal-to-Noise Ratio: 80dB
Channel Separation: 55dB
Dimensions: 5.9" (W) x 1.5" (H) x 11.5" (L)

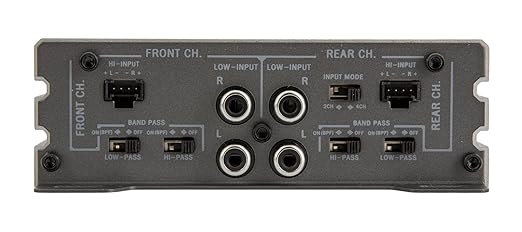

RCA & High-Level Inputs w/ Auto Turn-On

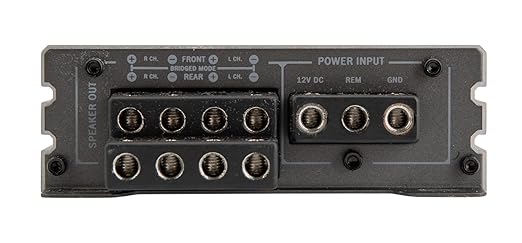

Direct Connect Power, Ground & Speaker Terminals
