4G63 Torque Plate

At Modern Automotive Performance, we’ve talked to hundreds of customers who ask us about different projects. One of those projects includes boring and honing the cylinders of a Mitsubishi 4G63 engine, found in Evo 8 and 9, Galant, Eclipse and Talon models. One of the things we’ve learned: A torque plate is a must-have.

The process of torqueing a head down on the block includes a phase where pressure from the bolts can cause the cylinder bore to slightly deform. That’s bad news. A torque plate takes the place of the head during machining, simulating any distortion and leaving a true cylindrical shape behind. It also gives your machine operator easy access to the bores.

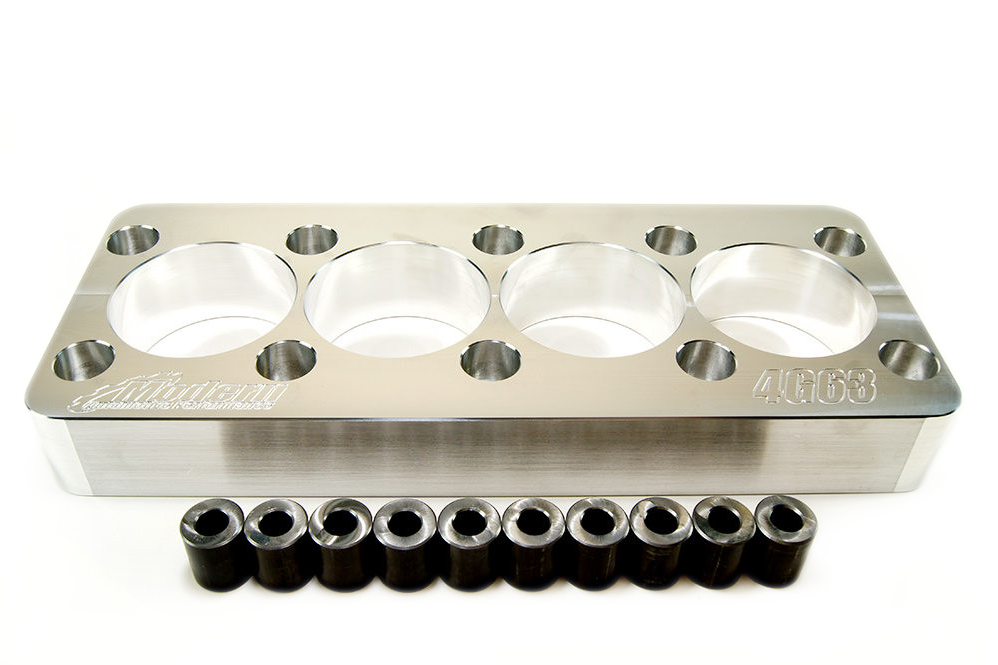

Our plate is made from thick billet aluminum, features spacers for proper depth and penetration into the block and can work with bore sizes up to 88 mm. With this plate, you’ll get durability to last through countless engine projects, so tell your friends. Or don’t — they may put you to work.

Features

• Thick billet aluminum
• Spacers allow for proper depth and penetration into the block
• Works with bore sizes up to 88mm
• 100% Made in the USA

Applications

• 2003-2006 Mitsubishi Evo 8/9
• 1989-1999 DSM
• 4G63 Engines (Galant, Eclipse, Talon, Laser)

What's in the box?

• 1 Torque Plate
• 10 Spacers

Warranty

• MAP Limited Lifetime Warranty
