Kia Stinger 2.5T Ethanol Content Analyzer and Charge Pipe Injection Kit
For those running E85 mixtures and higher boost levels, the factory high pressure fuel pump has proven to be a limiting factor to performance. Previously installing water/meth injection was the only way around this limit but the Fuel-It! CPI kit now offers a clean and easy to use alternative!
CPI adds a 7th fuel injector in the charge pipe, similar to a water/meth nozzle, only rather than having a separate tank/pump it's attached to the factory low fuel pressure system. Fuel is metered via JB4 FSB integration or a stand alone fuel injector controller. The result is an additional 75-100hp worth of fueling capacity! Just enough room to max out factory turbos on E85 mixtures!
The full kit includes a Fuel-It! flex fuel sensor for precise E85 readings allowing the JB4 to meter CPI flow appropriately. The CPI kit features a CNC machined injector holder, quality AN fuel lines, and all required fittings for installation.
Add real-time ethanol-content monitoring to your KIA Stinger 2.5T with the BMS CANflex ECA kit, or select the complete CPI configuration to add supplemental port fuel injection hardware.
KIT CONFIGURATION
Ethanol Content Analyzer (ECA) Only
Includes the BMS CANflex ethanol-content analyzer system, ethanol sensor, fuel lines, fittings, CANled display box, wiring, fuse tap, rubber cover, and installation lubricant. This option provides ethanol-content monitoring without supplemental charge-pipe injection.
With Charge Pipe Injection (CPI)
Includes the complete BMS CANflex ethanol-content analyzer system plus the FSB V3 controller, 950cc CPI injector, CPI mounting hardware, injector harness, fuel line, fittings, and installation tool required for the KIA Stinger 2.5T CPI system.
FEATURES AND BENEFITS
• Real-time ethanol-content monitoring
• Vehicle-specific CANflex wiring
• Integrated CANled ethanol-content display
• ECA Only and complete CPI configurations available
• Complete fuel lines and fittings included for the selected configuration
• Plug-and-play electrical connections
• Designed specifically for the KIA Stinger 2.5T
VEHICLE FITMENT
Kia
• 2020-2023 Kia Stinger 2.5L Turbo 4-cylinder
WHAT’S INCLUDED

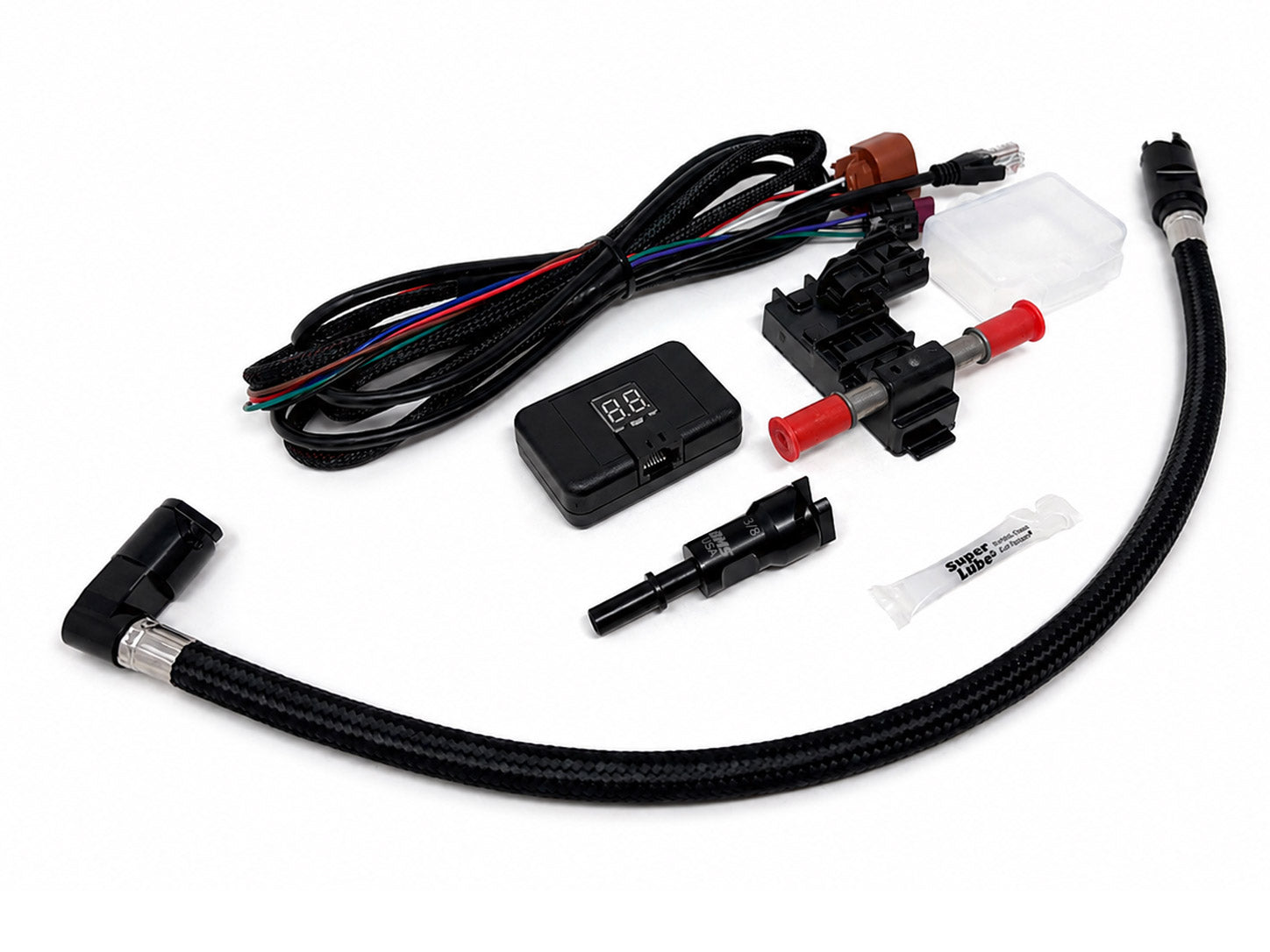

Ethanol Content Analyzer (ECA) Only
• CANflex Universal Harness, BMS10029
• Micro fuse tap with 10-amp fuse
• CANled box
• CANled rubber cover
• Ethanol Sensor 429
• 18-inch -6 AN fuel line with 38FQC6C and 516FQC6CE fittings
• 516MQC38FQC fitting
• Super Lube installation lubricant

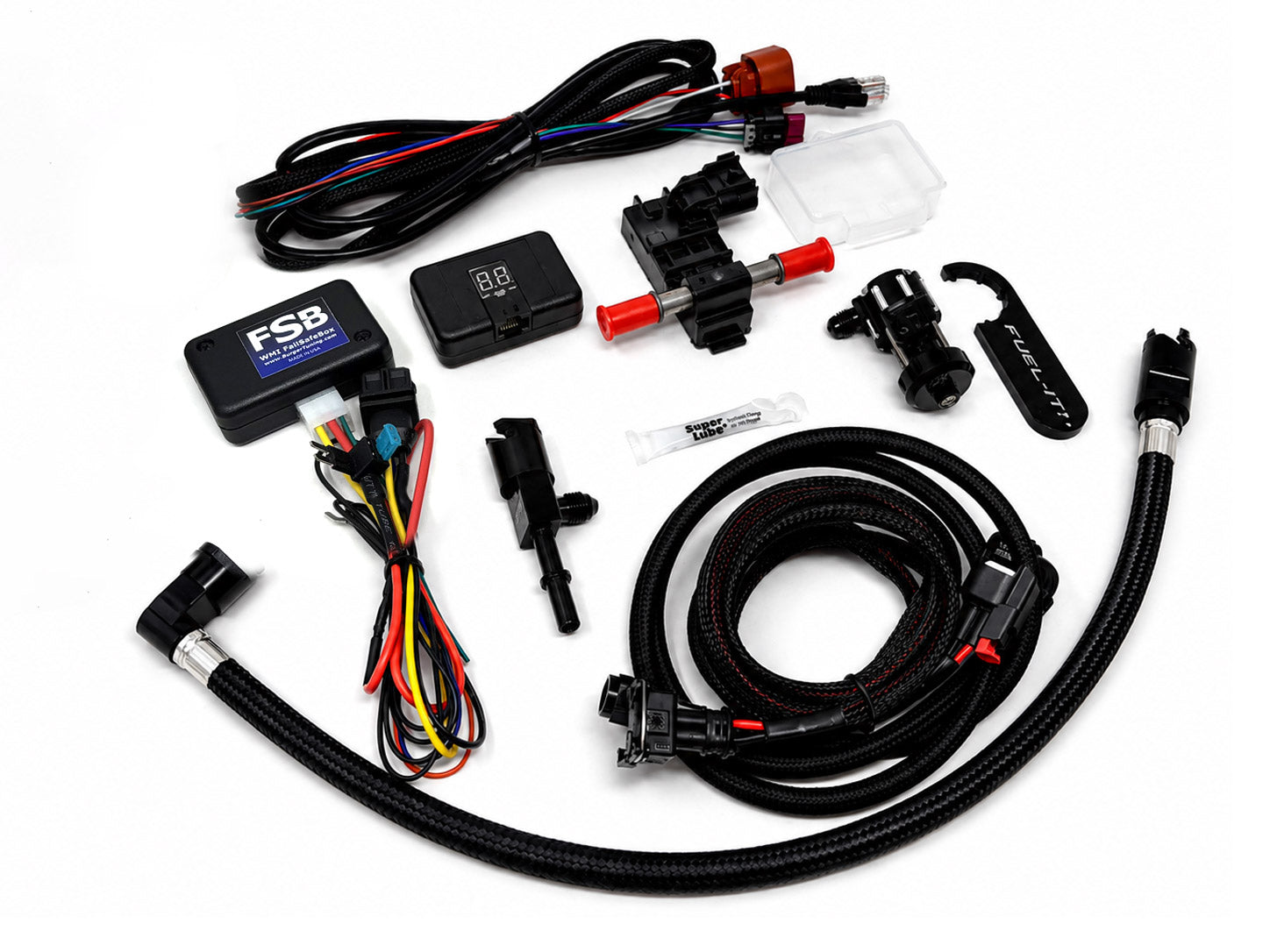

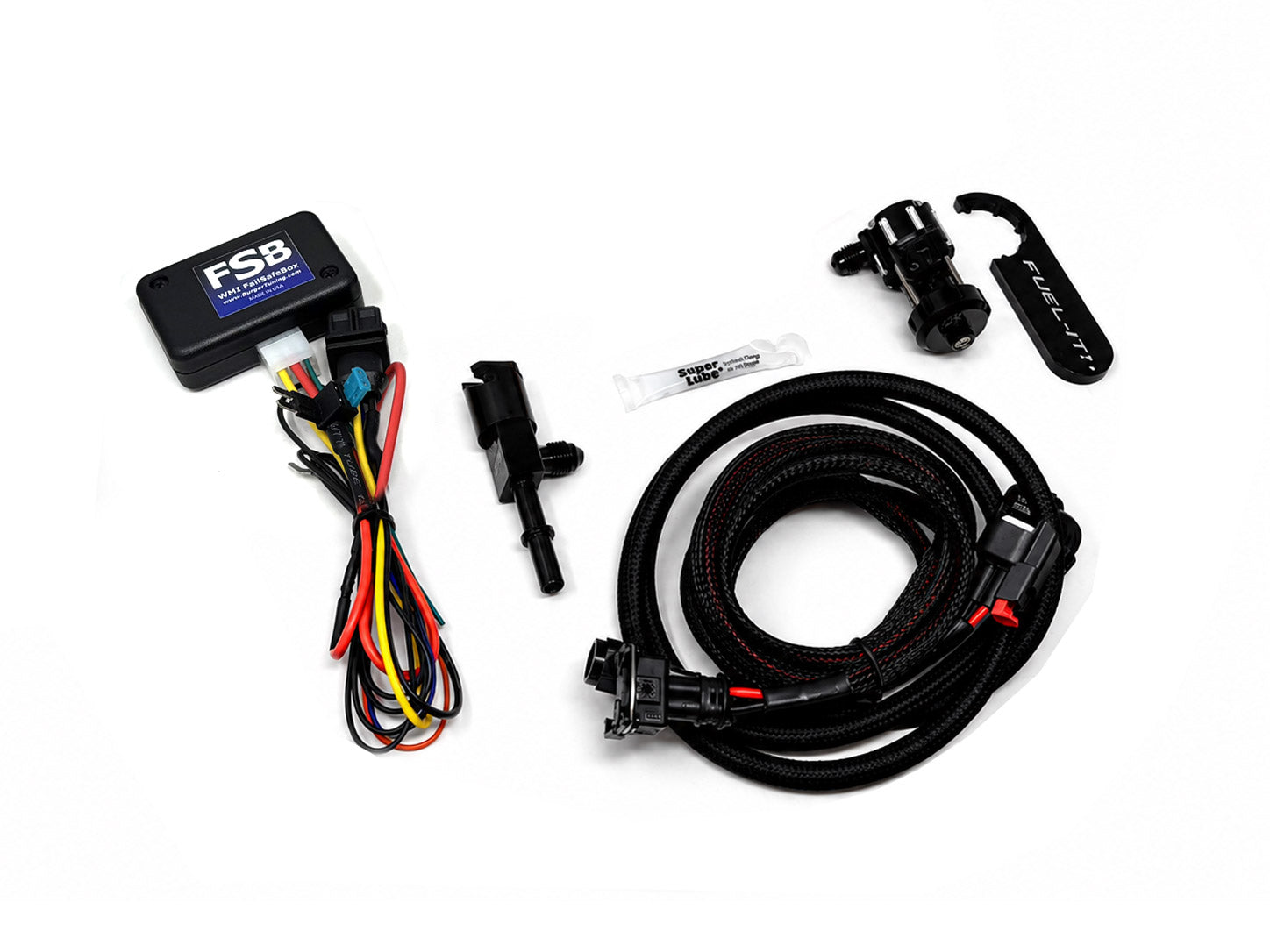

With Charge Pipe Injection (CPI)
• CANflex Universal Harness, BMS10029
• Micro fuse tap with 10-amp fuse
• CANled box
• CANled rubber cover
• FSB V3 KIA CPI controller
• Ethanol Sensor 429
• 18-inch -6 AN fuel line with 38FQC6C and 516FQC6CE fittings
• 38FQC516MQC4AN fitting
• 30-inch -4 AN fuel line with straight and 90-degree ends
• 950cc CPI injector
• CPI upper mount
• CPI lower mount
• CPI installation tool
• Four CPI mounting bolts
• 36-inch EV1-female to USCAR-female injector harness
• Super Lube installation lubricant

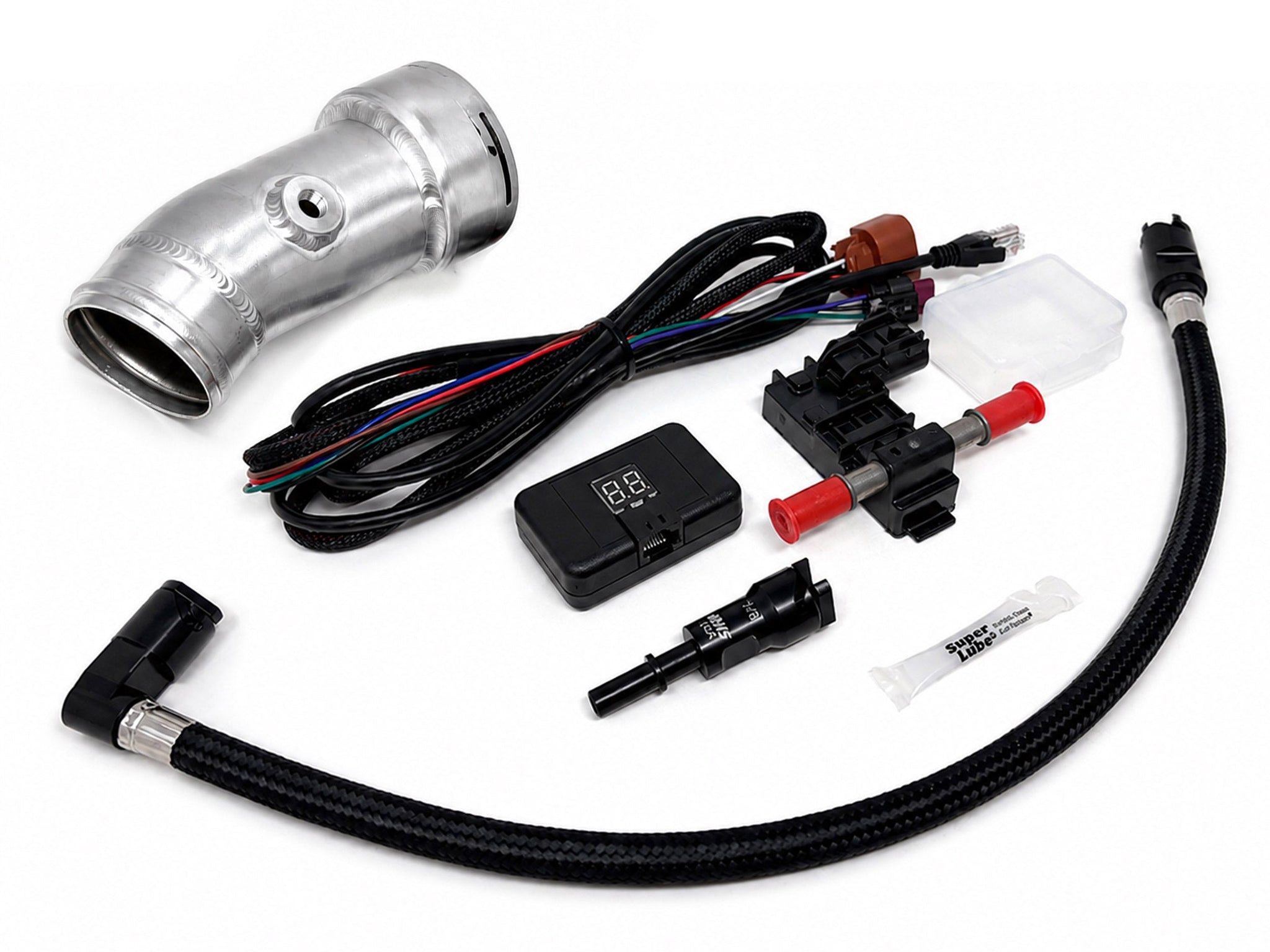

Kia Stinger 2.5T Ethanol Content Analyzer and Charge Pipe Injection Kit shown below.
