ETS C8 Z06 Port Injection Plate Kit from Extreme Turbo Systems is a turbocharger kits solution for performance-focused street and motorsport builds. Review the available options and fitment details below to choose the correct configuration for your application.

ETS C8 Corvette Z06 Port Injection Plate Kit

Add the supplemental fueling capacity needed for high-horsepower applications with the ETS Port Injection Plate Kit for the C8 Corvette Z06. Designed specifically for the 5.5L LT6 engine, this system adds eight additional fuel injectors—one for each intake port—to provide consistent fuel delivery under increased boost and power levels.

The precision-machined billet aluminum plates install between the factory intake manifold and cylinder heads. Integrated billet fuel rails distribute fuel evenly across all eight cylinders, while the included seals, fittings, brackets, and installation hardware provide a clean, secure installation.

This system is ideal for supercharged, turbocharged, and other high-output LT6 combinations where the factory direct-injection system can no longer provide sufficient fuel volume.

Features

• Designed specifically for the C8 Corvette Z06 5.5L LT6
• Adds eight supplemental port fuel injectors
• Precision CNC-machined billet aluminum construction
• Billet fuel rails for consistent fuel distribution
• Maintains even fueling across all eight cylinders
• Supports high-horsepower forced-induction applications
• Installs between the factory intake manifold and cylinder heads

• Engineered for a clean fit and appearance
• Made in the USA

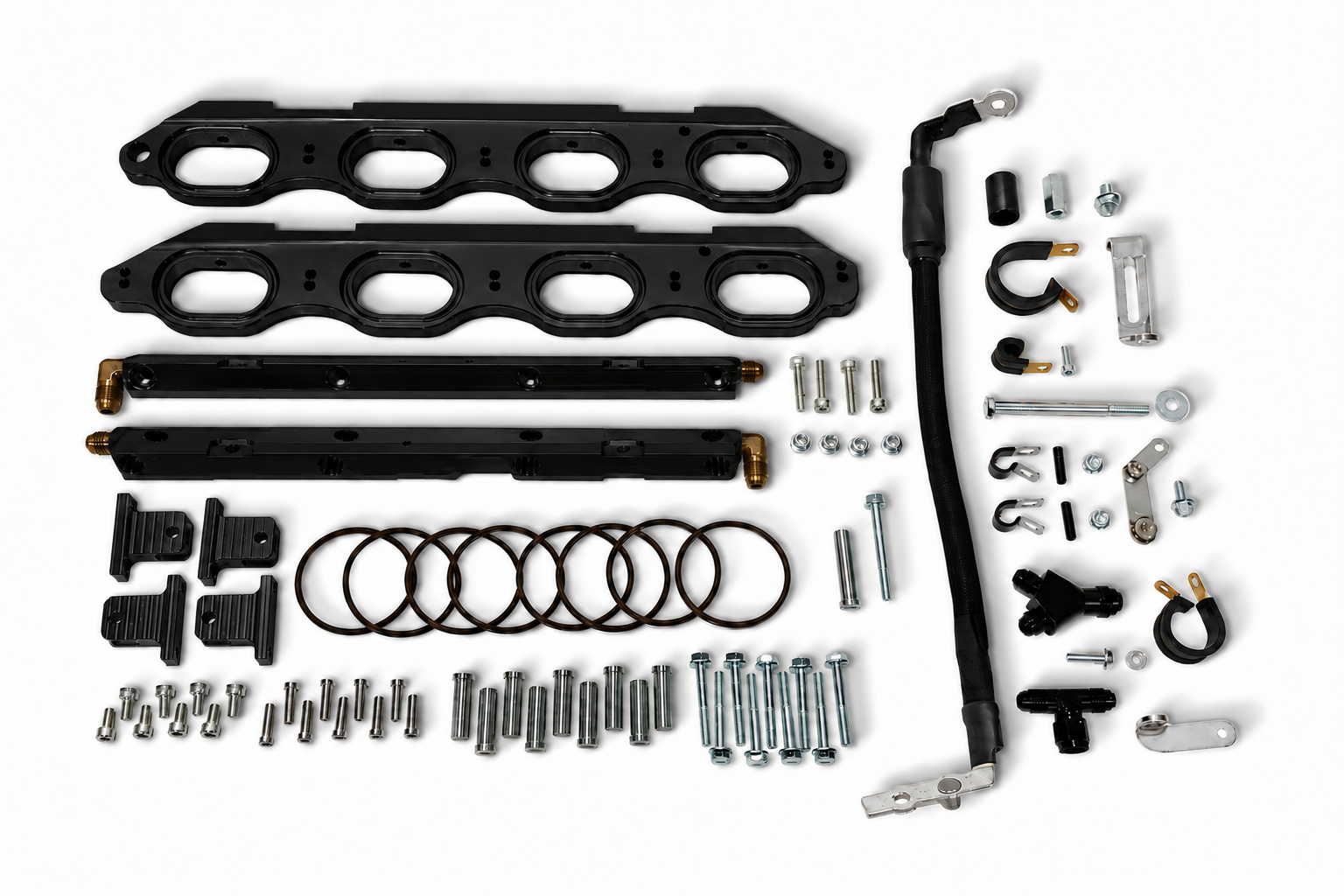

Typical Kit Contents

• Left and right billet port-injection plates
• Dual billet fuel rails
• Injection plate seals

• Mounting brackets and clamps
• Installation hardware

Important Installation Information

This kit includes the mechanical components required for supplemental port injection. Properly sized fuel injectors, an adequate fuel supply system, a compatible port-injection controller, and professional ECU calibration are required. Fuel lines are not included, as each installation may be configured differently. Some customers may use an auxiliary fuel tank, while others may use an aftermarket fuel hat.  We have made over 1100whp using this kit on our turbo z06.
