005 ELITE PRO SERIES (TRADITIONAL 3 LOBE DESIGN) is a performance-focused camshafts & valvetrain product for Honda, Acura, Mitsubishi, and import racing applications. Review the listed fitment, specifications, and available options before ordering.

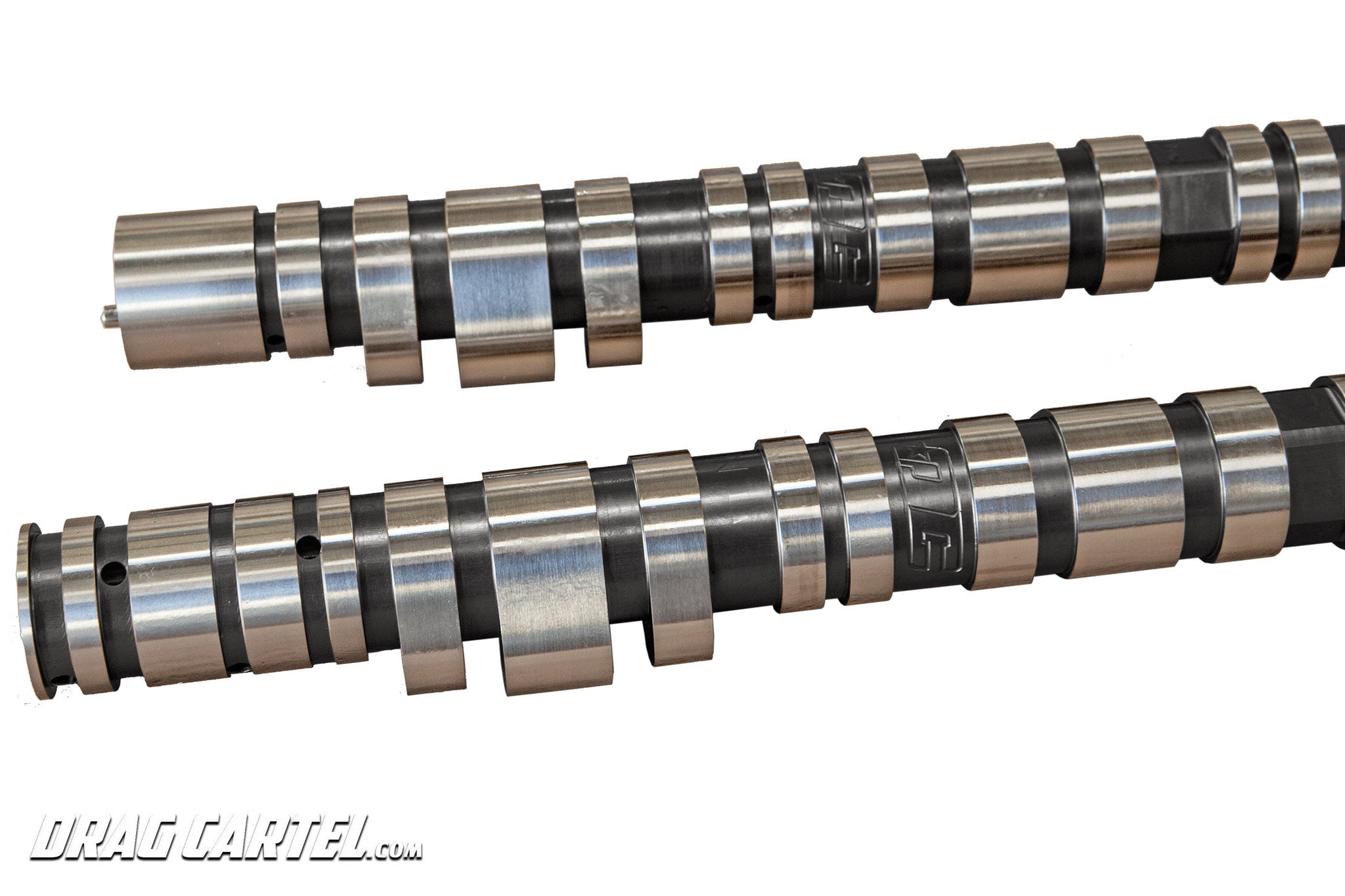

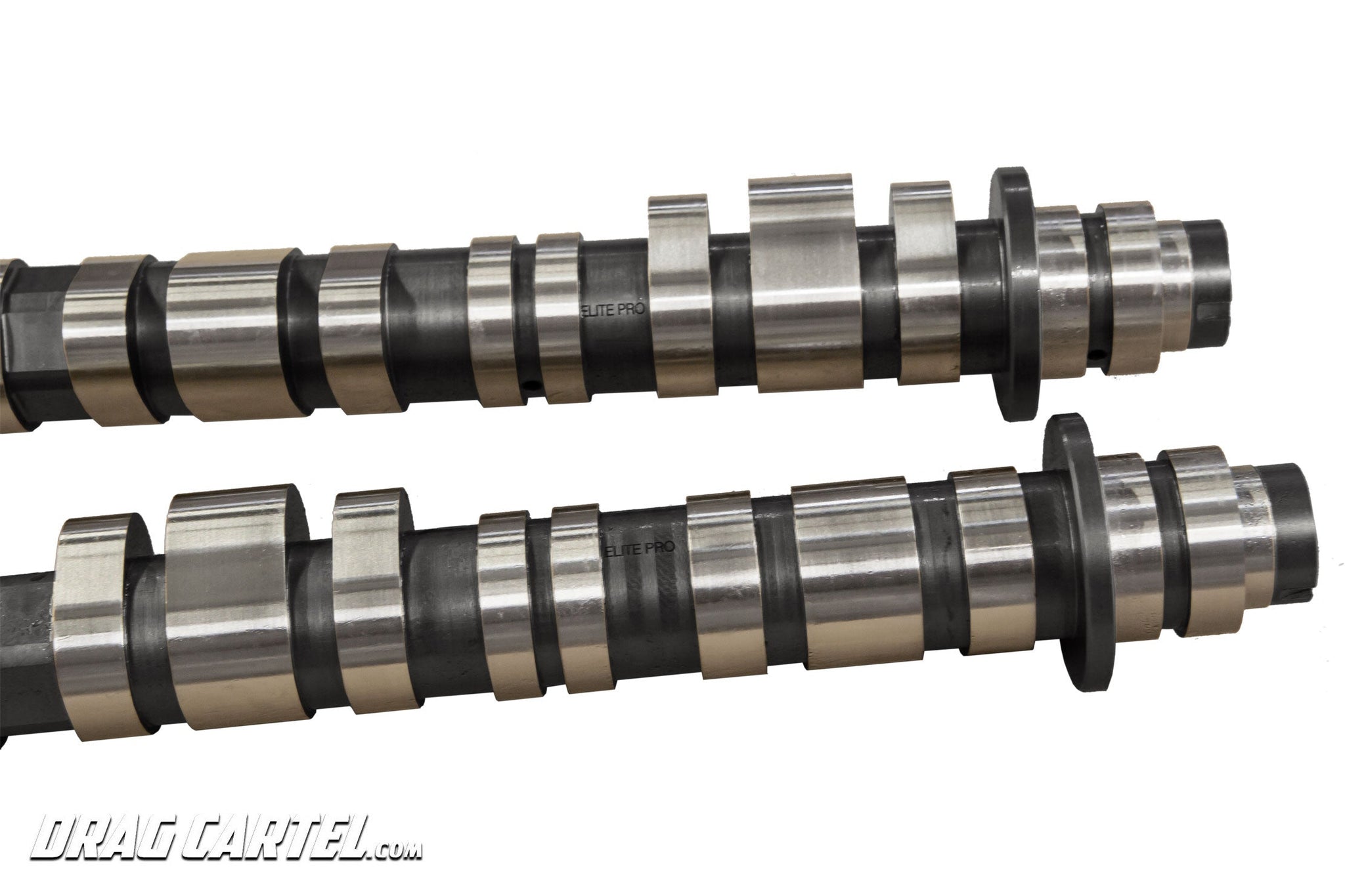

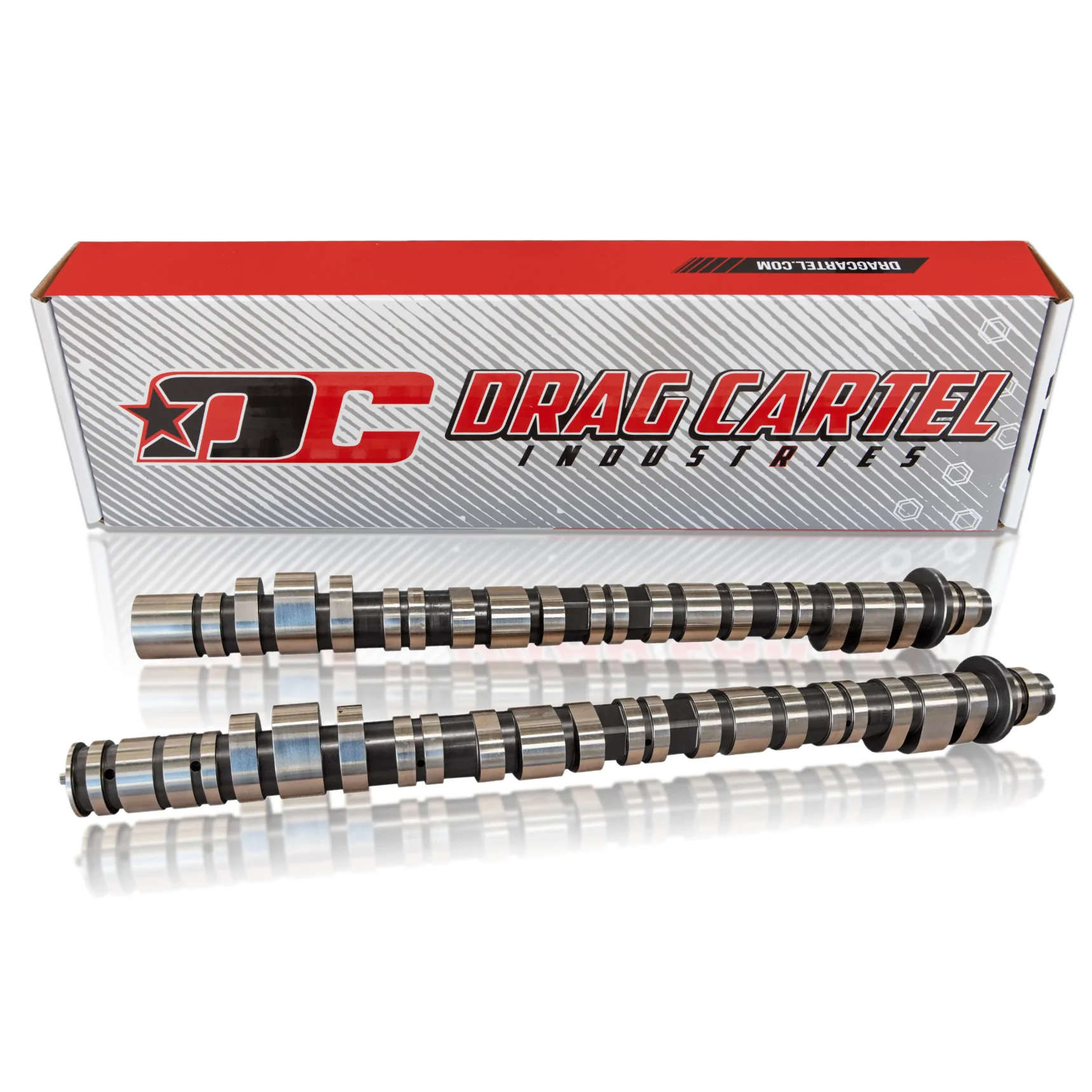

Drag Cartel 005 ELITE PRO K-Series Camshafts (3 Lobe)
Looking for the most aggressive, maximum-effort camshafts for your naturally aspirated Honda K-series race engine? The Drag Cartel 005 ELITE PRO Series Camshafts are at the absolute peak of 3-Lobe VTEC performance. Built specifically for the motorsports community, these cams are race-proven and track-tested to deliver unrivaled power and reliability at extreme RPMs.
Why Choose 005 ELITE PRO Tool Steel Cams?
The 005 ELITE PRO Series uses specialized Tool Steel and superior manufacturing to ensure maximum power gains and exceptional durability under the harshest racing conditions.
- Ultimate Rigidity: Constructed from ALL NEW Tool Steel Material, offering superior stiffness and stability compared to standard billet steel.
- Reduced Valve Float: The rigidity of Tool Steel minimizes cam deflection, effectively reducing valve float and ensuring stable valvetrain operation at extended high RPM ranges.
- Maximum Profile: These cams feature the most aggressive lift and duration in the 3-Lobe lineup, maximizing cylinder head airflow for peak horsepower.
- 3 Lobe Design: Retains the traditional VTEC functionality, giving you a full, potent power band for competitive racing.
Camshaft Specifications and Requirements
The 005 profile is highly aggressive and requires a fully upgraded valvetrain (springs, retainers, etc. – sold separately) for safe and optimal performance.
- Material: All-New Tool Steel Material
- Intake Lobe Specs:
Lift: 15.3 mm
Duration @ 0.050": 0.280"
- Exhaust Lobe Specs:
Lift: 14.7 mm
Duration @ 0.050": 0.277"
- Recommended Upgrade: An Adjustable Exhaust Cam Gear is highly recommended for precise tuning of valve overlap.
Installation Torque Specifications
Ensure precise and reliable installation by adhering to the following factory torque values:
- Intake Cam Gear Bolt: 83 lb-ft
- Exhaust Cam Gear Bolt: 51 lb-ft
- Pulse Plates: 29 lb-ft
Engine Compatibility and Fitment

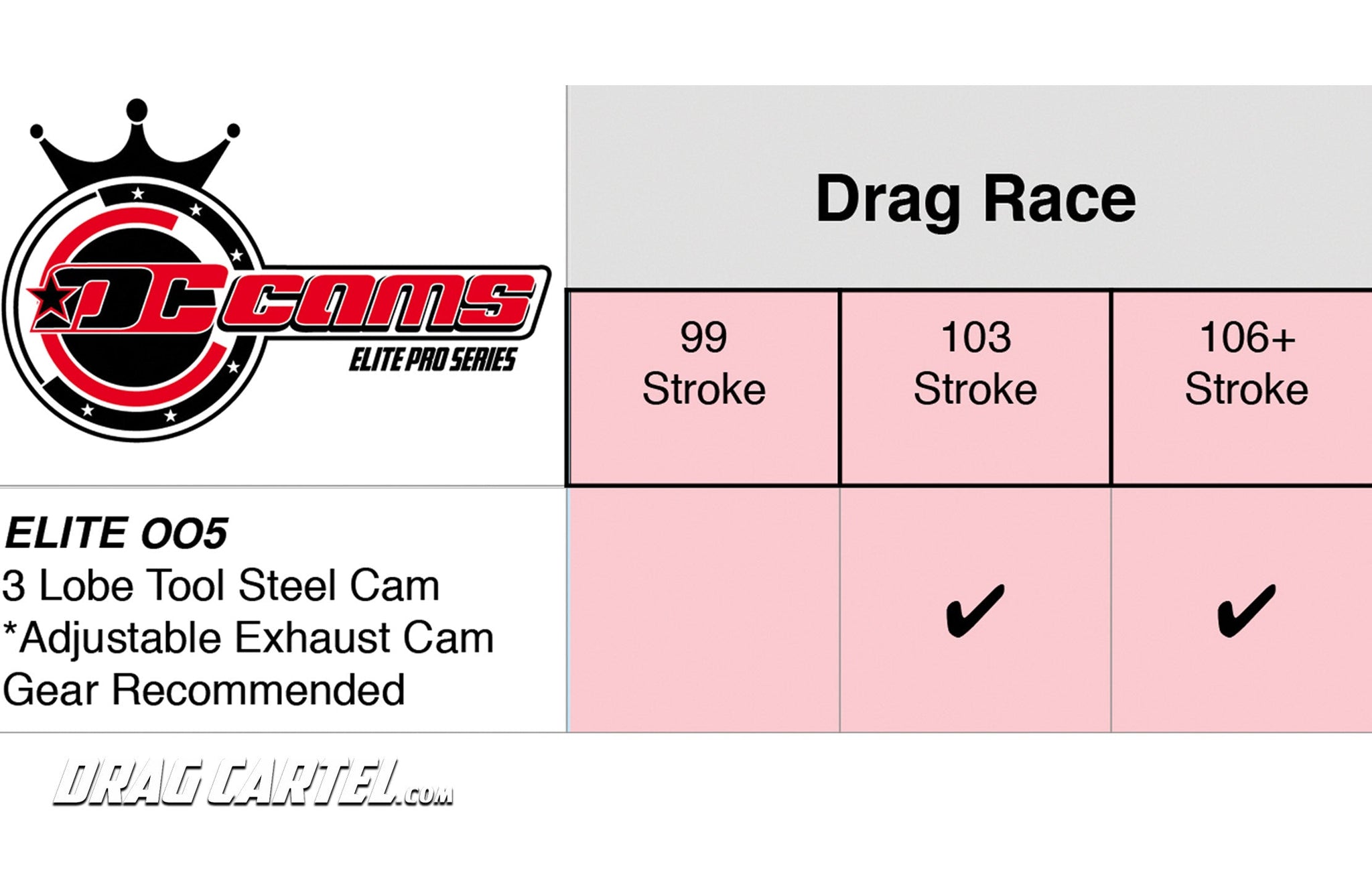

The ELITE PRO 005 Cams are compatible with many popular K-Series platforms used in high-performance builds.
