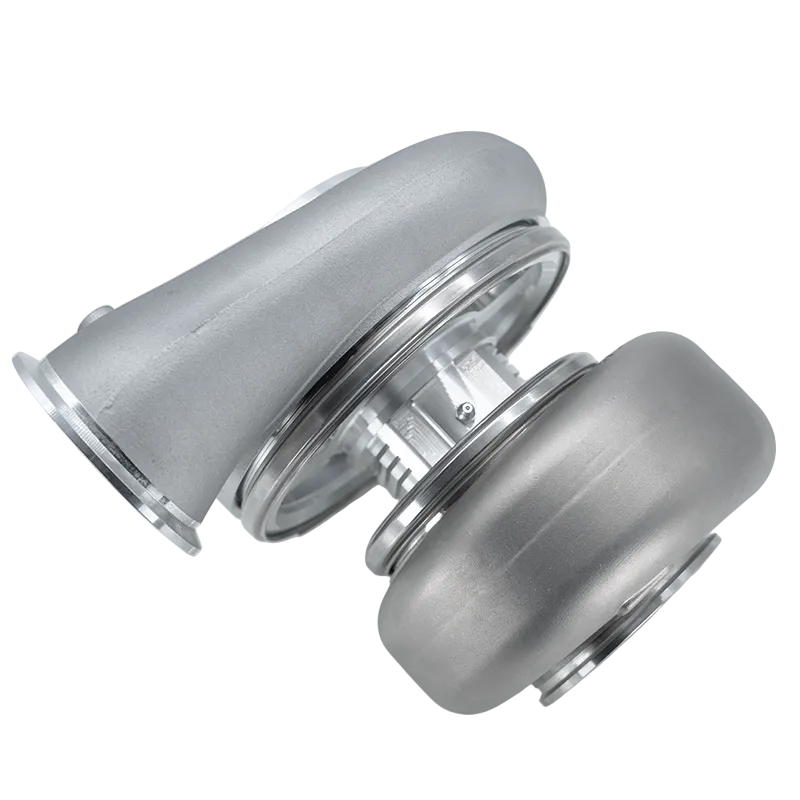

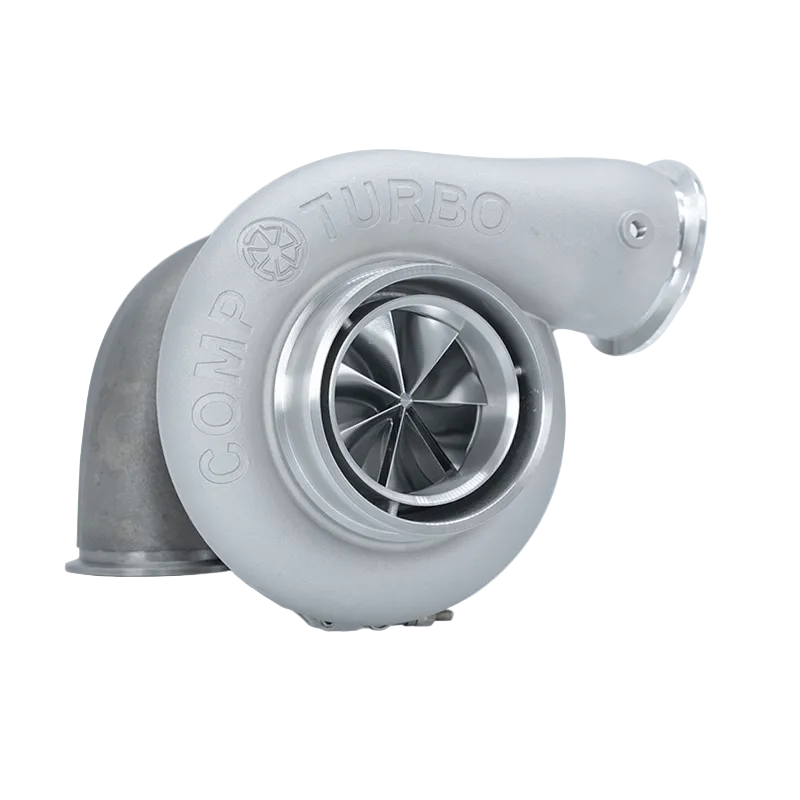

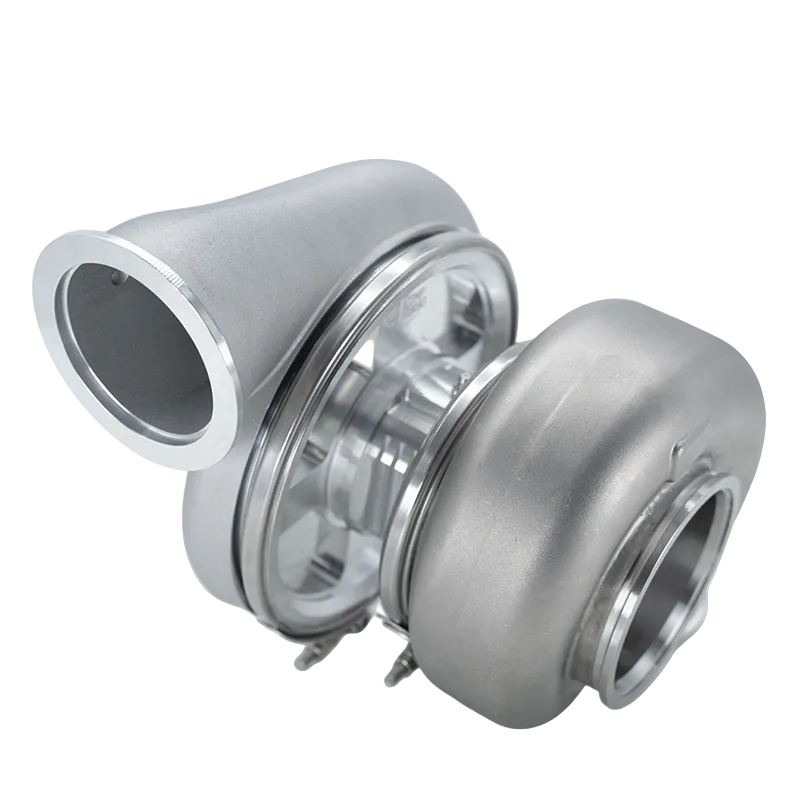

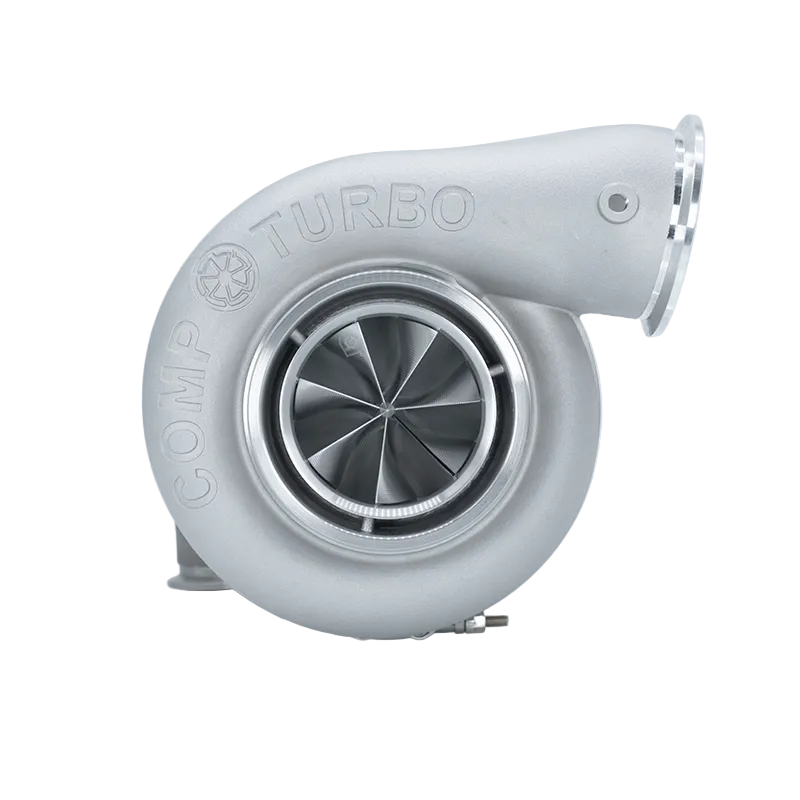

CT5RX-9298 2200HP Triplex Ceramic Oil-Less Air-Cooled Ball Bearing Super-Core

Reference: 539298-4

Product Description

The CT5RX 9298 2200HP Triplex Ceramic Oil-Less Air-Cooled Ball Bearing Turbocharger a game-changer in forced induction technology. Designed for high-performance street and strip applications, this turbo eliminates the need for oil and water lines, simplifying installation. The unit can be mounted from horizontal to vertical position.

Features

·        Patented Triplex Ceramic Oil-Less Air-Cooled System: Ensures ultra-smooth operation, faster spool times, and improved durability.

·        Oil-Less Air-Cooled- No Oil or water lines required

·        Engineered for High-Performance Applications, Suitable for Both Street and Track Use. Recommended installation engine bay 1/8-1/2 mile racing only. Street use recommended installation mid mount to remote mount turbo systems.

·        Lightweight Billet Aluminum Center Section

·        CTRX Billet Aluminum Ultra Slim Hub 7+7 Compressor Wheel 92MM

·       Inconel 713C High Flow 9 Bladed Turbine Wheel 98MM

·       Standard Rotation Configuration

·       Available in V-Band Inlet SS Turbine Housings

·       Fully Rebuildable & Upgradeable

·       Maintenance Grease Fitting

·       Horizontal & Vertical Installation

·       Weight: 30 LBS

Product Specifications

Min HP 800 - Max HP 2200

Min Displacement (L) 2.0 - Max Displacement (L) 8.0

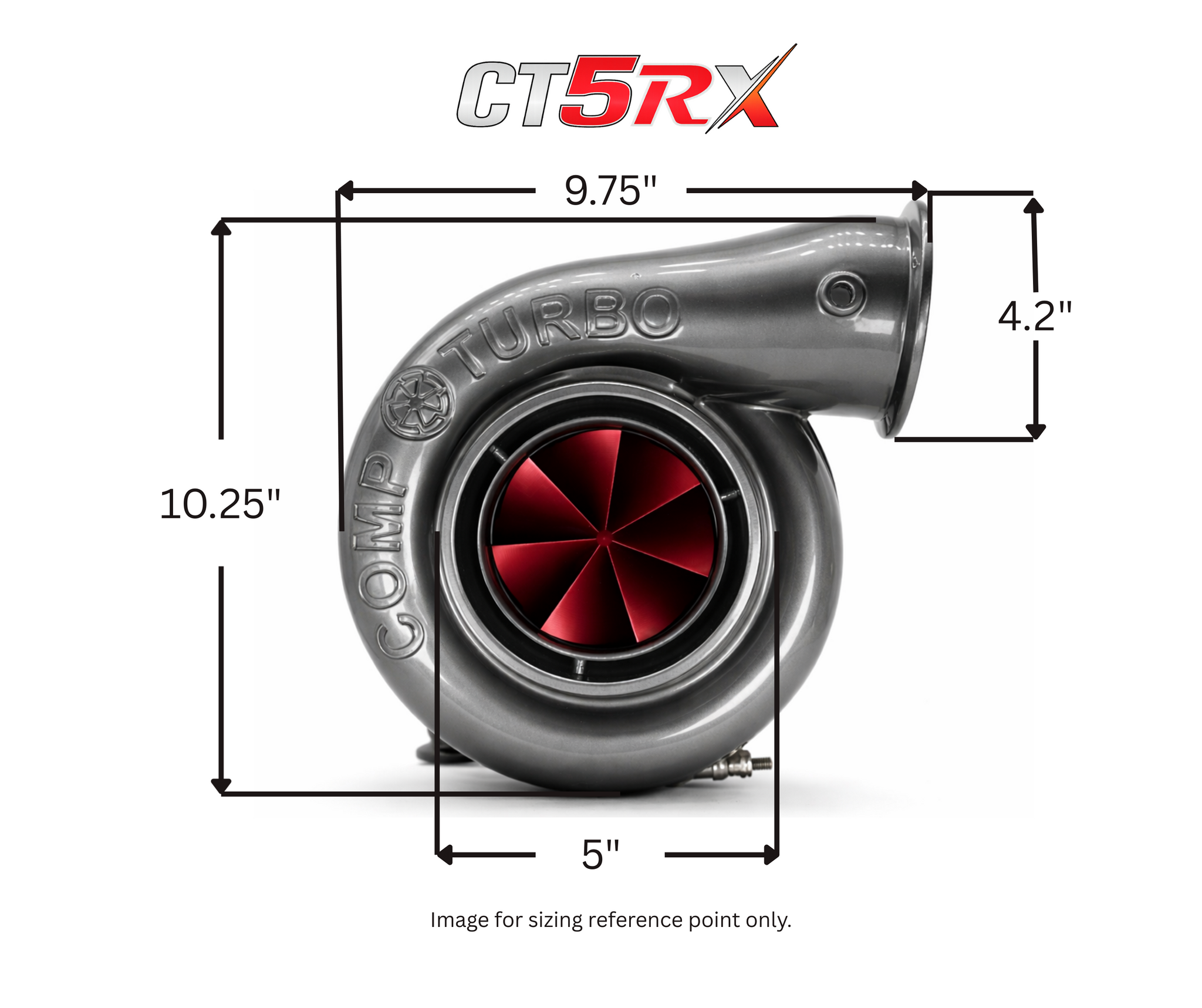

Compressor Housing Specs

Inlet 5” Outlet 3.5” A/R: .63

Pressure Port: 1/8 NPT

Compressor Wheel Specs

Compressor Inducer (mm) 92

Compressor Major (mm) 128

Turbine Wheel Specs

Turbine Inducer (mm) 108

Turbine Exducer (mm) 98

Recommended Service Interval

·       Comp Turbo recommends applying 8 pumps of grease every 3,000 miles under normal street use.

·       For extreme street use applications, apply 8 pumps of grease every 1,500 miles

·       For extreme drag race applications apply 8 pumps of grease prior to the race event.

2-Year Warranty on All Turbochargers

At Comp Turbo, we stand by the quality and performance of our turbochargers. That's why we're proud to offer a comprehensive 2-Year Warranty, ensuring your investment is protected and your peace of mind is secured.

What’s Covered?

·       Defects in materials and workmanship.

·       Repair or replacement of your turbocharger at no additional cost during the warranty period.

Why Choose Us?

·       Reliability You Can Trust: Each turbocharger is engineered to meet or exceed industry standards.

·       Customer-Centric Approach: Your satisfaction is our priority, and we’re here to support you every step of the way.

·       Hassle-Free Process: If something goes wrong, our warranty claims process is straightforward and transparent.

Warranty Terms

·       The warranty is valid for two years from the purchase date.

·       Applies to turbochargers used in accordance with proper maintenance and operation guidelines.

With our 2-Year Warranty, we’re making a statement: quality matters, and our customers deserve nothing less than the best.
