CT4R-6875 DYNAMIC 360° JOURNAL BEARING TURBOCHARGER (1150 HP)
SHIPPING - RETURNS - WARRANTY - CANCELLATION POLICY
*** Market Conditions after 2020 have changed the landscape of automotive parts. Although we try to stock 1000's of items in our multiple warehouse and use multiple distribution channels, having back-orders are unavoidable in today's market. If you are in need of a product quickly, we suggest email, message, or call us for availability so that we may explore your options.
Email: Sales@Speedzoneweb.com
Call: 407-846-8430
Text: 407-749-6314
Frequently Asked Questions
CT4R-6875 1150HP Dynamic Journal Bearing 360° Thrust Bearing Oil Lubricated
Reference: 426875-1
Product Description

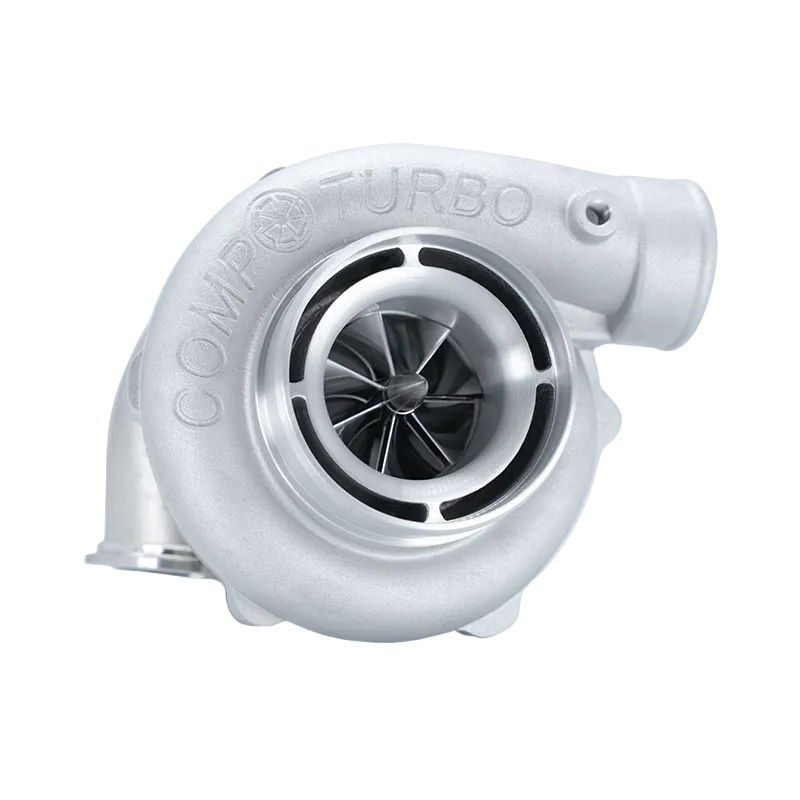

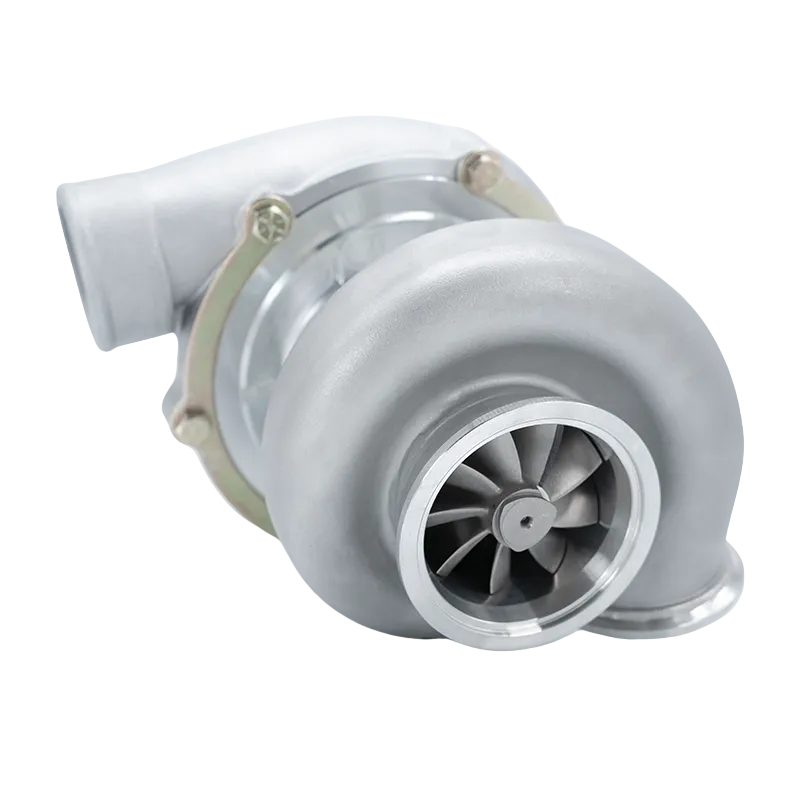

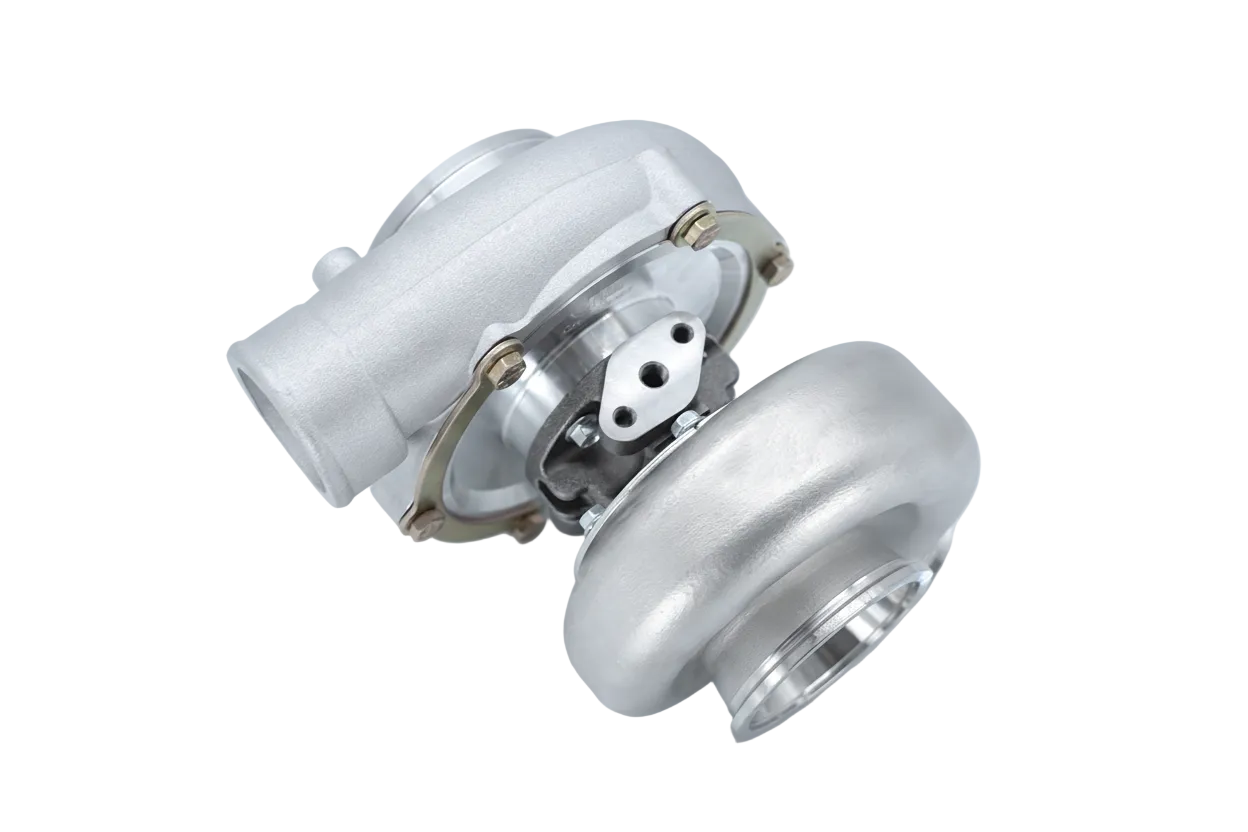

The CT4R-6875 Dynamic 360° Journal Bearing Turbocharger designed to support up to 1150HP, this turbo delivers exceptional boost response and durability, making it an ideal choice for street, track, and drag racing builds.
Features
· 360° Journal Bearing System- Durable and cost-effective performance
· Engineered for High-Performance Applications, Suitable for Both Street and Track Use.
· CTR Billet Aluminum 7+7 Extended Tip Compressor Wheel 68MM
· Inconel 713C High Flow 10 Bladed Turbine Wheel 75MM
· Titanium Bullet Nose Nut
· Fully Rebuildable & Upgradeable
· Weight: 18 LBS
Product Specifications
Min HP 550 - Max HP 1150
Min Displacement (L) 2.0 - Max Displacement (L) 4.0

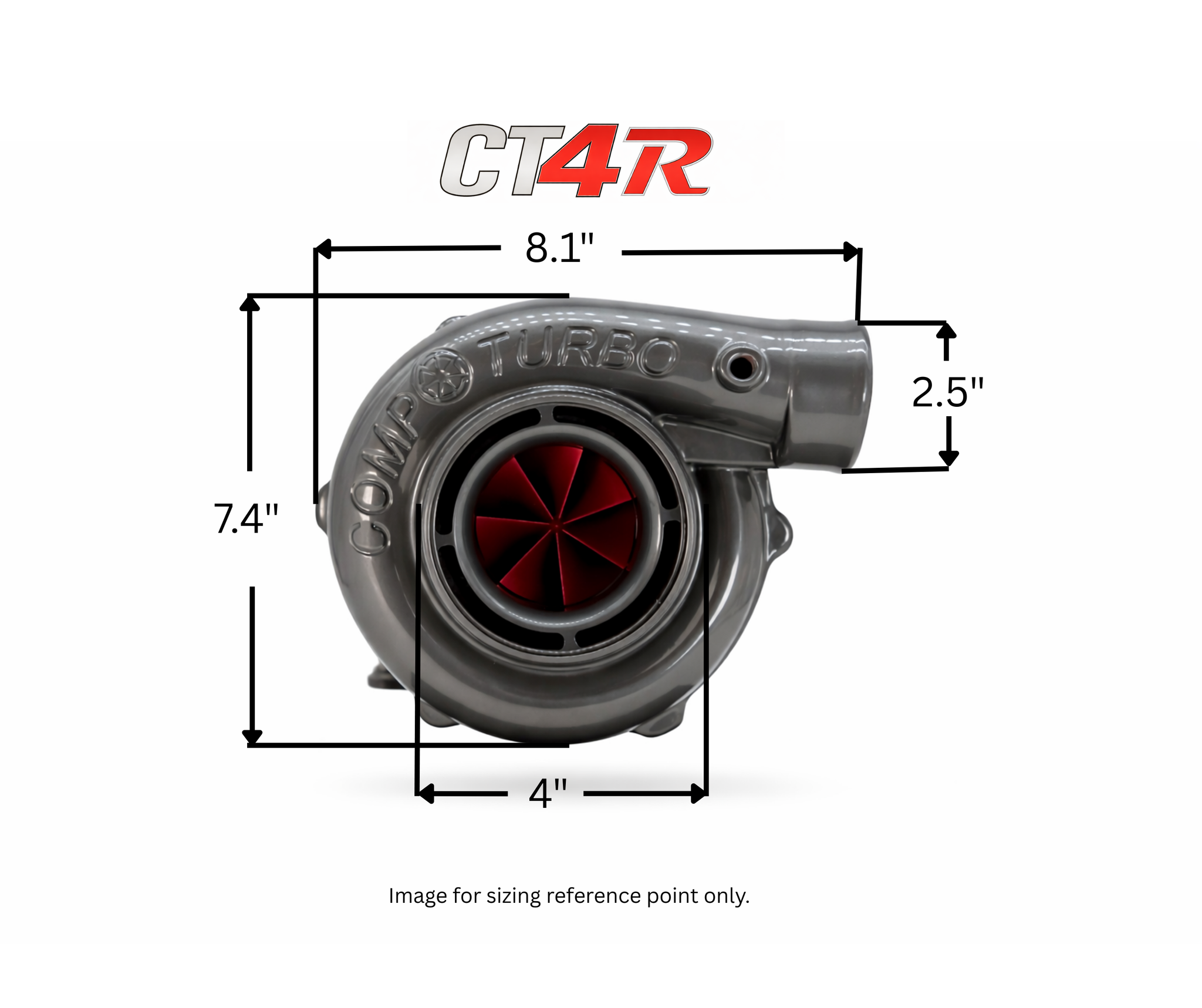

Compressor Housing Specs
Inlet 4” - Outlet 2.5” A/R: .70
Pressure Port: 1/8 NPT

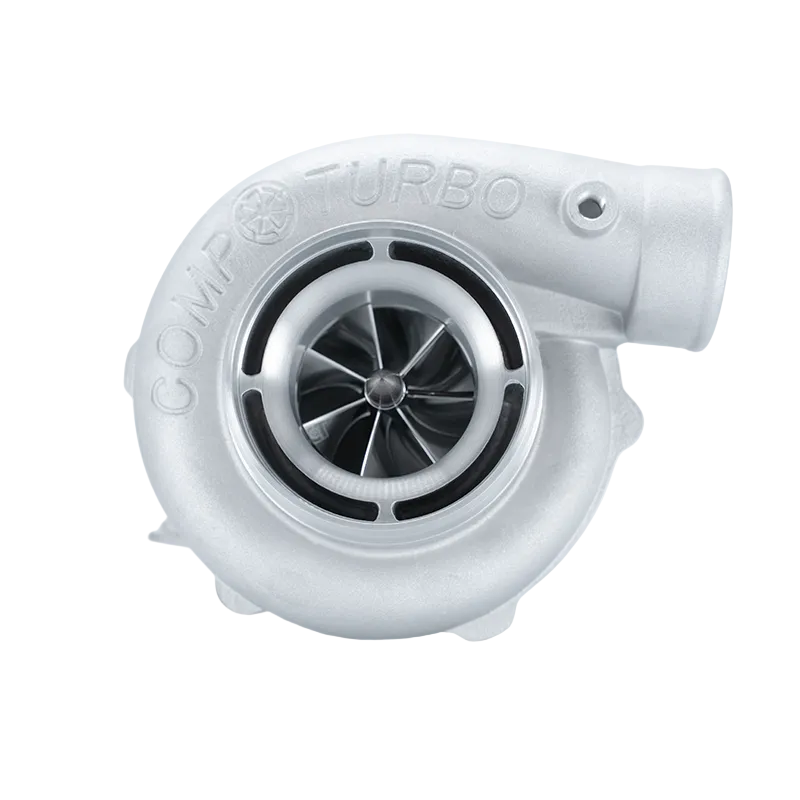

Compressor Wheel Specs
Compressor Inducer (mm) 68
Compressor Major (mm) 93
Bearing Housing Threads
Oil Feed 1/8 NPT Female
Oil Drain Flange Threads 8MM x 1.25
Turbine Wheel Specs
Turbine Inducer (mm) 76
Turbine Exducer (mm) 75
Built to Order Notice
All Comp Turbos are built to order. Standard production time is typically 2–3 weeks.
If you require a rush order, please note it in the “Order Notes” section at checkout.
Once received, our customer service team will contact you within 24 hours to confirm your request and advise on the expected ship date.
At Comp Turbo, customer service is our top priority, we will do our absolute best to ensure you receive your turbocharger within your required timeframe.
