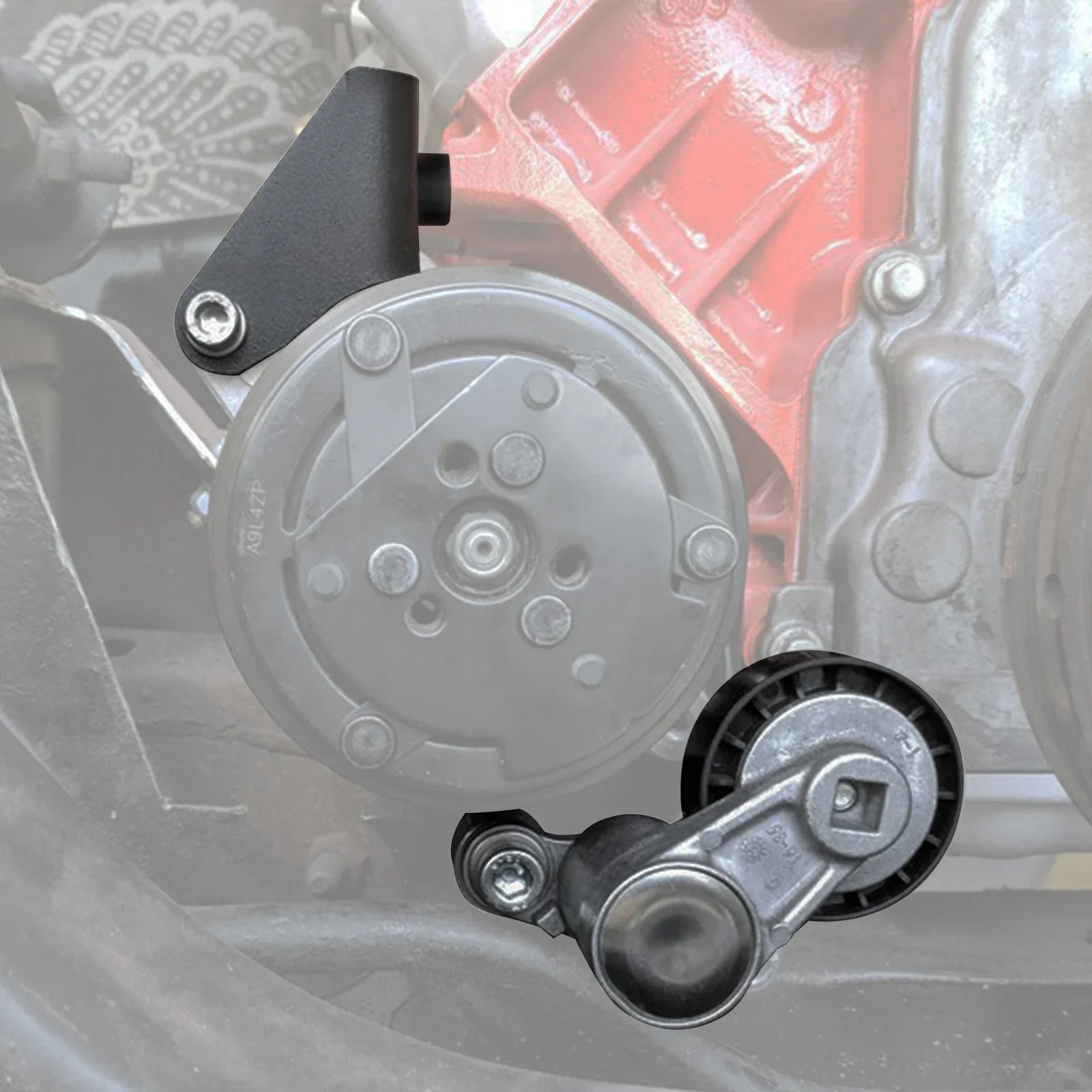

Mount a compact Sanden SD7B10 / 7176 mini A/C compressor in the optimal low passenger-side position on your LS Gen 3 or Gen 4 engine with this premium powder-coated steel bracket kit, engineered specifically for LS swap and custom build applications. Factory LS A/C compressors are large, awkwardly positioned, and frequently interfere with frame rails, headers, or motor mounts during LS swap installations into non-original chassis — making A/C deletion the default for many builders despite the loss of cabin comfort. This low-mount bracket kit solves the problem by relocating the much smaller Sanden SD7B10 mini compressor to the lower passenger side of the engine, providing improved frame and beam clearance while restoring full A/C functionality to your LS-powered build. The complete kit includes brackets, automatic spring-loaded belt tensioner, mounting hardware, and instructions for a comprehensive installation solution.

Features:

• Low-mount passenger side design – relocates the compact Sanden SD7B10 / 7176 mini compressor below the factory LS compressor location for improved clearance
• Excellent frame and beam clearance – the lower mounting position provides significant clearance advantages over the bulky factory compressor location, particularly valuable for LS swap installations

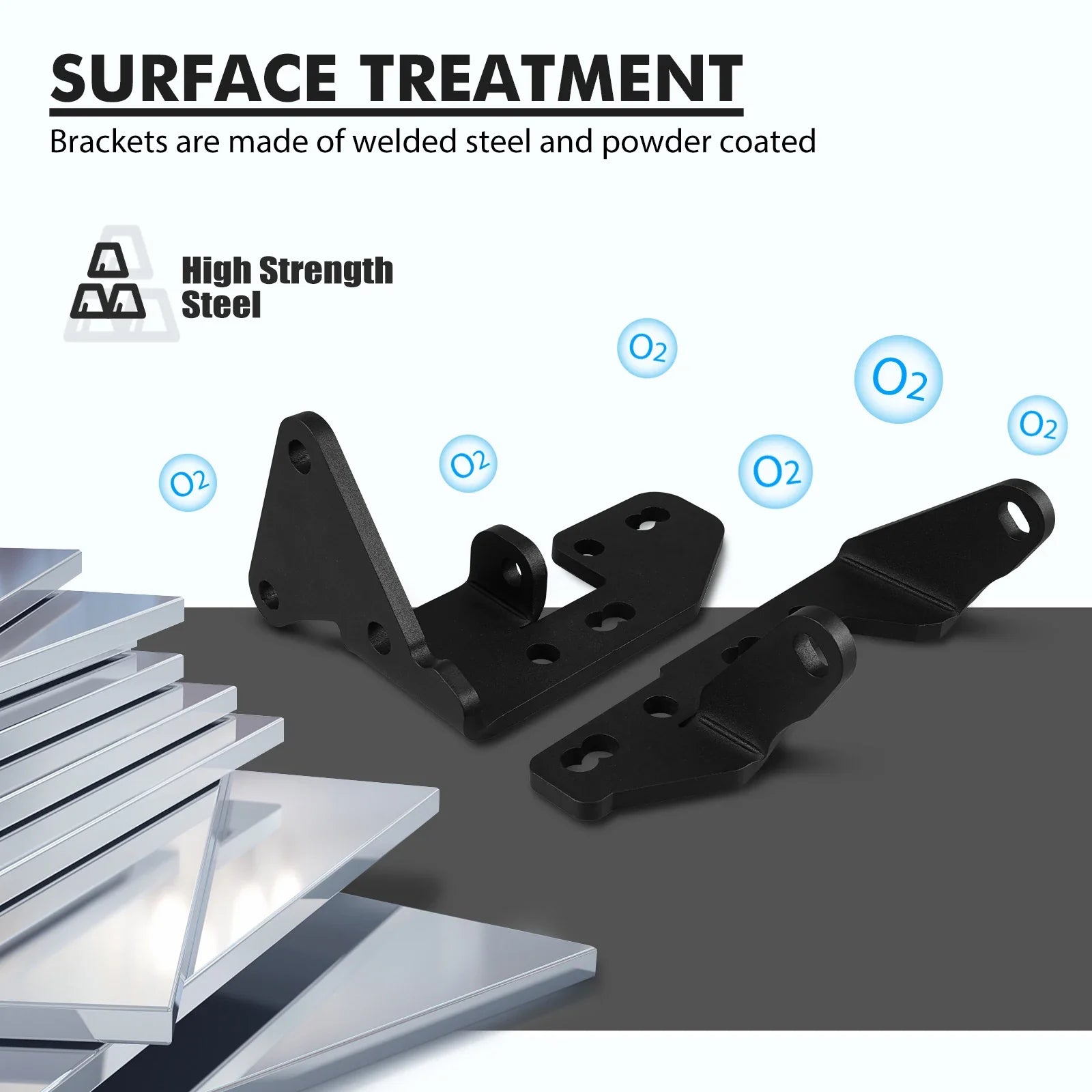

• Premium welded steel construction – delivers exceptional strength and durability for sustained engine bay vibration and heat exposure
• Powder-coated surface finish – delivers superior corrosion resistance and a clean professional aesthetic for long-term engine bay use
• Complete installation kit – includes brackets, automatic spring-loaded belt tensioner, mounting hardware, and instructions for full installation

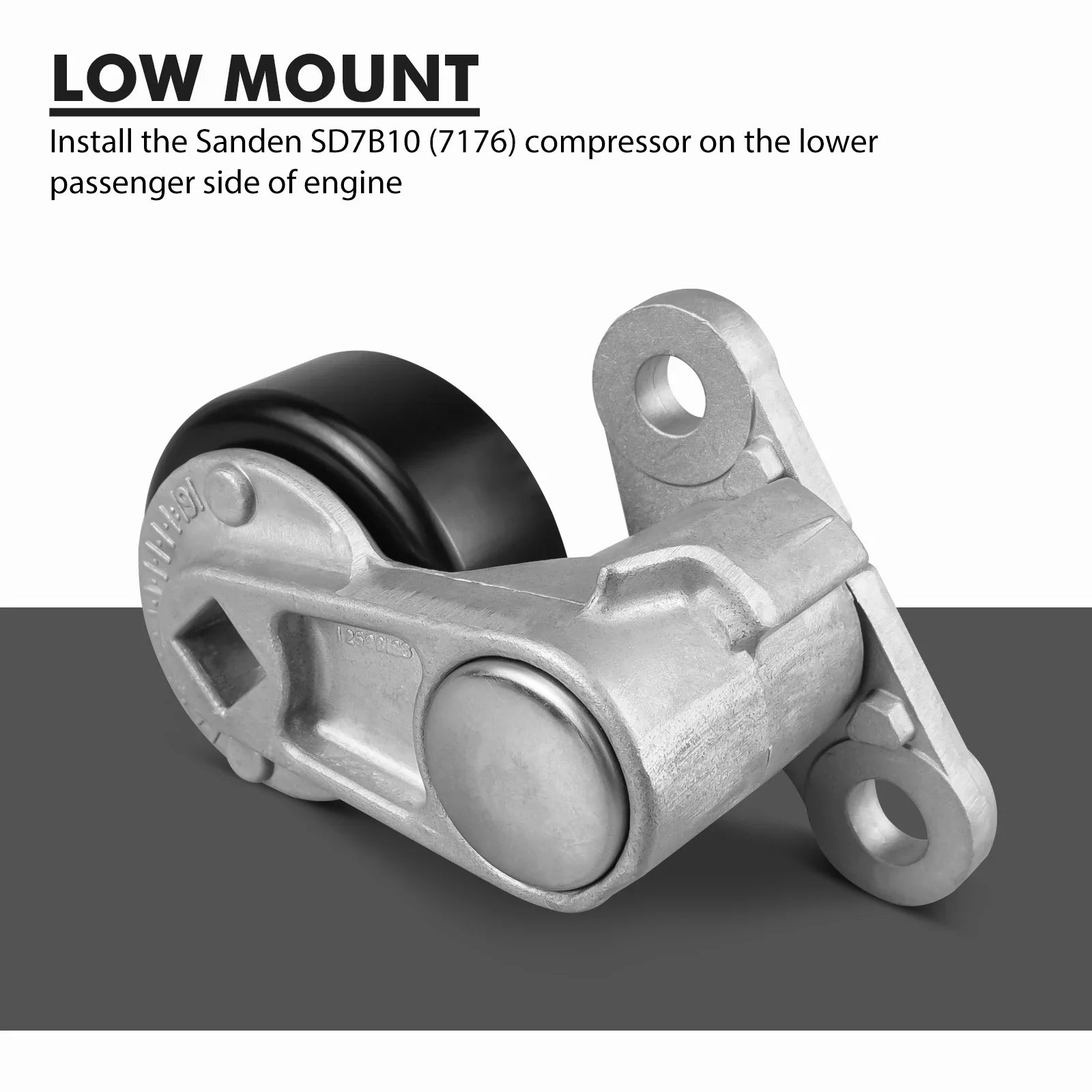

• Spring-loaded automatic belt tensioner – maintains correct belt tension throughout engine RPM range without manual adjustment
• Compatible with factory LS alternator/power steering bracket – preserves existing accessory drive components alongside the new A/C bracket

Specifications:

• Condition: 100% Brand New
• Type: Passenger Side Low Mount A/C Compressor Bracket Kit
• Material: High Strength Welded Steel
• Surface Finish: Powder Coated
• Compressor Compatibility: Sanden SD7B10 / 7176 Mini Compressor
• Belt Specification: 37.125" Length (K040365)
• Belt Tensioner: Automatic Spring-Loaded
• Position: Passenger Side, Low Mount
• Purpose: LS Swap A/C Compressor Relocation / Performance Build

Fitment:

Critical fitment requirements – verify your engine, harmonic balancer, and water pump configuration before ordering:

• GM LS Gen 3 or Gen 4 engines with Truck/SUV harmonic balancers and water pumps (1999 – 2013)
• GM LS Gen 5 Camaro harmonic balancers and water pumps (2010 – 2015)
• LS Truck / SUV Engine applications (1999 – 2013)
• Use with factory alternator and power steering bracket
• Will NOT fit factory-style LS vehicle A/C compressors – designed exclusively for the smaller Sanden SD7B10 / 7176 mini compressor
• May not be compatible with Gen 1 or Gen 2 Camaro engine mounts – particularly slotted or adjustable mount styles
• Confirm engine generation, harmonic balancer type, water pump style, and motor mount configuration before ordering

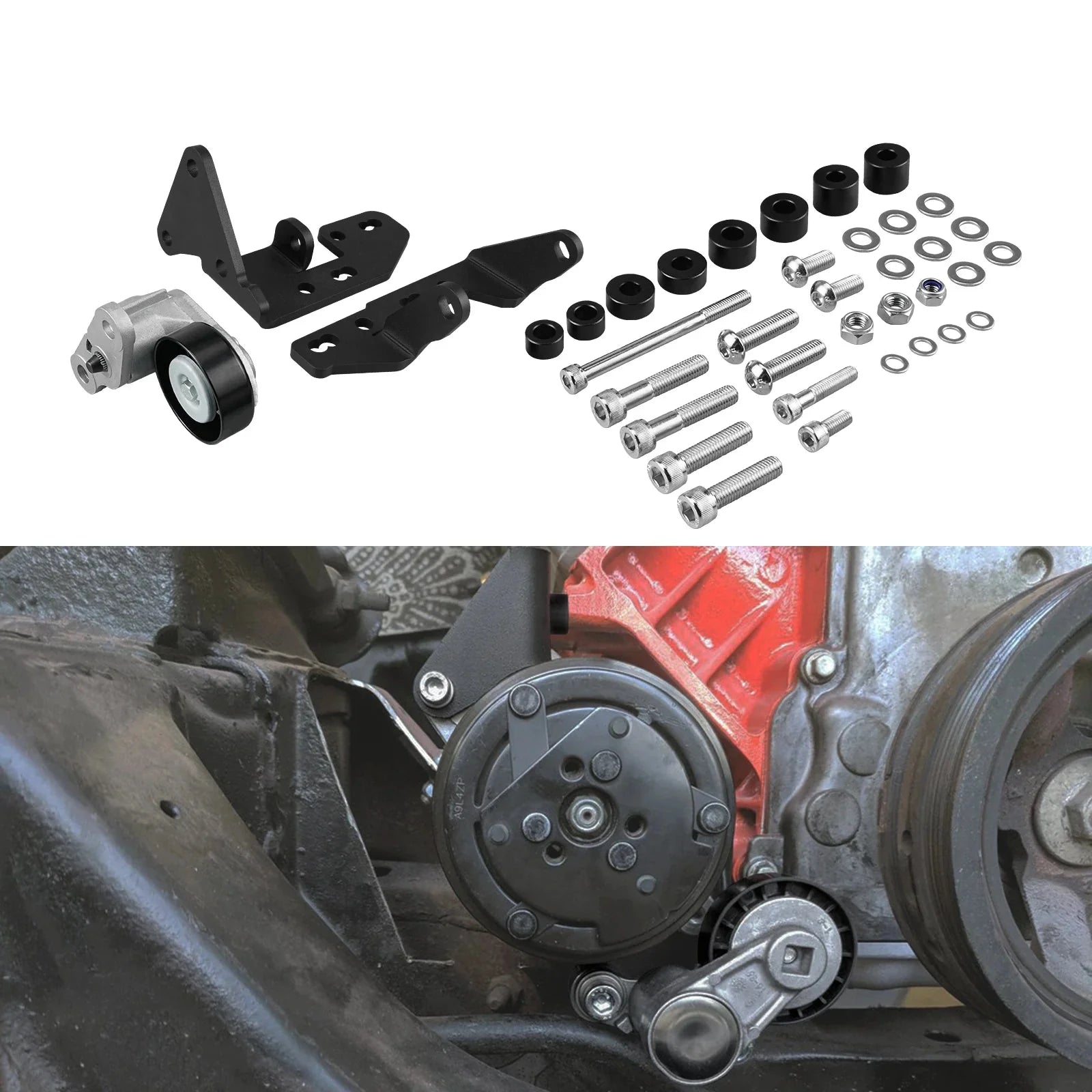

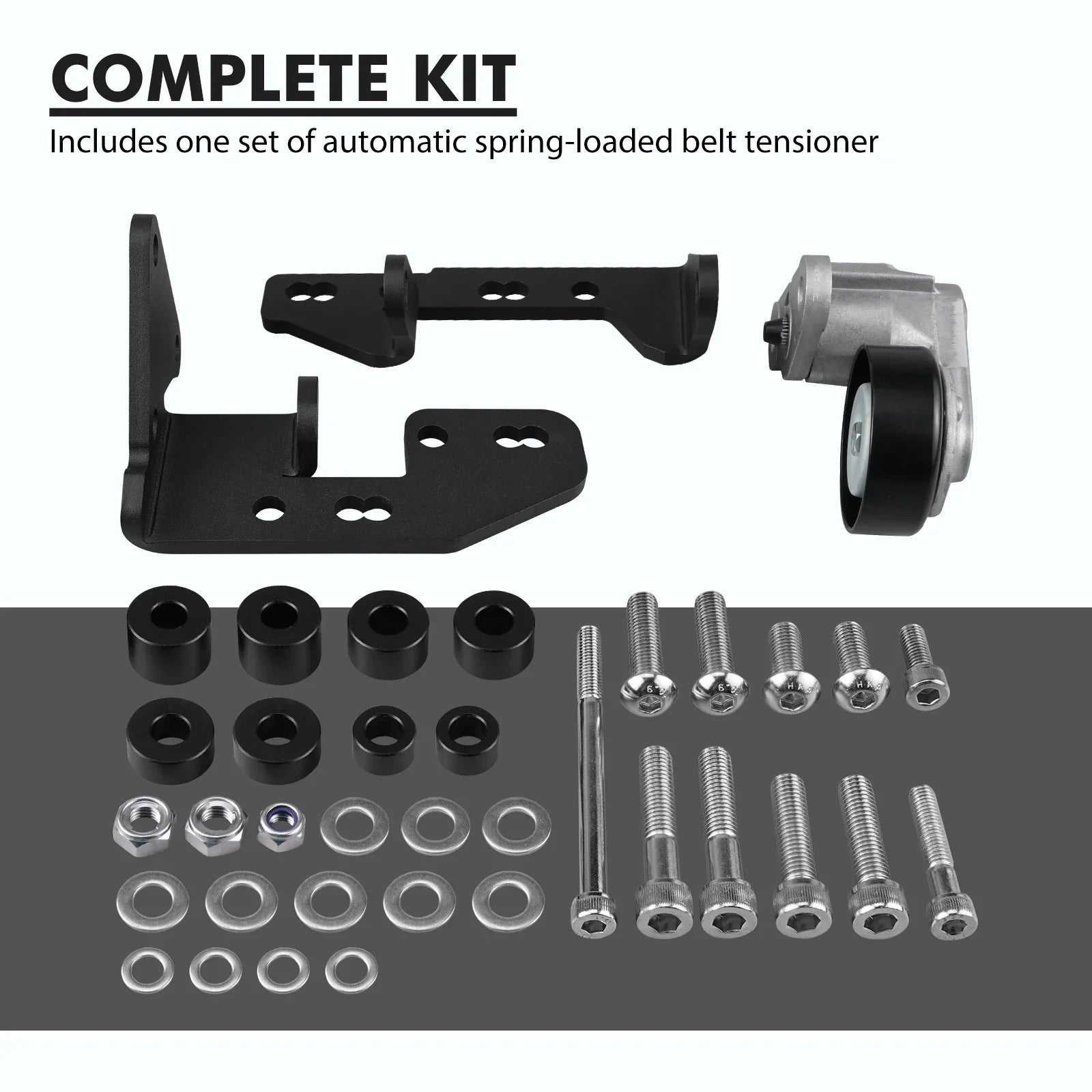

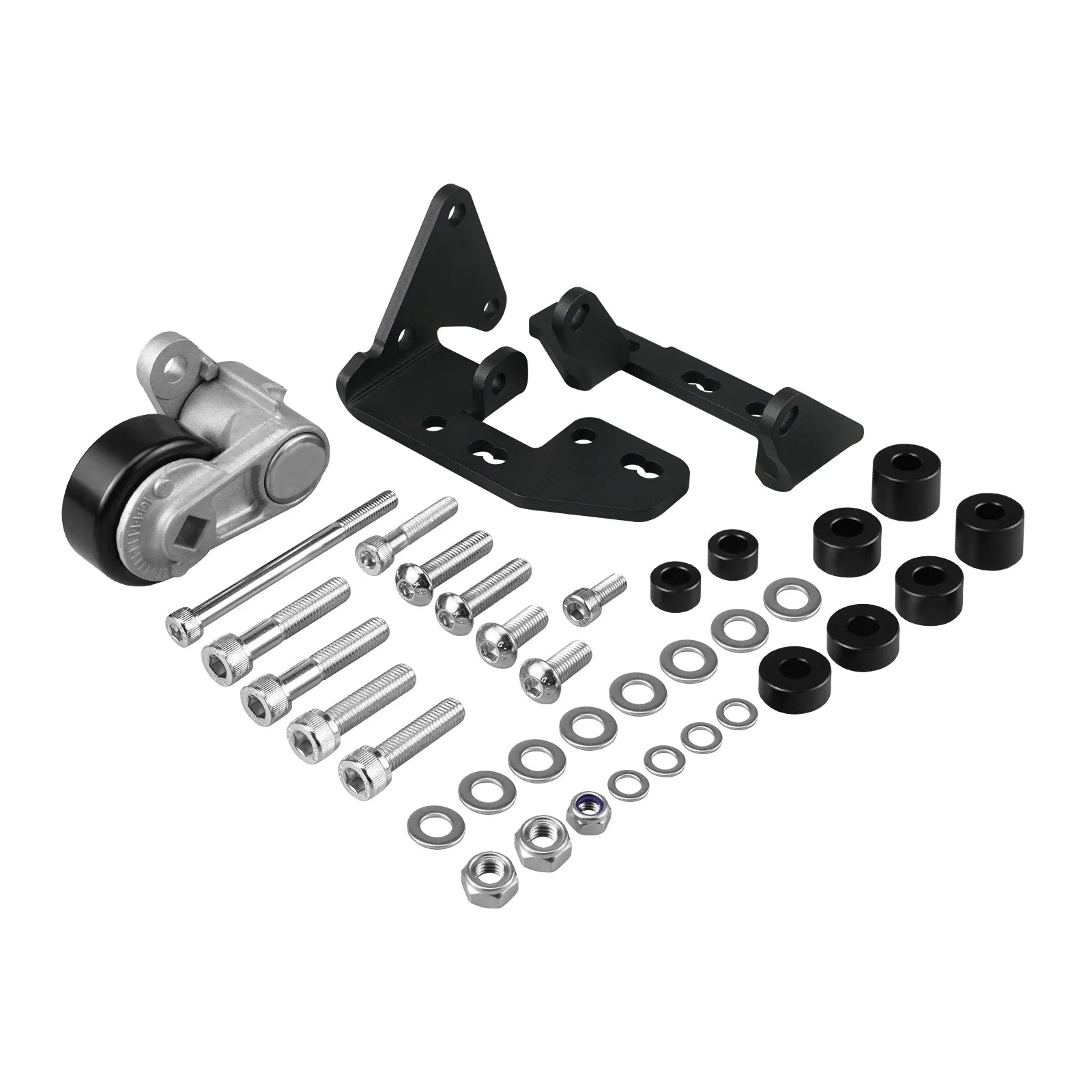

Contents:

• Welded Steel A/C Compressor Brackets
• Automatic Spring-Loaded Belt Tensioner
• Mounting Hardware
• Installation Instructions
• Note: A/C Compressor NOT included – source the Sanden SD7B10 / 7176 mini compressor separately

Benefits:

• Restores A/C functionality to LS swap builds where factory compressor placement creates clearance problems – a common reason builders default to A/C deletion despite preferring to retain cabin cooling

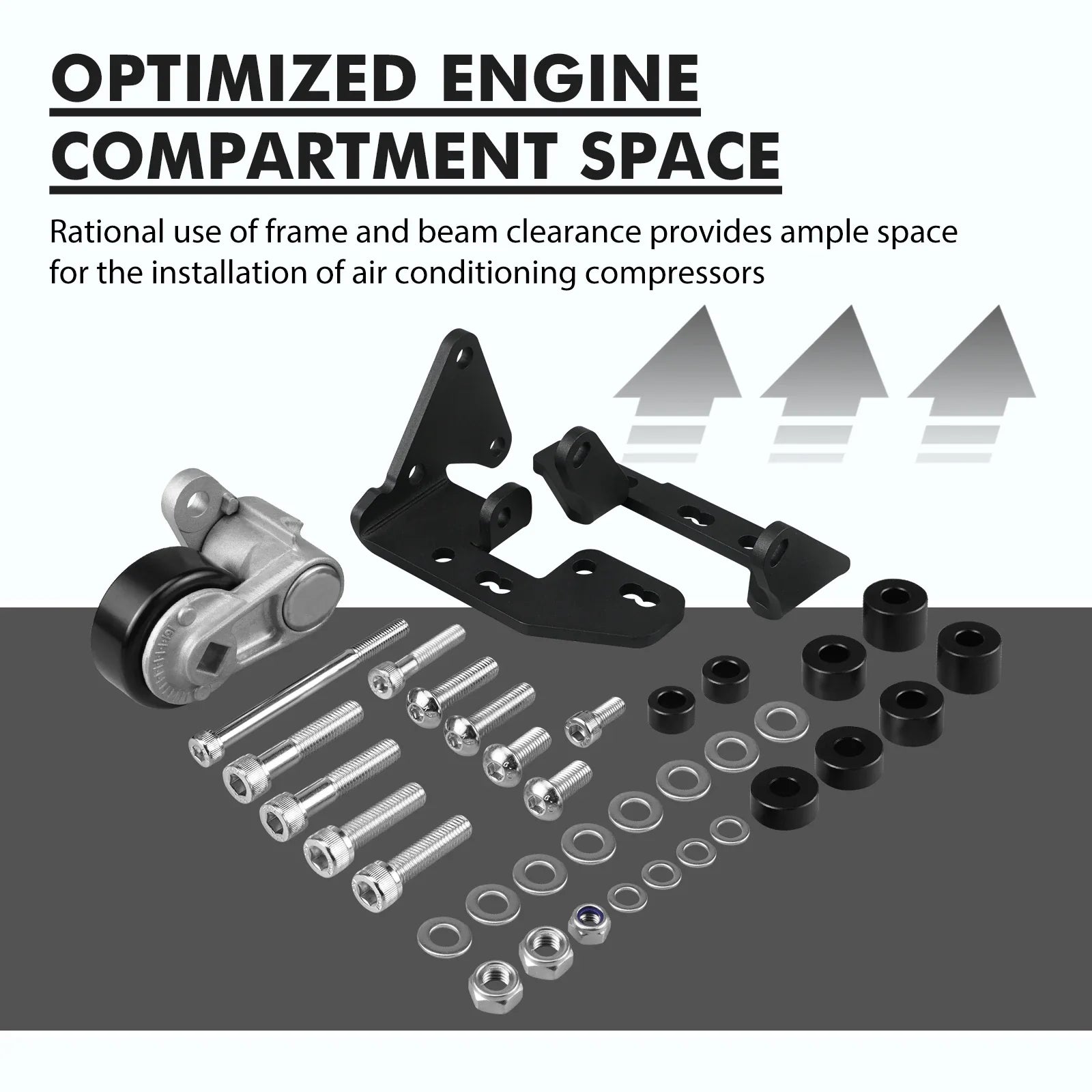

• Significantly improved frame, beam, and motor mount clearance compared to factory LS compressor positioning – critical for engine bay packaging in non-original chassis swaps
• Compact Sanden SD7B10 / 7176 compressor is widely available, affordable, and proven in countless LS swap applications – using a known-good compressor specification simplifies sourcing and replacement
• Welded steel construction with powder coating delivers proven durability for sustained engine bay vibration, heat exposure, and weather conditions
• Automatic spring-loaded tensioner eliminates manual belt tension adjustment – self-correcting for belt wear and stretching over service intervals
• Compatible with factory LS accessory drive bracket retains existing alternator and power steering installations – minimizing additional component sourcing requirements
• Significant cost savings compared to high-end LS swap accessory drive systems while delivering proven functionality for the typical LS swap application
• Foundation product for complete LS swap accessory packaging alongside compatible alternator and power steering brackets

Installation Notes:

• Compressor sourcing required: This kit does NOT include the A/C compressor itself. Source the Sanden SD7B10 / 7176 mini compressor separately before installation – widely available from automotive parts suppliers and aftermarket compressor specialists
• Belt sizing: Use a 37.125" length serpentine belt (Gates K040365 or equivalent) for proper tension and routing
• Engine generation verification: Confirm your engine is LS Gen 3 or Gen 4 with Truck/SUV-style harmonic balancer and water pump configuration before ordering
• Camaro engine mount compatibility: If your build uses Gen 1 or Gen 2 Camaro engine mounts (particularly slotted or adjustable style), verify clearance with the bracket geometry before ordering – some mount styles may interfere with bracket positioning
• Allow the engine to fully cool before beginning bracket installation to avoid burns from hot engine components
• Plan complete accessory drive routing including alternator, power steering, and A/C compressor before mounting any components – verify belt path clearance and tensioner alignment
• Use the included mounting hardware – do not substitute with bolts of incorrect grade or thread pitch
• Tighten all mounting hardware to factory torque specifications using a calibrated torque wrench
• Verify proper belt tension after engine startup and during initial driving – the spring-loaded tensioner will self-adjust but should be inspected for proper operation
• Inspect compressor clutch operation and refrigerant connections before charging the A/C system
• Refer to included installation instructions for complete assembly procedure and torque specifications
• Professional installation strongly recommended unless you have experience with LS swap fabrication and accessory drive system assembly
• If unsure about compatibility with your specific LS engine variant, harmonic balancer, water pump, or chassis configuration, contact our team with your engine generation, balancer type, water pump style, and motor mount configuration before ordering

Warranty:

• 12-month standard warranty from date of purchase
• Contact our support team for assistance with any issues
