Introducing our new Charge Pipe Injectors (CPI) to add additional injectors to your intake system.

Available Options:

-550cc Replacement Injector (CPI specific Injector Only)

-950cc Replacement Injector (CPI specific Injector Only)

-1500cc Replacement Injector (CPI specific Injector Only)

-550cc Injector with Single Feed Adapter

-950cc Injector with Single Feed Adapter

-1500cc Injector with Single Feed Adapter

-550cc Injector with Dual Feed Adapter

-950cc Injector with Dual Feed Adapter

-1500cc Injector with Dual Feed Adapter

-Single Feed Adapter only

-Dual Feed Adapter only

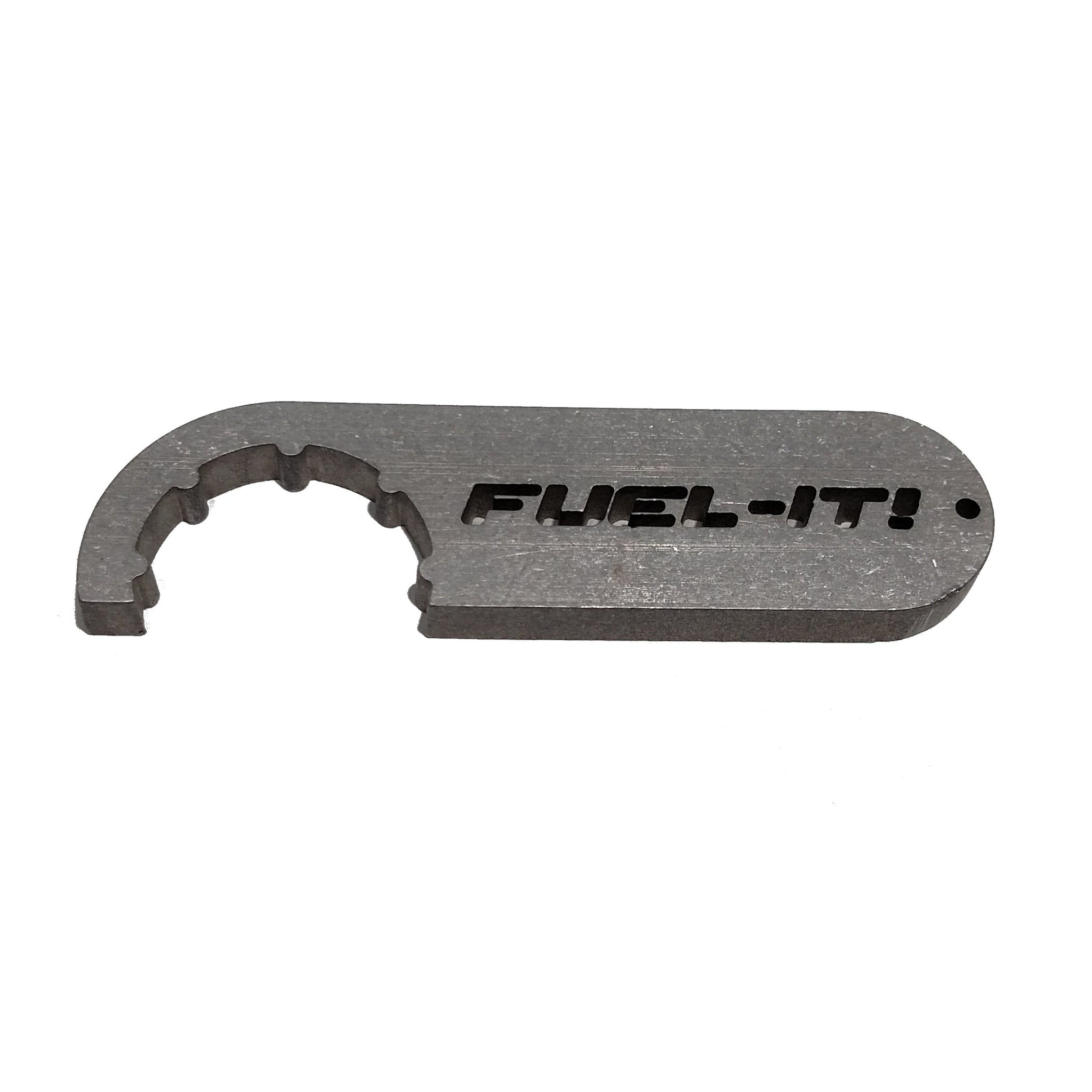

-Installation tool only

*Note: CPI adapters utilize special injectors that are not compatible with our port injection kits and standard injectors are NOT compatible with CPI adapters.

Other available CPI accessories:

-Fuel lines

-Adapters

-Wiring harnesses

-Fittings

CLICK HERE FOR ACCESSORIES

CLICK HERE FOR STARTER KIT

Q: What is CPI?

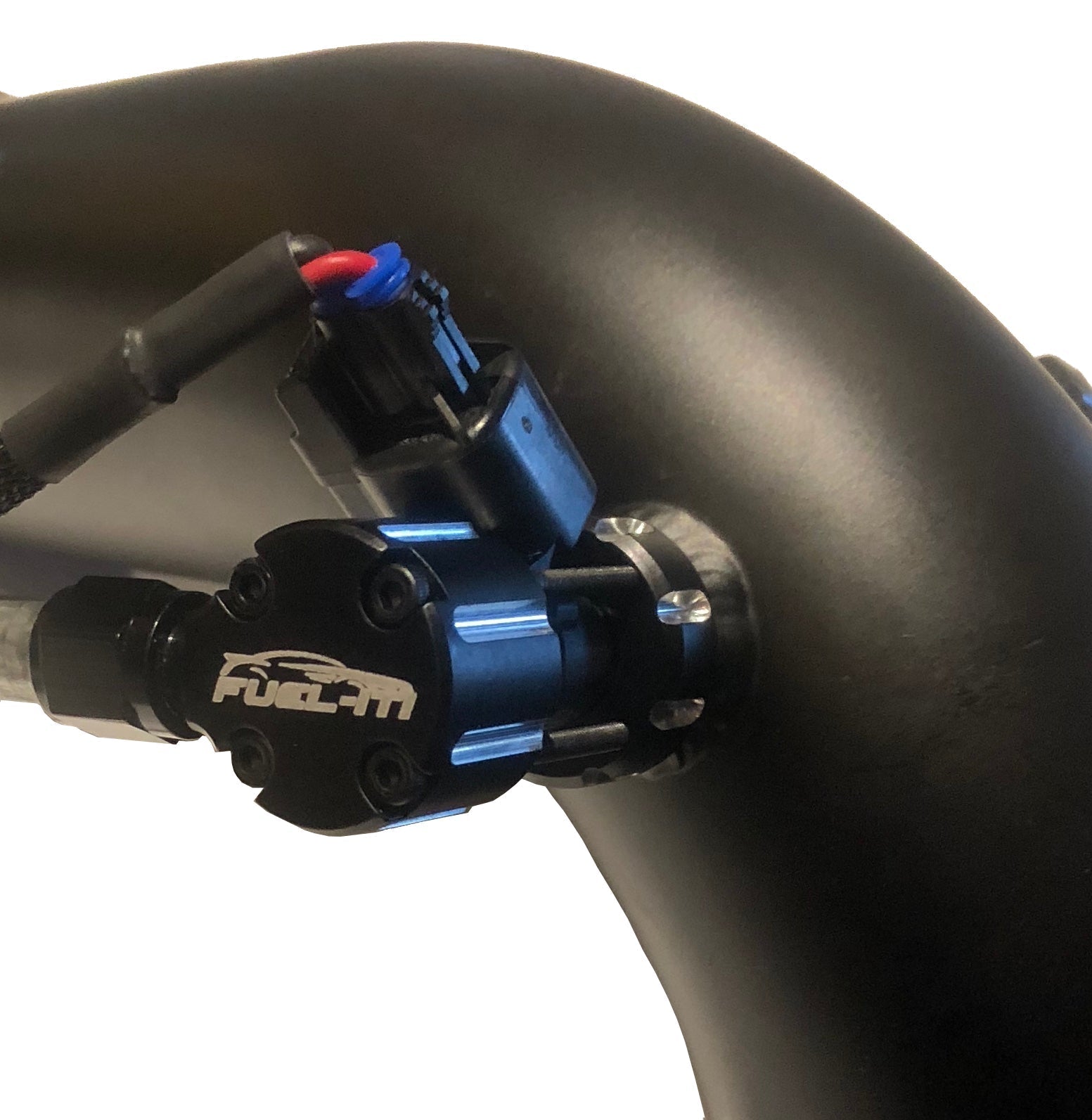

A: Charge Pipe Injection (CPI) is our new proprietary system that allows you to add additional injectors to your boosted application with any standard 1/8" NPT female connection in your charge pipe or intake system.

Q: Is it expandable?

A: Yes, we have two types of injector bodies. The first has one input that can be run by itself or we have an injector body with two connections so you can daisy chain in additional injector fed from the same fuel source.

Q: What is required to run one of these injectors?

A: These kits are for boosted applications and you must have enough clearance to install the injector and fuel lines. We have provided measurements to assist you with this.

Q: How is it controlled?

A: You must use a port injection controller, You can run a stand alone controller or if running a JB4, you can use the BMS port injector controller or FSB.

Q: Can I add an injector to my current port injection kit?

A: Yes, you can connect the injector to the fuel rail if it has an available port such as the Fuel-It! port injection kits do.

Q: Can I use this without a secondary injector controller?

A: No, this is a PWM controlled injector that must be programmed.

Q: What kind of fuel can I run?

A: These kits are compatible with methanol, ethanol, E85, race gas, and pump gas.

Q: Where do I connect to the fuel source?

A: That will vary by application. If running E85, most will tee into their low-pressure fuel line and if compatible use one of our fuel line adapters.

Q: Can these be used pre-intercooler?

A: Yes but we recommend using the 550cc injector and in an application where air temperatures are above 300 degrees Fahrenheit we recommend running methanol or high concentrations of ethanol in your fuel.

Q: Are there different sizes of injectors available?

A: Yes, we currently offer 550cc and 950cc injectors.

Q: Is everything included to run the injector in this listing?

A: No, this listing is only for the injectors and optional ring tool. For additional accessories click here. If you need a starter kit, click here.

All sales for Burger Motorsports and Fuel-It! products are final. These items are not eligible for return or exchange under any circumstances. Please ensure compatibility and fitment before placing your order.
