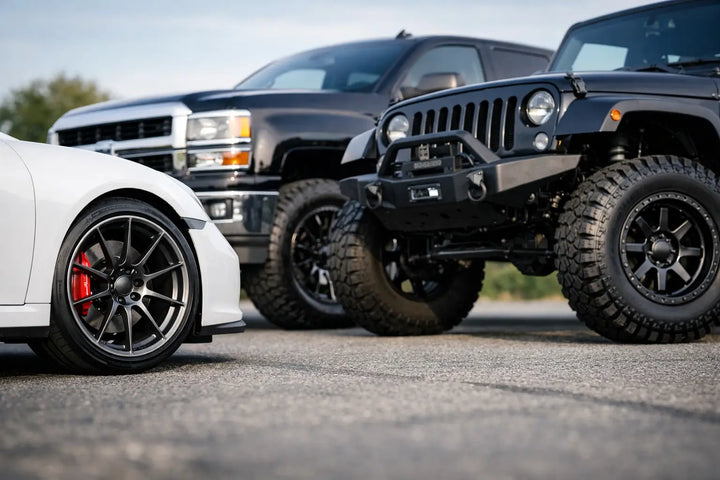

A wheel can have the right look, the right bolt pattern, and the wrong fit. That is how a clean upgrade turns into tire rub at full lock, a wheel that hits a brake caliper, or studs that do not properly engage the lug nuts. This wheel tire fitment guide breaks down the measurements that matter before you order wheels and tires for a street car, lifted truck, off-road Jeep, tow rig, or track-focused build.

Fitment is not just about whether a wheel physically bolts on. It affects steering clearance, suspension travel, brake clearance, tire wear, speedometer accuracy, load capacity, and the stance of the vehicle. Start with the vehicle's year, make, model, trim, drivetrain, and brake package, then verify the actual specs of the wheels and tires you are considering.

Start With the Wheel Specs That Must Match

Bolt pattern and lug hardware

The bolt pattern, also called the bolt circle or PCD, is the number of lug holes and the diameter of the circle they form. A 5x114.3 wheel has five lug holes on a 114.3 mm bolt circle. A 6x139.7 wheel is common on many trucks and SUVs. These measurements need to match exactly.

Do not assume a wheel fits because it has the same number of lug holes. A 5-lug wheel may be 5x100, 5x112, 5x114.3, 5x120, or another pattern. Those are not interchangeable without purpose-built conversion hardware, and adapters add their own thickness, load, and clearance considerations.

Lug nuts and wheel seats matter too. Most aftermarket wheels use either conical taper seats or ball seats. The nut must match the wheel's seat design, thread pitch, and stud length. A wheel spacer or thick wheel center section can reduce usable thread engagement, so longer studs may be required.

Center bore and hub-centric fitment

The center bore is the opening at the back of the wheel that fits over the hub. A wheel with a center bore equal to the vehicle hub bore is hub-centric. This is the preferred setup because the hub centers the wheel and helps carry the vehicle load as designed.

Many aftermarket wheels use a larger center bore to cover more applications. That can work properly with hub-centric rings sized to the vehicle hub and wheel bore. A wheel with a bore smaller than the hub will not mount at all. Never force it on.

Wheel diameter and brake clearance

Wheel diameter is measured across the barrel, not from the outside edge of the lip. A 17-inch wheel accepts a 17-inch tire, but it may not clear every 17-inch brake package. Big brake kits, factory performance brakes, and some truck brake upgrades can require a larger wheel diameter or a wheel barrel with a specific internal profile.

Spoke design is just as relevant. Two wheels with the same diameter and offset can have very different caliper clearance behind the spokes. If your vehicle has upgraded brakes, verify the wheel against a brake-clearance template or obtain confirmed fitment from the wheel manufacturer before ordering.

Wheel Tire Fitment Guide: Width, Offset, and Backspacing

Width, offset, and backspacing determine where the wheel sits inside the fender and how close it gets to suspension and steering components. This is where most fitment problems happen.

Wheel width is measured between the tire bead seats, not the outside lips. A 9-inch-wide wheel is typically paired with a different tire-width range than an 11-inch wheel. Tire manufacturers publish approved rim-width ranges for each tire size, and staying in that range helps preserve the tire's intended tread shape and handling behavior.

Offset is measured in millimeters from the wheel centerline to the mounting pad. Positive offset moves the mounting pad toward the outside face of the wheel, pulling the wheel farther inward. Negative offset moves the mounting pad toward the back of the wheel, pushing the wheel outward for a deeper-lip appearance.

Backspacing measures from the wheel's mounting surface to its inner edge, usually in inches. It is especially useful for trucks and Jeeps because it helps predict clearance at control arms, leaf springs, sway bars, shocks, and frame components.

More negative offset or less backspacing moves the tire outward. That may create a wider stance and improve inner suspension clearance, but it can also push the tire into the fender, bumper corner, or flare during turns and suspension compression. More positive offset or more backspacing tucks the wheel inward, which can protect fender clearance but create contact with upper control arms or inner suspension parts.

On a lowered car, even a small offset change can make the difference between a flush fit and fender contact over a dip. On a lifted truck, a wide wheel with aggressive negative offset may still rub the bumper valance or cab mount at full steering lock, even with plenty of vertical tire clearance.

Match Tire Size to the Build, Not Just the Wheel

A tire size such as 285/70R17 tells you three key things: 285 is section width in millimeters, 70 is the sidewall height as a percentage of width, and 17 is the wheel diameter in inches. Larger numbers do not automatically mean better performance. The correct size depends on the vehicle's use, gearing, clearance, wheel width, and load requirements.

A wider tire can add dry traction and a more aggressive look, but it may hydroplane more easily in standing water, weigh more, and follow road grooves. A taller sidewall can improve ride quality and off-road impact resistance, while a shorter sidewall can sharpen steering response for street and track use.

Overall tire diameter deserves special attention. Increasing diameter changes effective gearing and can make a truck feel slower off the line. It also affects speedometer and odometer readings. A modest increase may be manageable, while a major jump in tire size often calls for recalibration, gearing changes, trimming, a lift, or all three.

For trucks and Jeeps, do not judge clearance while parked. Check the tire at full steering lock and through suspension compression. A tire that clears on level pavement can catch a fender liner, crash bar, pinch weld, bumper corner, or control arm on an off-camber trail.

Consider Suspension Height and Intended Use

Lift kits create room, but they do not solve every fitment issue. A suspension lift primarily increases vertical space. It does not necessarily move the tire away from the rear of the front wheel opening or away from the frame at full lock. Wheel offset and tire width still determine those clearances.

Leveling kits can produce a more balanced stance and help clear moderately larger tires, but they can alter alignment angles. After any suspension-height change, align the vehicle and inspect tire clearance through the full steering range.

For off-road use, prioritize sidewall, load rating, tread type, and articulation clearance over a wheel setup that only looks good in a parking lot. For towing, make sure tire load index and wheel load rating meet or exceed the vehicle's requirements. For performance cars, focus on brake clearance, tire compound, wheel weight, and clearance under compression rather than simply choosing the widest wheel possible.

Do Not Ignore Load Ratings, TPMS, and Rotational Fitment

Wheel and tire load ratings are not optional, especially on heavy-duty trucks, SUVs, and vehicles that tow. The wheel rating, tire load index, and inflation pressure must support the axle loads you expect to carry. A visually aggressive wheel-and-tire package is the wrong choice if it reduces the safety margin needed for cargo, tongue weight, or trail equipment.

If your vehicle uses a tire pressure monitoring system, confirm whether the factory sensors transfer to the new wheels or whether replacement sensors are needed. Sensor frequency and valve-stem style can vary by application.

Some performance cars use staggered fitment, with wider rear wheels and tires than the fronts. Keep front and rear tire diameters close enough for ABS, traction control, and all-wheel-drive systems. On many AWD vehicles, significant circumference differences can place unnecessary stress on drivetrain components.

Measure Before You Commit

When you are building around a non-stock brake kit, custom suspension, fender flares, widebody panels, or unusual tire size, measurements beat assumptions. Record current wheel width, offset or backspacing, tire size, and the clearance at the inner suspension and outer fender. Then compare the new setup to where your current wheel sits.

A simple test fit is worthwhile when the build is highly customized. Turn the steering from lock to lock, compress the suspension if possible, and inspect for contact at the tire, wheel barrel, brake caliper, and inner wheelhouse. Leave room for tire flex, body movement, mud buildup, and the extra clearance demands of real driving.

The right wheel-and-tire package should look intentional, clear every component, and support the way you use the vehicle. If the numbers get complicated, use vehicle-based fitment tools or request help before ordering. That small step can save the cost of shipping, returns, trimming, and buying the same parts twice - and it keeps the build moving toward the road, trail, or track instead of back onto jack stands.
