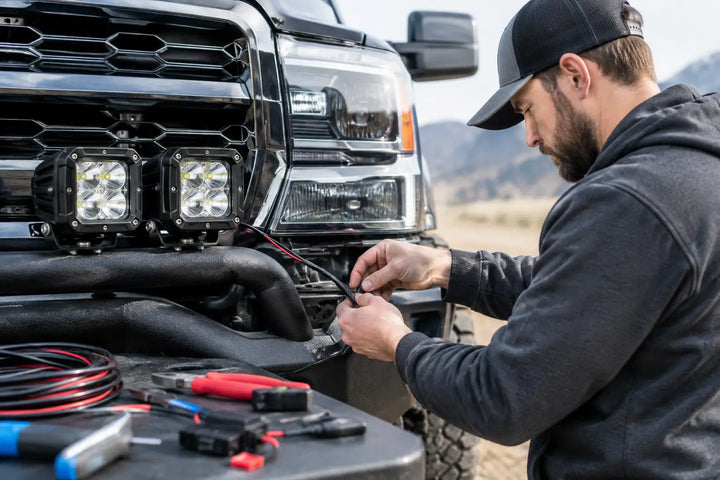

A pair of ditch lights, a front light bar, or rear-facing work lights can transform how a truck or Jeep works after dark. Knowing how to wire auxiliary lights correctly is what separates a dependable upgrade from flickering beams, blown fuses, drained batteries, or damaged factory wiring. The right setup uses a dedicated fused power circuit, a relay, properly sized wire, and a switch that is easy to reach without becoming a weak point in the system.

Whether you are building an overland rig, wiring a work truck, setting up a trail Jeep, or adding visibility to a performance tow vehicle, treat auxiliary lighting as an electrical system, not just a bolt-on accessory.

Start With the Lighting Plan

Before cutting wire or drilling a switch panel, decide what each light is supposed to do. Forward-facing driving lights need distance and a focused beam pattern. Flood lights work well for campsites, recovery areas, and slow trail use but can create glare at speed. Ditch lights should be aimed outward to illuminate trail edges, while rear work lights need to light the area behind the vehicle without blinding traffic.

Add up the current draw of every light on the circuit. LED lights use less power than older halogen setups, but high-output pods and large light bars can still pull significant amperage. The manufacturer’s rated amp draw is the number to use when selecting wire, fuses, relays, and switches.

Also decide whether the lights will run as one group or independently. A basic two-light setup may only need one switch and one relay. A truck with a light bar, ditch lights, rock lights, and rear work lights is better served by separate circuits or a quality multi-channel switch panel. Independent control gives you more flexibility and makes troubleshooting much easier later.

What You Need to Wire Auxiliary Lights

A complete installation usually requires a dedicated wiring harness or individual components matched to the light load. Do not rely on thin generic wire or run high-current lights directly through a dashboard switch.

For a typical relay-based setup, you need:

• Auxiliary lights with mounting hardware
• A weatherproof relay rated above the circuit’s expected amperage
• An inline fuse holder and the correct fuse
• Automotive-grade power wire, ground wire, terminals, loom, and heat shrink
• A dash switch or switch panel with a trigger-wire circuit
• Wire strippers, crimpers, a multimeter, and mounting hardware

A prebuilt harness is often the fastest solution for a single pair of lights or a light bar. It includes the relay, fuse holder, switch, and connectors, reducing installation time and the chance of wiring a relay incorrectly. Custom wiring makes more sense for multi-light builds, unusual mounting locations, high-current systems, or vehicles using an aftermarket accessory control panel.

Choose the Right Wire Gauge and Fuse

Wire gauge is not a place to guess. A wire that is too small creates resistance, voltage drop, heat, and poor light output. In a worst-case failure, undersized wiring can damage insulation or create a fire risk.

For many LED pod and light-bar installations, 14-gauge wire is adequate for lower-current circuits, while 12-gauge wire is a better choice for many medium-load setups. Higher-draw systems, long wire runs to the rear of the vehicle, or multiple lights on one circuit may require 10-gauge wire or larger. The total amperage and the length of the run both matter. Longer runs need heavier wire to control voltage drop.

The fuse protects the wire, not the light. Install it on the positive power wire as close to the battery or auxiliary power source as practical. Size the fuse slightly above the circuit’s normal operating draw while staying within the safe capacity of the wire. For example, if a pair of lights draws 12 amps, a 15-amp fuse may be appropriate if the wire and relay are rated for it. Do not install an oversized fuse simply because a smaller one keeps blowing. Find the short, bad ground, incorrect wire size, or overloaded circuit causing the problem.

The Basic Relay Wiring Layout

A relay allows a small dash switch to control a higher-current lighting circuit safely. It keeps heavy electrical load out of the cab and avoids routing full lighting current through a small switch and long run of wire.

Most standard four-pin relays use the same terminal numbers:

• Terminal 30 receives fused battery power.
• Terminal 87 sends power to the auxiliary lights.
• Terminal 85 is the relay control ground.
• Terminal 86 receives power from the dash switch or trigger source.

Run a properly fused positive wire from the battery to relay terminal 30. Connect terminal 87 to the positive lead for the lights. Ground each light using a short, clean connection to bare chassis metal or a dedicated grounding point. Then wire the relay trigger circuit: terminal 85 goes to ground, and terminal 86 receives switched power through the dash switch.

Some relays use terminal 87a, which is a normally closed output. It is not needed for a conventional auxiliary light circuit. If you are using a five-pin relay, make sure you connect the light output to terminal 87, not 87a.

Mount the Relay, Fuse, and Grounds Correctly

Mount the relay in a protected location away from exhaust heat, moving components, and direct water spray. Engine bays are common mounting locations, but use a weatherproof relay or relay box if the truck sees mud, deep water, road salt, or frequent pressure washing. Keep the inline fuse near the battery but position it where it can still be inspected and replaced without disassembling half the engine bay.

Ground quality has a direct effect on LED performance. A painted, rusty, or loose ground can cause dim lights, intermittent operation, radio interference, or a relay that clicks without powering the lights. Use a ring terminal, clean the grounding surface to bare metal, tighten the fastener securely, and protect the finished connection from corrosion.

For rear-mounted lights, running a dedicated ground wire back to a known good chassis ground or battery ground can be more reliable than trusting a questionable bed, bumper, or body-panel ground. This matters even more on older trucks, powder-coated bumpers, and vehicles with aftermarket body parts.

Route the Switch Wire Into the Cab

The switch only carries the small relay-trigger current, but it still needs clean routing and protection. Look for an existing firewall grommet before drilling a new hole. If drilling is necessary, use a grommet so the wire cannot rub against sharp metal over time.

You have two common switch-power choices. A constant 12-volt source lets you operate work lights with the key off, which is useful for loading gear, roadside repairs, and camp setups. An ignition-switched source prevents the lights from being left on accidentally after parking. For forward-facing lights, an ignition-switched trigger is usually the smarter option.

If you want driving lights to operate only with high beams, use the high-beam circuit as a relay trigger only. Do not power auxiliary lights directly from factory headlight wiring. Modern trucks and Jeeps often use computer-controlled lighting circuits, and tapping them incorrectly can cause warnings, flickering, or module damage. A vehicle-specific trigger harness, diode-isolated trigger, or professional installation may be the right move on CAN bus-equipped vehicles.

Protect the Wiring From Heat, Movement, and Weather

A clean install is a reliable install. Route wiring along factory harness paths where possible and secure it every few inches with quality clips or zip ties. Keep wires away from exhaust manifolds, turbo plumbing, steering shafts, fan blades, suspension travel, and sharp brackets.

Split loom, abrasion-resistant tape, heat shrink, and sealed connectors are worth using, especially on off-road vehicles. Water and vibration find weak connections quickly. Crimp terminals with the correct tool, then seal the connection with adhesive-lined heat shrink when the location is exposed to moisture. Avoid twisting wires together and covering them with electrical tape alone.

Leave enough slack at lights mounted on bumpers, hoods, or suspension-adjacent brackets to accommodate vibration and service work. Too much slack is also a problem if it can snag branches, rub tires, or contact hot components.

Test Before You Finish the Install

Before reinstalling trim panels or fully wrapping the harness, test the circuit. Confirm that the fuse is installed, the relay clicks when the switch is activated, and every light reaches full brightness. Use a multimeter if the lights do not work rather than replacing parts at random.

If the relay clicks but the lights stay off, check battery power at terminal 30, output at terminal 87, the light grounds, and the fuse. If the relay does not click, inspect the switch power, trigger wire, relay ground, and switch ground if the switch is illuminated. If lights flicker only while driving, look for a loose connector, weak ground, or wire rubbing against a moving component.

Once the electrical side checks out, aim the lights responsibly. Forward-facing auxiliary lights can add serious visibility, but poor aim can blind oncoming drivers and may violate local road-use rules. Cover or disable off-road-only lights when driving on public roads where required.

A properly wired auxiliary light system gives you usable light when the trail gets tight, the job runs late, or the weather turns bad. Build the circuit with the same care you would give brakes, suspension, or recovery gear, and it will be ready every time you hit the switch.
