A camshaft install can turn a mild engine into the torque curve, idle quality, and top-end pull you actually wanted - or it can put valves into pistons before the engine ever fires. Knowing how to install camshaft components means treating cam timing, lubrication, clearances, and valve-train geometry as one system. The exact process changes between pushrod and overhead-cam engines, so use the factory service information and cam card for your specific engine as the final authority.

Start With the Parts, Not the Wrenches

Before removing the old camshaft, verify that the new cam is correct for the engine family, firing order, fuel type, computer calibration, and intended use. A street truck that tows needs a very different cam profile than a high-rpm naturally aspirated build or a boosted street car. More duration is not automatically more usable power.

Confirm that your timing set, lifters or followers, valve springs, retainers, locks, pushrods, rocker arms, variable valve timing components, and tuning plan all support the new camshaft. If the cam manufacturer specifies upgraded springs, installed height, or coil-bind clearance, those requirements are not optional. A camshaft is only one part of a matched valve-train package.

Lay out clean, labeled trays for bolts, caps, followers, rockers, and shims. On many overhead-cam engines, cam caps are line-bored with the cylinder head and must return to their exact original locations and directions. Mixing them up can damage the journals or bind the cam.

Tools and supplies worth having

Have a quality torque wrench, angle gauge if the service procedure calls for torque-to-yield fasteners, assembly lube, clean engine oil, a timing light or scan tool where applicable, and the correct pullers or holding tools. For a performance build, add a degree wheel, dial indicator, piston stop, checking springs, and a valve-spring measurement tool.

A new gasket set, front seal, fresh coolant, filter, and oil are cheap insurance while the engine is open. If you are changing a flat-tappet camshaft, use the oil and break-in additive specified by the cam manufacturer. Modern low-zinc passenger-car oil can be the wrong choice for a flat-tappet break-in.

How to Install Camshaft Components in a Pushrod Engine

On an OHV pushrod engine, remove the intake manifold, valve covers, rockers, pushrods, lifters, timing cover, and timing set according to the engine's service procedure. Keep pushrods and rockers organized if they will be reused. Inspect the old parts for a wiped lobe, cupped lifter face, metal debris, or uneven wear. Installing a new cam without finding the cause of the prior failure can ruin the replacement immediately.

Clean the block thoroughly, especially the lifter bores and oil passages. Wash out all debris rather than relying on a new filter to catch it later. Check cam bearings for scoring, flaking, or tight spots. A new camshaft should slide through lubricated bearings smoothly with controlled support. Forcing it through a damaged bearing is a costly mistake.

Lubricate every cam journal and lobe with the manufacturer-recommended assembly lube. Flat-tappet lobes and lifter faces typically need the supplied high-pressure break-in lubricant. Apply it generously, but do not pack oil passages with grease-like lube.

Carefully slide the camshaft into the block, supporting its weight as it enters each journal. Letting the cam droop can nick a bearing edge. Install the thrust plate, retainer, or cam button as required by your engine, then verify camshaft endplay against the specification.

Set the crank and cam timing marks as specified for the timing set. “Dot to dot” is common, but the crank position with both dots facing each other is not always cylinder No. 1 at top dead center on compression. Understand the relationship before setting valve lash or checking timing events.

For a stock-style replacement, aligned timing marks with an accurate timing set may be sufficient. For an aftermarket performance cam, degreeing the cam is the smarter move. Manufacturing tolerances in the crank gear, cam gear, keyways, block machining, and timing chain can shift actual installed centerline several degrees. Degreeing confirms the cam opens and closes valves where the cam card says it should.

Install new lifters when required. Never reuse old flat-tappet lifters on a new cam, and never mix hydraulic roller lifters, link bars, guides, or retainers from incompatible applications. Install pushrods and rockers, then set preload or valve lash to the cam and engine manufacturer’s specification. Too little hydraulic preload can create noise and unstable valve motion; too much can hold valves off their seats.

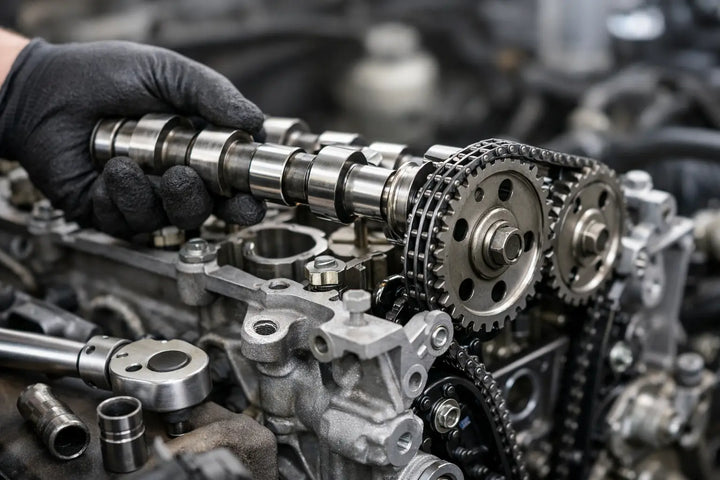

Installing an Overhead Camshaft

Overhead-cam engines demand even more discipline because valve timing is often controlled by chains, guides, tensioners, phasers, and computer-managed variable valve timing systems. Lock the crankshaft at the prescribed position and use the correct camshaft holding tools where the procedure requires them. Paint marks are useful reference points, but they are not a substitute for factory timing marks and locking fixtures.

Inspect cam journals, bearing surfaces, followers, buckets, shims, chain guides, tensioners, and phasers before reassembly. Prime hydraulic tensioners if specified. Replace worn plastic guides, stretched chains, leaking cam seals, and questionable tensioners while access is available. Reusing marginal timing hardware behind a fresh camshaft is a false economy.

Apply assembly lube to cam journals, lobes, and follower contact surfaces. Place the camshaft gently into the head with lobes positioned according to the service manual. Some lobes will load valves even at the timing position, which means cap bolts must be tightened gradually and in sequence. Draw the cam caps down in small, even steps. Tightening one cap fully before the others can crack a cap, damage threads, or snap the camshaft.

Install the chain or belt with every timing mark aligned. On interference engines, rotate the crankshaft only in the approved direction and only after confirming the cam timing procedure. Once the timing system is tensioned, turn the engine by hand through at least two complete crankshaft revolutions. It should rotate smoothly. If it stops hard, do not force it. Go back and verify timing, valve position, and tool removal.

Verify piston-to-valve clearance on serious builds

Higher-lift cams, milled heads, thinner head gaskets, aftermarket pistons, and advanced or retarded cam timing can reduce piston-to-valve clearance. This is especially relevant with aggressive naturally aspirated combinations and engines that have been heavily machined.

Checking clearance with light checking springs, a dial indicator, or modeling clay is slower than simply assembling the engine, but it gives real information before a valve touches a piston. Follow the cam and piston manufacturer’s minimum clearance recommendations. If clearance is marginal, the solution may be different valves, a revised cam position, different pistons, or a less aggressive cam - not wishful thinking.

Prime Oil, Recheck Timing, Then Start It Correctly

Before first start, reinstall covers, intake components, and accessories with new seals and correct torque values. Fill the engine with the intended break-in oil or operating oil. On a distributor-equipped pushrod engine, prime the oil system with a priming tool until oil reaches the rocker assemblies. On engines that cannot be externally primed, follow the manufacturer’s procedure for building oil pressure safely.

Verify ignition timing, fuel connections, coolant level, and that every timing tool has been removed. A first start should be controlled, not an experiment with parts scattered across the garage. Watch oil pressure immediately and listen for abnormal tapping, chain noise, binding, or a severe misfire.

Flat-tappet cams usually require a specific break-in procedure, commonly holding a varied elevated rpm range for a manufacturer-defined period rather than letting the engine idle. Roller cams generally do not need the same lobe break-in, but every new engine or major valve-train change still needs careful heat-cycle checks. Shut down immediately for low oil pressure, a major leak, overheating, or unusual mechanical noise.

After the initial run, inspect for leaks, recheck fluid levels, and change oil and filter on the schedule recommended for the build. If camshaft specs materially changed airflow, plan for the correct tune. A cam that is mechanically installed perfectly can still run poorly if fuel, spark, idle airflow, and variable valve timing calibration were never updated.

The right camshaft package makes power where your vehicle needs it, but precise installation keeps that power reliable. Take the extra time to measure, degree, verify, and tune before chasing the first hard pull.
