Keep Oil Out of your Turbo Tacoma/4Runner Air Intake System!
It's no secret that turbocharged Toyota motors can suffer from oil control problems causing the oil and contaminants to blow through and coat the intercooler and charge piping, gunking up intake valves, lowering the effective octane, and generally degrading engine performance over time. The higher your boost levels and the more milage you put on the vehicle the more apparent these problems become.
The solution to this problem has finally arrived. The Burger Motorsports oil catch can for the turbocharged Tacoma. While there are other catch cans on the market they all fall short in various areas. Some are mounted on the hot/turbo side of the motor preventing proper vapor condensation. Others utilize hoses that are too small and runs that are too long to allow proper PCV ventilation causing internal motor/ring sealing issues. Some have insufficient or no internal baffle system while others have internal baffle systems that are too restrictive. Some even bypass the PCV system altogether venting crankcase gas and odor into the atmosphere.

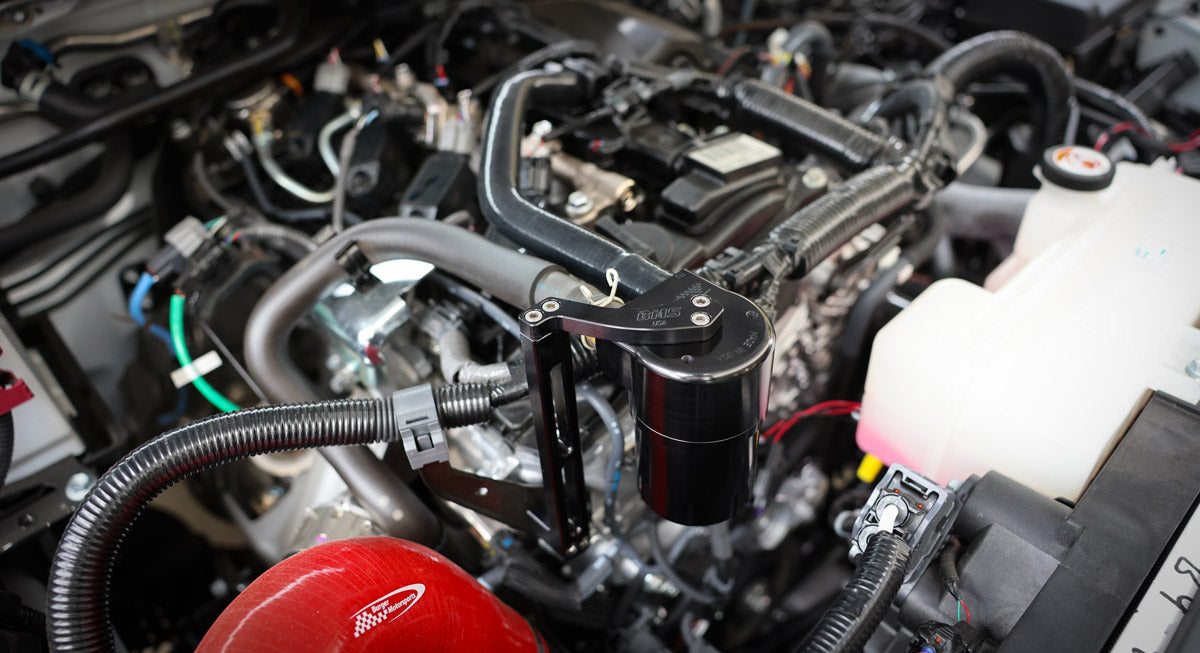

To solve these problems Burger Motorsports designed their oil catch can kit from the ground up specifically for the turbo Tacoma application. It features 100% CNC machining with zero welding for a precision fit and long life. The can itself is guaranteed for the life of the vehicle. The hoses match the OEM PCV piping in diameter so flow rate is maintained throughout the entire oil catch can ensuring no horsepower robbing crankcase pressure buildup. The BMS oil separator retains the factory fully closed loop PCV operation preventing any PCV vapor from leaking to the atmosphere. The mounting location was selected to minimize the line length, allow more efficient operation, and retain the factory PCV hose. Install takes around 10 minutes, includes all required hardware, and is 100% reversible. Simply unscrew the base of the can or use the drain plug to safely dispose of captured oil with the rest of your used motor oil during oil changes. Made in the USA.
New transparent oil catch can base now available as an option or is sold separately as an upgrade here.
Features & Benefits
• Increases Air Intake Efficiency
• Promotes Engine Longevity

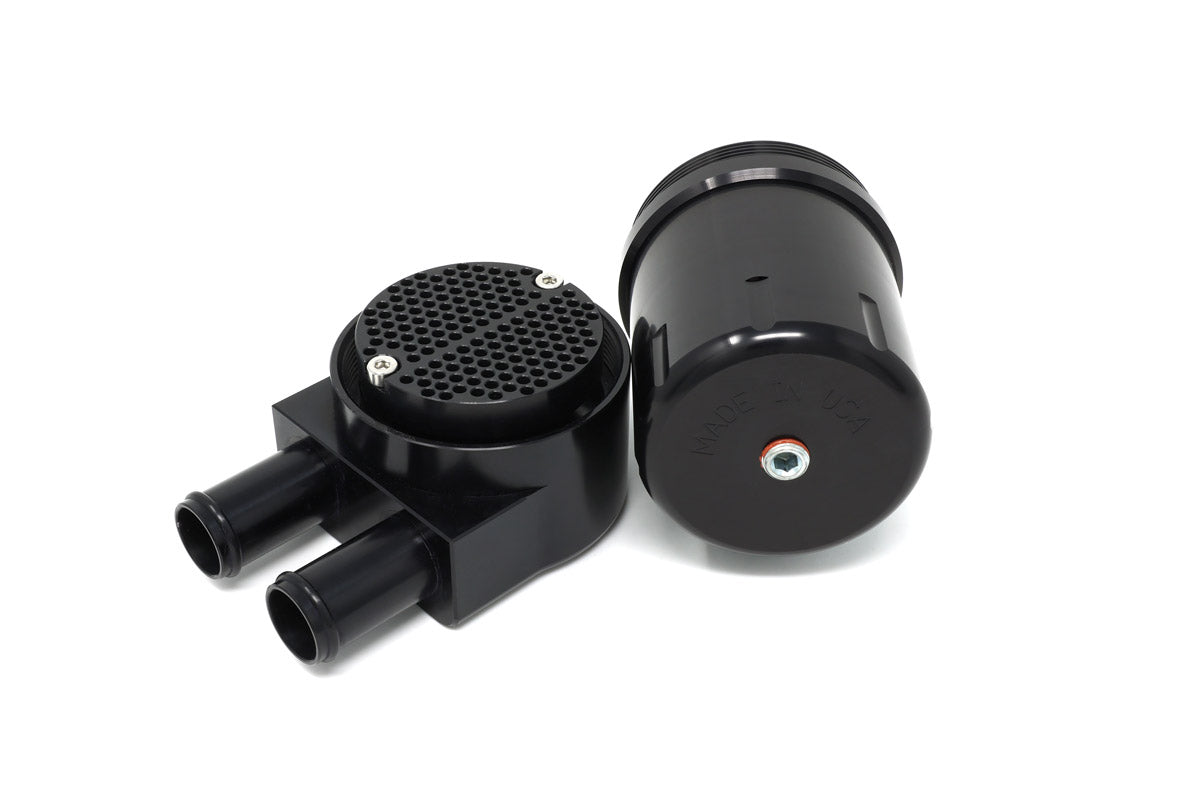

• Non-Clogging Air Oil Separation Triple Baffle
• Free Flow Anti-Restriction Design
• Retains factory fully closed loop PCV operation
• Large Intake/Outlet No Tapering Down
• Anodized Black Aluminum
• Made in the USA & Guaranteed for Life

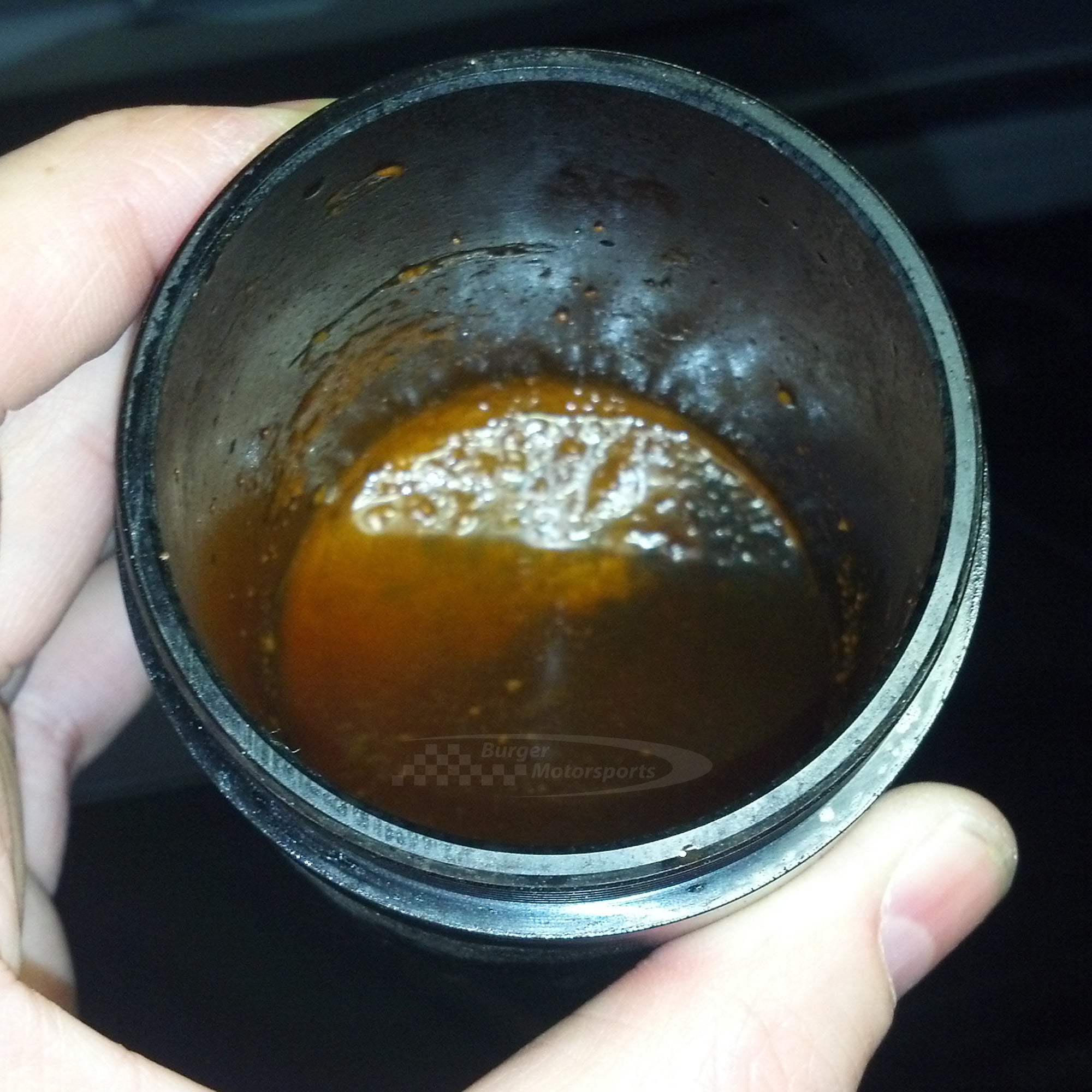

• Simply unscrew base at every oil change to empty or use the 1/8th NPT drain plug.
• Non-Clogging, No Service Needed Air/Oil Separation Triple Baffle
• High flow to eliminate crankcase pressure caused by more restrictive designs
• Inlet and outlet matches OEM PCV sizing
• Precision CNC Machined from Solid Blocks of High-Grade Aluminum
Vehicle Fitment
NOTE: Clear can option not available for hybrid models.
Toyota Tacoma (Gen 4)
• 2024+ Toyota Tacoma SR, SR5, Limited, TRD Off-Road, TRD PreRunner, TRD Sport, TRD Pro
Toyota 4 Runner (Gen 6)
• 2024+ Toyota 4Runner 2.4L Turbocharged I4
Fits trims including: Limited, SR, SR5, TRD Off-Road, TRD PreRunner, and TRD Sport, Platinum, and Trailhunter

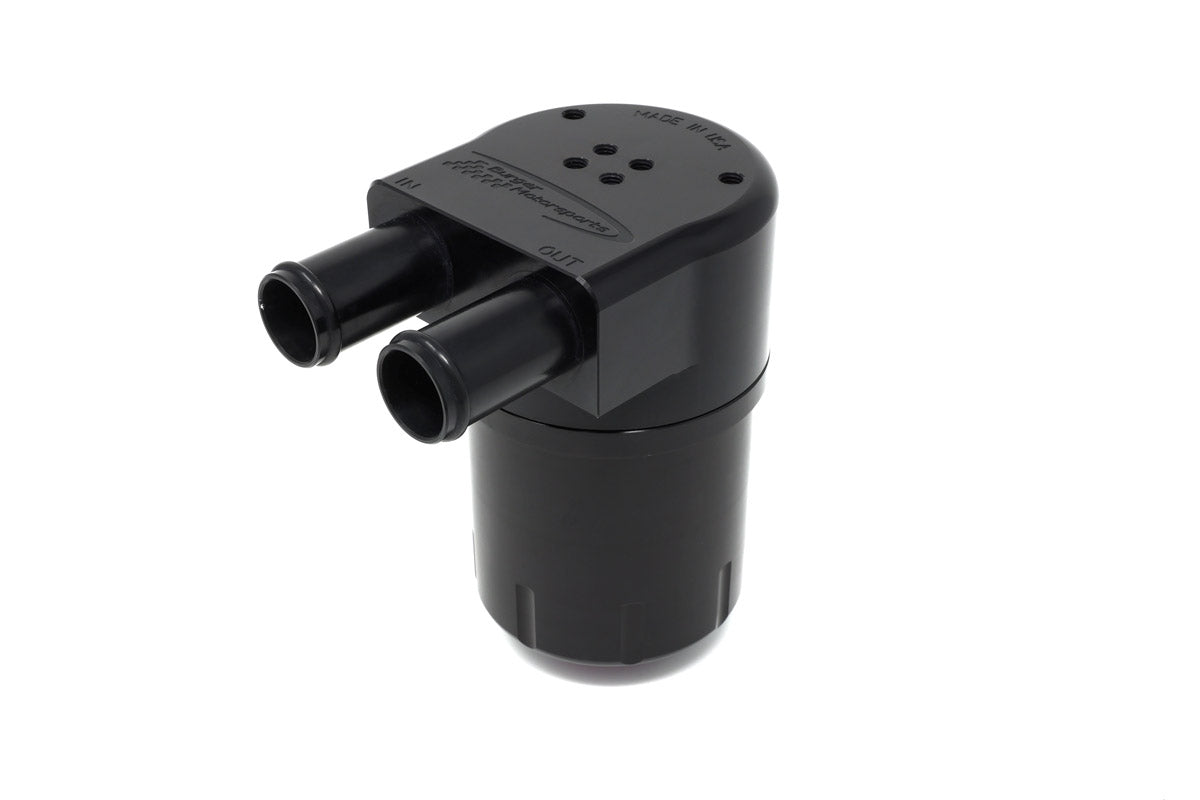

Catch can dimensions and specs
Can dimensions with lid: 4.4" (111mm) Tall
Can diameter: 2.5" (63.7mm)
Lid length: Back to nozzle end: 4" (101mm)
Nozzle outer diameter: .75" (19.2mm)
Nozzle inner diameter: 0.669" (17mm)
Can Fluid Capacity: Up to 5.5 fl oz (162.6 mL)

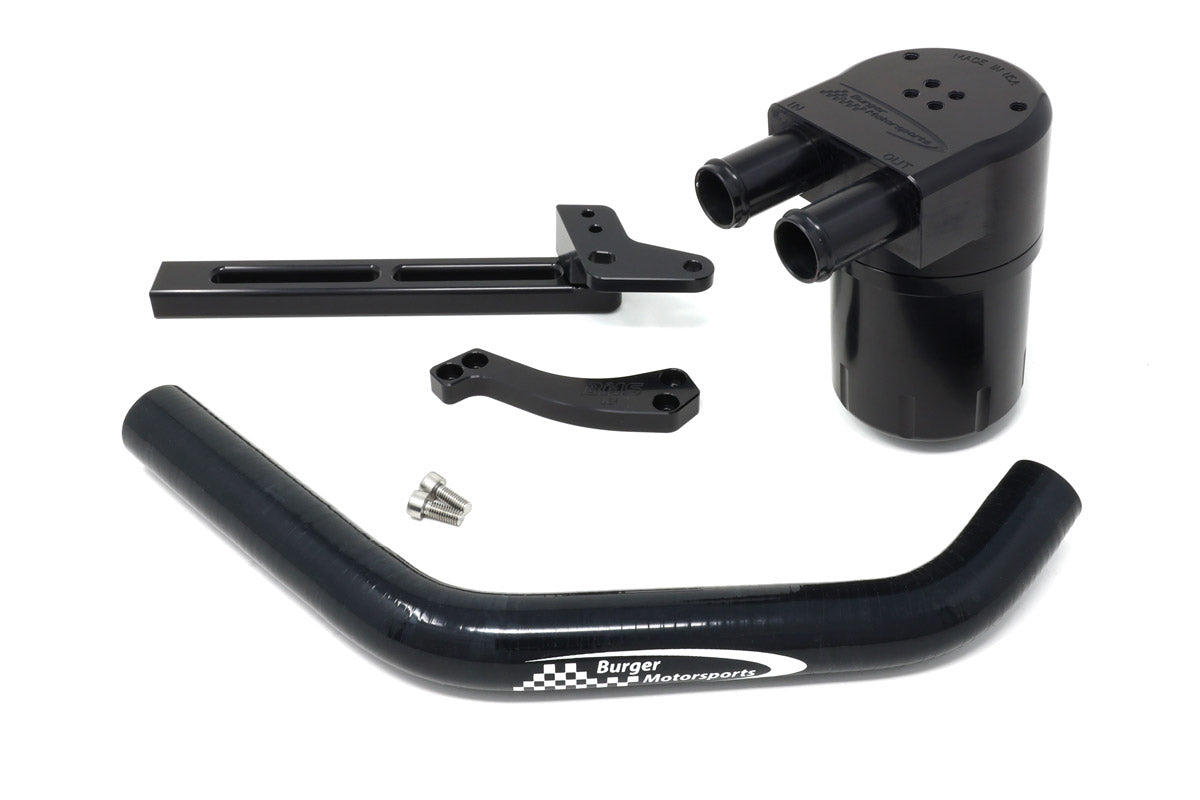

What's Included
Non-Hybrid Models
• (1) BMS Billet Oil Catch Can (N54)
• (1) Billet 3 piece bracket
• (6) Bracket & can screws M5x0.8x12mm internal hex
• (1) heavy-duty silicone hose

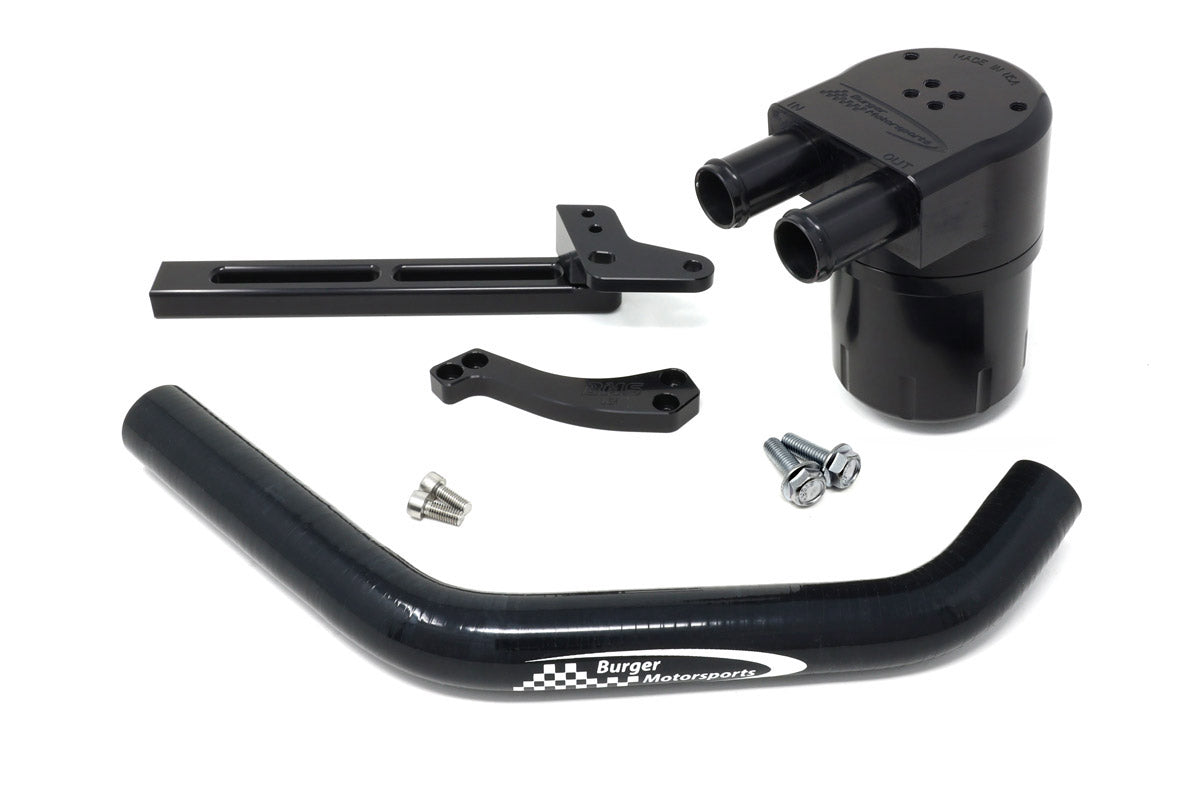

Hybrid Models
• (1) BMS Billet Oil Catch Can (N54) with slightly shorter can (no-clear can option available)
• (1) Billet 3 piece bracket
• (6) Bracket & can screws M5x0.8x12mm internal hex
• (2) 2 bracket to engine bolts (M6 x 1mm X 20mm L)
• (1) heavy-duty silicone hose
New transparent oil catch can base now available as an option or is sold separately as an upgrade here.
The main advantage of a transparent can is that you can easily see the contents inside. This allows for quick checks on oil levels, contamination, and sludge buildup without needing to open the can.
⚠️ ATTENTION: The optional transparent can base is not suitable for use in regions where temperatures frequently drop to 32°F (0°C) or below.

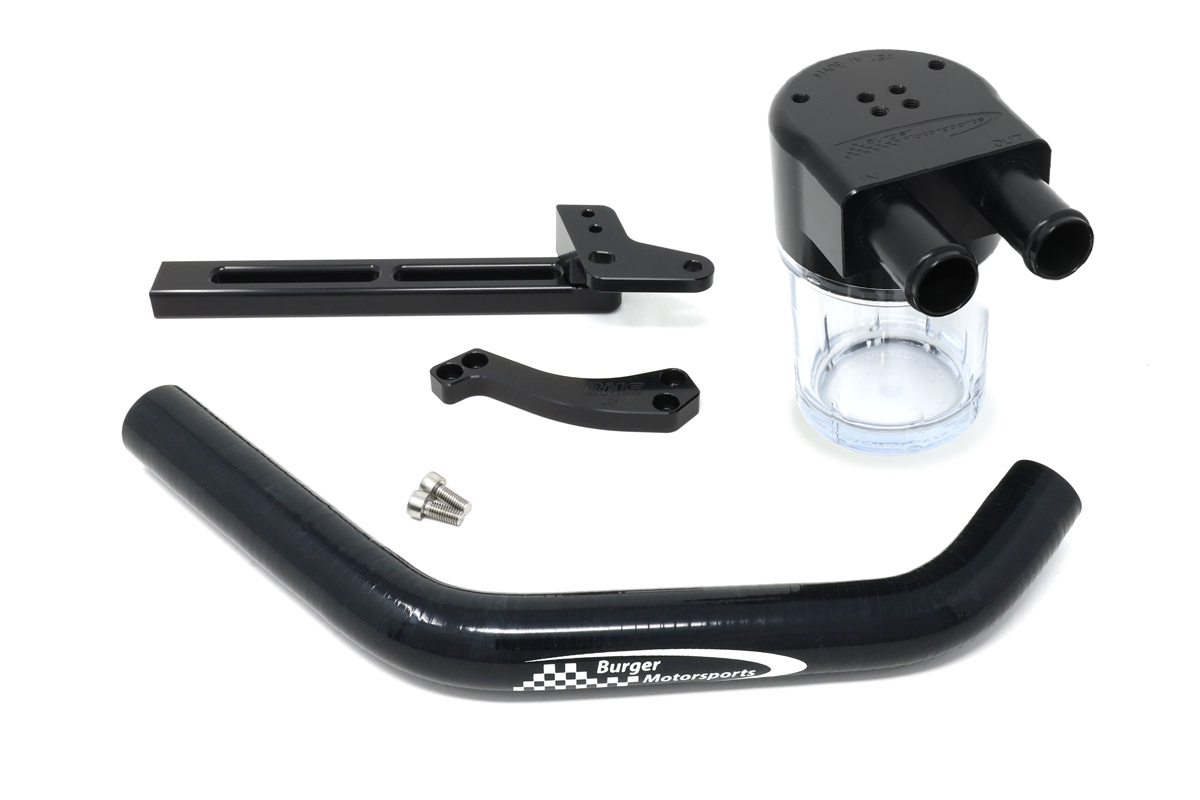

Optional transparent can shown below.
