Nissan 240SX 1989-90 (KA24E) T3T4 Turbocharger Kit
Specifications Part numbers, fitment codes and shipping
- Brand
- Rev9 Power
- Speedzone SKU
- TCK-005
- Manufacturer part number
- TCK-005
- Category
- Intercoolers
- Shipping weight
- 7000 g
IMPORTANT DROP-SHIP, AVAILABILITY & LEAD-TIME NOTICE: Rev9 Power products are generally shipped directly from the manufacturer or an authorized distribution facility. Availability can change without notice, and some products may require additional production or inbound transit time. If your order is time-sensitive, please verify availability before purchasing. Click here to request a current availability and lead-time check.
Support more consistent charge-air temperatures with a Rev9 Power intercooler designed for performance and forced-induction applications.
Fitment summary: 1989-90

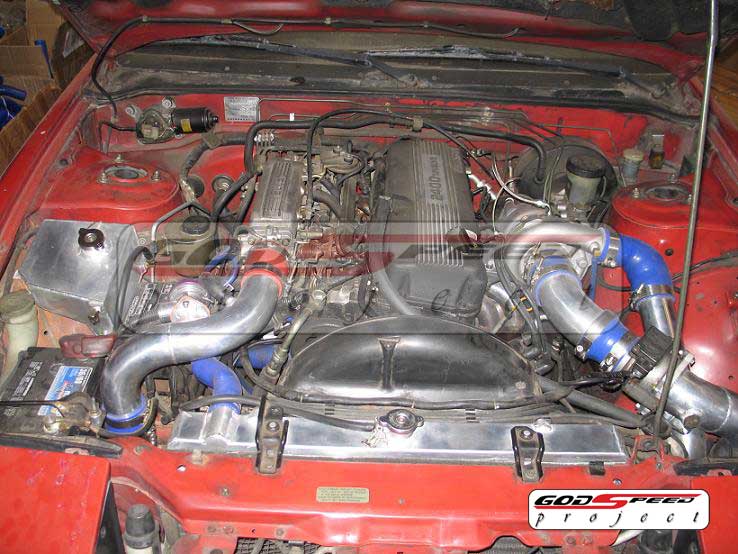

Nissan 240SX 89-90 KA24 Single Cam (KA24E) Motor T3T4 Complete Turbocharger Kit
Compatibility:
- 1989 1990 Nissan 240SX S13 SOHC

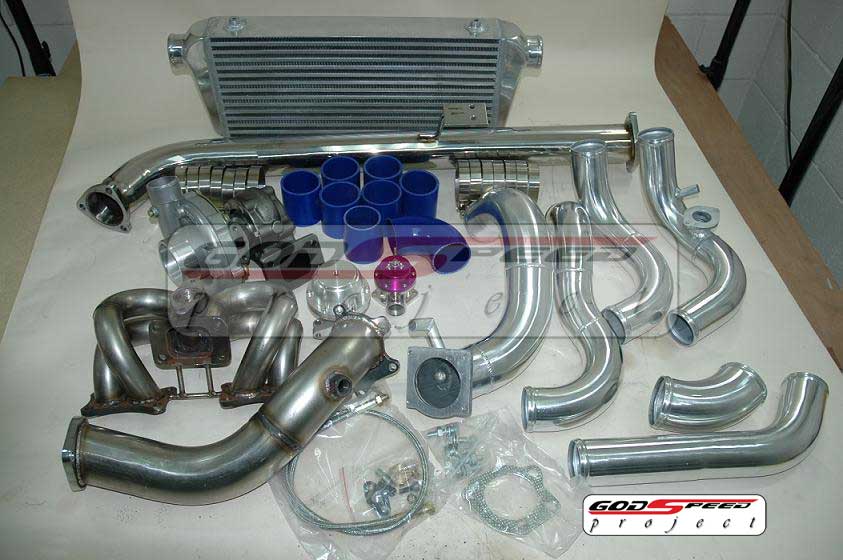

Kit Includes:
- T3T4 Turbocharger .63 AR
- KA24E Stainless Steel Top Mount Manifold
- Aluminum Pre-bent Intercooler Pipe With Clamps & Silicone

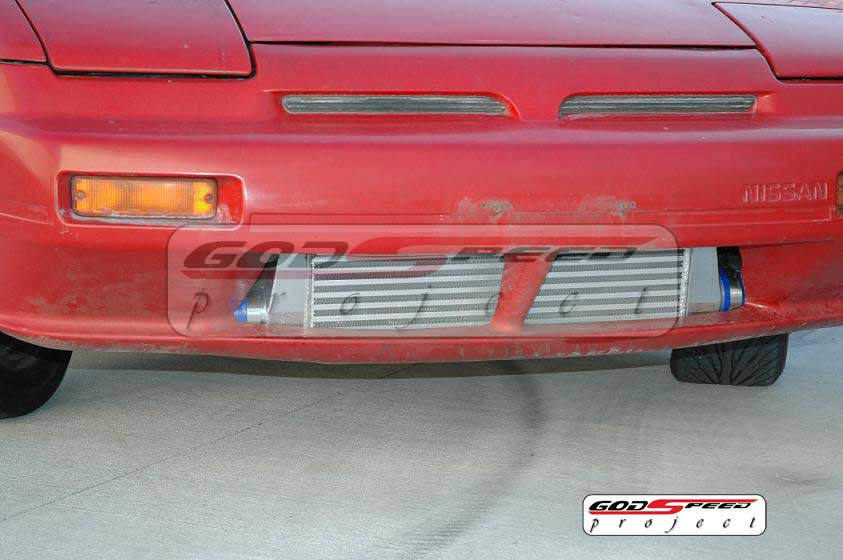

- 30x12x3 Intercooler Core
- 3" Stainless Turbo Uppipe
- 3" Stainless Turbo Downpipe
- 38mm Wastegate (Set at 5PSI) Comes With Extra 10 PSI Spring In Order To Make 15 PSI Maximum Setting.
- Oil Feed Line, Oil Return Line With All Fittings
- Type-RS Blow Off Valve
We recommend larger injectors, an upgraded fuel pump and ECU reflash (upgrade, or piggy back).
Specifications:
- T3T4 Turbocharger
- Intake: 3"
- Inlet: 2"
- Compressor Trim: .50 AR
- Compressor Wheel Diameter: 50.16mm / 76.84mm
- Turbine Wheel Diameter: 54.06mm / 65.20mm
- Exhaust Trim: .63 AR
- Turbine Flange Type: T3 Flange
- Down Pipe Flange Type: 5-Bolt Standard
- Cooling Type: Oil Cooled Only
- Horsepower Rating: 375+
