16G TD05 Turbocharger (Legacy, WRX GH8, Forester, Outback)
Specifications Part numbers, fitment codes and shipping
- Brand
- Rev9 Power
- Speedzone SKU
- TC-062
- Manufacturer part number
- TC-062
- Category
- Turbochargers
- Shipping weight
- 9000 g
IMPORTANT DROP-SHIP, AVAILABILITY & LEAD-TIME NOTICE: Rev9 Power products are generally shipped directly from the manufacturer or an authorized distribution facility. Availability can change without notice, and some products may require additional production or inbound transit time. If your order is time-sensitive, please verify availability before purchasing. Click here to request a current availability and lead-time check.
Build your forced-induction setup with a Rev9 Power turbocharger component selected for performance-oriented applications.

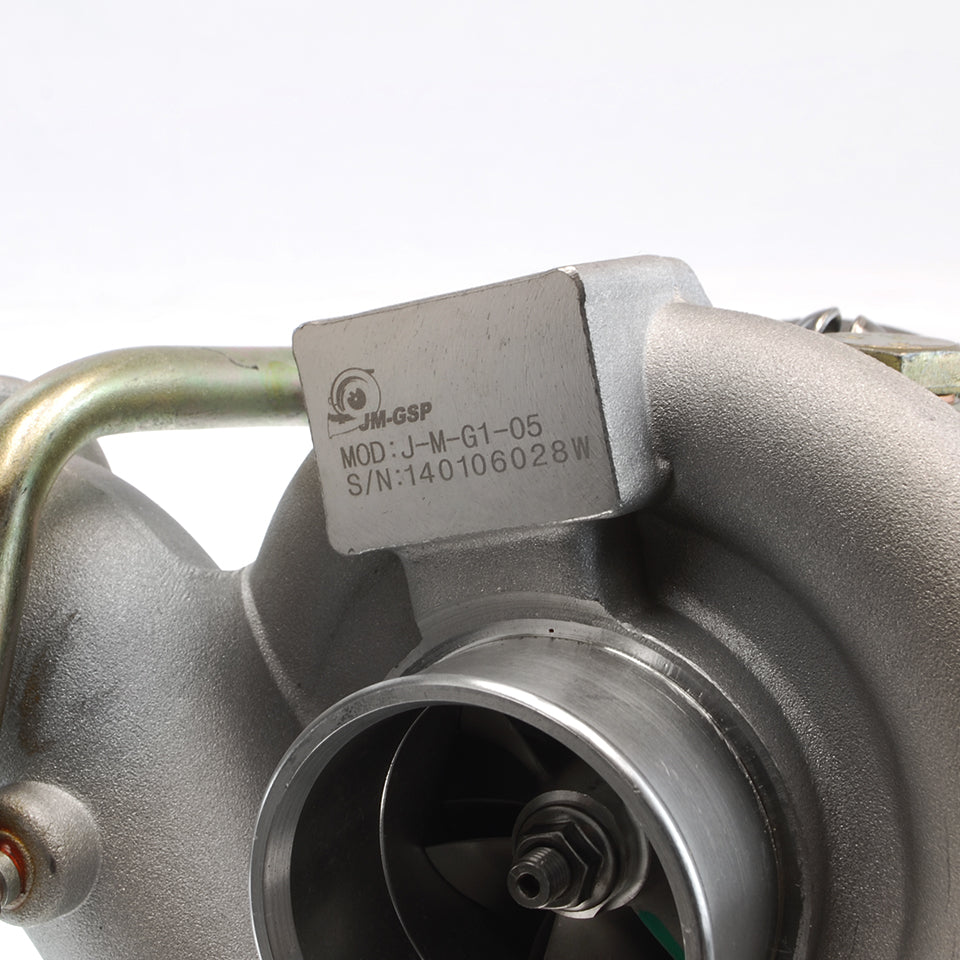

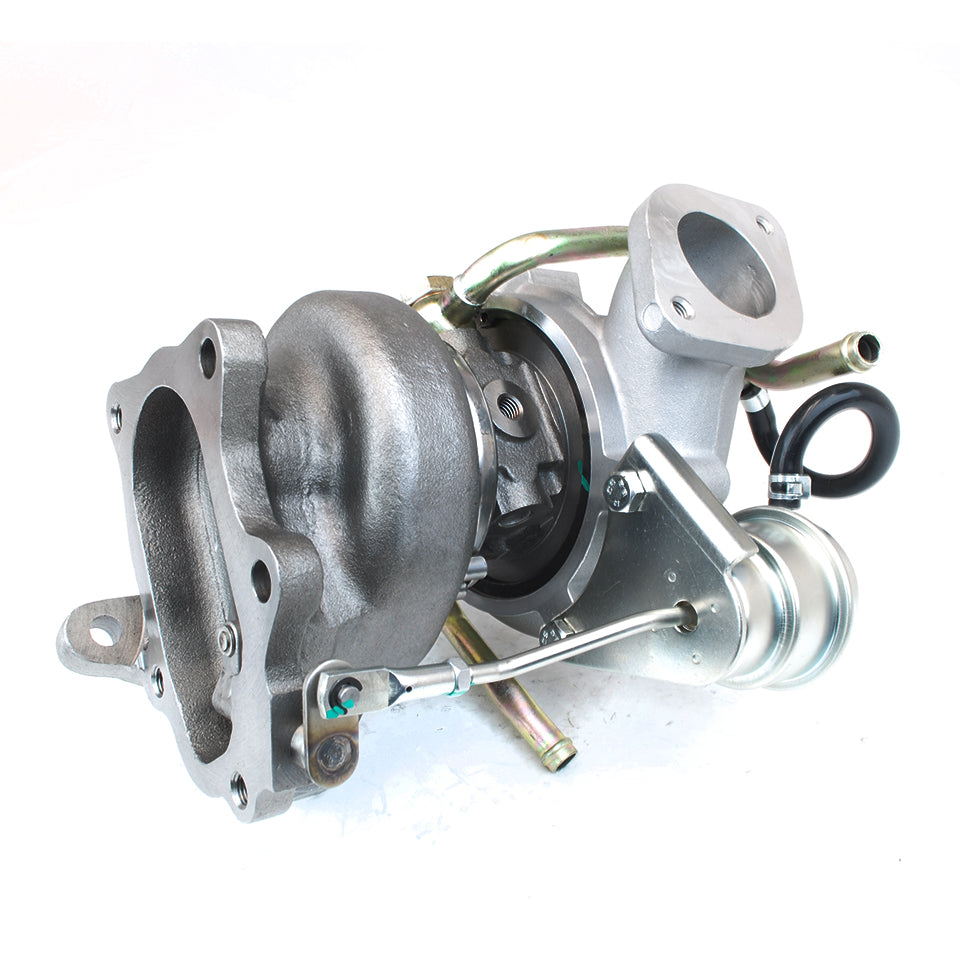

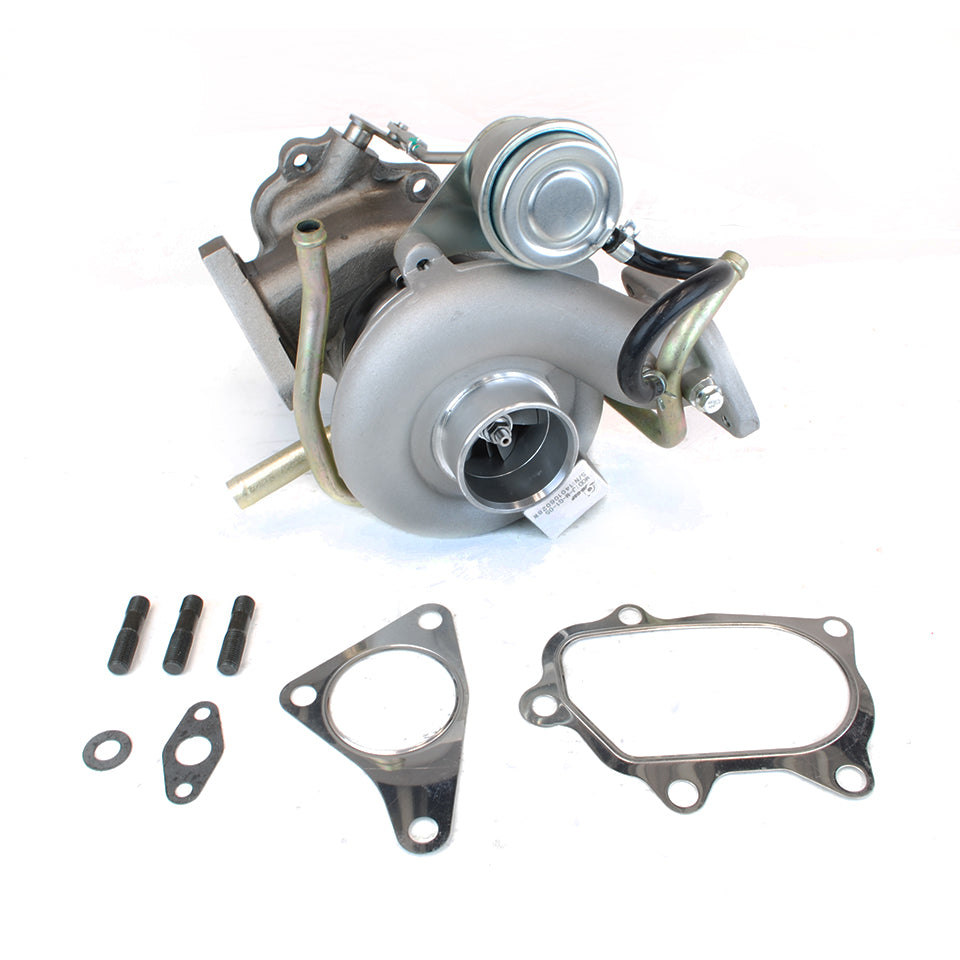

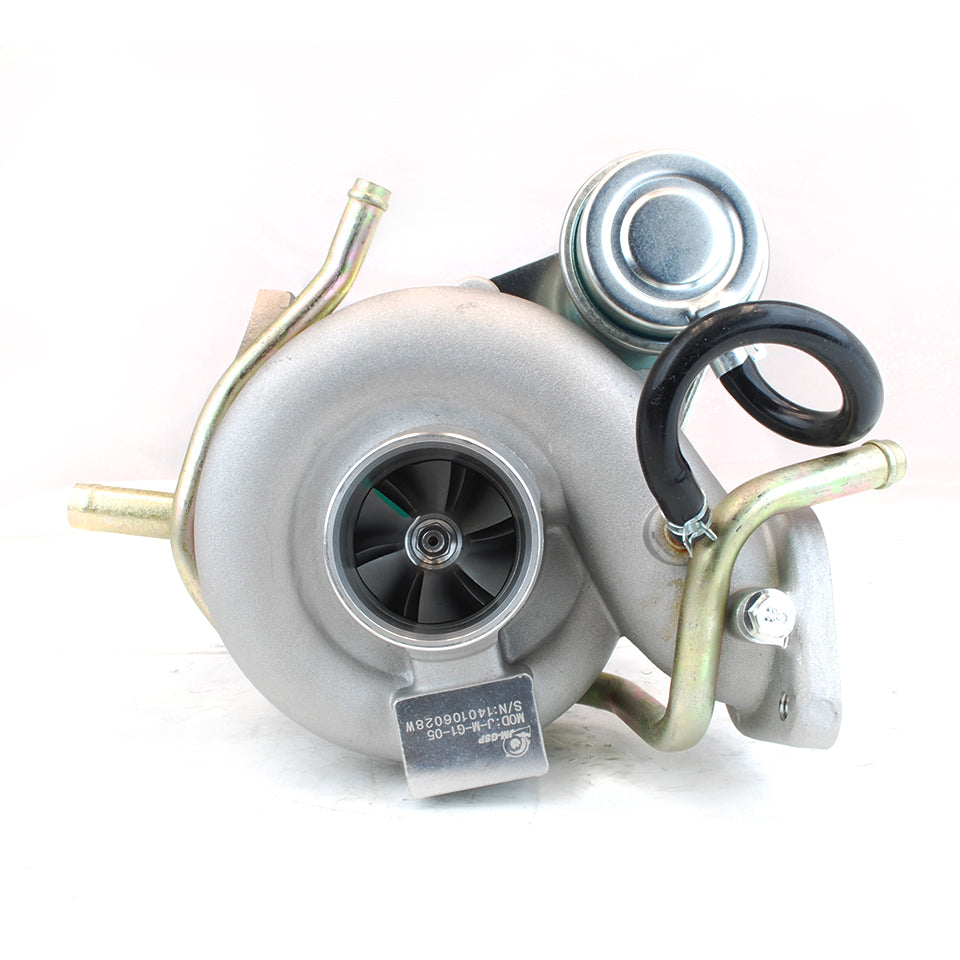

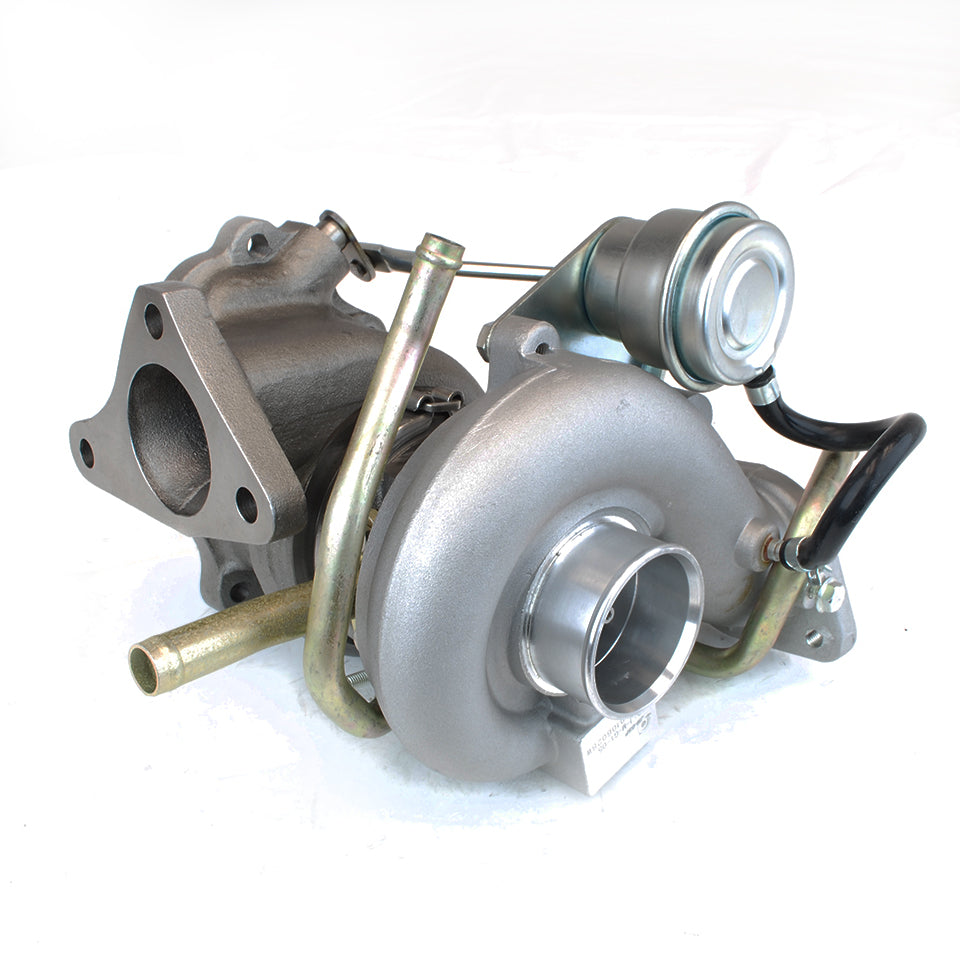

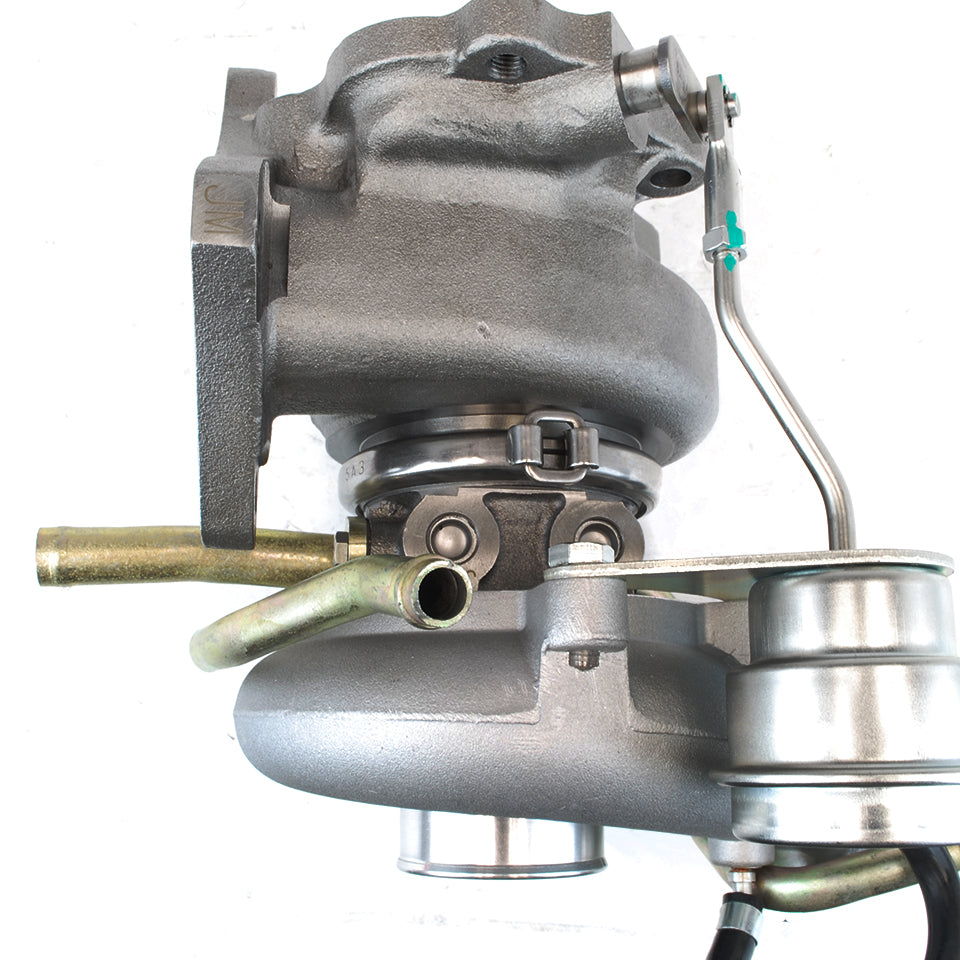

TD05 16G 7CM TURBO CHARGER (bolt on for the Subaru WRX , Legacy, Forester, Outback)
DIRECT BOLT-ON to the following vechile:
- 08+ Subaru WRX only
- 05-09 legacy GT / limited
- 09+ Subaru Forester 2.5xt
- 05-09 Subaru Outback
2005 2006 2007 2008 2009 Subaru Legacy GT / limited / Subaru Outback
Bearing system: Journal Bearing
Compressor Wheel Diameter: 48.3 / 68mm
TURBINE Wheel Diameter: 49.2 / 56 mm
Turbine TRIM: 49
Turbine flange type flange: subaru flange type
Downpipe flange type : subaru flange type
Nozzle Area: 7cm
Cooling type : oil and water cooled
Horsepower rating: 350+ hp
BOLT ON TURBO FOR : WRX GH8 / LEGACY GT / FORESTER 2.5 / OUTBACK
Actuator set at : 8 PSI
CFM: 580
NOTE: all subaru turbo require the use of factory vacuum lines with the proper restrictor pill size. please use a bigger oil restrictor for this turbo charger , factory oil feed restrictor are too small and will cost this turbo to burn due to lack of oil
