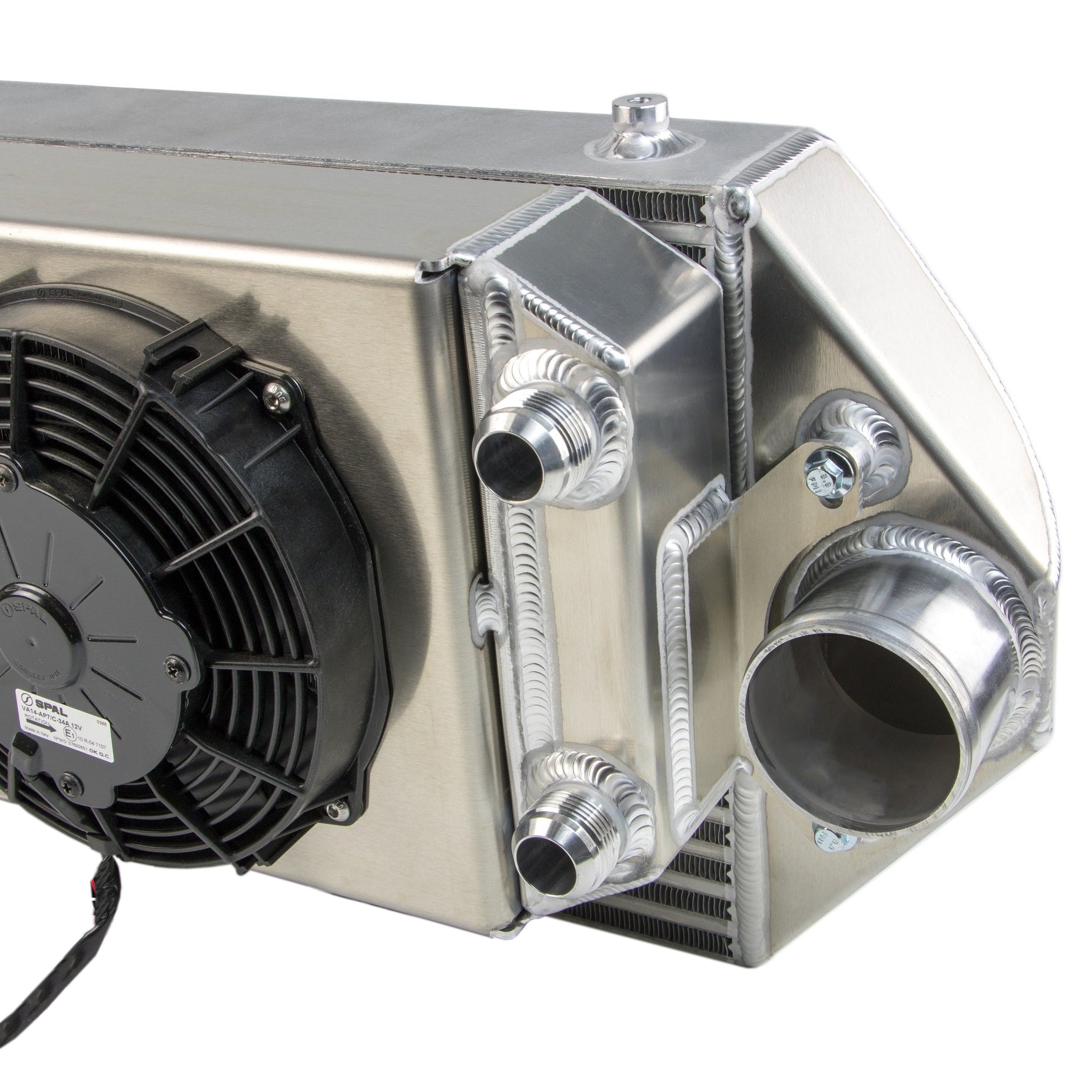

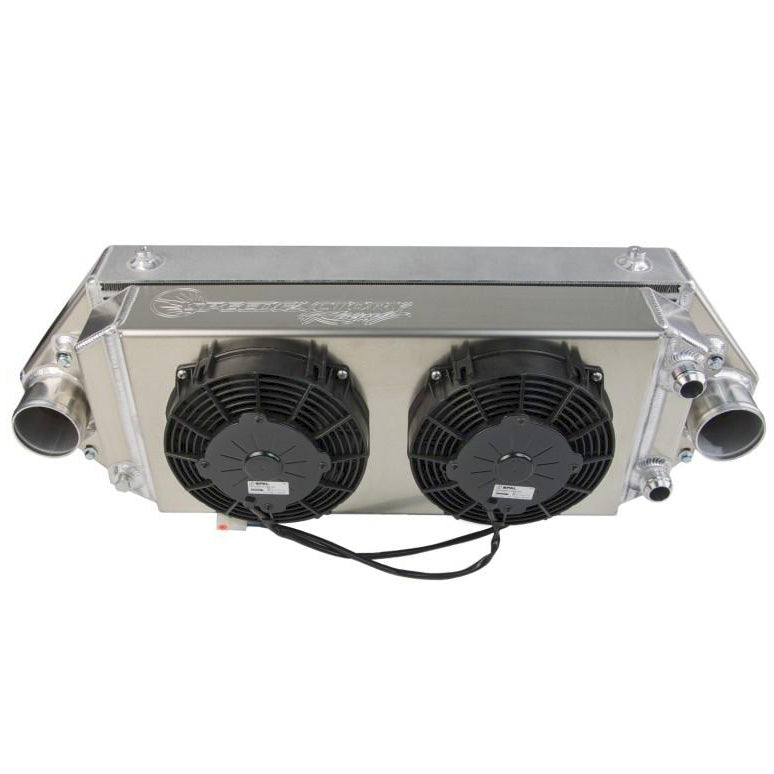

SpeedFactory Racing Dual Backdoor Intercooler | Tucked Radiator Combo

We have combined 2 of our most popular thermal management products and created a compact, innovative cooling solution for your turbocharged Honda /Acura.

The SpeedFactory Racing Aluminum Tucked Radiator is a must have when trying to utilize precious engine bay space. It is not only more efficient than the OEM radiator resulting in increased performance but also provides lower coolant temperatures in extreme environments and conditions. The core is 100% aluminum and is a dual pass, dual core cross flow design that is proven to reduce coolant temperatures by up to 20-30 degrees. The Speedfactory logo is CNC engraved into the top bar of the radiator itself. This radiator is designed for street, track, and show applications.

The SpeedFactory 600-850+HP rated Dual Backdoor Intercooler is built with a 3" thick, high quality SpeedFactory aluminum bar and plate intercooler core for maximum efficiency and minimum pressure drop. Our custom engineered end tanks are carefully hand-formed in house from H-3 5052 aluminum and are fully TIG welded. This smooth-flowing intercooler was designed specifically to fit tidily between the front framerails on street/racing applications, and requires minimum charge pipe lengths.

This intercooler comes standard with 3" inlet / 3" outlet bead rolled tube ends. Vibrant Performance Vanjen clamps are also available upon request for faster, more secure charge pipe connections. Please call or email us before you place your order if you would like the Vanjen flanges welded to your intercooler. All of our intercoolers ship complete with the SpeedFactory logo stenciled on the face of the core and have M8x1.25mm aluminum mounting bungs already attached for easy installation.

Specs:

-Rated for 600-850+HP

-Standard Intercooler core size is 24"x12"x3"

-HP Intercooler core size is 24"x12"x3.5"

-Overall Standard combo size is 32.5" width x 12" tall x 8.5" thick

-Overall HP combo size is 32.5" width x 12" tall x 9" thick

-Will fit most Honda/Acura chassis with modification, and is available for B and K-series engines.

-Unparalleled Craftsmanship and race proven performance
