Rhino 2-Gallon Train Horn Kit
Specifications Part numbers, fitment codes and shipping
- Brand
- HornBlasters
- Speedzone SKU
- HK-Q3-2HB
- Manufacturer part number
- HK-Q3-2HB
- Category
- Discontinued
- Shipping weight
- 41.0 lb
This model has been discontinued. You can find similar models here!
HIT 'EM WITH THE SOUND OF A CHARGING BEAST!
The Rhino 2-gallon train horn kit will be sure to stop them in their tracks! Similar to having a charging Rhino hit you in the chest with its thunderous tone sure to be heard all around. Stacked nicely on a single manifold, the Rhino provides quick and easy mounting to have you honking in no time!

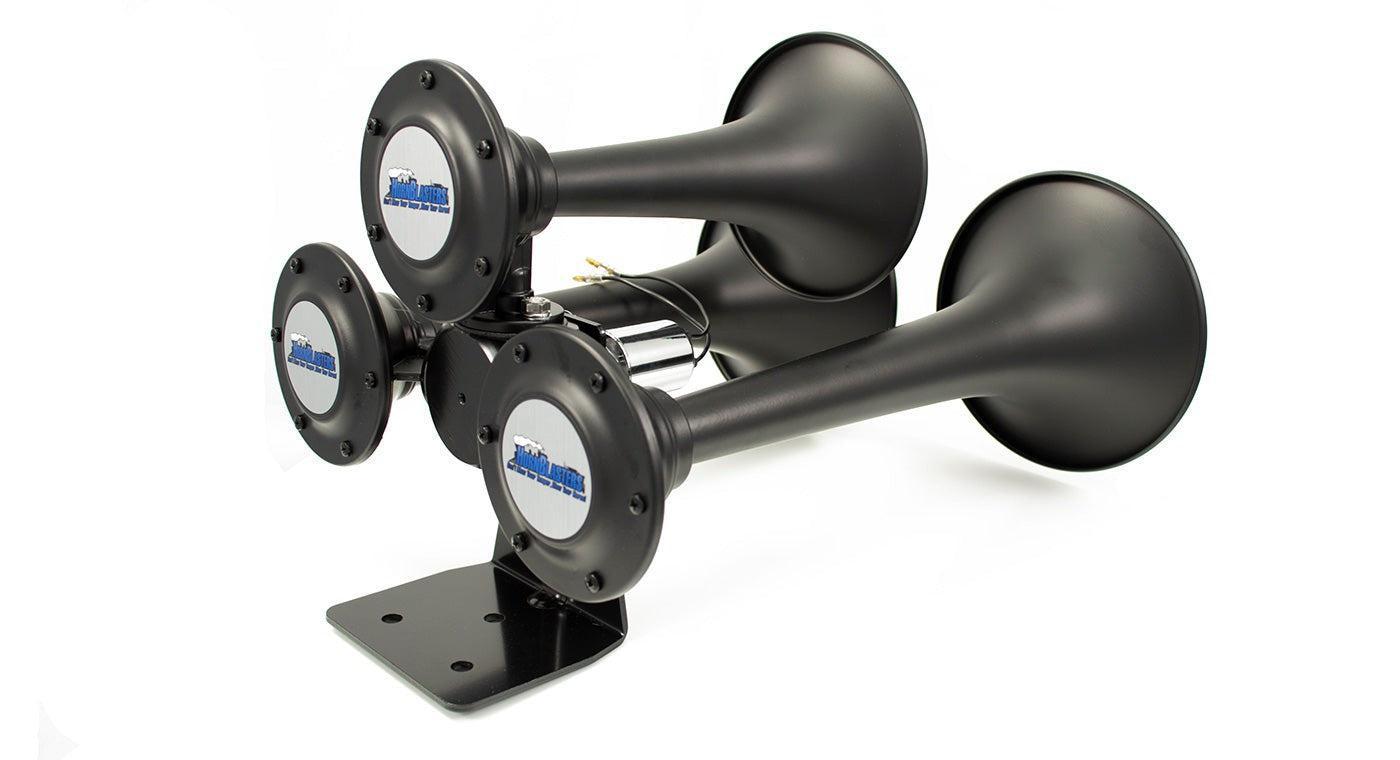

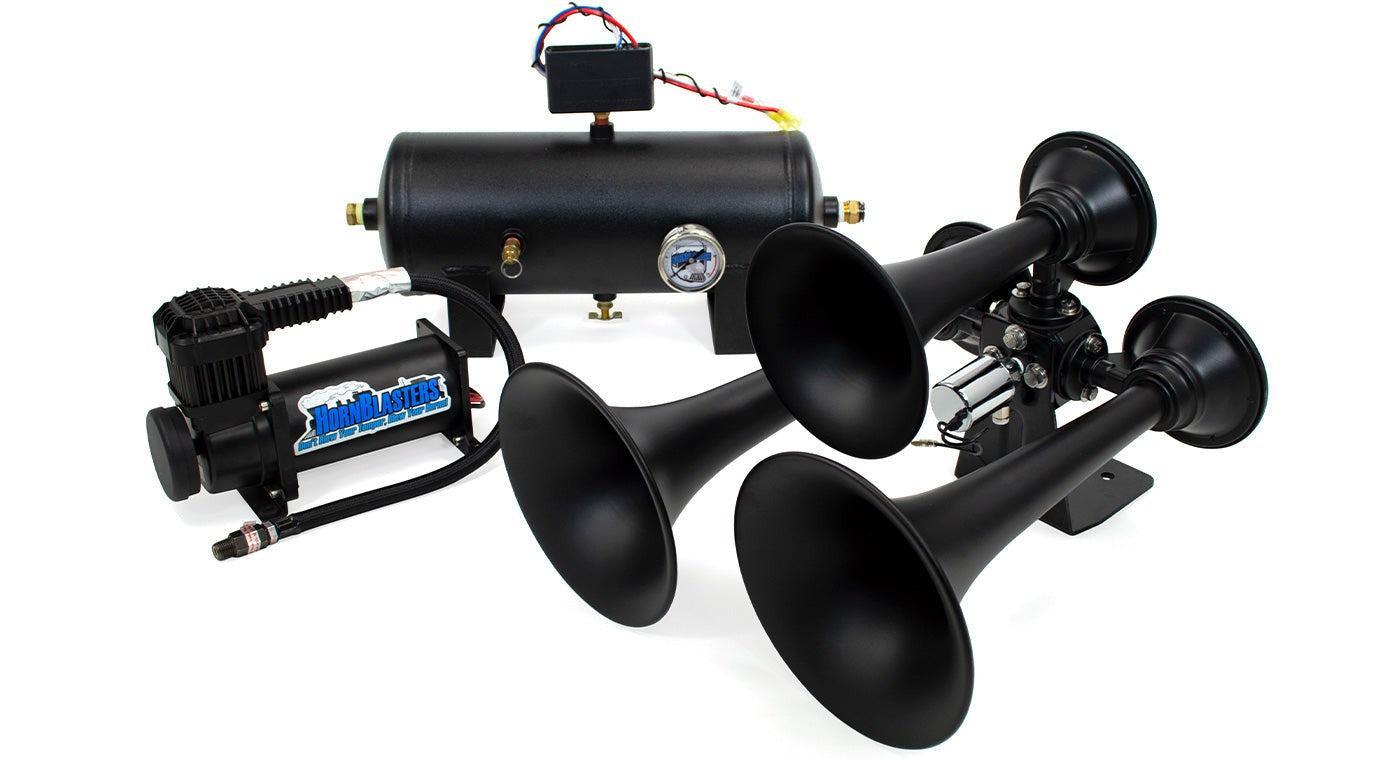

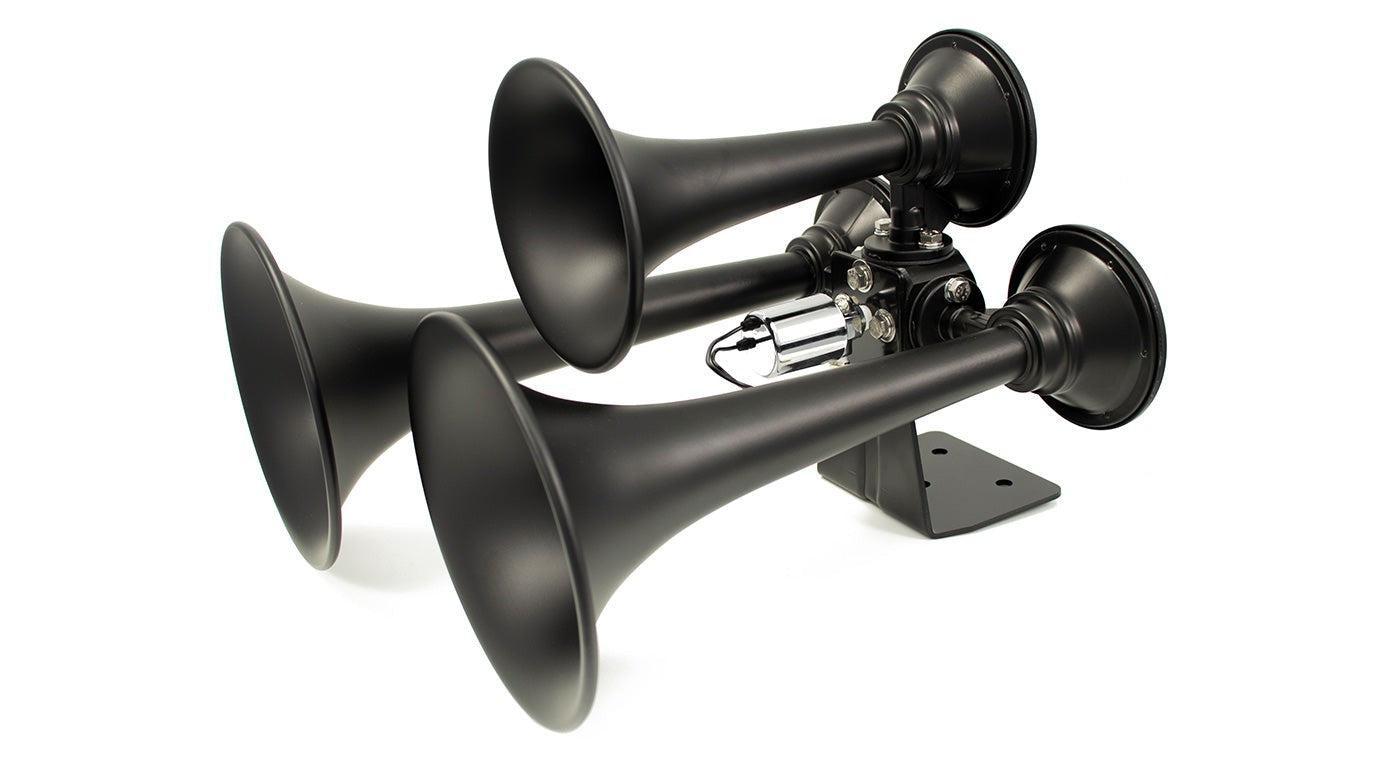

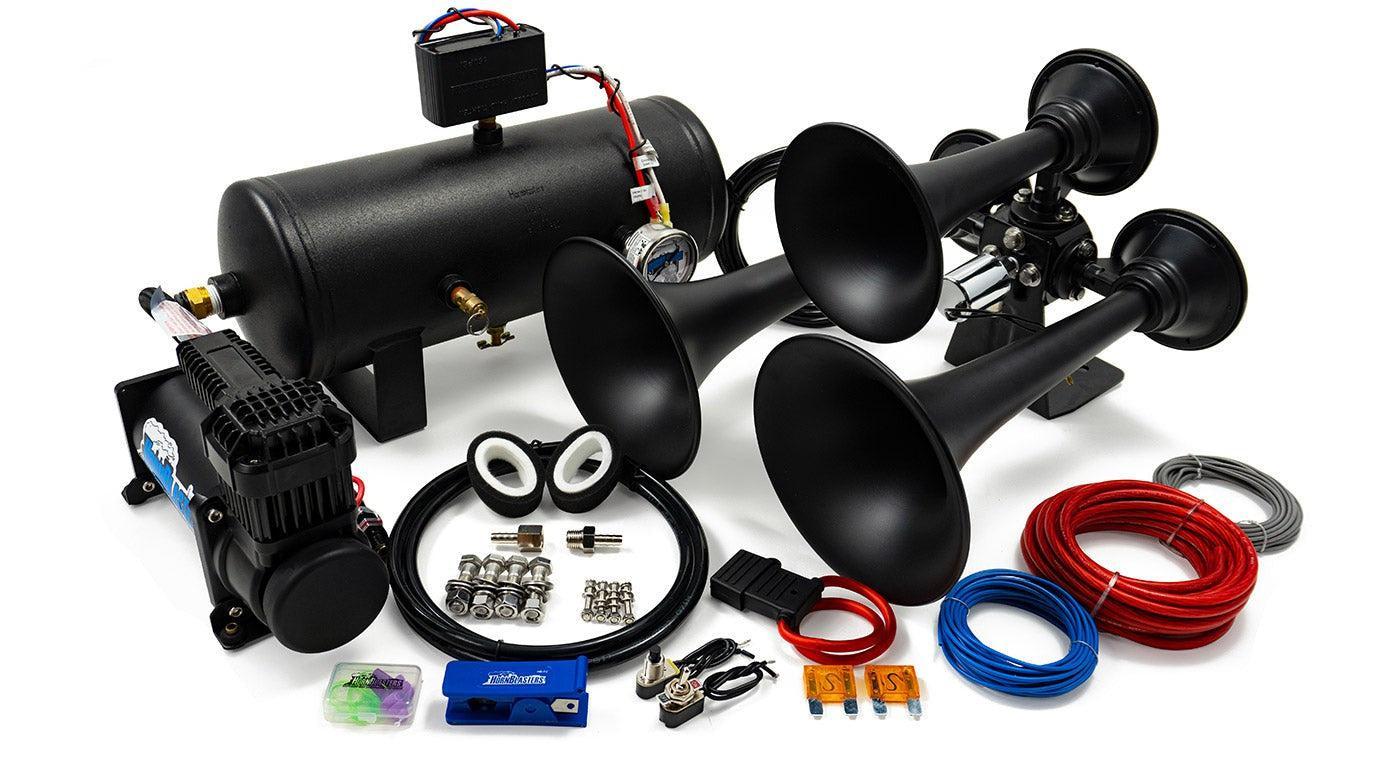

- Rhino Black train horn
- HornAir 2-gallon 6 port air tank
- Air compressor
- 110/150 PSI pressure switch w/ 40 amp relay
- Spare air filters
- 10 ft of 1/4 in D.O.T. approved air line
- 22 ft of red 10 gauge power wire
- 22 ft of grey 18 gauge power wire
- 22 ft of blue 18 gauge power wire
- Pre-installed 1/4" electric air valve
- HornBlasters 200 PSI liquid-filled stainless steel air gauge
- Brass NPT fittings kit including a safety blow-off & drain cock
- Complete wiring kit with fuse holder & fuses
- Mounting hardware
- Detailed instructions
- Part Number: HK-Q3-2HB
- Operating Pressure: 150 PSI
- Restart Pressure: 110 PSI
- Voltage: 12-Volt DC
- Horn: HornBlasters Black Rhino Train Horn
- Horn Length: 16.75" (425.45 mm)
- Horn Width: 15" (381 mm)
- Horn Height: 11.25" (285.75 mm)
- Horn Weight: 14.2lbs (6.44kg)
- Horn Air Inlet: 1/4" Air Line
- Air Tank: HornAir 2-gallon 6 port air tank
- Tank Length: 17" (431.8 mm)
- Tank Diameter: 6" (152.4 mm)
- Tank Height: 8″ (203.2 mm)(With Legs)
- Tank Weight: 10 lb (4.54 Kg)
- Compressor Length: 8.75" (222.25 mm)
- Compressor Width: 4" (101.6 mm)
- Compressor Height: 6.6" (167.64 mm)
- System Max Amp Draw: 25 Amps
| 2.0 GALLON TANK | FILL RATE |
|---|---|
| 0 to 150 PSI | 2 min. 55 sec. (± 10 sec.) |
| 110 to 150 PSI | 55 sec. (± 05 sec.) |
2-Gallon Air Tank Dimensional Drawing
