Honda Civic Type-R Oil Cooler Kit by MAPerformance

Not many things can kill a motor as fast as overly high oil temps, and we are not alone in finding that the stock Civic Type R system is not up to the task. From lapping days to daily driving, and everything in between our MAPerformance Civic Type R Oil cooler kit will do everything you need and more!

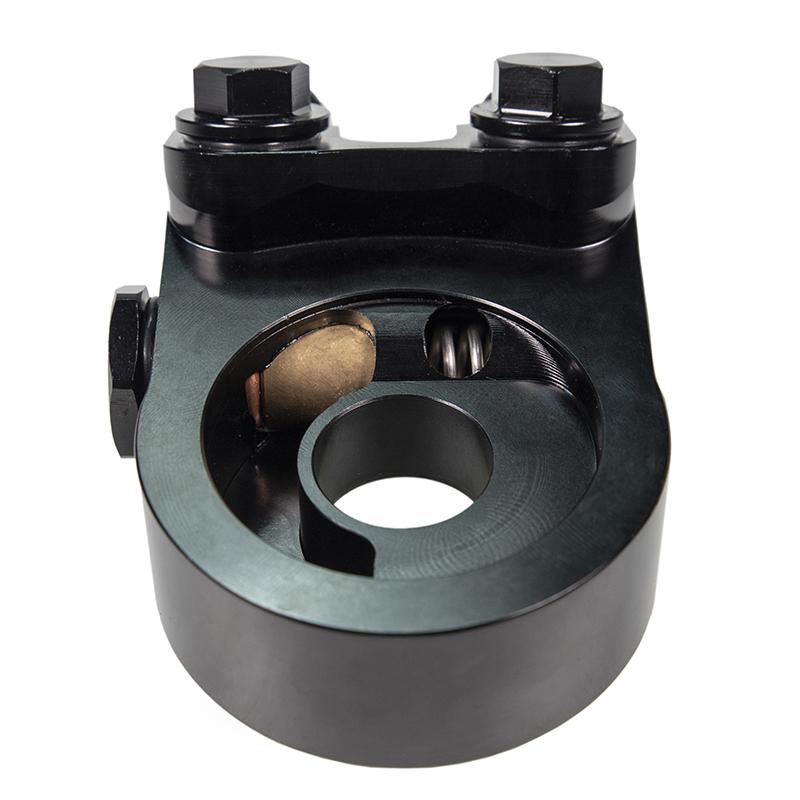

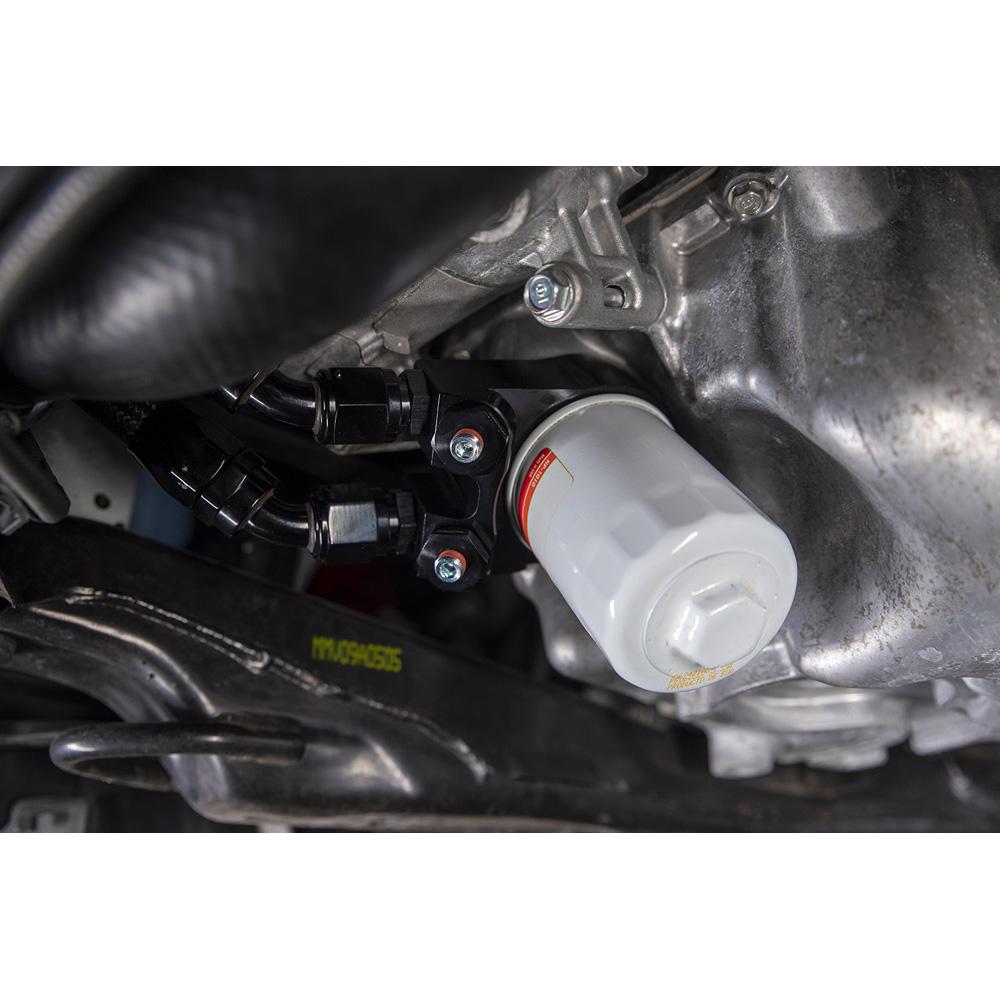

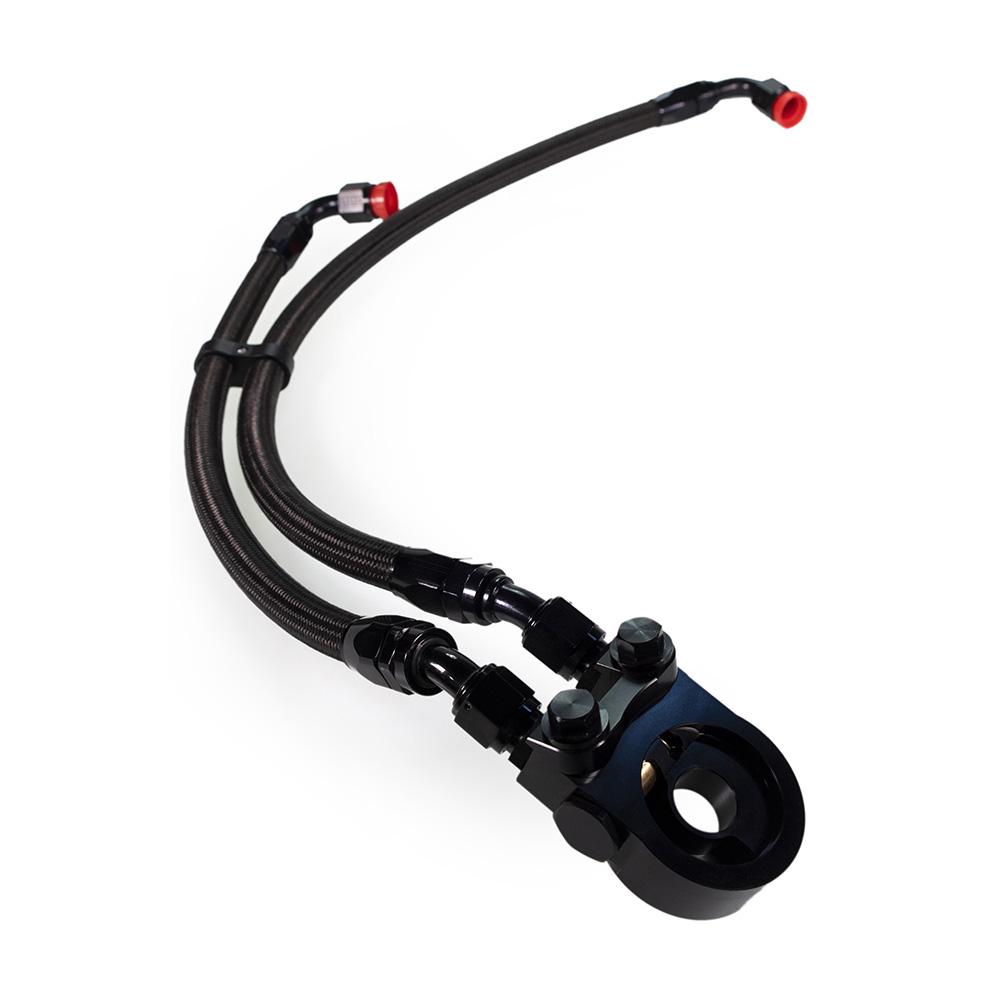

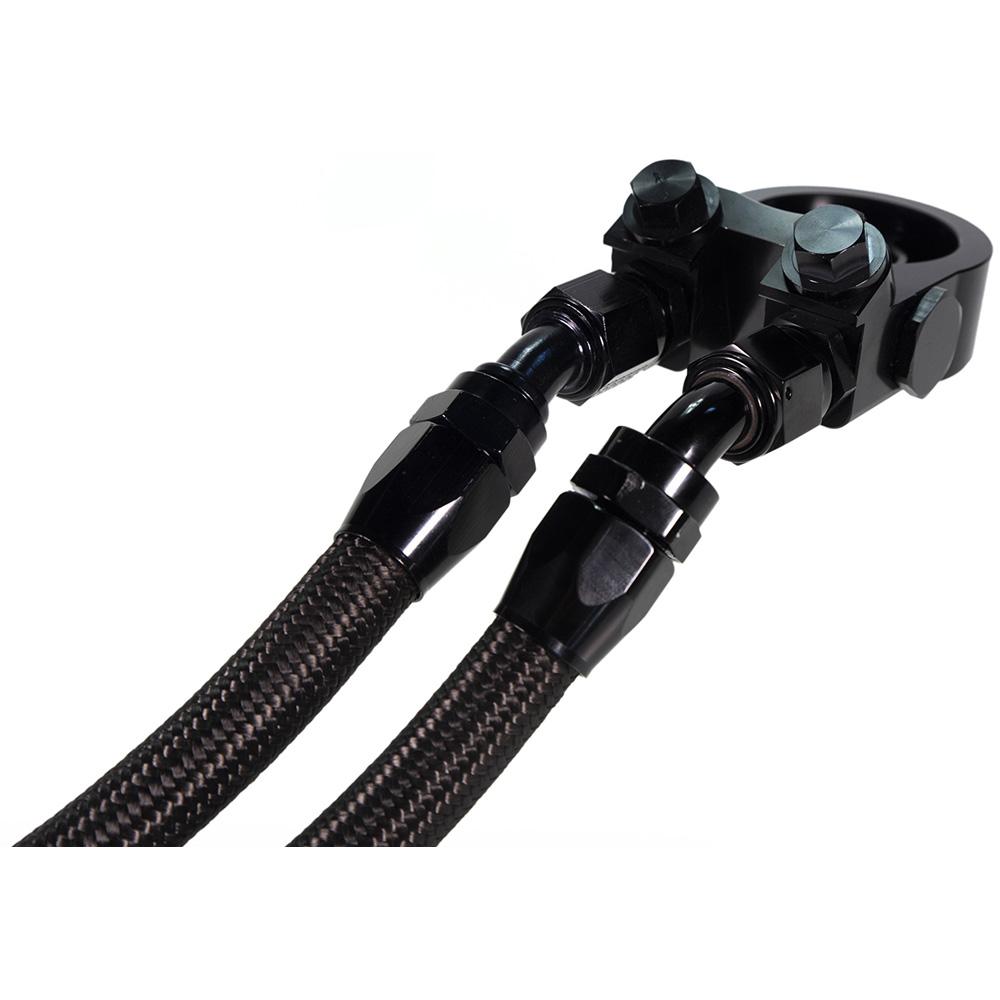

When it came time to design the MAPerformance Civic Type R Oil Cooler kit we started with our direct fit thermostatic oil filter adapter plate, with a focus on ground clearance this allows the filter to sit up and out of the way. Due to the lack of factory oil pressure monitoring, we felt it was very important to add the 1/8" NPT ports to the side of the housing, as to provide the key information of oil temperature, pressure, or both depending on the sensor utilized, there are two ports available for use on the housing using the supplied -8AN to 1/8" NPT adapter fittings.

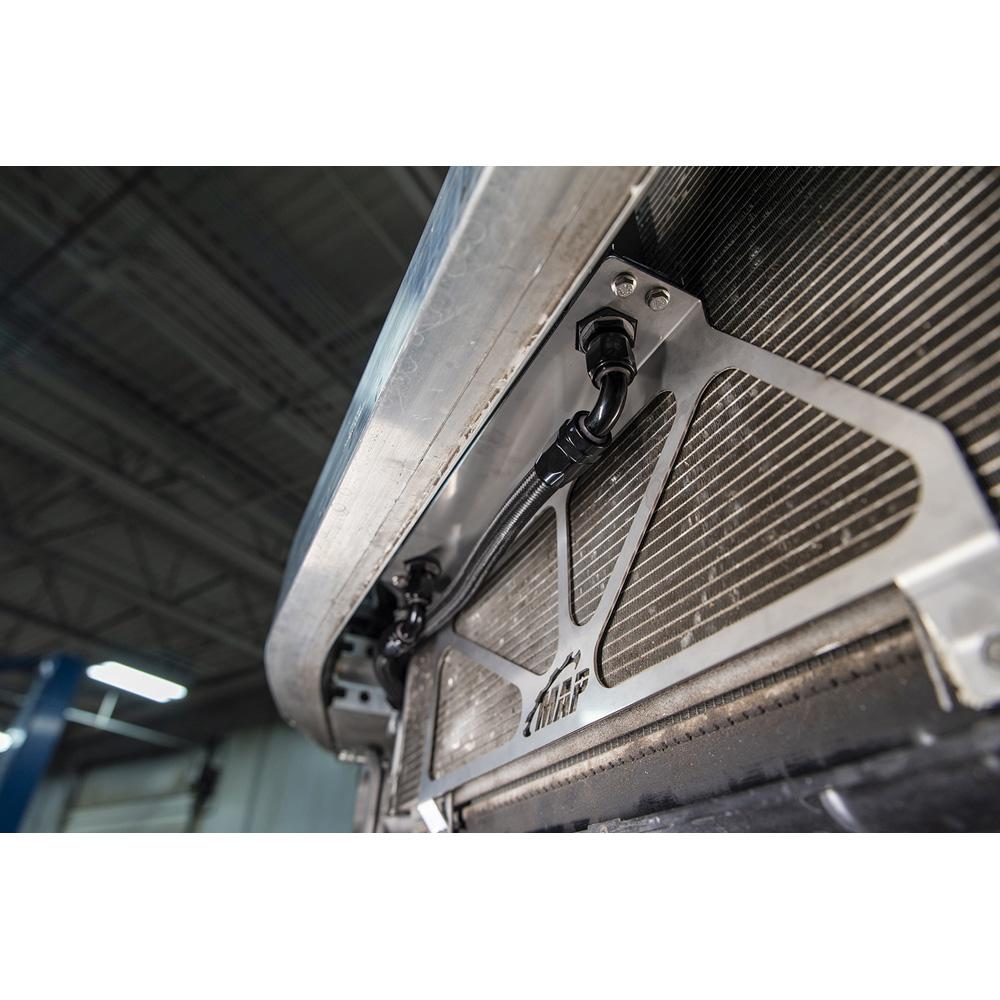

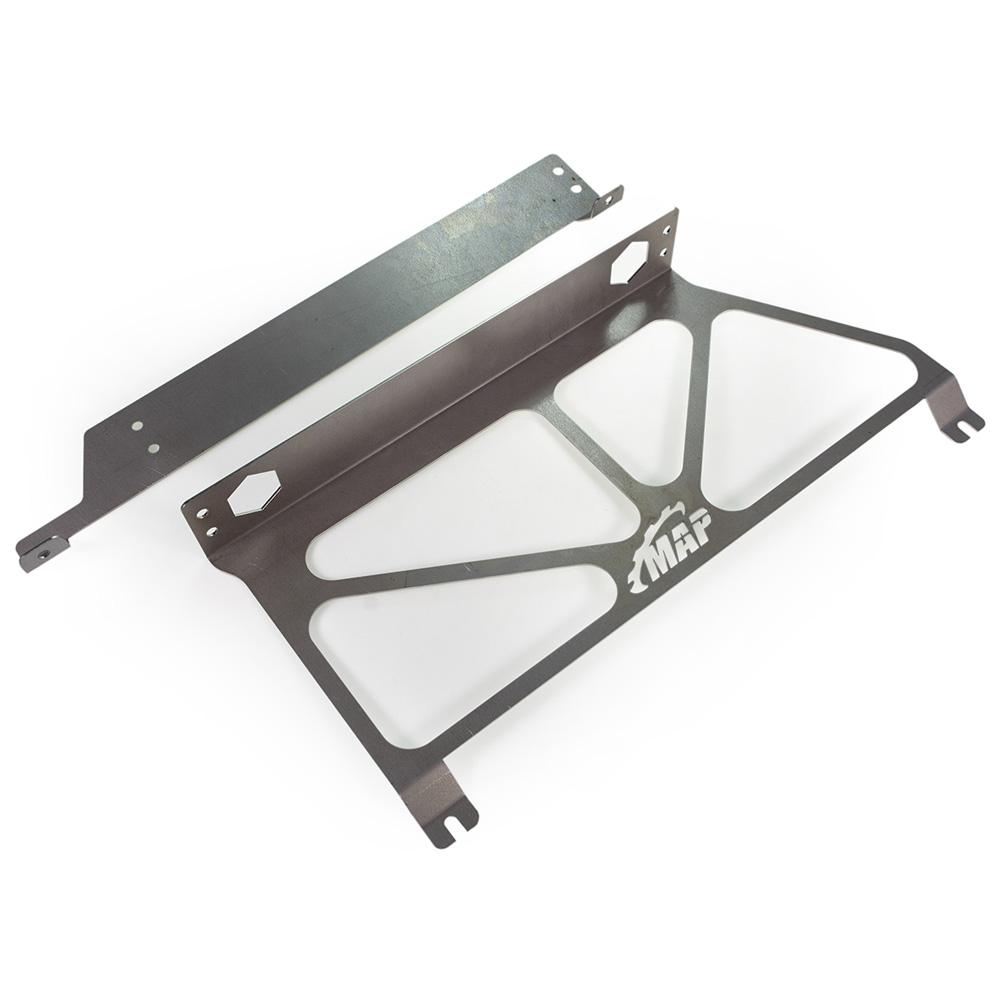

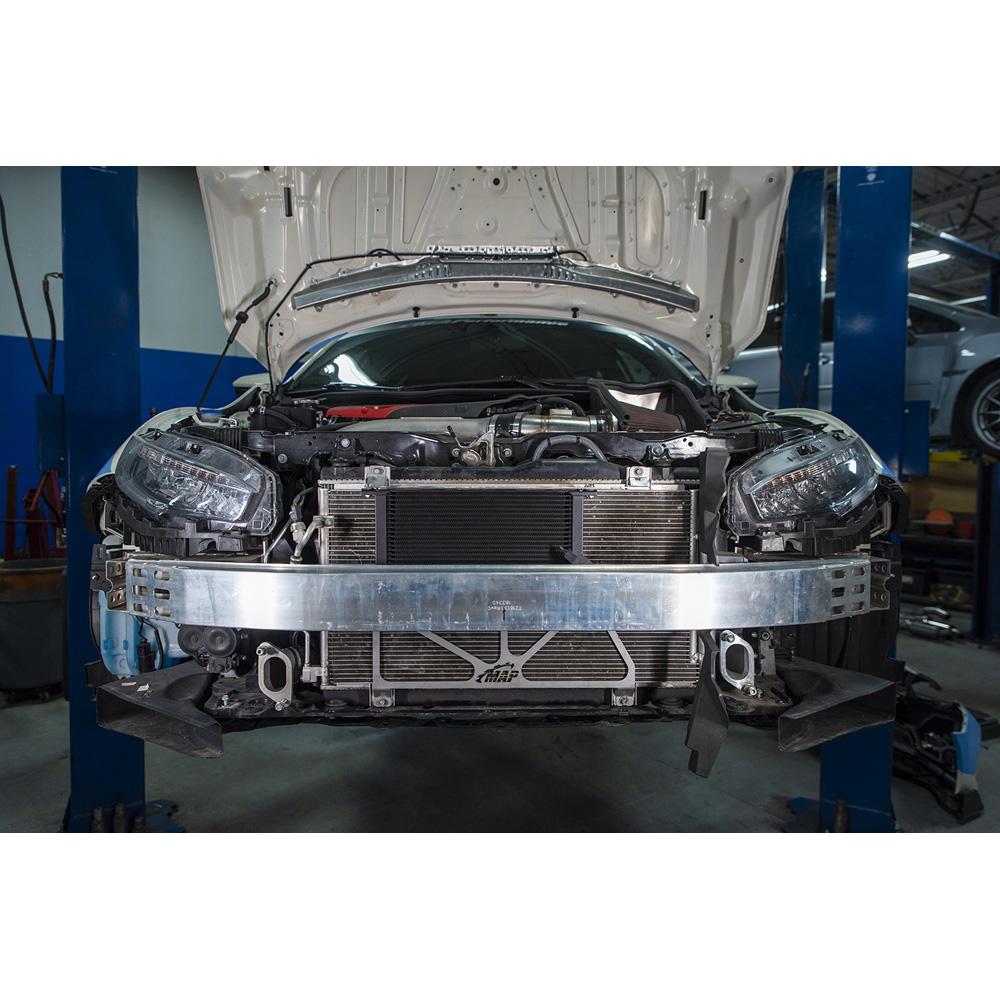

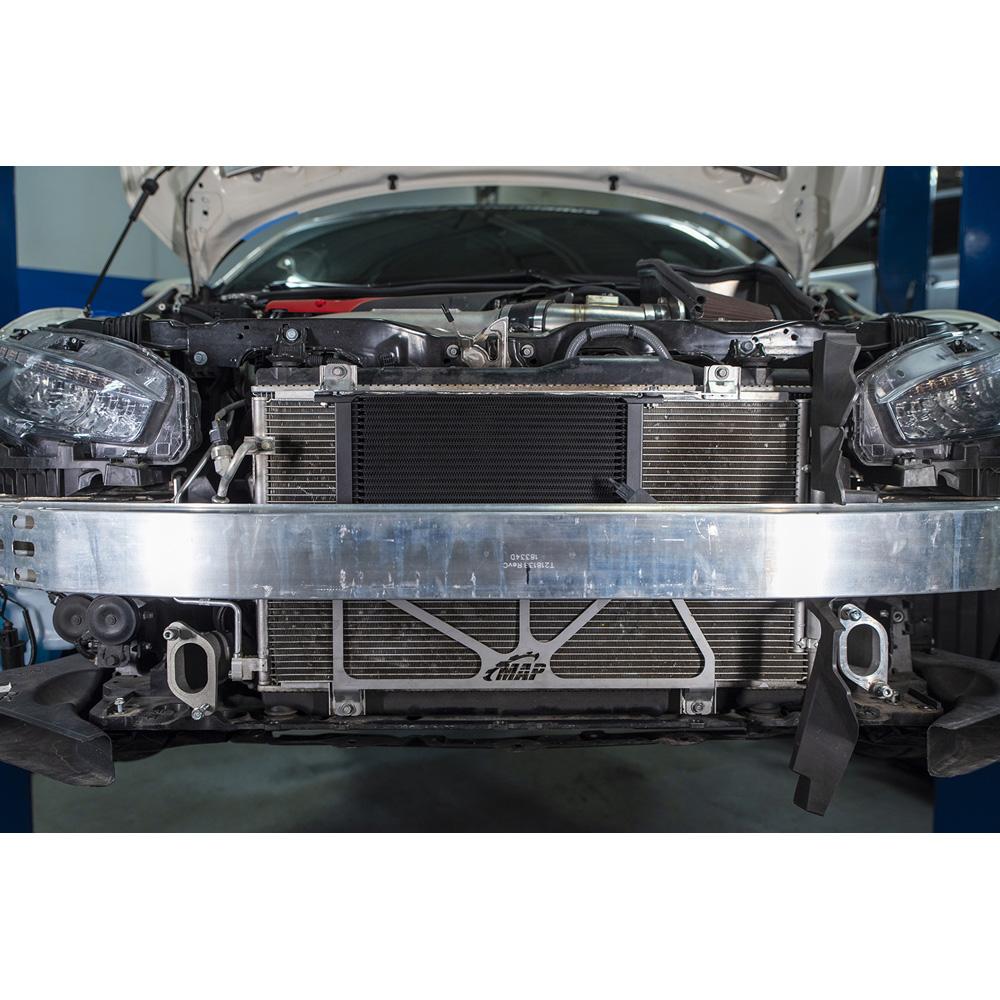

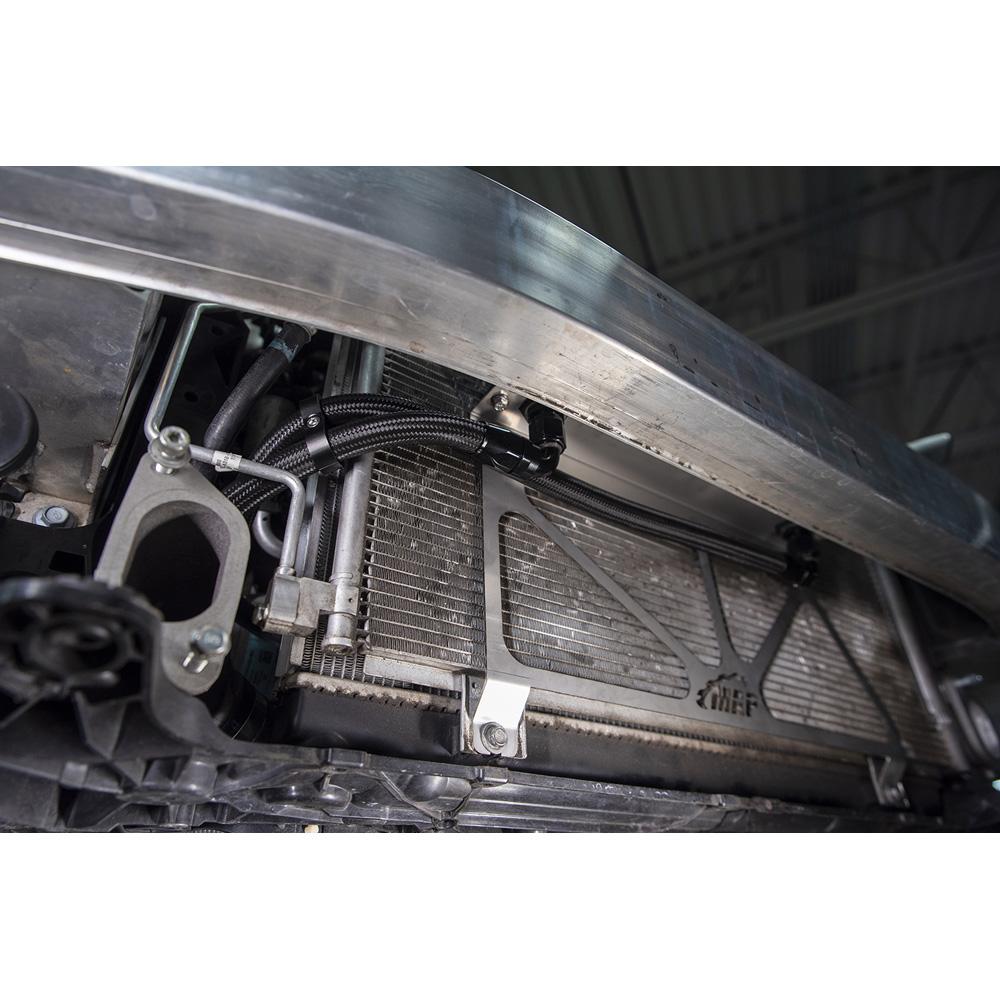

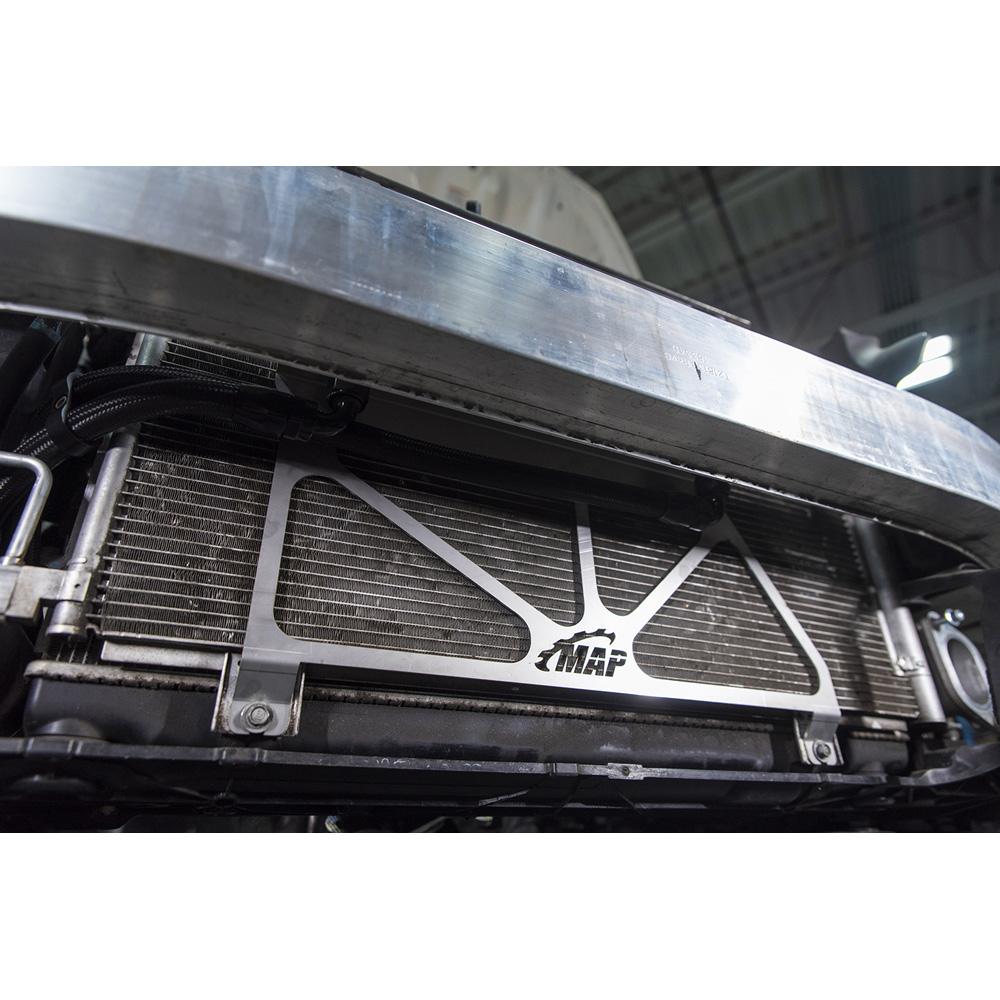

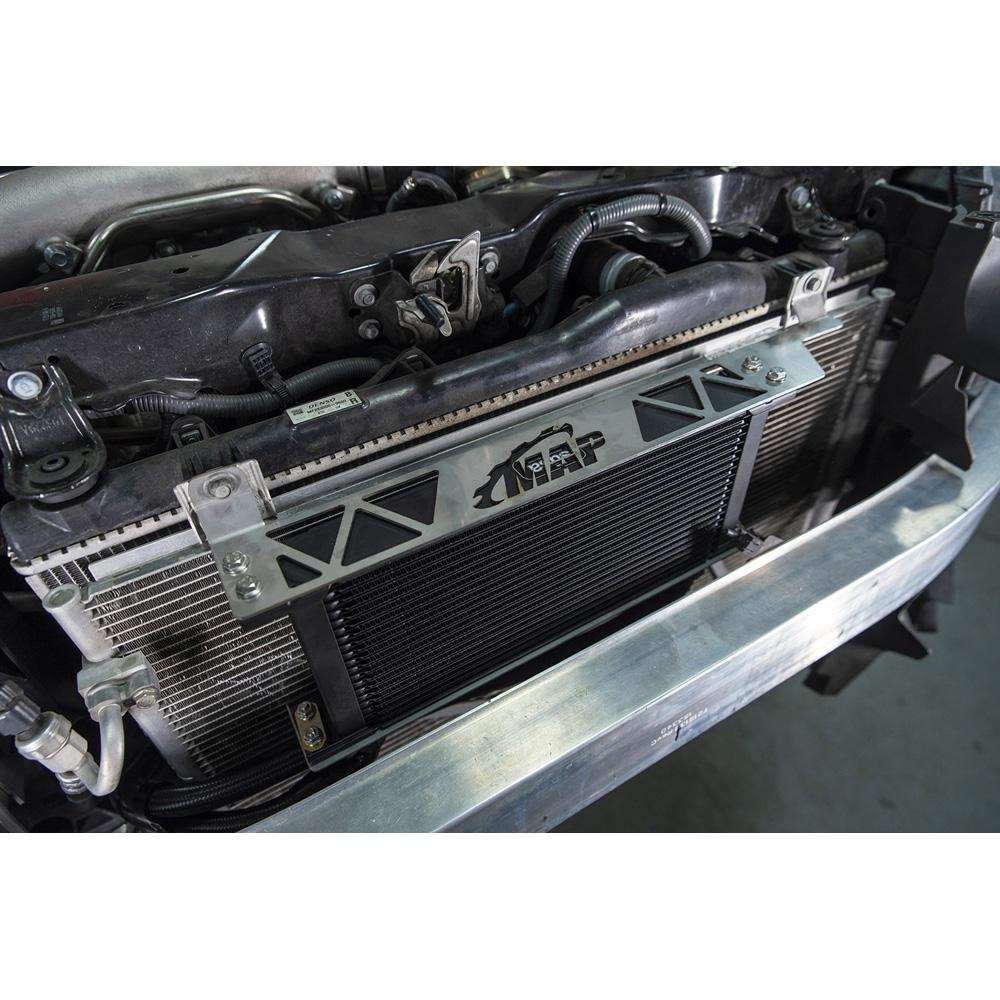

To mount the cooler, we designed our MAPerformance 304 Stainless bracket produced right here at our USA facility. This bracket not only looks stylish for many years but is also a 100% bolt-on solution meaning no cutting or trimming is required to any part of your car(You do remove a few small pieces of plastic) keeping the installation as easy as can be!

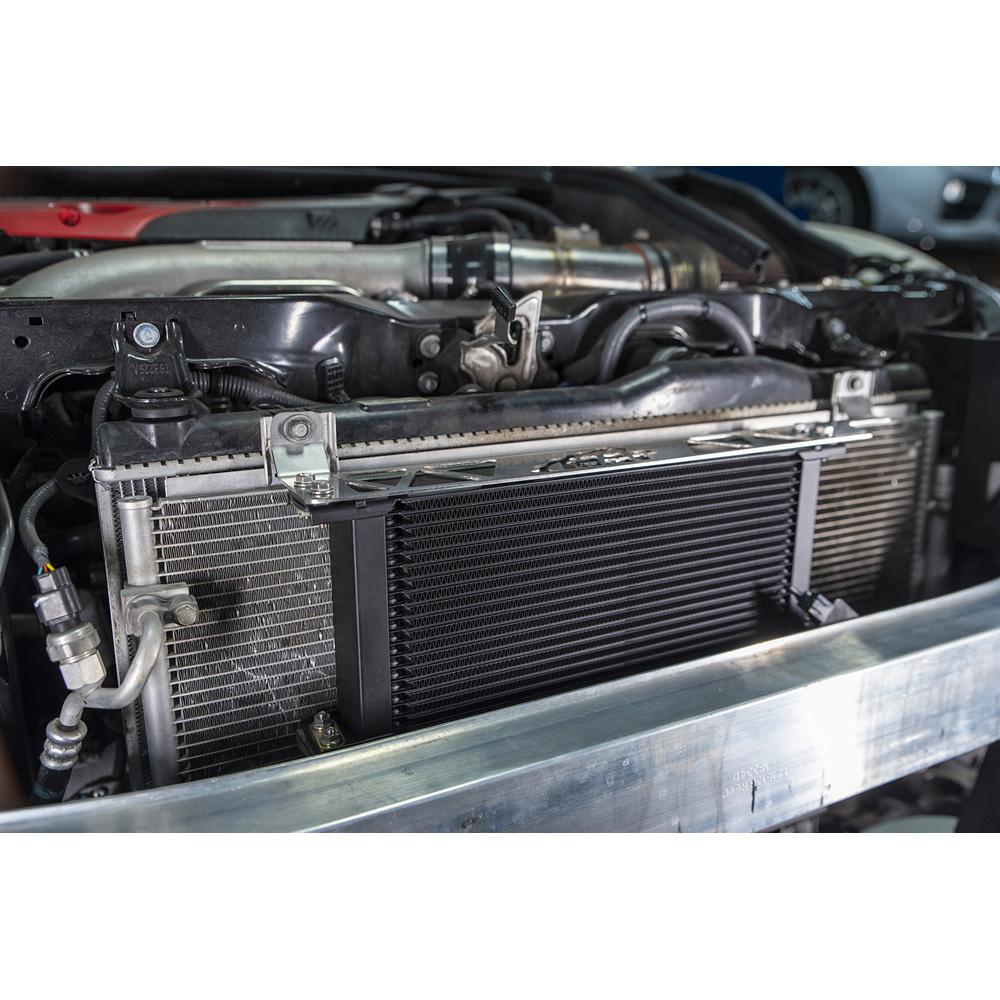

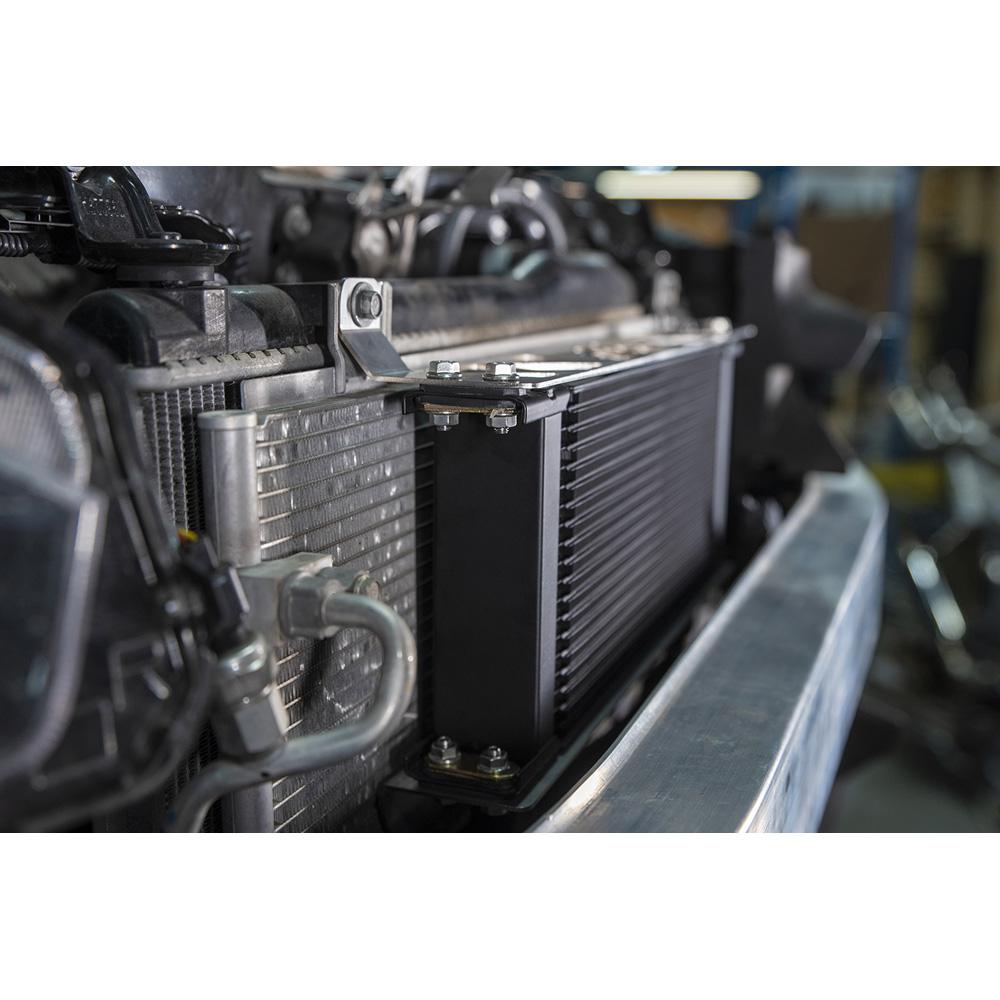

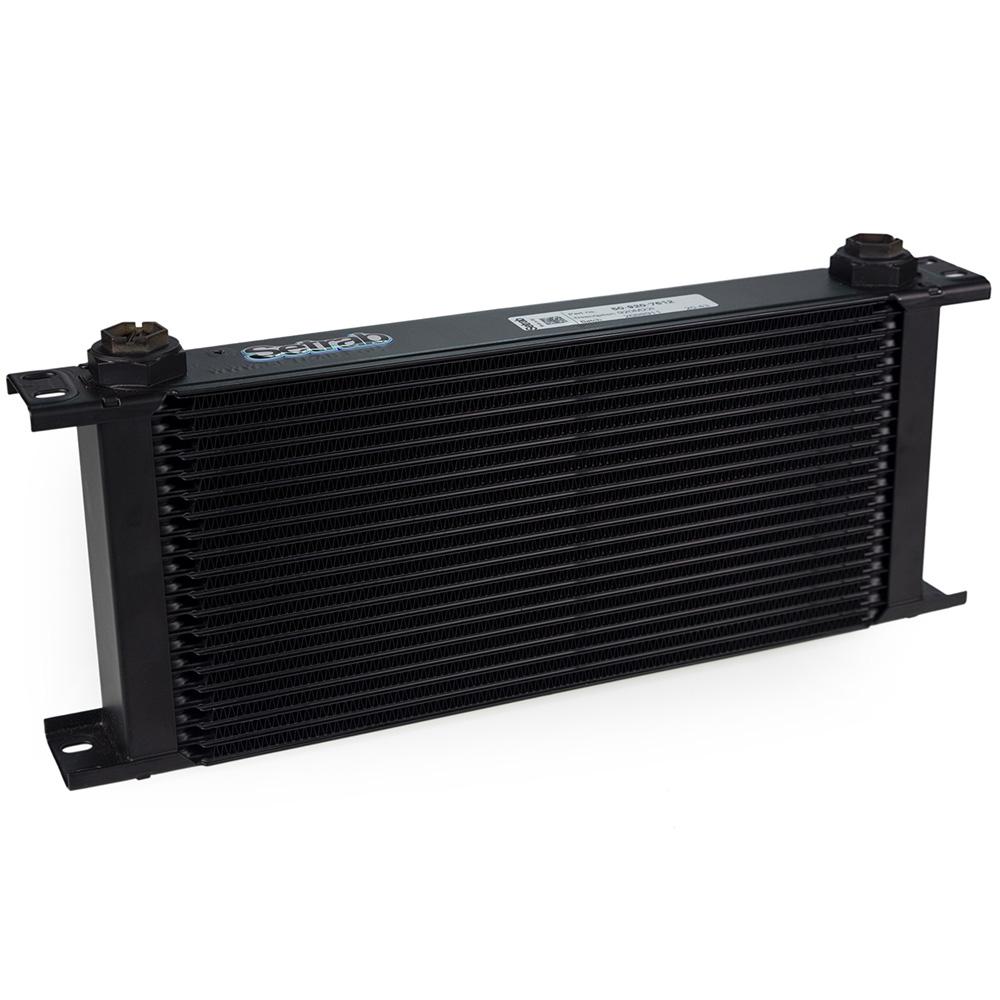

For the cooler, we selected one of the largest SETRAB cores that we could fit, and keep in a reasonable budget. SETRAB has been an industry leader in the cooling industry for generations, and there is no better fit! There were multiple reasons for this decision, the obvious being that it would pull as much heat out of the system as possible and cool the oil to reasonable temperatures. The secondary reasoning is that the K20C1 has a very small oil capacity and being able to add nearly a full quart to the system will help in both temperature and also helping keep the oil pressure stable at all times!

Features

• MAP Direct Fit Stainless Steel Brackets for easy install
• 1/8" NPT ports to add Pressure or Temperature gauges
• Lightweight Braided Squirrelly Performance AN lines and fittings
• Large capacity SETRAB oil cooler core, that with lines adds nearly 1qt of oil capacity to the system
• All stainless hardware to prevent corrosion
• Thermostatic Oil Filter adapter plate

Benefits

• 100% Direct Fit
• Increased Oil Capacity
• Increased Oil Cooling
• Maintains Ground clearance for oil filter

Applications

• 2017 - 2021 Honda Civic Type-R (confirmed fitment with factory and MAP intercoolers)

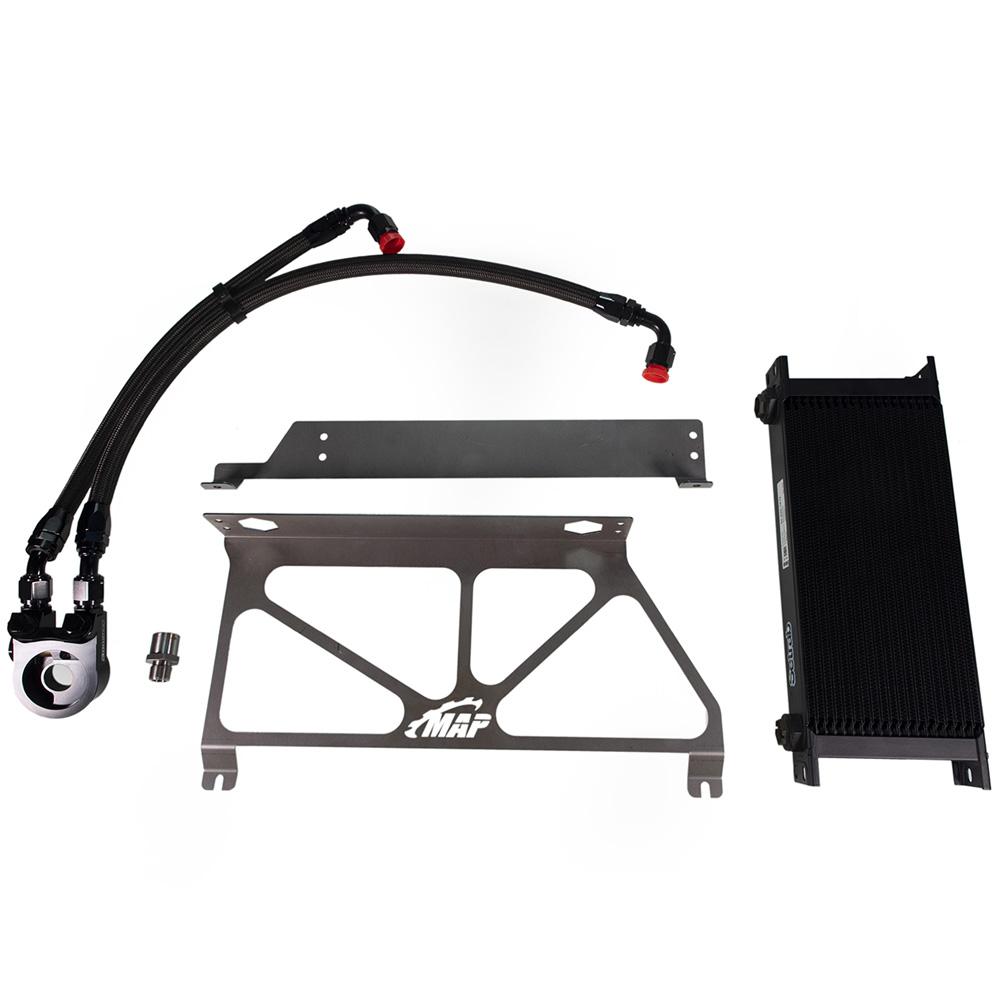

What's In The Box?

• 1 - MAP Civic Type R Oil cooler mounting bracket (Upper and Lower)

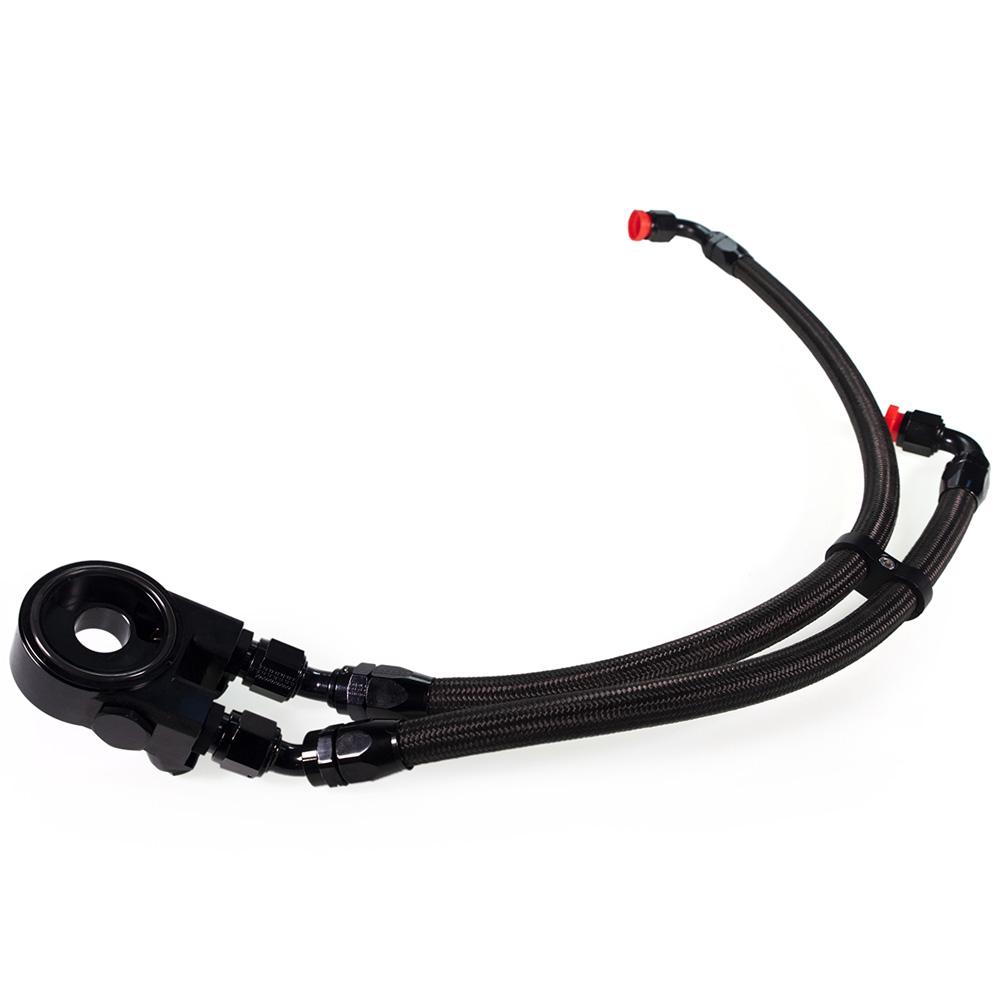

• 1 - MAP Civic Type R Oil cooler line kit (2 lines)
• 2 - -8AN to -10ORB Fittings
• 2 - 1/8NPT Alen Plug
• 2 - -8AN to 1/8" NPT Adapters
• 1 - MAP Oil Filter Adapter Plate
• 1 - Setrab Oil Cooler
• 2 - Setrab Oil Cooler to -10AN Fittings

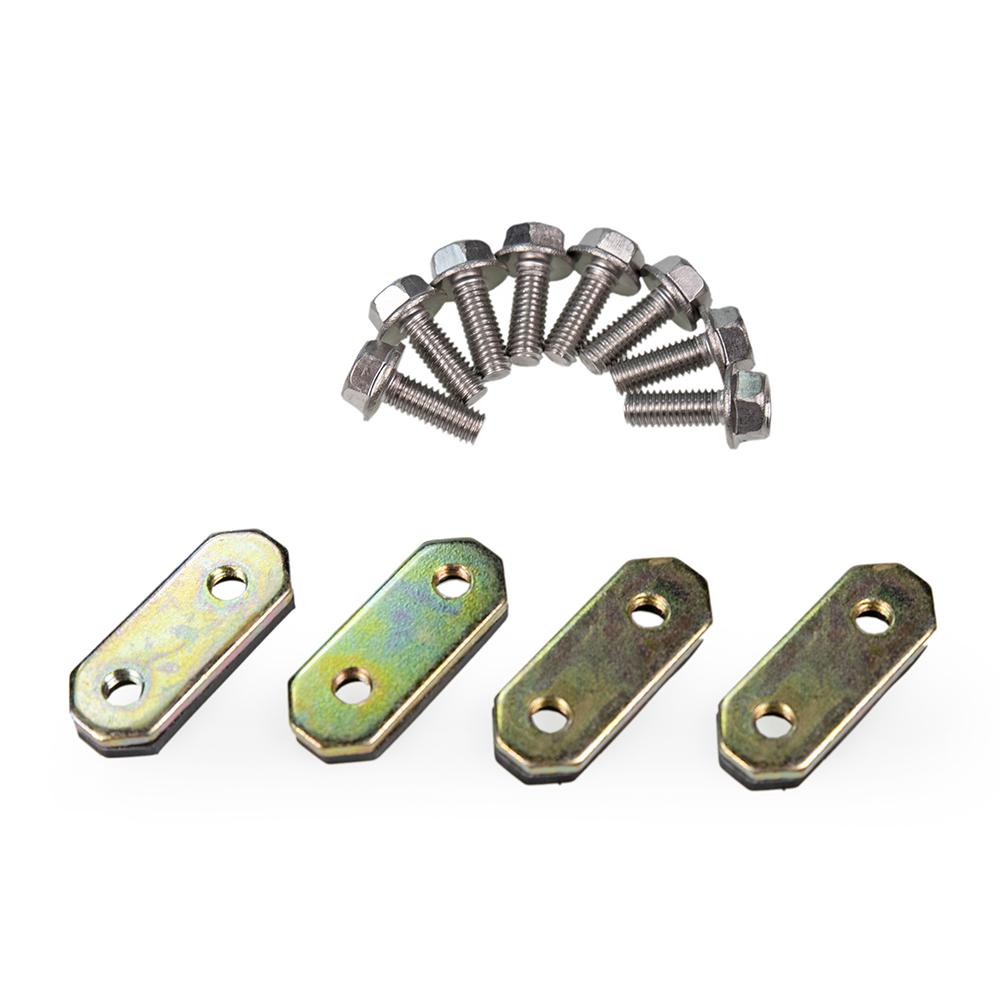

• 8 - M6x1.0x16 Hex Head Bolts
• 8 - M6x1.0 Hex Nuts
• 4 - M6 Threaded Plates
• 4 - M6 Rubber isolators

References

• Installation Instructions

Warranty

• MAPerformance Limited Lifetime Warranty
