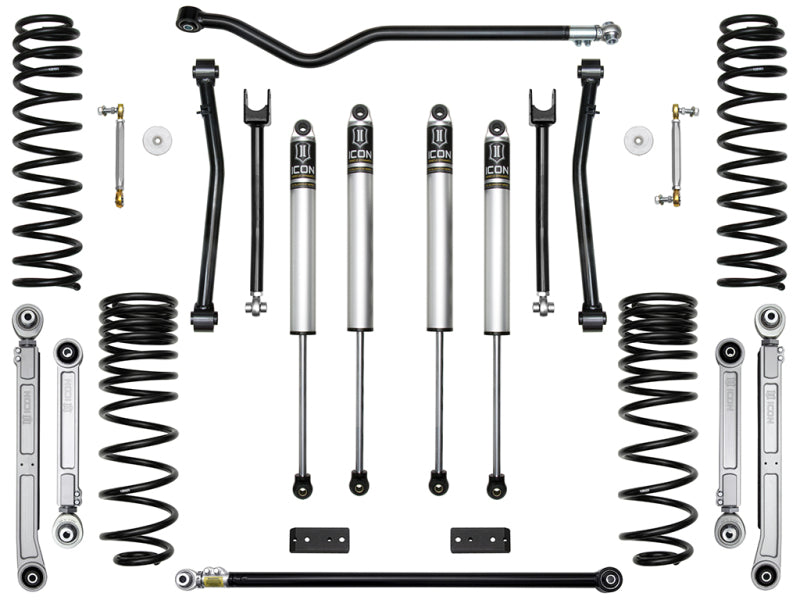

The Stage 5 ICON 2.5” Suspension System for the Jeep Gladiator is the ideal setup for significantly improving off-road performance and overall ride quality for the application that will see frequent moderate off-road use. This complete suspension system features 2.0 Aluminum Series shocks, 2.5” lift dual-rate front coil springs, tubular steel fixed lower and adjustable upper front links, billet front sway bar links, a triple-rate rear coil spring kit, billet aluminum adjustable upper and lower rear links, a rear sway bar relocation kit, front and rear adjustable track bars, and all necessary hardware for install. This system provides an increase of over 30% front and 20% rear wheel travel and was designed around the use of a 35” tire. For those looking to run a 37” tire this can be achieved with the ICON Jeep JT Bump Stop Spacer Kit (Part #22071).

• Rear billet upper and lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment
• “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
• Front upper and lower links included for caster angle correction and improved front end articulation
• Triple rate rear coil springs with ICON-engineered droop, ride, and overload rates
• Dual rate front coil springs with lifetime guarantee against sagging/breakage
• Front and rear track bars ensure proper alignment and improved articulation
• 2.0 Aluminum Series shocks with vehicle specific valving
• Fits 35" tires (37" with extended bump stop spacer kit)
• Adjustable, billet aluminum front sway bar links
• Improves on and off-road ride quality over stock
• 100% bolt-on system makes for an easy install
• 33% front, 23% rear increase in wheel travel
• 2.5" lift height

This Part Fits:
