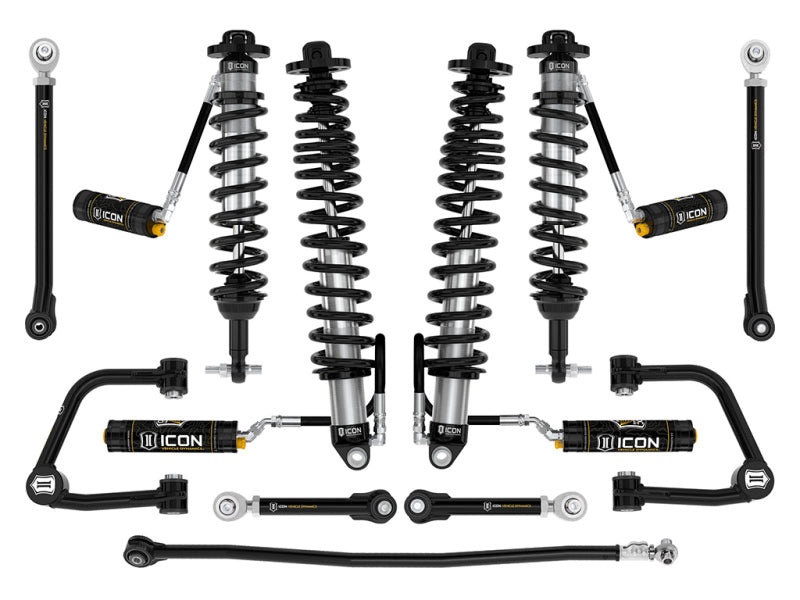

The ICON Vehicle Dynamics Stage 7 Suspension System for the 2021-2023 Ford Bronco features our precision-manufactured, custom valved remote reservoir coilover shocks with CDCV to yield the maximum travel possible along with superior ride quality and suspension performance both on and off-road. These coilovers also allow for the adjustment of ride height to yield 3-4” of front lift and 2-3” of rear lift over stock 4-door Broncos without the Sasquatch Package. The rear coilovers are mounted in a shaft up orientation and feature unique ICON engineered progressive dual rate coil springs that provide extra weight capacity for those who frequently load out their Broncos with extra gear and equipment while maintaining excellent on- and off-road performance characteristics. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade, ensuring sustained shock performance at speed through rough terrain. The included CDC Valves control fluid flow under compression, allowing you to achieve the perfect shock tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle.

• Adjustable coilovers yield up to 3-4" of front lift height and 2-3” of rear lift height over stock 4-door Broncos without the Sasquatch package
• Adjustable rear track bar helps to free up bind during rear suspension travel and articulation and offers on-vehicle rear end alignment
• Vehicle specific tuned remote reservoir front and rear coilover shocks for superior damping and vehicle control, even under hard use

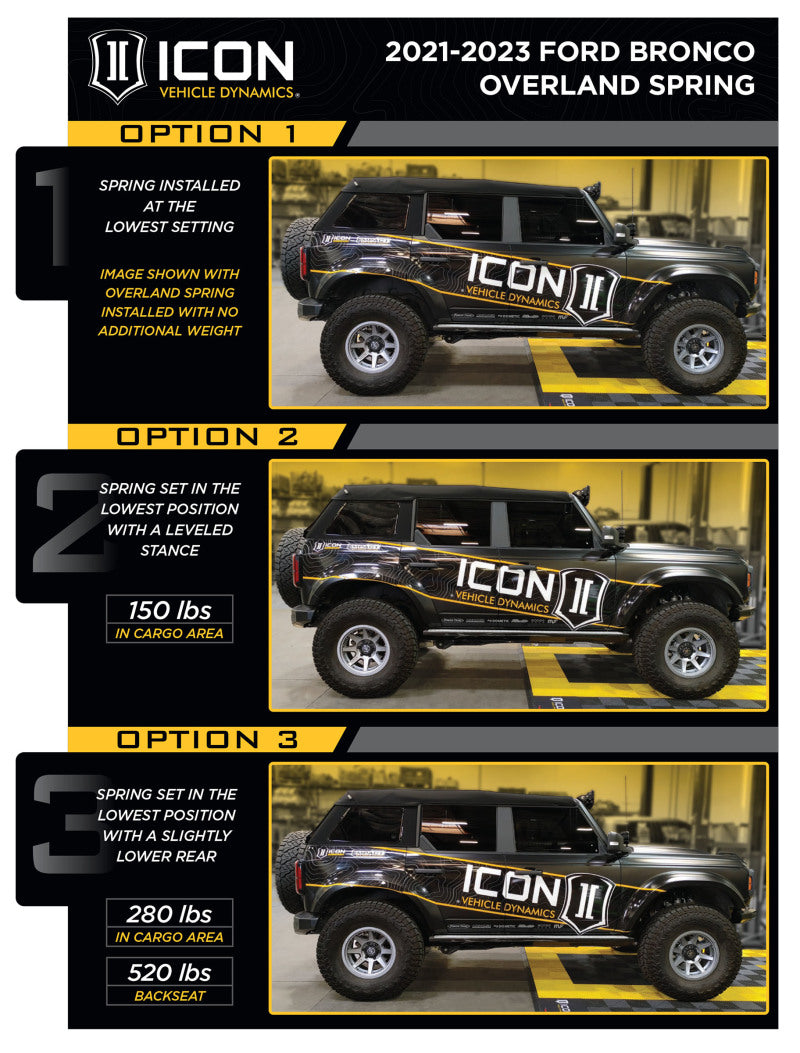

• ICON engineered coil springs featuring a unique dual rate rear coil design with increased spring rates for heavier equipped Broncos
• Adjustable tubular rear upper links improve fuel tank clearance under max articulation and help further free up suspension bind
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation.
• Coilovers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
• Tubular rear lower links improve rear end articulation and allow for pinion angle adjustment
• Tubular UCAs for added strength, durability, and alignment correction for better drivability
• Corrosion resistant CAD plated coilover shock bodies with 7/8” diameter shafts
• 100% Bolt-on system - no drilling, cutting, or welding necessary for install
• PTFE lined spherical bearings and application specific mounting hardware
• Up to 11.5" front / 14” rear wheel travel with 35” tire fitment
• Improved suspension performance and ride quality over stock
• 6061 Aircraft grade aluminum CNC machined components
• High strength alloy CNC machined lower bar pins
