SKU: HK-K5H-544K
LIKE A RUNAWAY FREIGHT TRAIN
Introducing the Nathan AirChime K5HA train horn kit, a powerful solution that'll make even the most distracted drivers take notice! With its incredible volume and durability, the K5HA reigns supreme in the train horn world, with die-cast aluminum and stainless steel diaphragms built to withstand any weather.
The HornAir 544K onboard air system complements the K5HA's power, featuring a 5-gallon tank for up to 5 seconds of continuous honking, and a quick recharge time of just 1.5 minutes from 110 to 150 PSI. This complete kit includes everything you need to transform your vehicle into a force to be reckoned with on the road, along with easy-to-follow instructions.
- Premium Sound & Build: Experience unparalleled volume with the K5HA, built with die-cast aluminum and stainless steel internals.
- Swift Recovery: The HornAir 544K air system ensures minimal downtime with a rapid 90-second recovery.
- Railroad Authenticity: Genuine railroad-use horn, delivering unmatched sound intensity on the roads.
- Complete Power Kit: Featuring a robust 1NM air compressor and a generous 5-gallon tank that provides roughly 5 seconds of honk time.
- User-Friendly Installation: Comprehensive kit with all essentials and clear instructions for a hassle-free setup.
IMPORTANT: Our Nathan AirChime train horns are sourced from retired locomotives and undergo extensive reconditioning. This process includes sandblasting, a new black powder coat finish, and replacing all internal components such as diffuser rings, diaphragms, and cushion rings. This ensures each horn performs like new and retains its authentic locomotive sound.

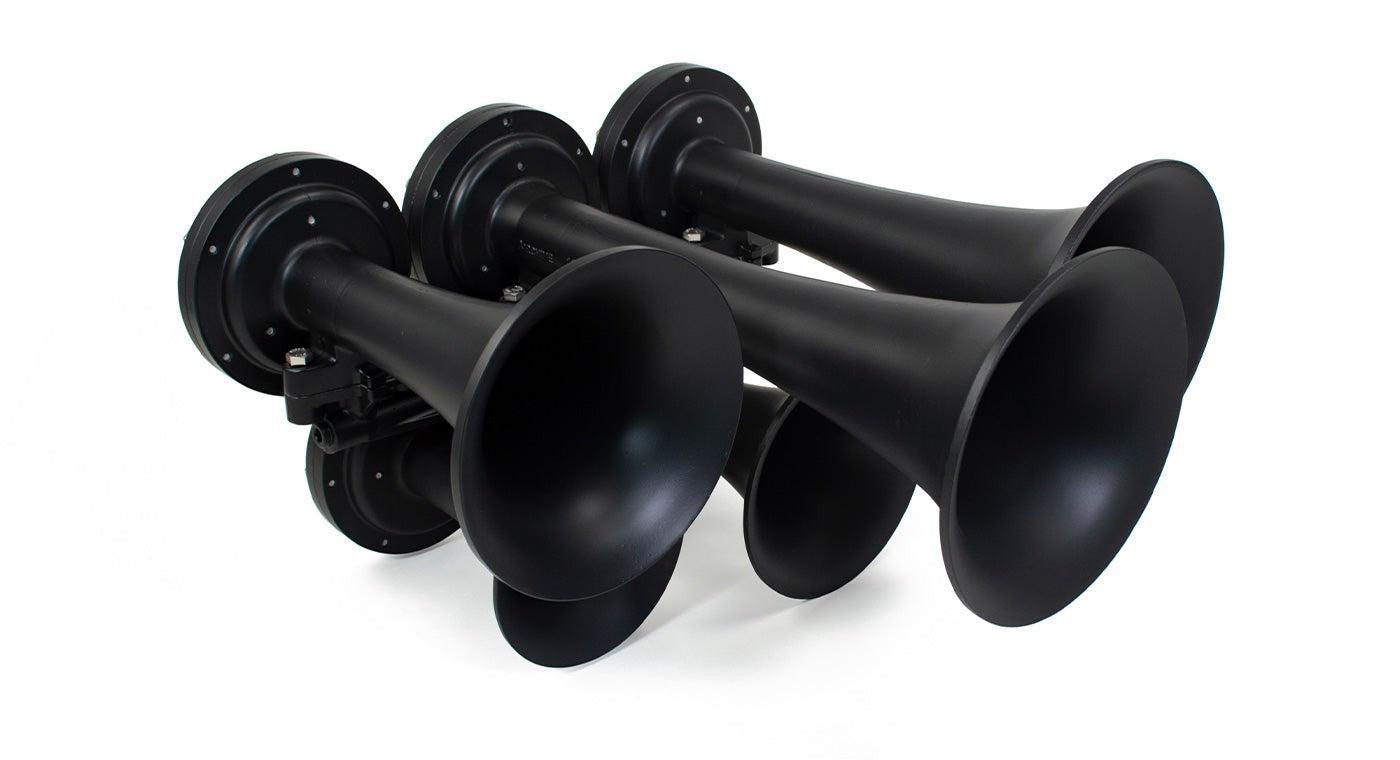

- Nathan Airchime K5HA train horn
- 5-gallon 8 port air tank
- HORNBLASTERS 1NM STEALTH BLACK AIR COMPRESSOR
- 110/150 PSI Pressure switch w/ 40 amp relay
- Spare air filter elements
- 17' of 1/2" D.O.T. approved air line

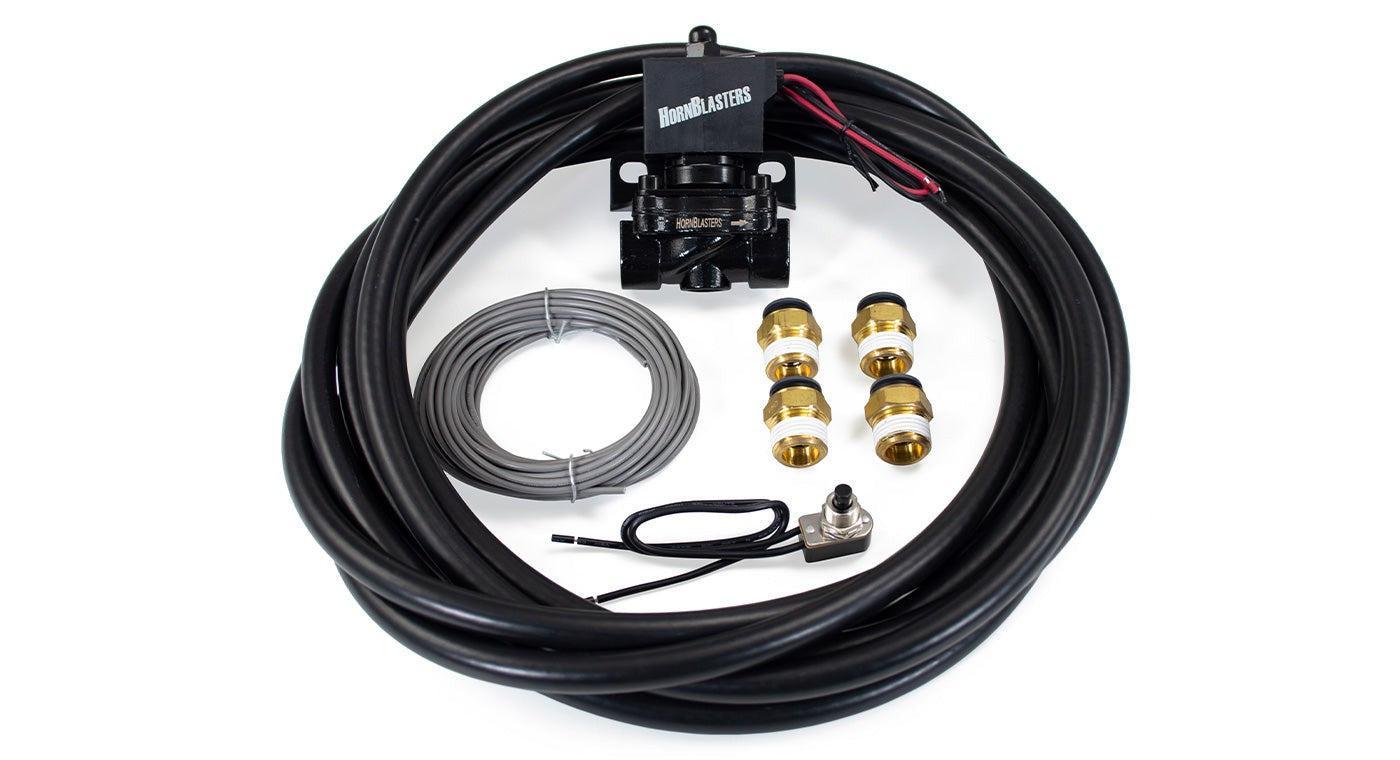

- Black Widow 1/2" stainless steel electric air valve kit
- 22ft of 8-gauge red wire
- 22ft of 18-gauge blue wire
- 22ft of 18-gauge grey wire
- Complete wiring kit with fuse holder & fuses
- All necessary fittings including a safety blow-off & drain cock
- Detailed Installation Instructions
- Part Number: HK-K5-544K
- Operating Pressure: 150 PSI
- Restart Pressure: 110 PSI
- Voltage: 12-Volt DC
- Horn: Nathan AirChime K5HA (K5 high mount American tune)
- Horn Material: Cast Aluminum
- Horn Length: 19″ (482.6 mm)
- Horn Width: 18″ (457.2 mm)
- Horn Height: 12″ (304.8 mm)
- Horn Weight: 37 lb (16.78 Kg)
- Horn Air Inlet: ½″ NPT
- Air Tank: HornAir 5-gallon 8 port air tank
- Tank Length: 20.5″ (520.7 mm)
- Tank Diameter: 9.5″ (241.3 mm)
- Tank Height: 11.5″ (292.1 mm) (With Legs)
- Tank Weight: 20 lb (9.07 Kg)
- Tank Ports: x7 1/2" NPT, x1 3/4" NPT
- Leader Hose/Check Valve: 1/4" NPT
- Max amperage: 25 Amps
- Maximum duty cycle: 100% @ 100 PSI
- Flow Rate @ 0 PSI: 1.75 CFM
- Compressor length: 10.75″ (273.05 mm)
- Compressor width: 4″ (101.6 mm)
- Compressor height: 6.75″ (171.45 mm)
- Weight: 10.1 lb (4.58 Kg)
| 5.0 GALLON TANK | FILL RATE |
|---|---|
| 0 to 150 PSI | 6 min. 45 sec. (± 10 sec.) |
| 110 to 150 PSI | 2 min. (± 05 sec.) |
5-Gallon Air Tank Dimensional Drawing
