Universal Fuel-It! Bluetooth Flex Fuel Analyzers & harnesses for GM, AC Delco, & Continental Ethanol Sensors
Specifications Part numbers, fitment codes and shipping
- Brand
- Fuel-It!
- Speedzone SKU
- 2AH-3C-B
- Manufacturer part number
- 2AH-3C-B
- Category
- Flex Fuel Kits
- Shipping weight
- 0.13 lb
Need a Fuel-It! Bluetooth ECA and/or harness for your GM, AC Delco, or Continental Ethanol Sensor?

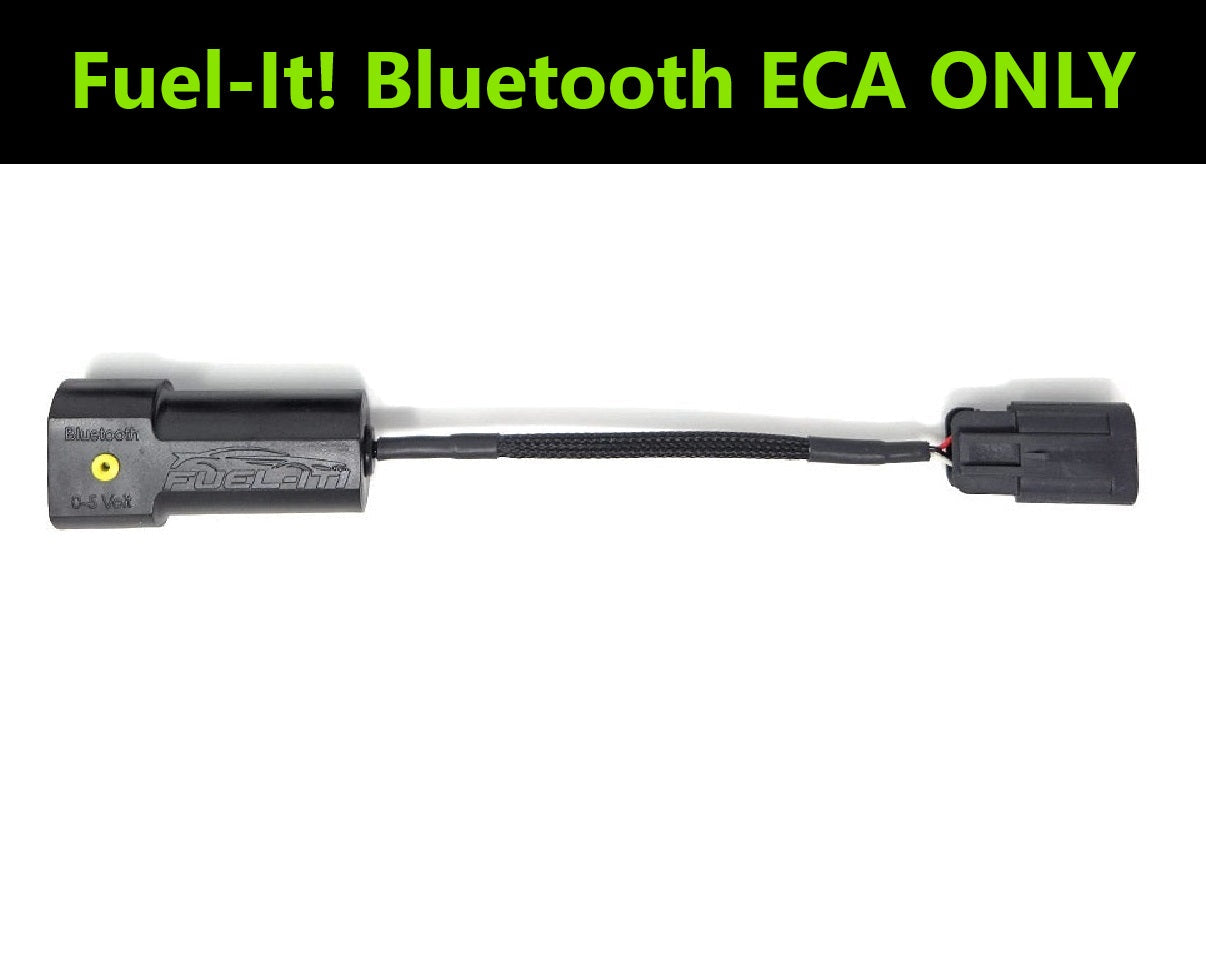

Bluetooth ECA can be purchased with our without any harness you may need as we now have a variety of harnesses and extensions to choose from. All of our harnesses and extensions fit our Flex Fuel Analyzers and the GM, AC Delco, and Continental Style Ethanol Sensors.
*Note: Fuel-It! analyzers are NOT compatible with DSX flex fuel kits.
We now have the following options that can be purchased with or without our analyzer listed below...
Harnesses:

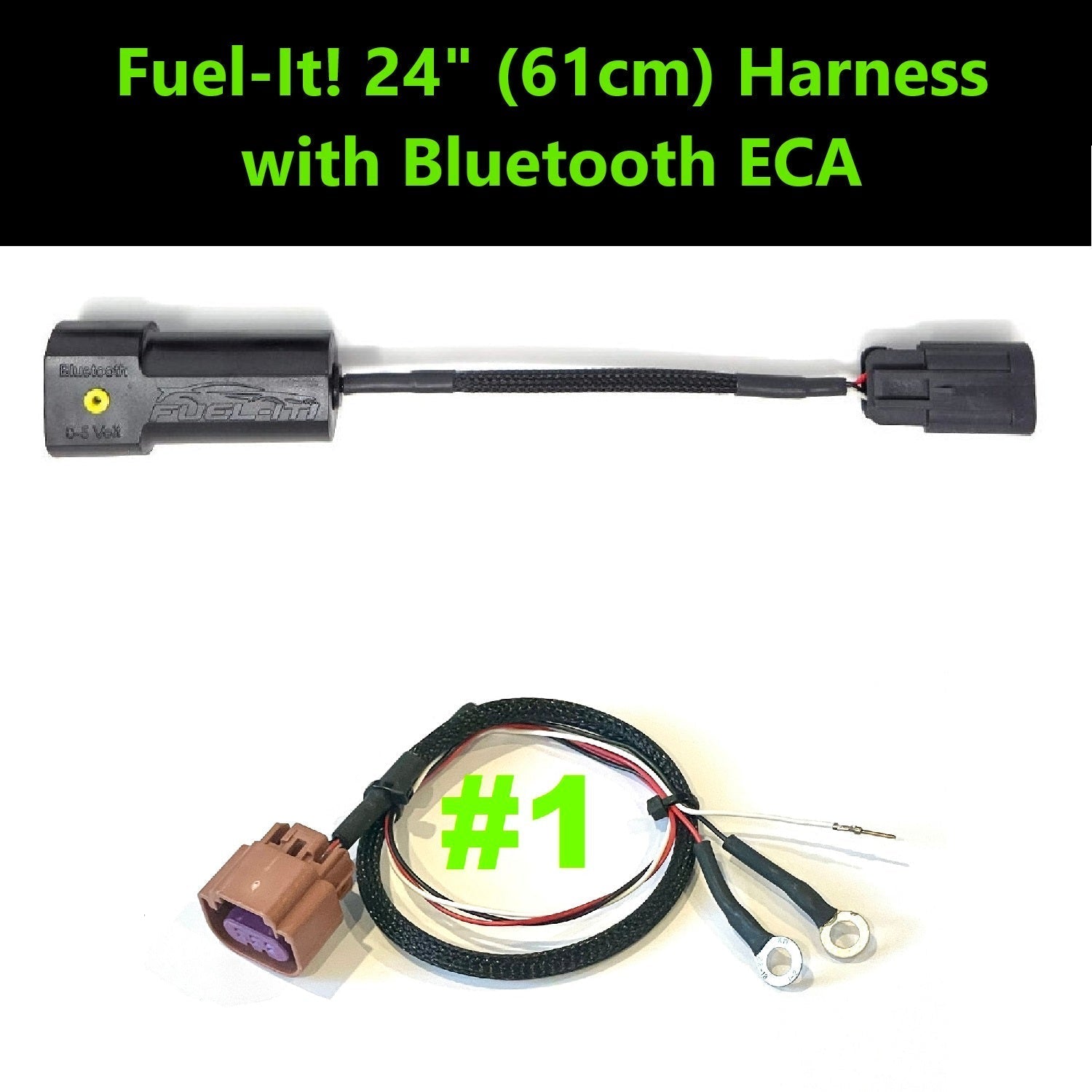

1. 24" (61cm) Harness with 1/4" ring terminals on the power and ground wires. The signal wire is pinned with a d-sub pin for use with the JB4 or can be repined to meet your needs.
2. 48" (122cm) Harness with 1/4" ring terminals on the power and ground wires. The signal wire is pinned with a d-sub pin for use with the JB4 or can be repined to meet your needs.

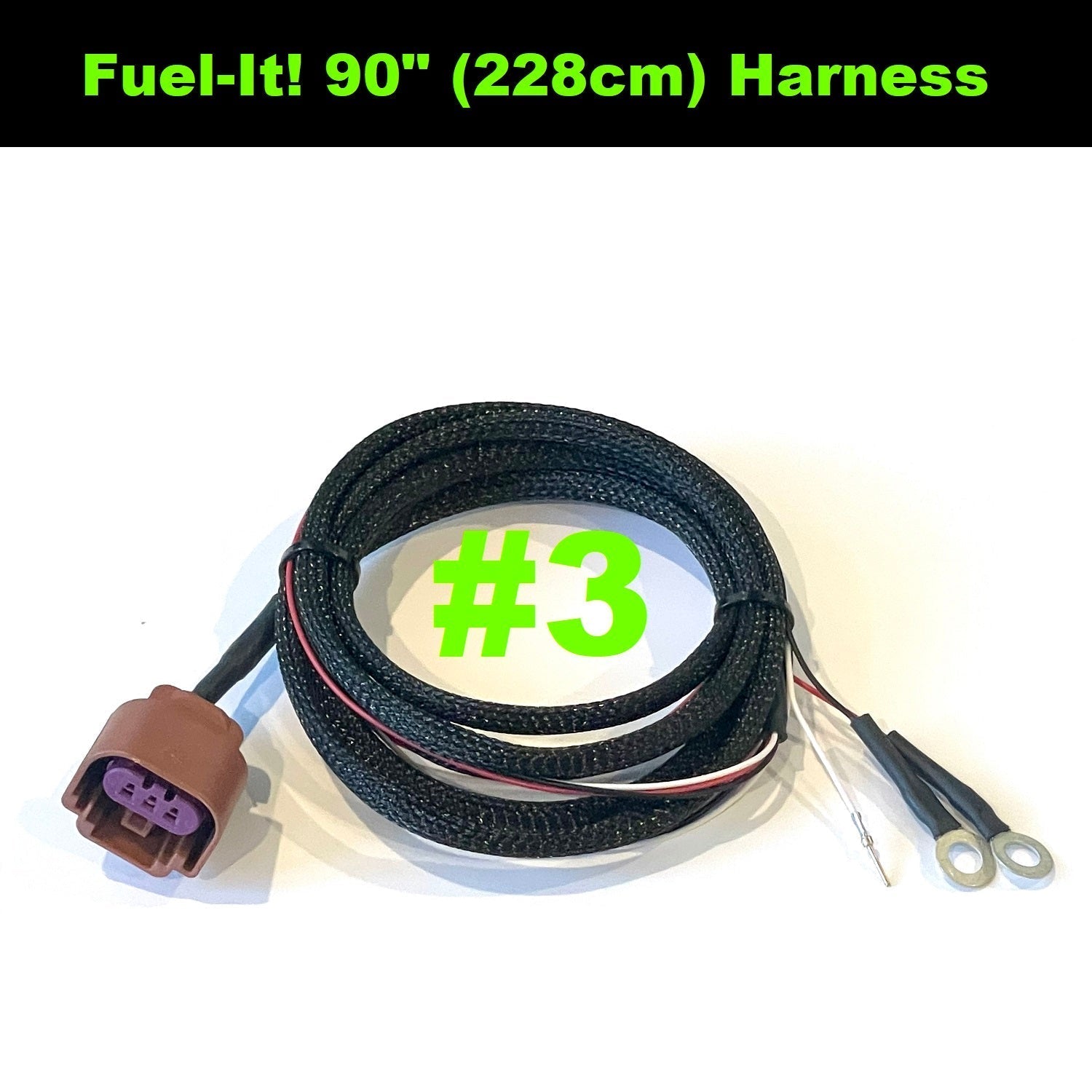

3. 90" (228cm) Harness with 1/4" ring terminals on the power and ground wires. The signal wire is pinned with a d-sub pin for use with the JB4 or can be repined to meet your needs.

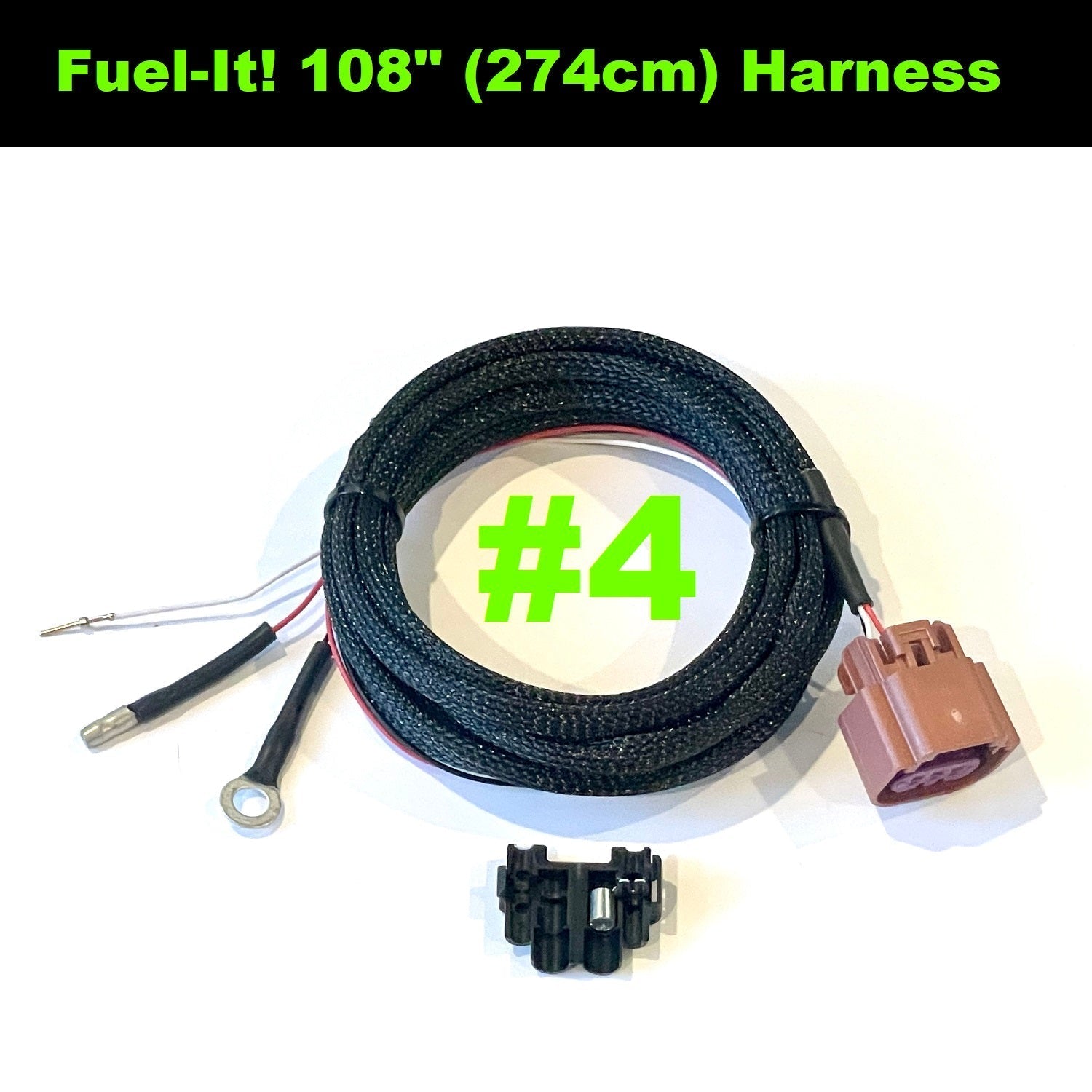

4. 108" (274cm) Harness with a 1/4" ring terminal for the ground, male bullet connector and wire tap for the power terminal. The signal wire is pinned with a d-sub pin for use with the JB4 or can be repined to meet your needs.

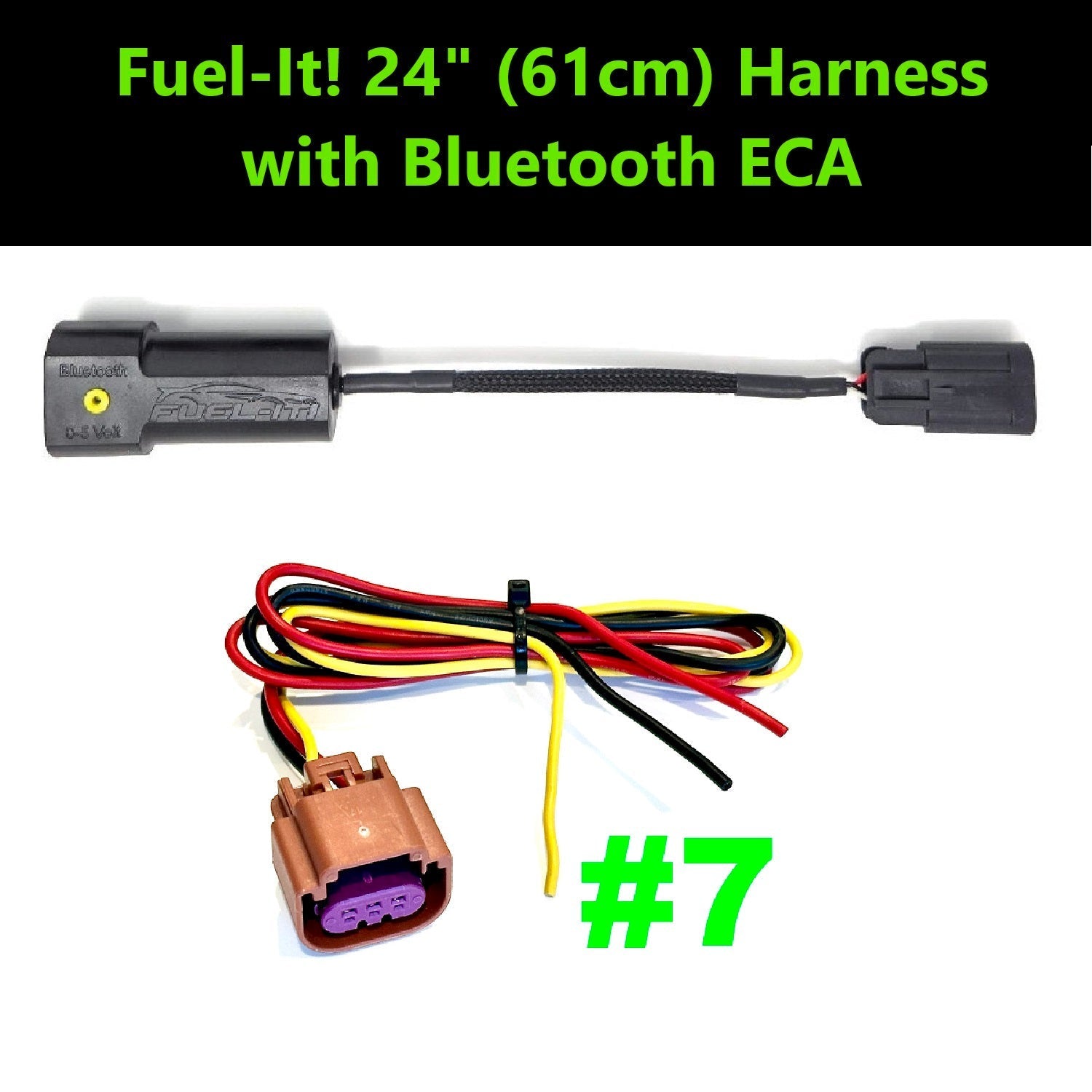

7. 24" (61CM) Harness only, does not include any additional hardware or terminals

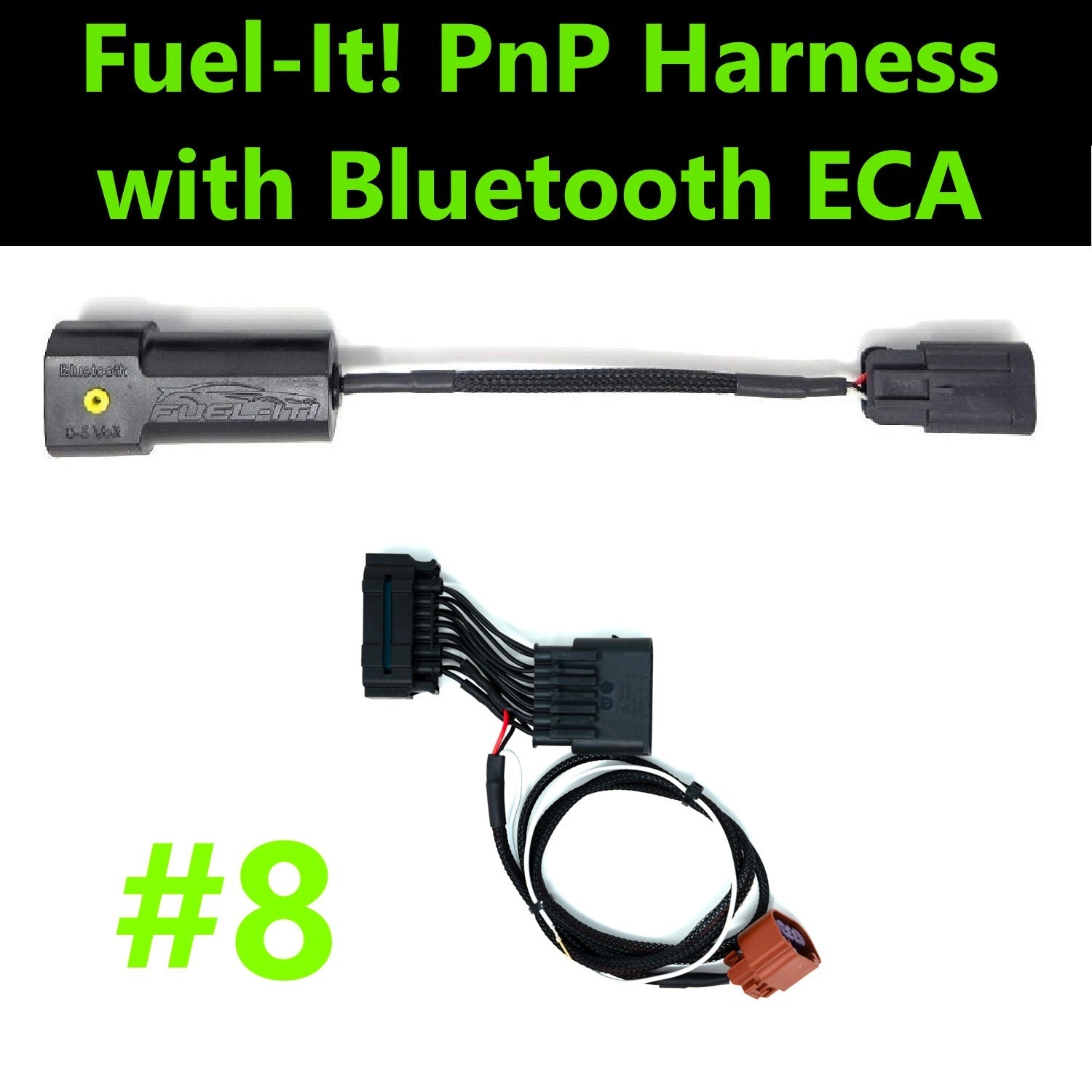

8. 24" (61CM) PnP Harness for Gen 2 B58 and S58

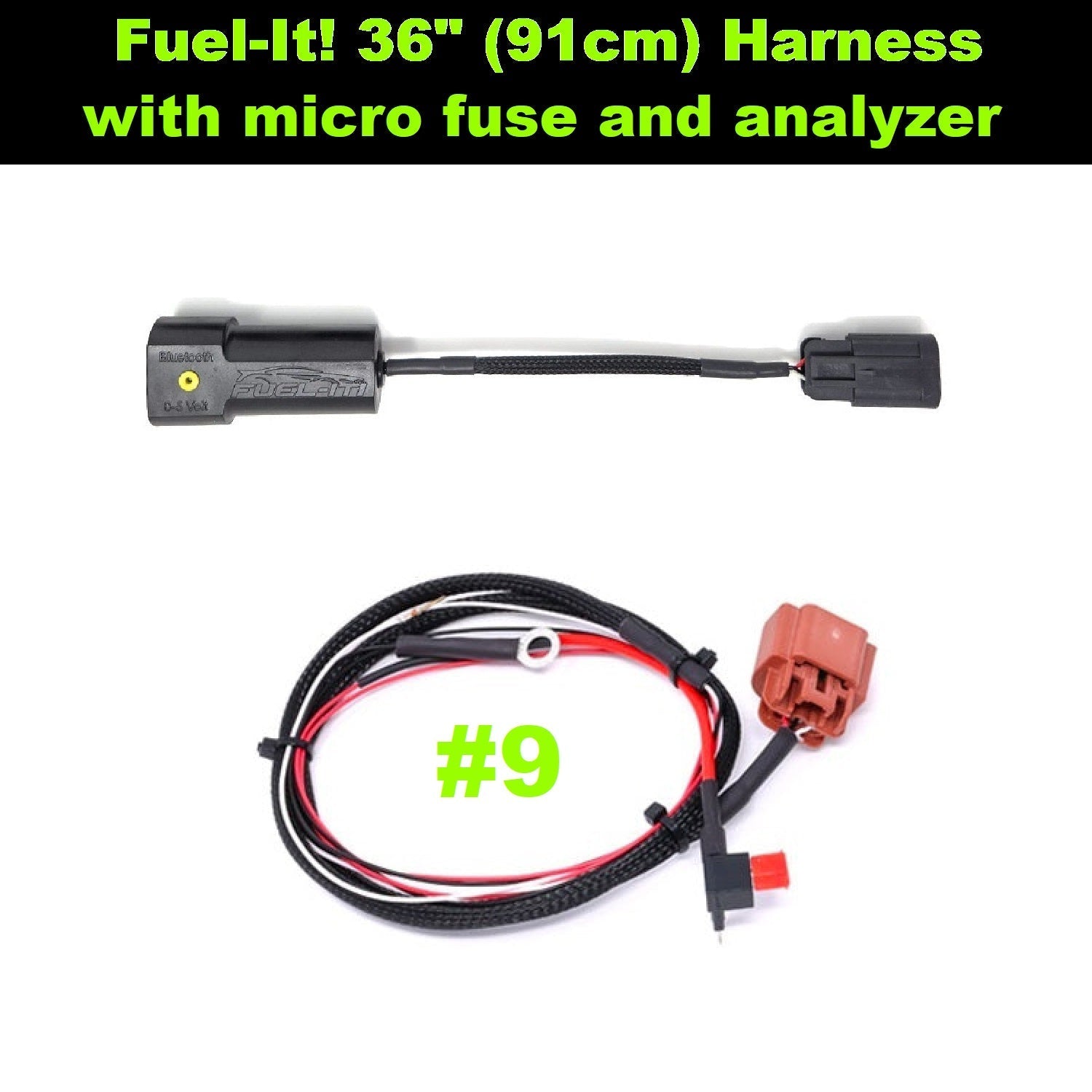

9. 36" (91CM) Harness with micro fuse

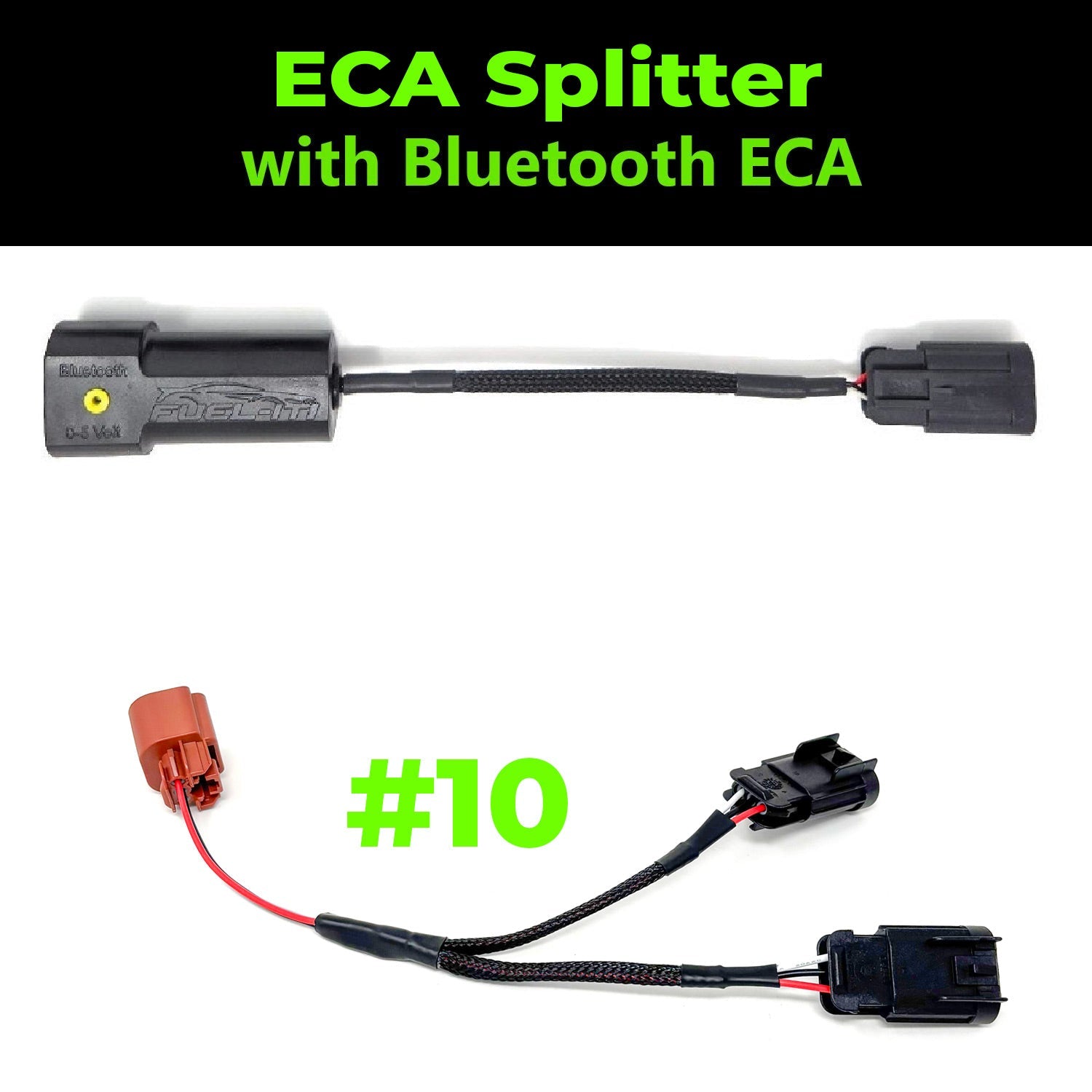

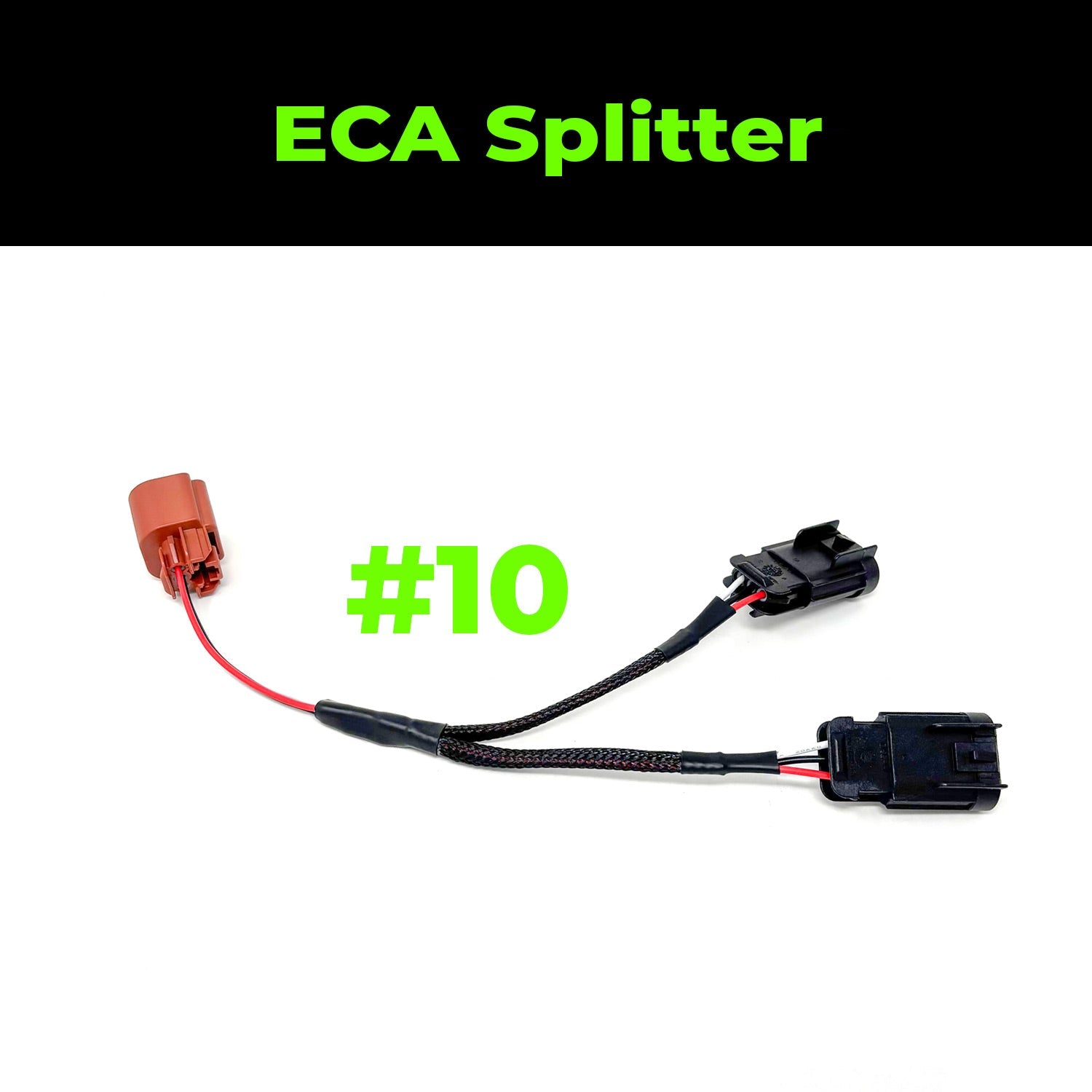

10. Ethanol Content Analyzer (ECA) Splitter Harness
Extensions:
5. 48" (122cm) Extension with one female connector that can connect to your Fuel-It! Ethanol Analyzer or Continental Style Ethanol Sensor. The other end of the extension has one male connector that is the same as the Continental Style Ethanol Sensor and plugs into any Fuel-It! analyzer or harness.

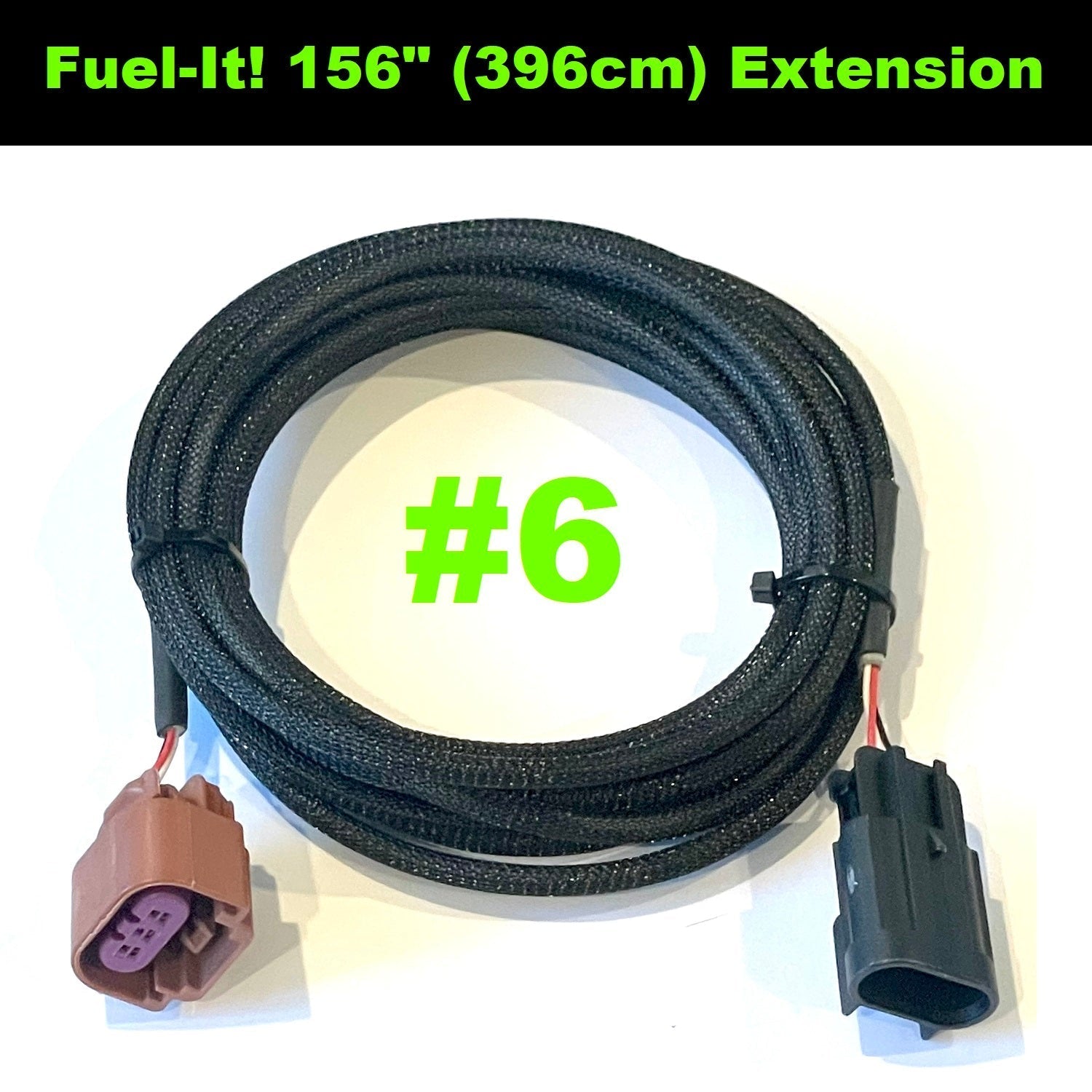

6. 156" (396cm) Extension with one female connector that can connect to your Fuel-It! Ethanol Analyzer or Continental Style Ethanol Sensor. The other end of the extension has one male connector that is the same as the Continental Style Ethanol Sensor and plugs into any Fuel-It! Analyzer or harness.
All our Bluetooth Analyzers include:
Bluetooth, Analog, and Frequency output for JB4 or flash tuning
Download the Fuel-It! ECA app here:
Analog: All of our analyzers have an optional analog output of 0-5 volts or .5 to 4.5 volts with the white wire. Configurations can be changed under settings in our Fuel-It! ECA app.
Frequency: Raw signal is available directly from the ethanol sensor. Settings for this can be changed in our Fuel-It! ECA app. Video demonstration is below.
