A crankshaft failure rarely starts with a dramatic bang. More often, it begins with flex, fatigue, bearing distress, or a crack that develops after repeated high-load cycles. That is why the forged versus cast crankshaft decision matters long before an engine sees boost, sticky tires, a heavy trailer, or a launch-control hit. The right crankshaft is not automatically the most expensive one. It is the one that matches the block, rotating assembly, intended RPM, power goal, and how hard the vehicle will actually be used.

For a stock rebuild or a mild street engine, a quality cast crank can be the sensible answer. For a high-cylinder-pressure build that will live at elevated RPM, a forged crank often provides the safety margin that protects the rest of a very expensive engine. Knowing where that line falls helps you spend the budget where it counts.

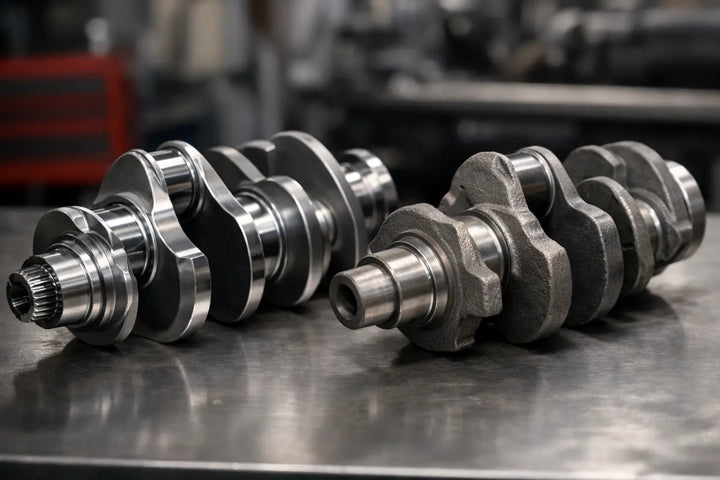

Forged Versus Cast Crankshaft: The Core Difference

The difference begins with how the crankshaft blank is made. A cast crankshaft is produced by pouring molten iron or steel into a mold. Once it cools, the casting is machined into its final journal sizes, counterweight shape, and snout configuration. This process is efficient and cost-effective, which is why cast cranks are common in factory engines and replacement rotating assemblies.

A forged crankshaft starts as a heated steel billet or bar that is pressed or hammered into shape under extreme force. That pressure changes the material's grain flow, generally creating a denser, more continuous structure that follows the crank's shape. After forging, the crank is machined, heat-treated as required, and finished for balance and journal geometry.

Neither process eliminates the need for good engineering. A poorly designed forged crank can still be a poor choice, while a properly engineered nodular-iron cast crank can deliver years of dependable service in the right application. The practical advantage of a forging is its greater resistance to flex and fatigue when combustion pressure, RPM, and traction place serious loads on the crankshaft.

Why Crankshaft Strength Is More Than a Horsepower Number

It is tempting to shop for a crank based on a single advertised horsepower rating. Treat that number as a starting point, not a guarantee. The load a crank sees depends on far more than peak dyno output.

Cylinder pressure is a major factor. A naturally aspirated street small-block at 500 horsepower may be easier on a crank than a turbocharged combination making the same power with sharp torque delivery. Nitrous, supercharging, turbocharging, high compression, aggressive ignition timing, and detonation all increase the force transferred through the connecting rods and into the crankshaft.

RPM matters too. Higher engine speed increases inertia loads on the rods, pistons, pins, and crank throws. A road race engine that repeatedly runs near redline can challenge a crank differently than a drag engine that makes huge torque but spends less time at peak RPM. Add a manual transmission, a hard-hitting clutch, slicks, four-wheel-drive traction, or a heavy towing workload, and the load picture changes again.

The block and main-cap arrangement are part of that picture. Main bore stability, cap material, fasteners, girdles, oil control, and machine work all affect how well the crank survives. Installing a premium forged crank in a block with misaligned main bores or insufficient bearing clearance does not create a reliable engine.

When a Cast Crankshaft Makes Sense

A cast crankshaft is often the right fit for stock replacement engines, restoration builds, daily drivers, mild naturally aspirated street combinations, and budget-conscious projects with realistic power goals. It can keep rotating-assembly cost under control, leaving room in the build budget for quality pistons, rods, bearings, machine work, fuel delivery, cooling, and tuning.

Many OE engines use cast cranks successfully because factory power levels, RPM limits, calibration, and intended vehicle use are carefully controlled. A quality aftermarket cast crank can also work well when the engine will retain moderate compression, conservative RPM, and street-oriented traction.

The key is to avoid treating a cast crank as a future-proof foundation for every upgrade. If the plan is to add a large turbo, step up to a heavy nitrous hit, run drag radials, or chase a substantially higher rev limit next season, buying the cast crank now may create a second rotating-assembly purchase later. The initial savings are real, but so is the cost of rebuilding around a component that no longer fits the plan.

Cast cranks can also be more vulnerable to crack propagation after a severe detonation event or repeated overload. That does not mean every cast crank will fail under boost. It means the margin for tuning errors, excessive RPM, and traction shock is typically smaller.

Where a Forged Crankshaft Earns Its Cost

A forged crankshaft belongs in many serious street-performance, boosted, competition, towing, and off-road builds. Its improved fatigue resistance is especially valuable when the engine will see repeated high-cylinder-pressure events or sustained high RPM. It is not just about making maximum horsepower. It is about maintaining crankshaft stability through thousands of demanding cycles.

A forged unit is a strong choice when you are building for substantial boost, large nitrous systems, high-compression race fuel combinations, heavy trailer duty, endurance events, hard launches, or engines with expensive supporting components. If the rotating assembly includes premium forged pistons, performance rods, upgraded fasteners, and extensive machine work, using a forged crank often makes sense as insurance for the foundation.

That insurance comes at a cost. Forged cranks typically cost more than cast options, and some may require additional balancing work, specific damper choices, or clearance checks. Certain stroker combinations can require block clearancing as counterweights and rod throws move through the crankcase. Those are not reasons to avoid a forging. They are reasons to plan the complete engine package before ordering parts.

Material selection also matters. Forged 4340 steel is widely used in high-performance crankshafts because of its strength and toughness. Forged 5140 steel can be appropriate for less extreme use. Product specifications, journal fillet design, heat treatment, nitriding, and the manufacturer's machining standards all deserve attention. “Forged” alone is not a complete quality description.

Forged Does Not Mean Indestructible

A forged crank can tolerate more abuse than a comparable cast unit, but it cannot correct a bad tune, oil starvation, improper bearing clearance, excessive thrust load, or an out-of-balance rotating assembly. Detonation can pound bearings flat, damage rod journals, and distort parts throughout the engine. An over-rev can create forces that exceed the limits of rods, bolts, pistons, and valvetrain long before the crank itself becomes the weak link.

Buy the crankshaft for the application, then protect it with proper machining, balancing, oiling, harmonic control, and tuning. That approach is more valuable than choosing a part based solely on its material.

Match the Crank to the Entire Rotating Assembly

Crankshaft selection should happen alongside rod length, piston compression height, stroke, bore size, damper, flexplate or flywheel, and intended balance method. Internal-balance and external-balance combinations are not interchangeable, and the wrong damper or flywheel can create destructive vibration.

Journal dimensions matter as well. Larger journals may offer greater overlap or strength in some designs, while smaller journals can reduce bearing speed and friction in others. Stroke increases displacement and torque, but it can also increase piston speed, rod angle, and clearance requirements. There is no universal “best” crank configuration independent of the engine family and use case.

A professional balance job remains worthwhile even when components are marketed as balanced. Bobweight must reflect the actual pistons, pins, rings, rods, bearings, and hardware going into the engine. Small weight differences become significant at RPM, and a correctly balanced assembly helps reduce load on bearings, main caps, and the crankshaft itself.

Do not overlook the harmonic damper. The damper is tuned to control torsional vibration in the crankshaft, not simply to add weight to the front of the engine. A quality damper matched to the engine and RPM range is a critical companion to either crank type, particularly in boosted and high-revving applications.

Questions to Answer Before You Buy

Before choosing between cast and forged, define the vehicle's real job. A weekend cruiser with occasional spirited driving needs a different foundation than a 900-horsepower street car, a desert truck that sees long periods under load, or a drag build on a transbrake.

Consider your current power level, but also your next realistic upgrade. Set a usable RPM limit, identify whether forced induction or nitrous is planned, and account for vehicle weight, transmission type, tire grip, and towing or off-road load. Then confirm the crank's stroke, rear-main seal style, trigger-wheel requirements, rod journal size, balance configuration, and block compatibility.

For shoppers building an engine from the ground up, Speedzone Performance can help simplify the parts hunt by organizing engine internals around the vehicle and build category. The best purchase is still the one made after confirming specifications with the engine builder, machine shop, or manufacturer - especially where clearances and balance components are involved.

A cast crank can deliver excellent value when the build stays within its intended range. A forged crank is the smarter foundation when power, RPM, traction, or future plans leave little room for compromise. Choose with the whole combination in view, and your crankshaft becomes the part you never have to think about again - because the engine keeps doing exactly what you built it to do.
