Honda L15B7 Headstud Kit by MAPerformance

In our many years of building high horsepower low displacement 4 Cylinders, we have always found that one of the biggest needs to keep the engines running well is superior head to block sealing, and there is no better option than ARP headstuds. There is not currently a kit for the L15B7, so utilizing some ARP hardware, along with our own spacers we have made a kit that will work for ours and others needs.

ARP uses premium grade 8740 alloy that is heat treated to 200,000 p.s.i. This procedure ensures complete heat penetration and the results are far superior to those lesser quality studs from other manufacturers who just dump pieces in a basket and hope for the best.

Following heat treat, each stud is centerless ground to make it as close to perfectly concentric as possible. This procedure involves about ten very slight cuts and results in an exceptionally straight part.

ARP studs are thread rolled after heat treat which gives them about 1000% better fatigue strength than studs that are threaded prior to heat treat (a very common industry practice). It costs more to do it this way because it's tough on tooling but the results are well worth the extra effort.

Features

• ARP head studs
• 8740 chromoly steel 12pt nuts
• Correct Spacer to allow proper Torquing of the head studs

Benefits

• Higher clamping force
• Resists head lift under higher boost applications

Please Note: Torque to 60ftlb in three equal steps (See instructions for Sequence)

Applications

• 2016 - 2021 Honda Civic 1.5T
• 2017 - 2021 Honda Civic Si

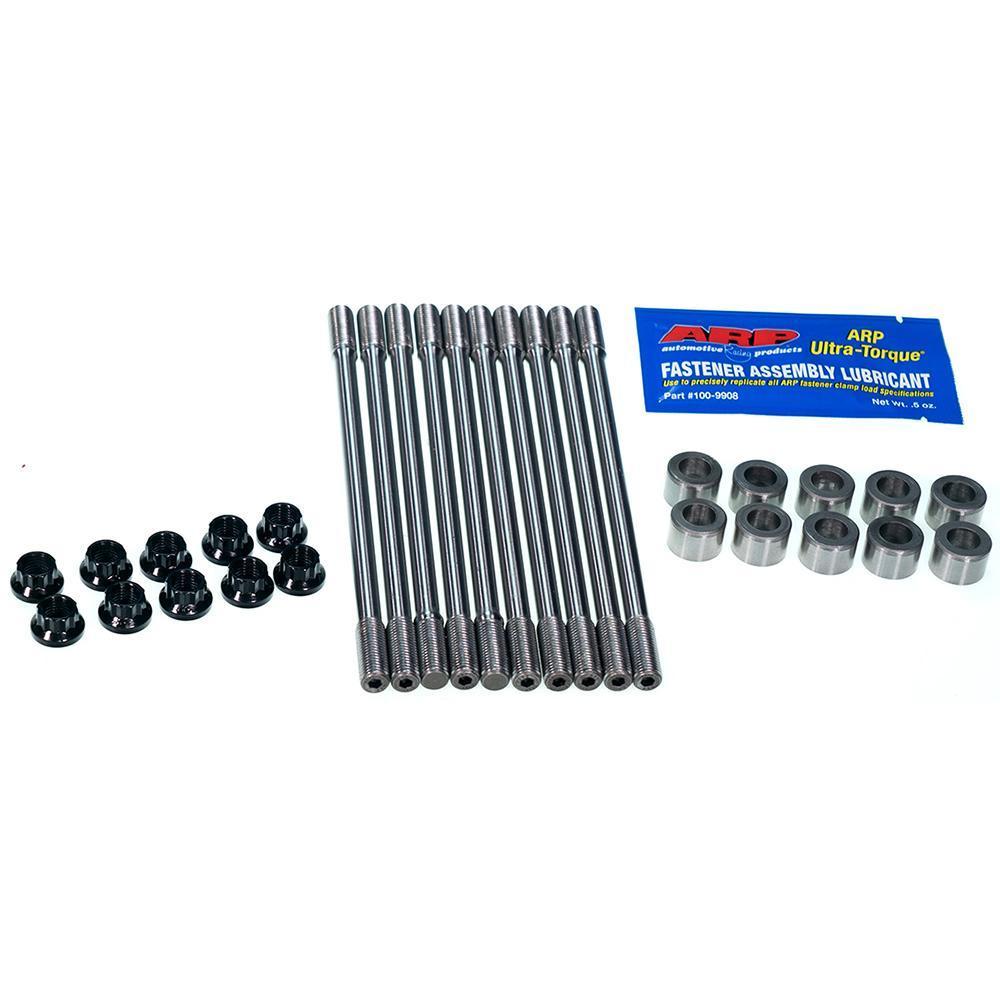

What's In The Box?

• 10 - ARP Headstuds
• 10 - ARP Nuts
• 10 - MAPerformance L15B7 Headstud Spacers
• 1 - ARP Assembly Lube

References

• Installation Instructions

Warranty

• MAPerformance Limited Lifetime Warranty
