Drag Cartel Camshafts - 002.2 ENDURANCE K-Series is a performance-focused camshafts & valvetrain product for Honda, Acura, Mitsubishi, and import racing applications. Review the listed fitment, specifications, and available options before ordering.

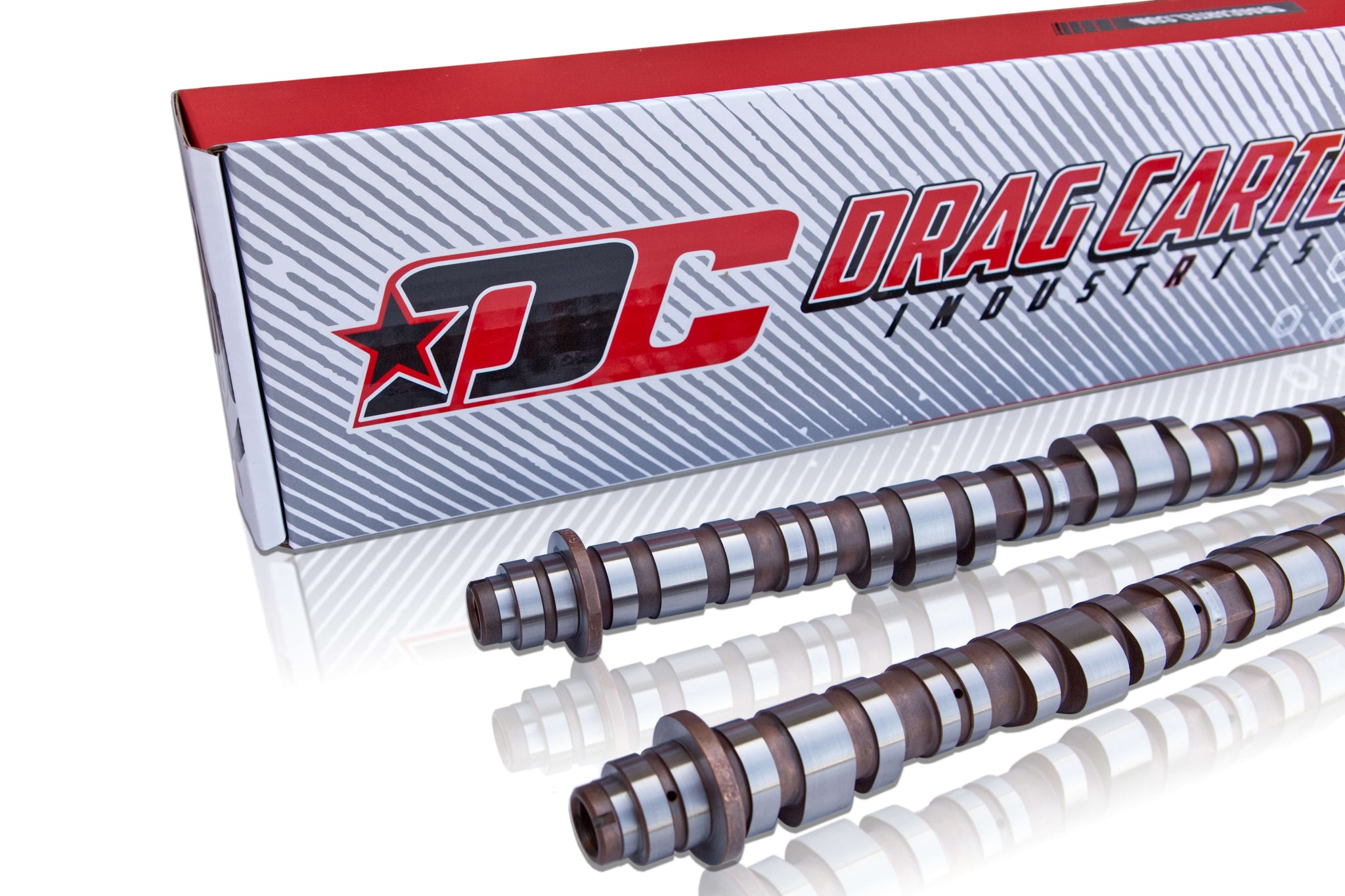

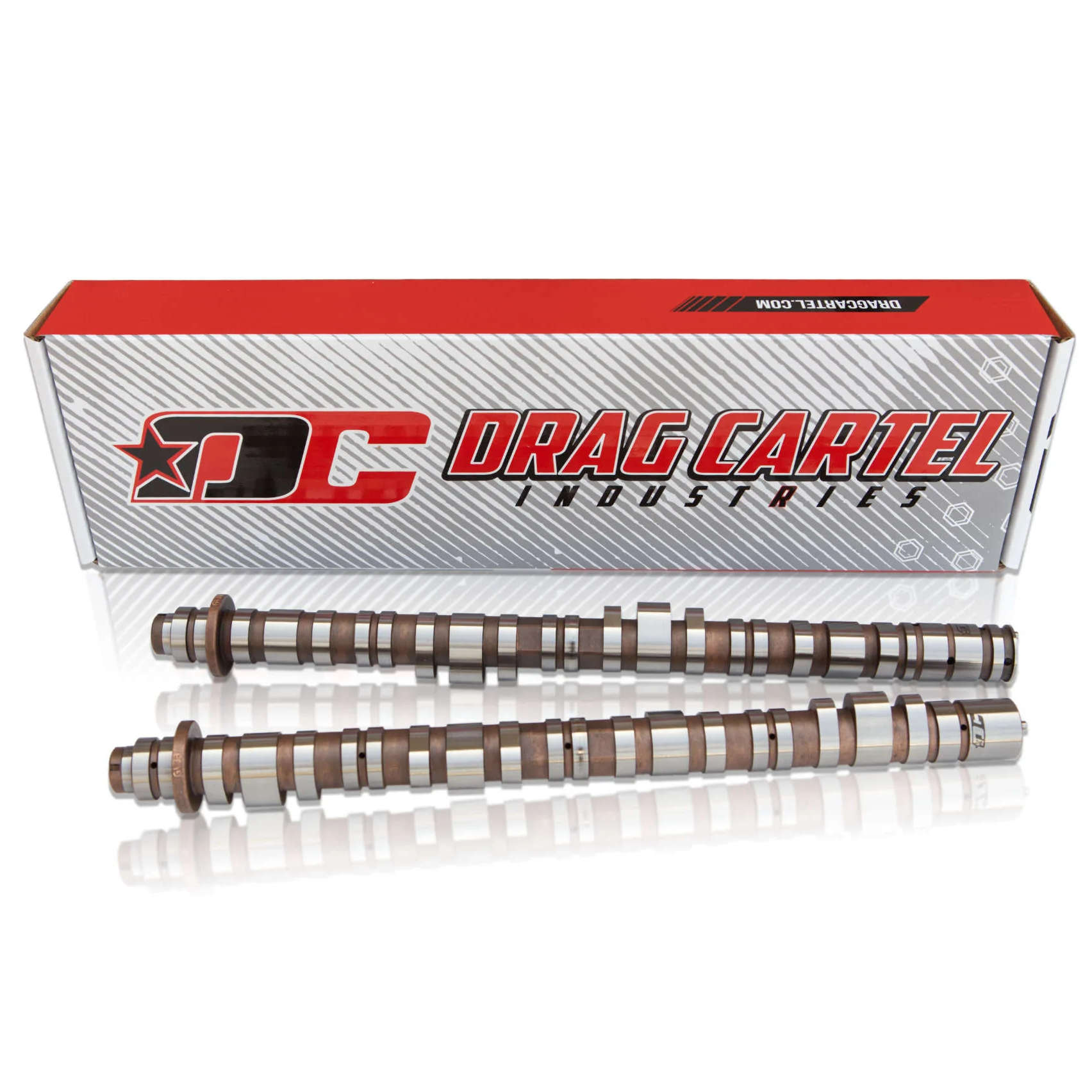

Drag Cartel 002.2 Endurance Camshafts for K-Series

Are you building a high-revving, sustained-power K-series engine for endurance racing or track use? The Drag Cartel 002.2 Endurance Cams are meticulously engineered to deliver the ultimate in high performance and reliability under extreme conditions. These are purpose-built racing cams, ensuring your engine can handle extended time at the redline.

Why are 002.2 Endurance Cams essential for racing?

The 002.2 Endurance Cams are crucial for serious racing applications because they maximize horsepower and torque output across the high RPM range while offering superior valve train stability.

• Superior Material: Constructed from aerospace-grade 8620 steel billet material for ultimate strength and rigidity.
• Reduced Valve Float: The robust billet material minimizes flex, effectively reducing valve float at sustained high RPMs, a critical factor in endurance racing.
• Maximized Potential: CNC-ground profiles provide faster action and high lift, fully exploiting the K-series roller rocker design for maximum power.

Camshaft Specifications and Requirements

These are dedicated racing camshafts, and an upgraded valve train is highly recommended to safely manage the aggressive lift and duration.

• Material: All-New 8620 Billet Steel
• Intake Lobe Specs:
  • Lift: 13.5 mm
  • Duration @ 0.050": 0.250"
• Exhaust Lobe Specs:
  • Lift: 12.2 mm
  • Duration @ 0.050": 0.246"

Required Upgrades (Recommended):

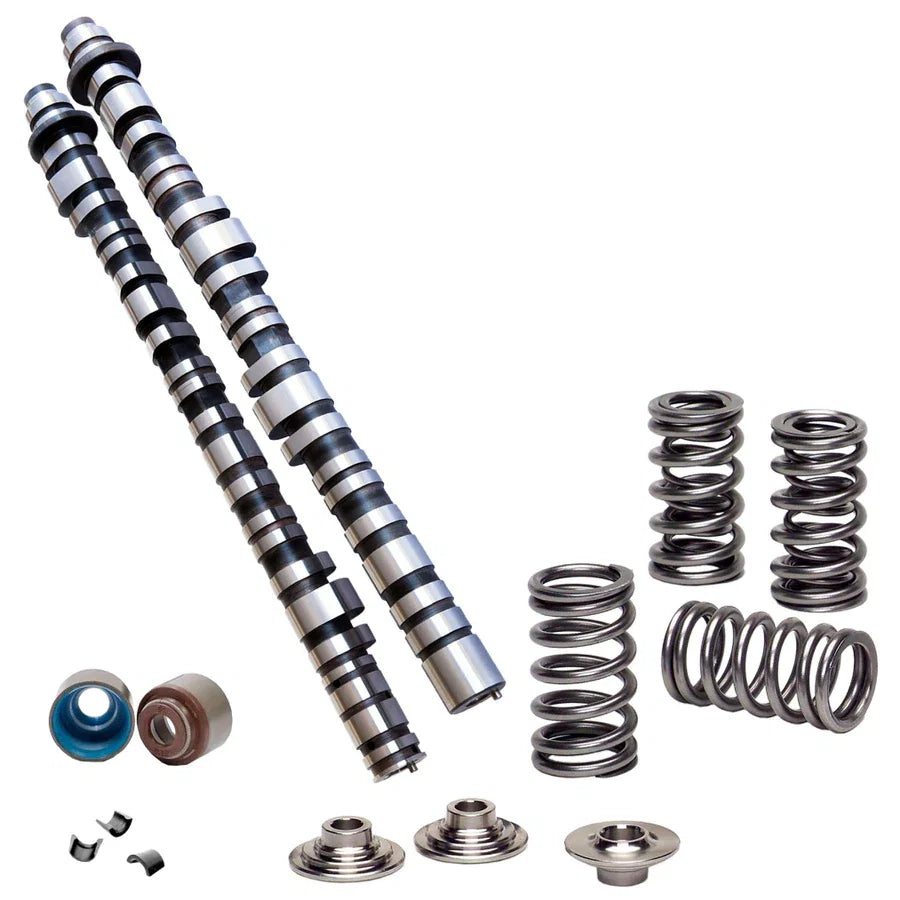

Valve Train: Due to the aggressive lift, we highly recommend an upgraded valve spring and retainer combination for safe operation, such as the Supertech SPR-H1021D 92lb Spring (Optional combo available).

Installation Torque Specifications

Ensure proper installation by following these exact torque values:

• Intake Cam Gear Bolt: 83 lb-ft
• Exhaust Cam Gear Bolt: 51 lb-ft
• Pulse Plates: 29 lb-ft

Fitment and Engine Compatibility

The Drag Cartel 002.2 Endurance Cams are compatible with many popular K-Series platforms.

Compatible Engines and Models:
