Product Highlights

Features

• Designed in the USA: Experience the excellence of American ingenuity. Stinger products are proudly designed by our innovative engineers in California, USA.

• Vibrant 6.8” HD Touchscreen: Enjoy stunning visuals with a 1024x600 capacitive display.

• MFi-Certified Wireless Smartphone Connectivity: Compatible with Apple CarPlay and Android Auto, and phone mirroring (wireless or wired connection) to make it possible to access map navigation, phone contacts, notifications, music, and much more.


• Bluetooth Connectivity: Hands-free calling and music streaming with Bluetooth V4.2 A2DP AVRCP.


• Steering Wheel Control Ready: Effortless control with SWI-RC compatibility.


• Camera Inputs: Supports up to 4 camera inputs with adjustable parking guidelines for effortless maneuvering.


• Superior Audio Performance: Enjoy powerful sound with a 4 x 26W (45 x 4max) amplifier, expandable with external amplifiers. Experience advanced audio processing with a 24-bit DSP, 13-band EQ, time correction, independent subwoofer control and selectable crossovers

• Extra Enhancements: Charge and control your phone with a high-power 1.5A USB input, and personalize your screen with custom backgrounds.

• SiriusXM-Ready: Offers a vast array of music, sports, and entertainment options (SiriusXM Connect Vehicle Tuner sold separately: SXV300).

Description

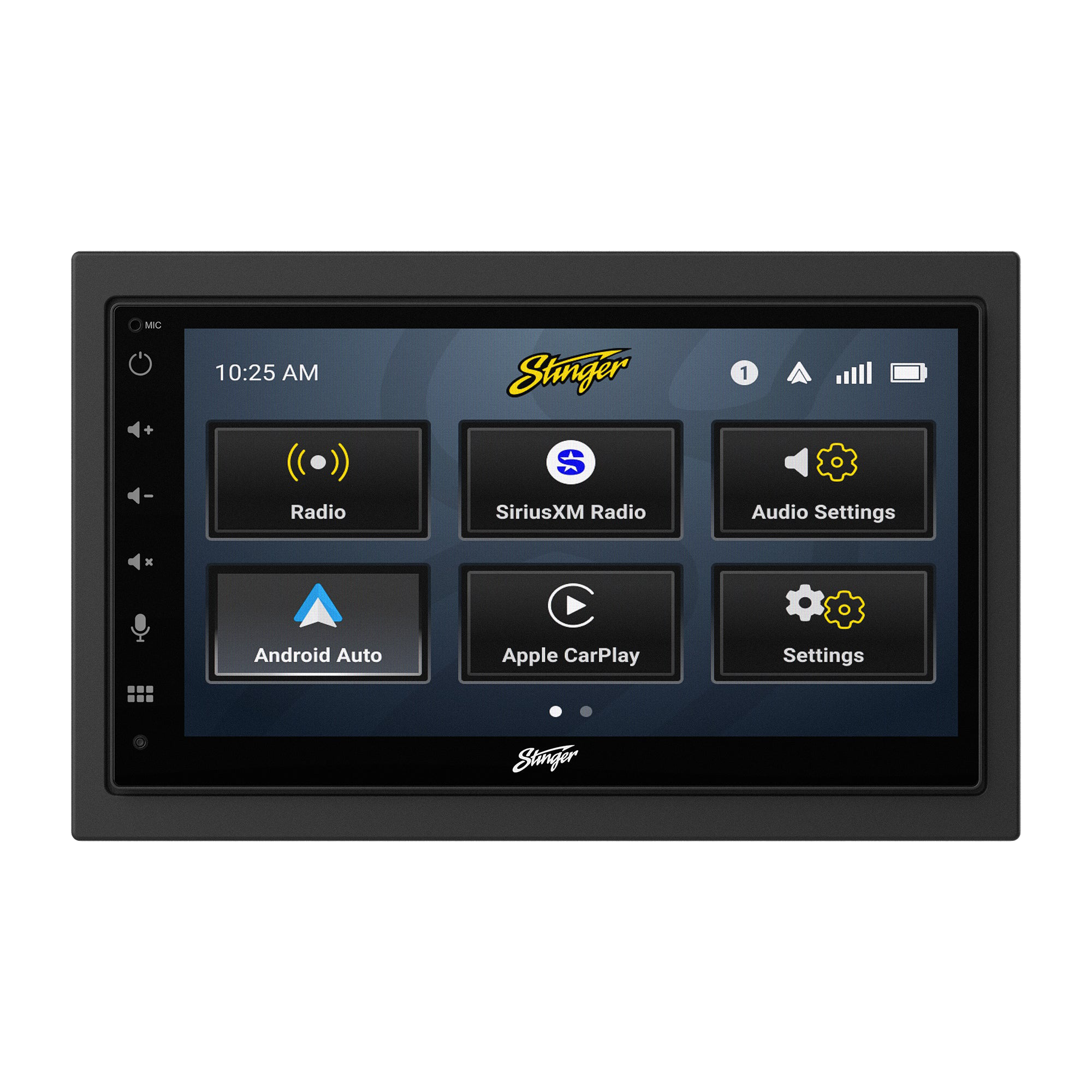

Enhance your driving experience with the Chevy Silverado/GMC Sierra 6.8" Double DIN Radio Kit, which is here to take your ride to the next level! Prepare to be blown away by this kit's cutting-edge features and sleek design. With full compatibility with Apple CarPlay and Android Auto (wireless & wired connection), you'll have seamless access to all your favorite apps at your fingertips. Make hands-free calls, listen to your favorite jams, and stay connected on the road like never before. And that's not all - this kit even supports up to 4 camera inputs with adjustable parking guidelines for effortless maneuvering. This kit includes a vehicle-specific interface and custom-fit dash kit to make your dash look like new. Upgrade your Chevy Silverado/GMC Sierra today and unleash the excitement on every drive!

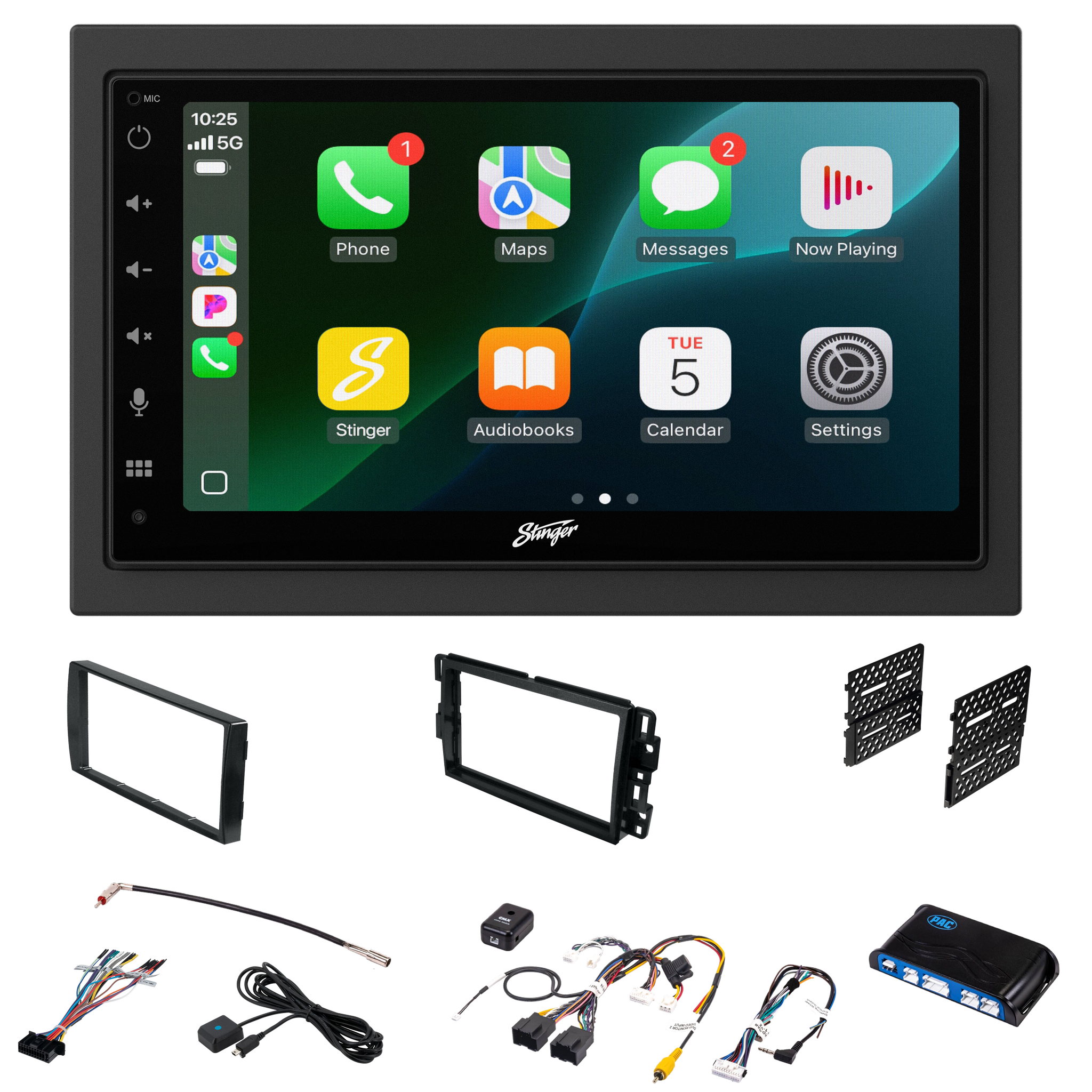

What's in the Box

• Multimedia 6.8-inch touchscreen radio
• RadioPro Interface for Chevy Silverado/GMC Sierra (RP5-GM31)
• Chevy Silverado/GMC Sierra radio dash kit (2007-2014)
• Antenna adapter for AM/FM radio
• Installation harness
• External Microphone
• GPS Antenna
• Hardware kit
• Installation Guide
• User Guide
• RadioPro Guide

Specifications

GENERAL

• Operating Voltage: 10.5VDC to 16VDC

• Grounding system; Negative Ground

• Max current consumption: 15A fused

Dimensions

• Radio Module: 178 mm x 87.8 mm x 100 mm (W x H x D)

• Display: 160.7 mm x 90.8 mm (W x H) 6.8-inch Diagonal 16:9 aspect ratio 1024 x 600

• Pixels: 1,024,000

• Active Area: 151.76 (W) x 79.8 (H) mm

• Operating Temperature (C): -20° to 70°

Audio

• Load impedance: 4Ω nominal / 2Ω allowable

• Power output: 18W x 4ch / 4Ω 20Hz to 20KHz, 1%THD at 14.4V 26 W x 4ch / 4Ω 1 kHz, 10%THD at 14.4 V 4 x 45 W / 4 Ω max

• Speaker level adjustment: 0-40 steps

• Audio Preamp Output level: 3 Vrms typical

• Audio Preamp 6 Channels: Front Left, Front Right, Rear Left, Rear Right, Subwoofer Left, Subwoofer Right.

• Equalizer: (13-band) 63Hz/100Hz/160Hz/250Hz/400Hz/630Hz/1KHz/1.6KHz/2.5KHz/4KHz/6.3KHz/10KHz/16Kz Gain: ±6dB (0.5dB/step)

• Crossover level: 10 steps

• Front HPF: 25Hz/40Hz/63Hz/80Hz/100Hz/160Hz/250Hz/500Hz/1kHz/3.5kHz/5kHz/bypass

• Front Slope: 6dB, 12dB, 18dB

• Front Level: 0-12,1db/step

• Rear HPF: 25Hz/40Hz/63Hz/80Hz/100Hz/160Hz/250Hz/500Hz/1kHz/3.5kHz/5kHz/bypass

• Rear Slope: 25Hz/40Hz/63Hz/80Hz/100Hz/160Hz/250Hz

• Rear level: 0-12,1db/step

• Subwoofer Pre-lineout: 3Vrms typical,

• Subwoofer LPF: 25Hz/40Hz/63Hz/80Hz/100Hz/160Hz/250Hz/bypass,

• Subwoofer Slope: 6dB, 12dB, 18dB

• Subwoofer level: 0-15, 1db/Step

• Phase: 0 or 180

• Time Alignment for 6 channels: 0 to 133 steps for inches and 0-99 steps for 9.9ms/133inches

• User Preset EQ: Rock, Hip-Hop, Electronics, Jazz, Pop, Flat.

• Source Gain: default 0db, -10 to 10 adjustable, 0.35db/Step.

• Volume Settings: Main Volume, Phone Volume, Navigation Volume, Voice Volume, Ringtone Volume adjustable separately.

USB

• USB 2.0ax current supply 1.5A

• Max storage size: 128GB

• USB Class: A

• Supports: Video/Audio/Image Media Playback, Charging, and Firmware Update

• USB 3.0 (one) Max current supply 3A

• Max storage size: 128GB

• USB Class: C MSC (Mass Storage Class), MTP (Media Transfer Protocol)

• File system: FAT32, NTFS

• Supports: Apple CarPlay, Android Auto, Video/Audio/Image Media Playback, Charging, and Firmware Update

Bluetooth

• V5.1 dual

• 4dBm Class2

• 2.4GHz to 2.48GHz

Wi-Fi

• Support IEEE 802.11a/b/g/n/ac

• Support 802.11ac 1x1, Wave-2 compliant with MU-MIMO STA mode

• Complete 802.11n MIMO solution for 2.4GHz and 5Ghz band

Radio™ FM Tuner

• 87.9MHz to 107.9MHz

• Usable sensitive 3dBuV (mono S/N: 30dB)

• SNR: 65dB

Radio™ AM Tuner

• 530KHz to 1710KHz

• Usable sensitive 25dBuV (mono S/N: 20dB)

• SNR: 58dB

4 Camera Video Inputs

• NTSC, PAL, AHD PAL 25Hz & AHD NTSC 30Hz

• Support Mirror Camera Image On/OFF

SUPPORT AUDIO FORMATS

• FLAC / WAV/MP3/

• AAC/M4A—license

• OGG/APE

SUPPORT VIDEO FORMATS

• MP4/AVI H264.avi/

• AVI XVID-MPEG-3.avi/

• AVI 1024x768.avi/

• AVI 1920x1080.avi/

• MPG-MPEG-1 .mpg/

• Mov/FLV/Vob/Mkv

SUPPORT IMAGE FORMATS

• JPG/PNG/BMP

SUPPORT BACKGROUND IMAGE (USER) FORMATS

• File Format: JPG / PNG

• Resolution: 1024 x 600

User Note: Backgrounds

• Your IE268 head unit utilizes a Liquid Crystal Display (LCD) panel to display clear, crisp images in a variety of lighting conditions.

• Your IE268 unit is optimized to provide the highest quality image in a variety of use cases, but you should be aware that certain contrast ratios and backgrounds can cause temporary image retention

• When customizing your background, avoid images that include high contrast static patterns; these images can cause temporary image retention in LCD panels through repeated use.

• Retained images should vanish within 10-40 minutes of normal operation. If you see from your custom background, we strongly suggest you choose another option, or use one of the included IE268 background options
