AudioControl The EPICENTER Micro Bass Restoration Processor & Line Output Converter w/ACR-4 Remote
Specifications
- Brand
- AudioControl
- UPC
- 851523007997
- Category
- Line Output Converter
- Shipping weight
- 1.75 lb
Links open in a new tab; return here to finish shopping. Select Klarna, Shop Pay or Sezzle to learn how they work before checkout. Eligibility applies.

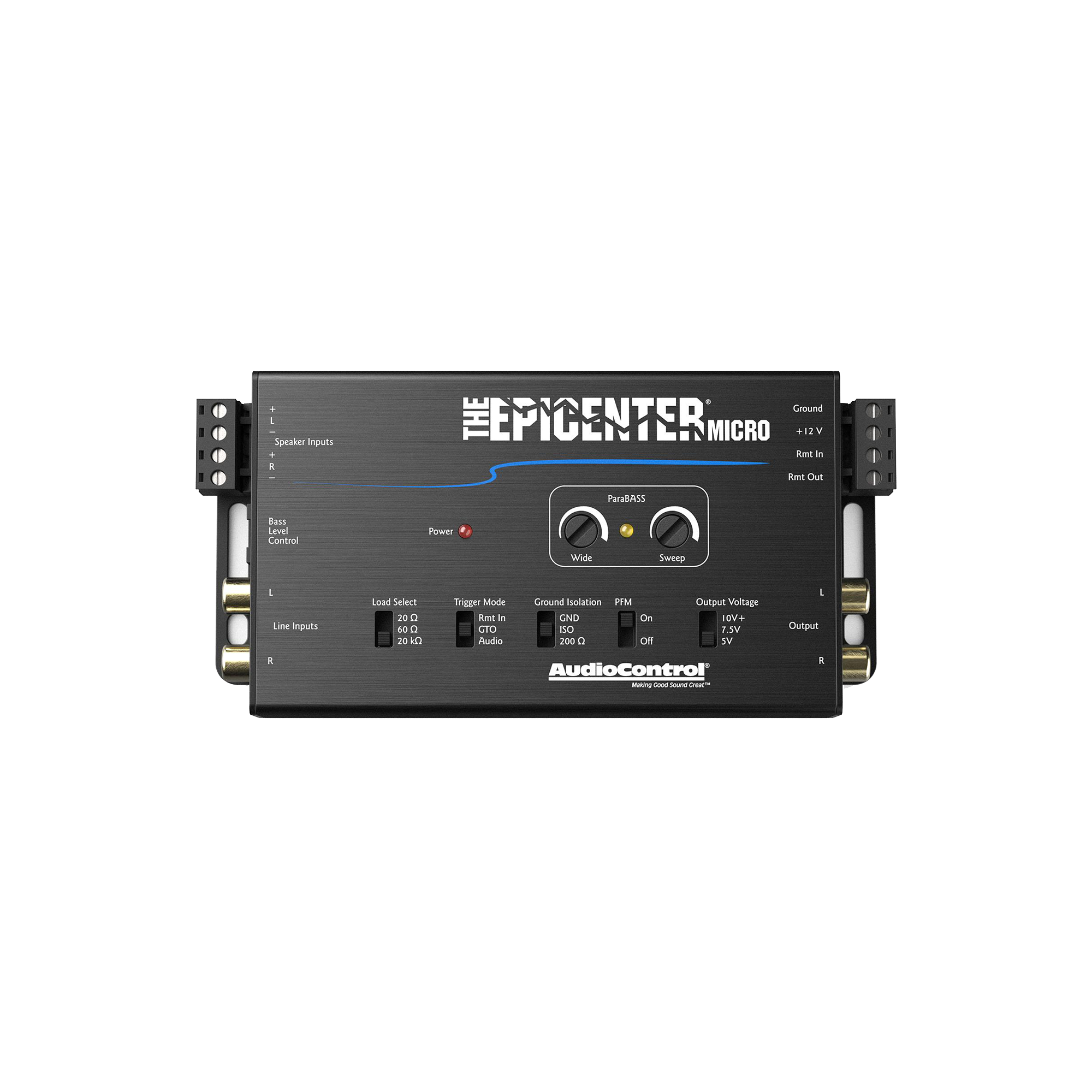

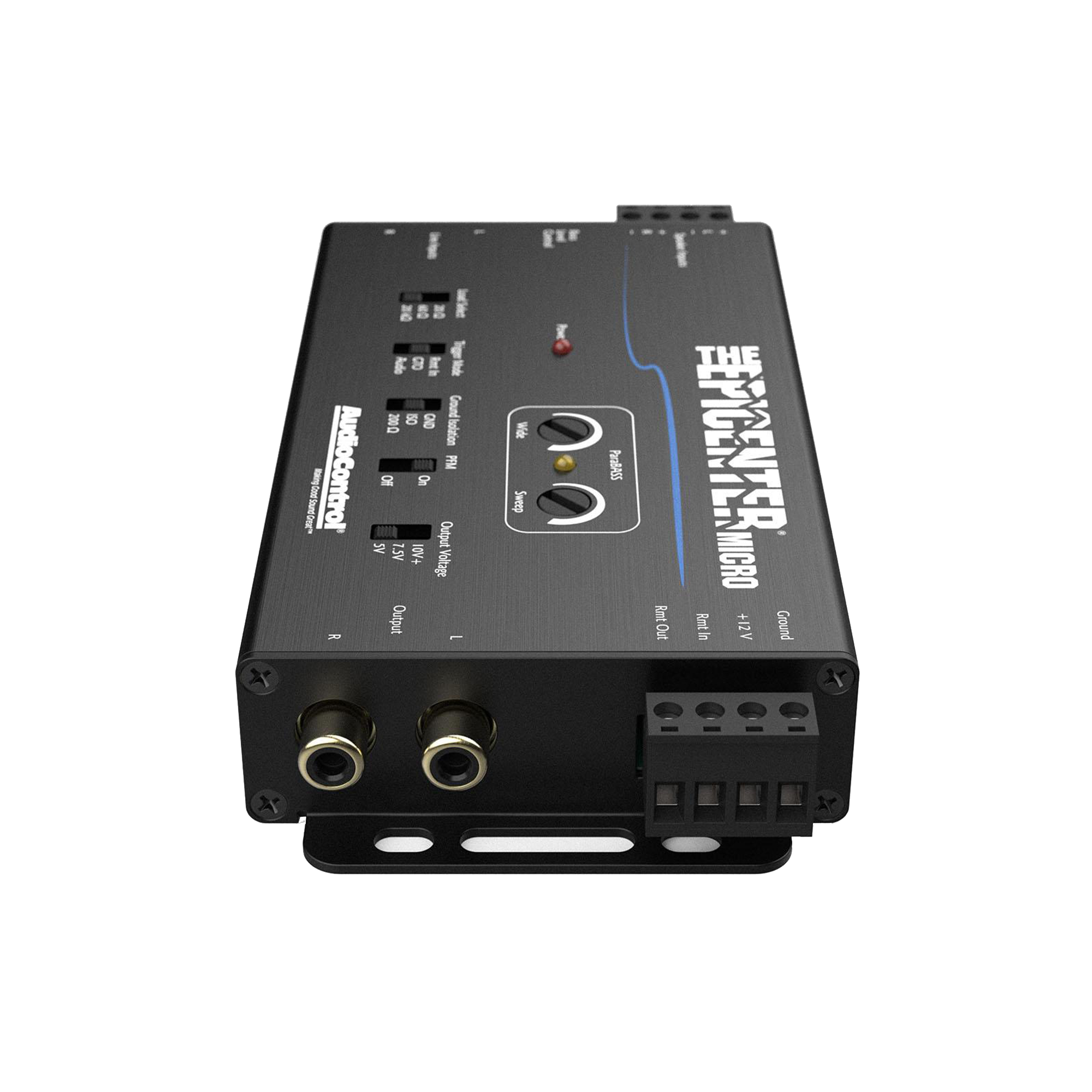

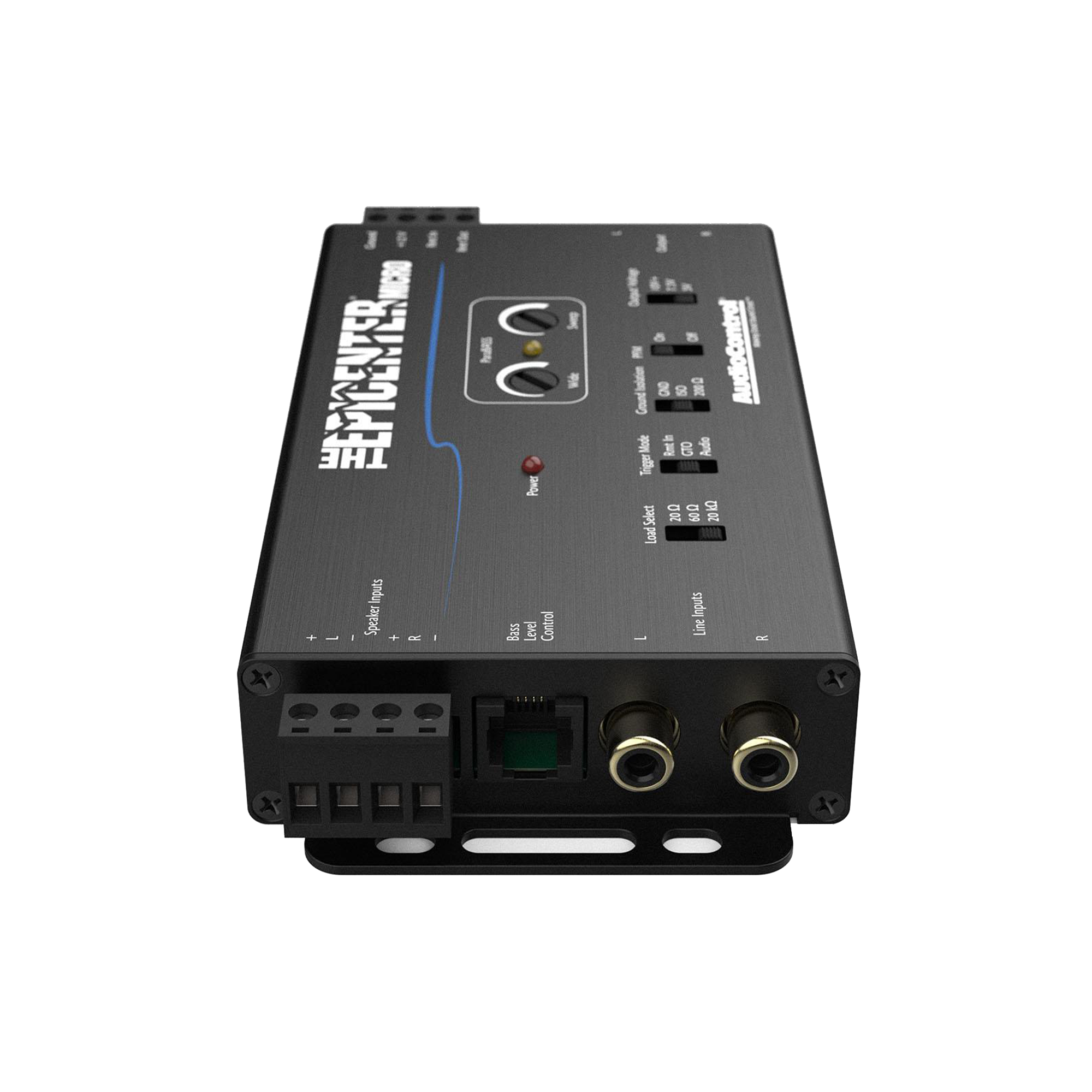

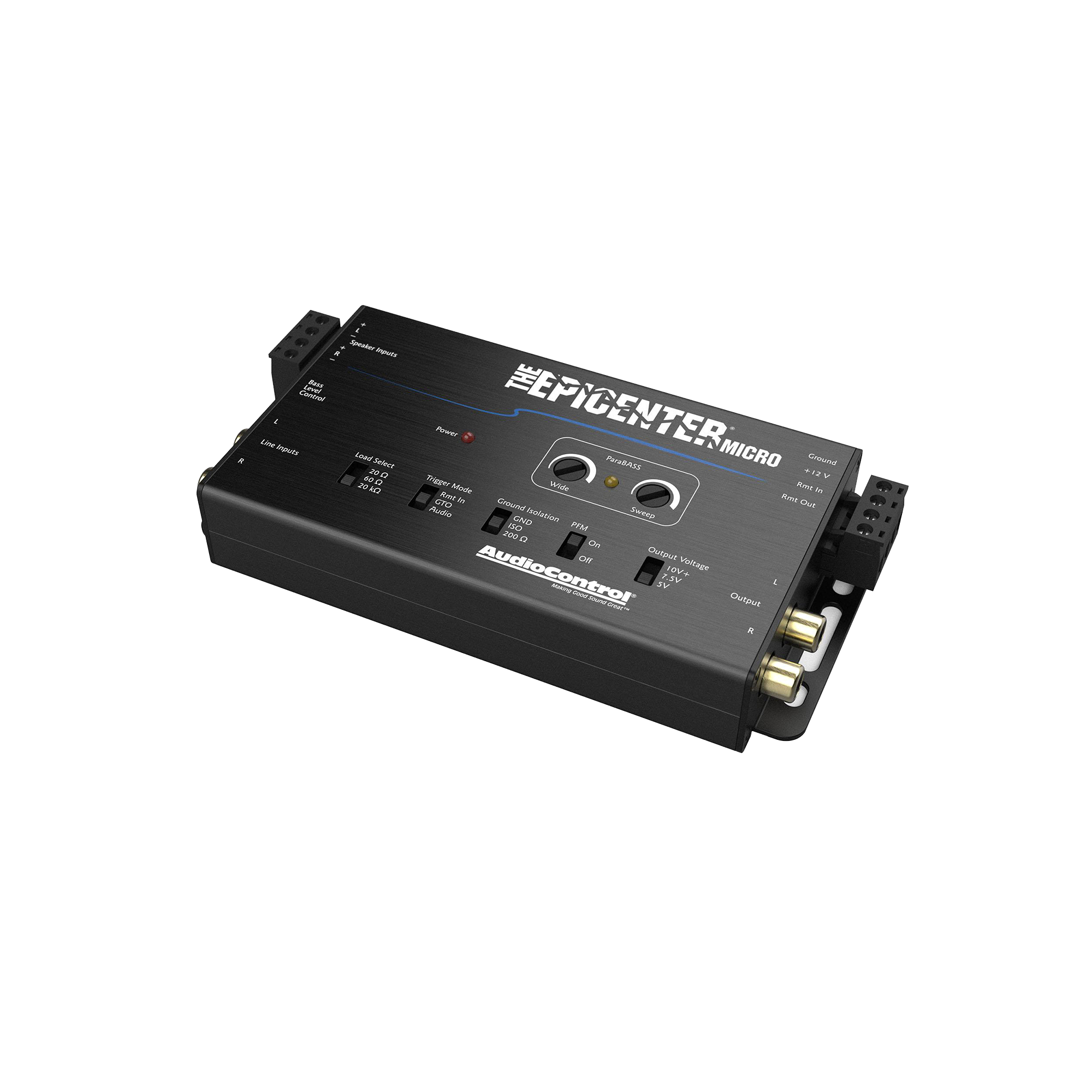

AudioControl EPICENTER MICRO is a line output converter for integrating aftermarket audio equipment with a factory sound system. The features and connection requirements are listed below.
- Brand: AudioControl
- Manufacturer part number: EPICENTER MICRO
Features and product details
The EPICENTER Micro combines AudioControl’s legendary digital bass restoration with world-renowned OEM integration capabilities. Featuring a speaker-level input stage with selectable impedance loads, as well as traditional line-level inputs, The EPICENTER Micro brings out the best bass in any system. Trigger modes include traditional +12V remote in, GTO™ Signal Sense, and Audio Sense. The PFM Subsonic Filter can be bypassed for the truly dedicated, and the 10V+ output voltage setting beckons only the bravest among us. Use the included ACR-4 remote to independently adjust bass restoration and output level.
FEATURES
- Patented Digital Bass Restoration
- ParaBASS® Bass Shaping
- Speaker and Line Level Inputs
- Load Matching Circuit
- Multiple Trigger Modes
- ACR-4 Dual Knob Dash Mount Control Included
- Conformally Coated PCB for Increased Resistance to the Elements
SPECIFICATIONS
INPUTS
- Speaker Level Input: 1 (2 channels)
- Maximum Speaker Level Input: 40 Vrms / 400 W (20kΩ setting)
- Speaker Level Input Impedance (selectable): 20Ω, 60Ω, 20kΩ
- Line Level Input: 1 (2 channels)
- Line Level Input Impedance: 7kΩ
OUTPUTS
- Preamp Outputs: 1 (2 channels)
- Maximum Output Level: 9.5Vrms/13V peak
- Output Impedance: 150Ω
PERFORMANCE
- Total Harmonic Distortion: 0.03%
- Signal to Noise: >105 dB
- Frequency Response: 10 Hz – 22 kHz ±1 dB
CONTROL
- Remote In / GTO™ Signal Sense / Audio Sense
- 12VDC Remote Out (always active when unit is on)
GENERAL
- Current Draw: 300 mA
- Recommended Fuse Rating: 1 A
WEIGHTS & DIMENSIONS
- Dimensions: 5.9″L x 3″D x 1″H
- Weight: 0.6 lbs. (0.27 kg)
Specifications
| Speaker Level Input | Speaker Level Input 1 (2 channels) |
|---|---|
| Maximum Speaker Level Input | Maximum Speaker Level Input 40 Vrms / 400 W (20kΩ setting) |
| Speaker Level Input Impedance (selectable) | Speaker Level Input Impedance (selectable) 20Ω, 60Ω, 20kΩ |
| Line Level Input | Line Level Input 1 (2 channels) |
| Line Level Input Impedance | Line Level Input Impedance 7kΩ |
| Preamp Outputs | Preamp Outputs 1 (2 channels) |
| Maximum Output Level | Maximum Output Level 9.5Vrms/13V peak |
| Output Impedance | Output Impedance 150Ω |
| Total Harmonic Distortion | Total Harmonic Distortion 0.03% |
| Signal to Noise | Signal to Noise >105 dB |
| Frequency Response | Frequency Response 10 Hz – 22 kHz ±1 dB |
| Current Draw | Current Draw 300 mA |
| Recommended Fuse Rating | Recommended Fuse Rating 1 A |
Box contents
Epicenter Micro
The Epicenter Micro, ACR-4, Remote Cable, Speaker and Power connectors, Manual, Warranty
What's in the box
Epicenter Micro
The Epicenter Micro, ACR-4, Remote Cable, Speaker and Power connectors, Manual, Warranty
