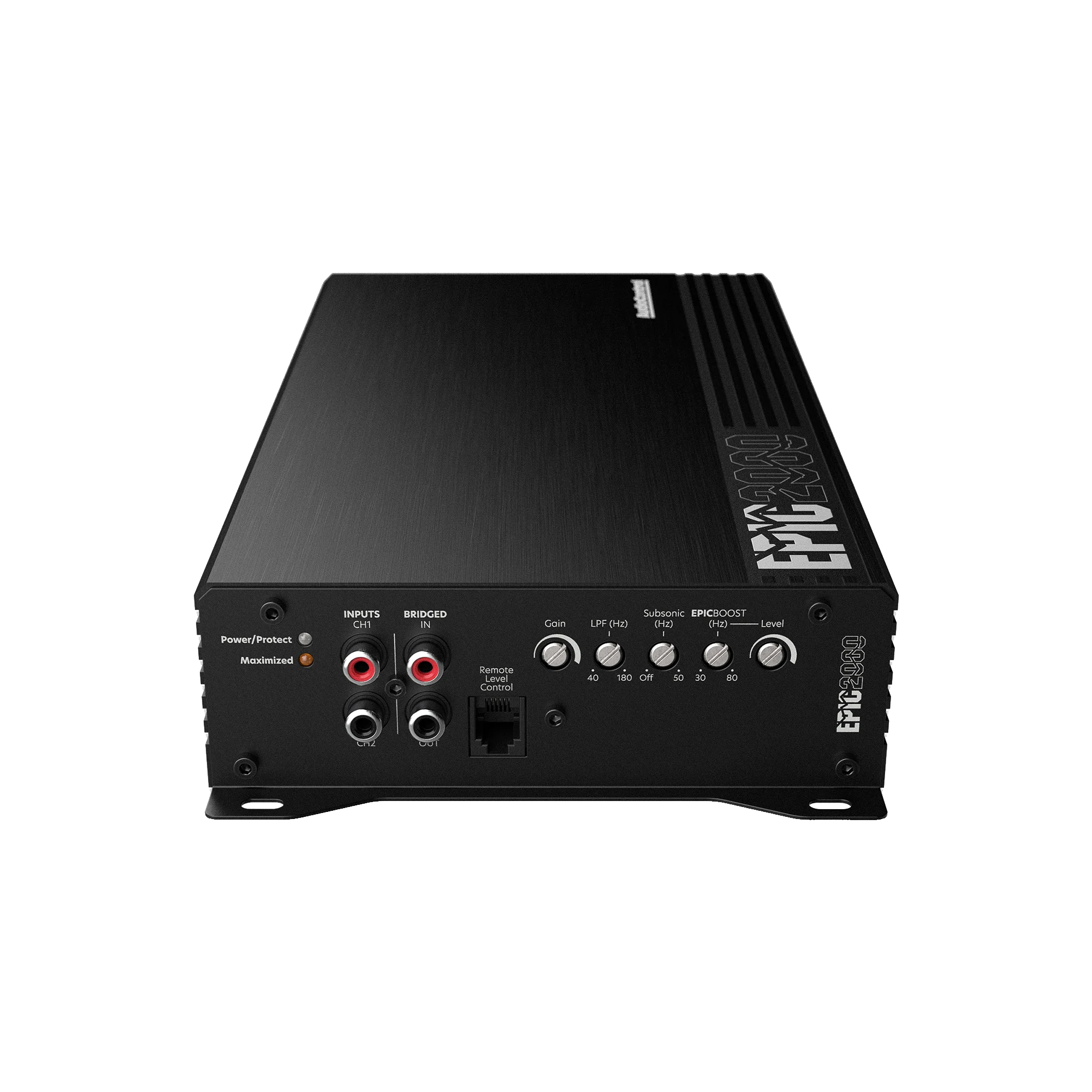

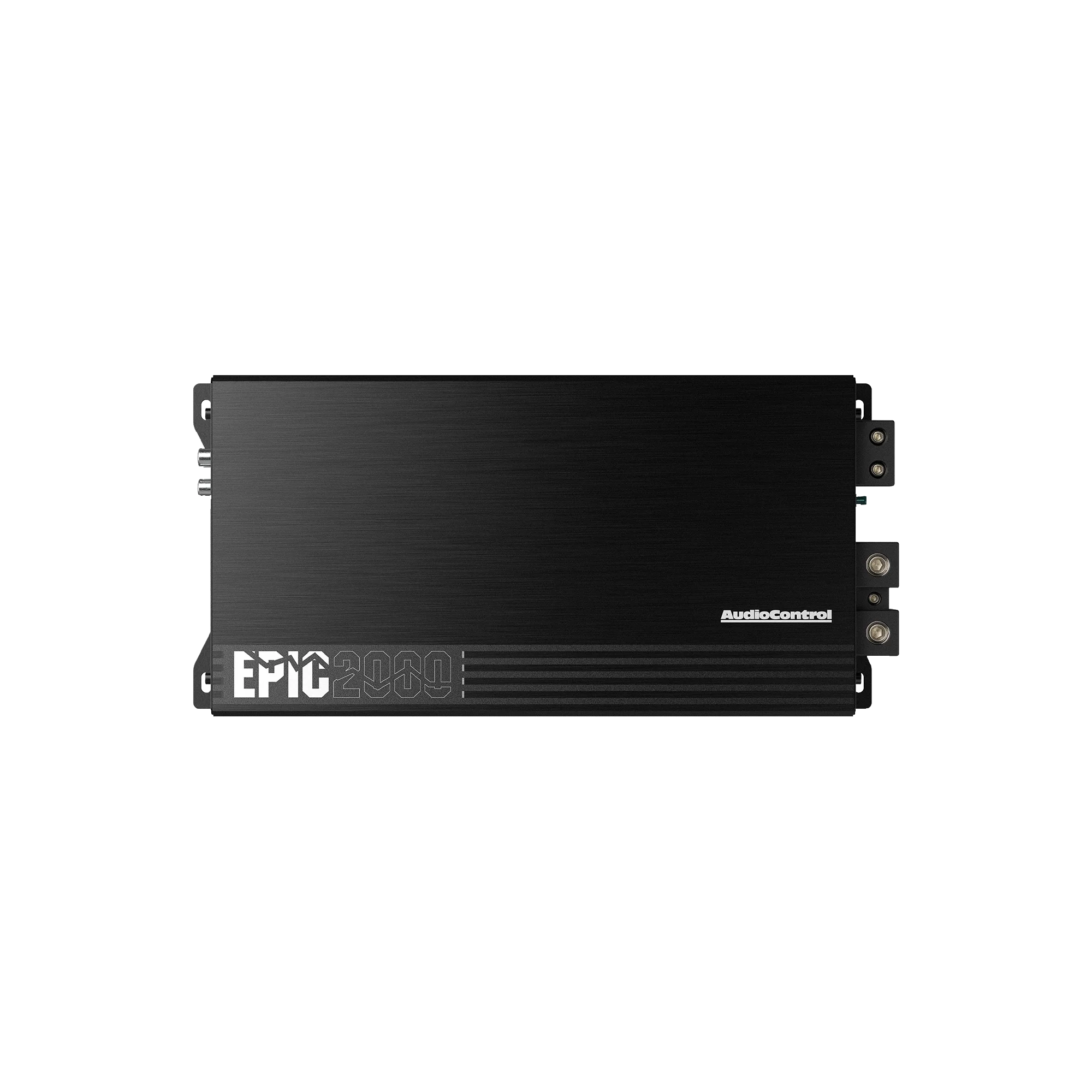

AudioControl EPIC2000 Monoblock Amplifier, 2000W RMS
Specifications
- Brand
- AudioControl
- UPC
- 850038647780
- Category
- Car Audio Amplifier
- Shipping weight
- 0.0 lb
Links open in a new tab; return here to finish shopping. Select Klarna, Shop Pay or Sezzle to learn how they work before checkout. Eligibility applies.
AudioControl EPIC2000 adds amplification to an aftermarket car audio system. Review the power ratings, impedance, and electrical requirements below when planning your installation.
- Brand: AudioControl
- Manufacturer part number: EPIC2000
Features and product details
The AudioControl EPIC Series Amplifier delivers powerful, heart-pounding bass in a compact, thermally efficient design. Perfectly paired with The Epicenter Bass Restoration Processor (sold separately), it enhances your bass experience to new levels. This amplifier offers exceptional sound quality and is the only AudioControl amplifier to include a bass knob for easy control.
- Digital Class-D Amplifier: Powerful yet compact and stable down to a 1 ohm load.
- 0-12dB Variable Bass Boost Q: Selects the frequency to boost

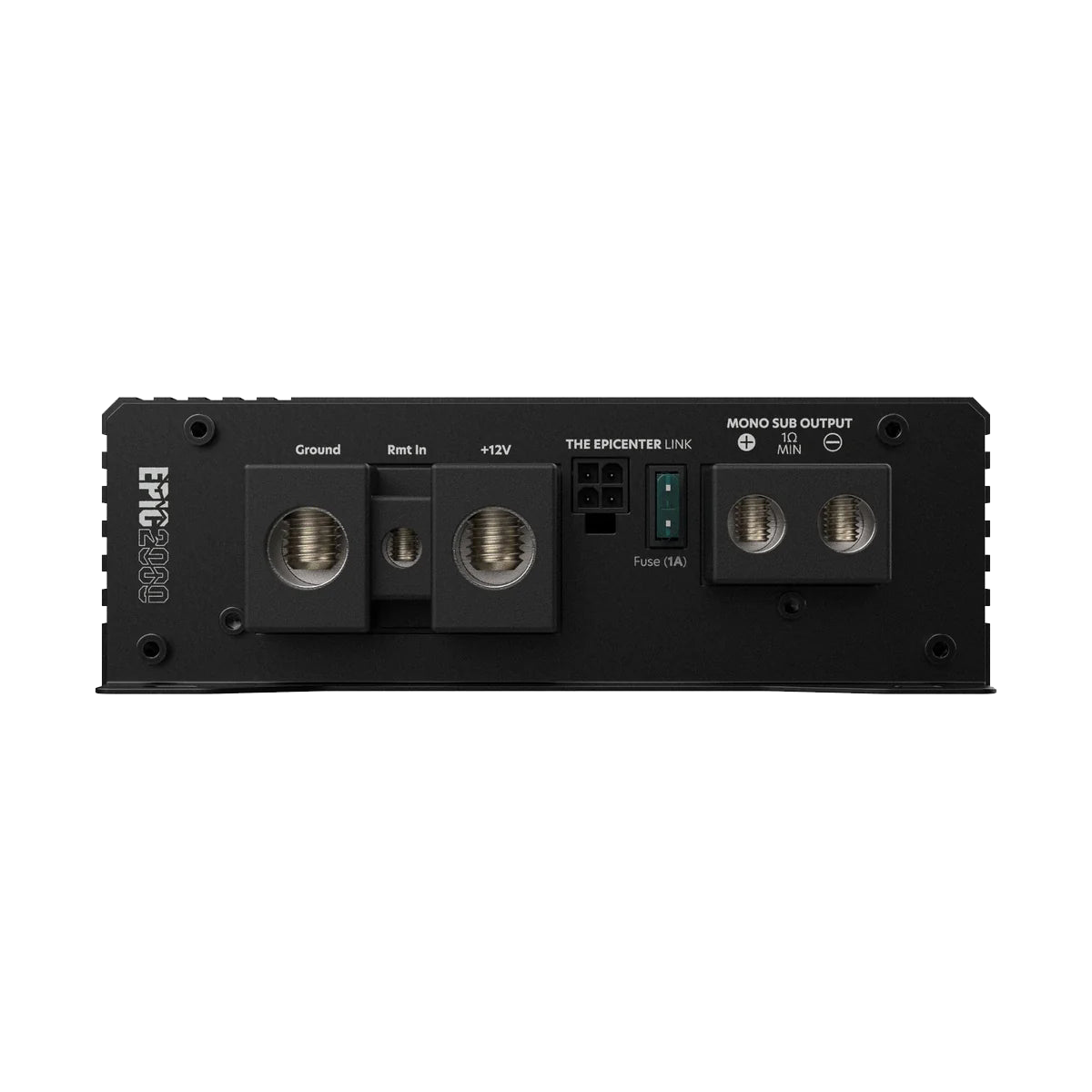

- Direct Wire Terminals with Hex Screws: Provide solid, reliable connections.
- 4-Gauge Power Terminal and 8-Gauge Speaker Terminal: Designed for maximum current flow.
- 91dB+ Signal-to-Noise Ratio (@ CEA Standard): Ultra-efficient idle draw (< 0.5-1A).
-
Smart Auto Reset Protection Circuit: Multiple protection modes are in place to prevent damage if your amplifier encounters an issue.
- Output Over-Current Protection (OCP)
- Input Over-Voltage Protection (OVP)
- Input Under-Voltage Protection (UVP)
- Output DC-Offset Protection (DCP)
-
Over-Temperature Protection (OTP)
- Output Over-Current Protection (OCP)
- THE EPICENTER LINK: Simplify your install by connecting the EPIC amplifier directly to an EPICENTER bass restoration processor.
FEATURES
• Compact High-Power Class D Monoblock Amplifier
• High-Current Design – 1Ω Stable
• Smart Auto-Reset Protection Circuit
• 12 dB/octave Linkwitz-Riley Variable Low Pass Filter
• 12 dB/octave Variable Subsonic Filter
• EPICBoost™ Variable Frequency Bass Boost

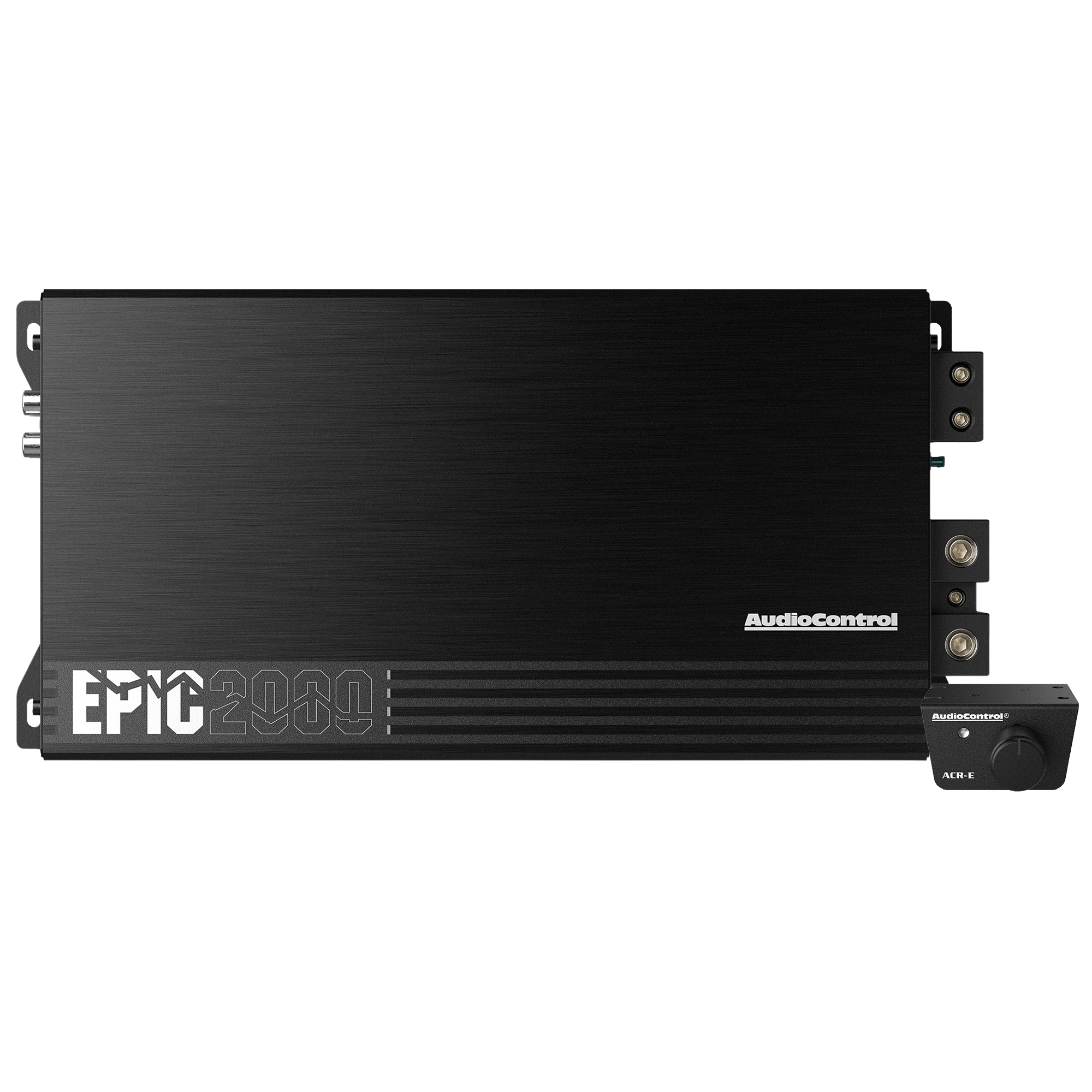

• ACR-E Remote Level Control Included
• Solid Power/Speaker Terminals with Hex Screws
• Built for THE EPICENTER®
SPECIFICATIONS
INPUTS
- Line-Level Inputs: 500mV – 12V RMS
OUTPUTS
-
Continuous Power (RMS) @ 14.4V
-
1 x 800 Watts @ 4 ohms
-
1 x 1400 Watts @ 2 ohms
-
1 x 2000 Watts @ 1 ohm
-
1 x 4000 Watts @ 2 ohms Bridged (Strapped)
-
Remote Level Control
- Included
WEIGHTS & DIMENSIONS
- DIMENSIONS:6.1″ W x 12.56″ L x 2.01″ H
PERFORMANCE
- Frequency Response (+/- 1 dB): 10 Hz – 190 Hz
- S/N Ratio: 92.9 dBa, Ref 800 Watts @ 4 ohms
- Power / Ground Wire Gauge: 0/1 AWG
- Recommended Fuse Rating: 200 Amps
- Low Pass Filter: 12dB/octave Linkwitz-Riley, 40 Hz to 180 Hz
- Subsonic Filter: 12 dB/octave Linkwitz-Riley, Off to 50 Hz
- EPIC Boost: Frequency Center: 30 Hz to 80 Hz, Gain: 0 to 12 dB
- Speaker Terminal Wire Gauge: 4 AWG
- Strapable: Yes
- Epicenter Link: Yes
Specifications
| Line Level Inputs | Line Level Inputs 500mV – 12V RMS |
|---|---|
| Output RMS @ 14.4V | Output RMS @ 14.4V 1x800W @4Ω; 1x1400W @2Ω; 1x2000W @1Ω |
| Output RMS @ 14.4V | Output RMS @ 14.4V 1x4000W @2Ω Bridged (Strapped) |
| Frequency Response | Frequency Response 10 Hz – 190 Hz |
| S/N Ratio | S/N Ratio 92.9 dBa, Ref 800 Watts @ 4 ohms |
| Power / Ground Wire Gauge | Power / Ground Wire Gauge 0/1 AWG |
| Recommended Fuse Rating | Recommended Fuse Rating 200 Amps |
| Low Pass Filter | Low Pass Filter 12dB/octave Linkwitz-Riley, 40 Hz to 180 Hz |
| Subsonic Filter | Subsonic Filter 12 dB/octave Linkwitz-Riley, Off to 50 Hz |
| EPIC Boost | EPIC Boost Frequency Center: 30 Hz to 80 Hz; Gain: 0 to 12 dB |
| Speaker Terminal Wire Gauge | Speaker Terminal Wire Gauge 4 AWG |
| Strapable | Strapable Yes |
| Epicenter Link | Epicenter Link Included |
| ACR-E Remote Control Knob | ACR-E Remote Control Knob Included |
Box contents
EPIC2000
EPIC2000 Amplifier, Wrench, Screws, ACR-E Remote Level Control and Cable, The Epicenter Link (1m Harness), Manual, Warranty
What's in the box
EPIC2000
EPIC2000 Amplifier, Wrench, Screws, ACR-E Remote Level Control and Cable, The Epicenter Link (1m Harness), Manual, Warranty
