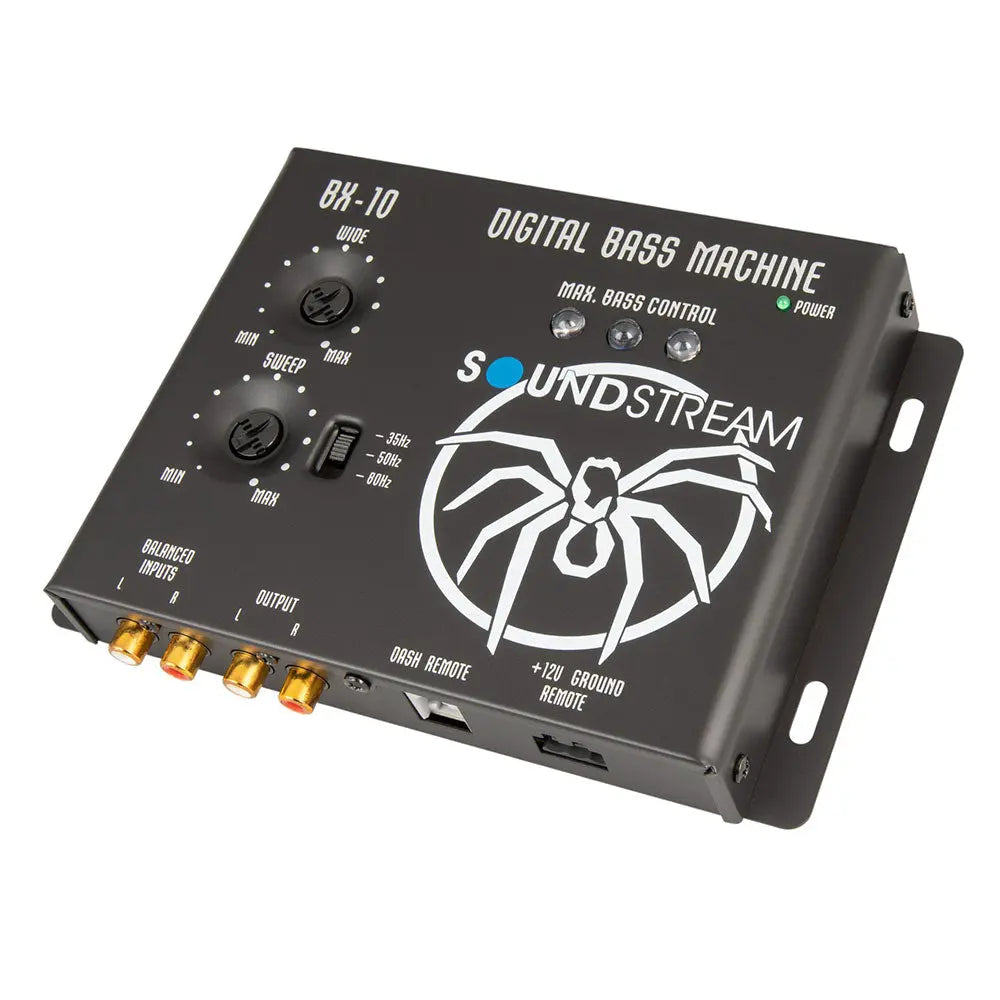

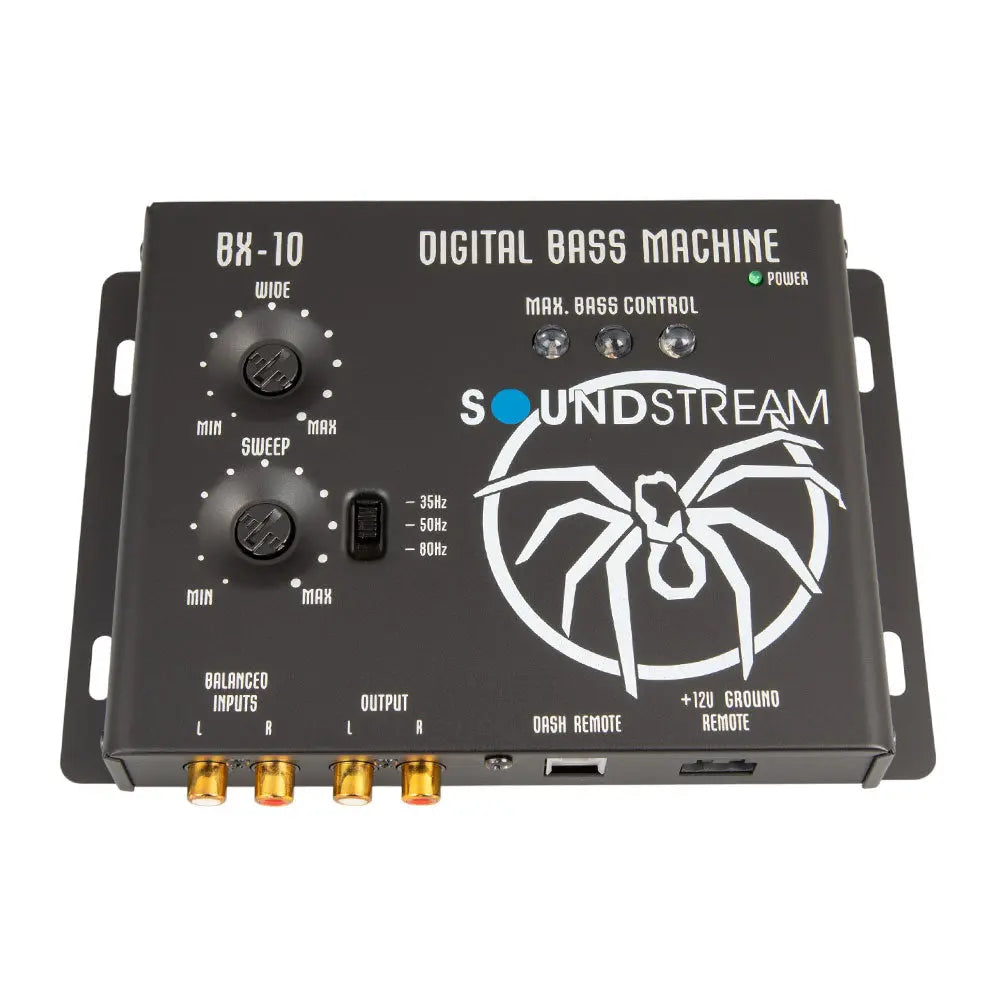

Soundstream BX-10 is a bass processor and integration for an aftermarket vehicle audio installation. Match the specifications, connections and mounting requirements below to your system before ordering.

• Brand: Soundstream
• Manufacturer part number: BX-10

Features and installation details

Bass Reconstruction Processor

• SWEEP: selects the frequency boosted by the equalizer. This is the “center frequency,” which can be as low as 27Hz or 63Hz. Choosing this frequency depends on your taste in music.
• WIDTH: increases or decreases the bandwidth range, or “Q,” boosting frequencies near the “center frequency.” Narrow Q focuses on harmonics immediately surrounding the center frequency. Wide Q unlocks harmonics all around the center frequency.

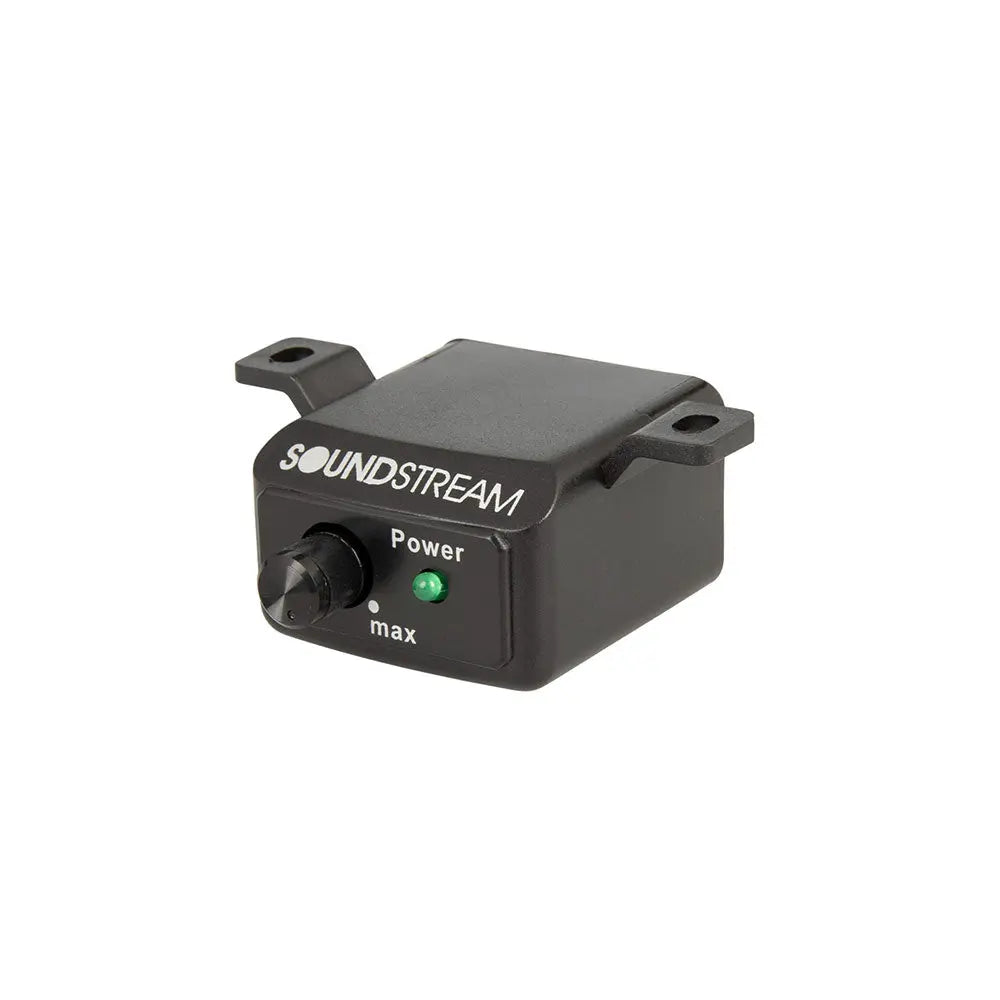

• DASH CONTROL: included with this bass processor can be mounted anywhere in the vehicle, but easy adjustment from the driver seat is recommended. The output level of the Bass Equalizer can be controlled.

Refined Bass Control for True Audio Enthusiasts

They say music soothes the soul, but poor control of your system can kill the harmonics of a beautiful song or road trip. If you want to extend great-sounding music from your source to your amps, then get yourself a Soundstream Digital Bass Reconstruction Processor. The BX digitally maximizes the ultra-low bass on all types of recorded material. The processor detects bass harmonics, then digitally recreates the original essentials for the incredible punch and impact of live music. Basically, you get more bass! Works great for music or factory radios that forgot we enjoy bass response in our systems! EDM, Banda, Rock, Jazz… No Problem!

What Is the BX-10?

The Soundstream BX-10 is a digital bass processor engineered to restore and optimize low-frequency sound in your car audio system. By digitally analyzing and reconstructing bass harmonics, it recovers the lost punch that’s often filtered out of factory audio systems and low-bitrate recordings.

Key Attributes of the BX-10

1. Digital Bass Processing at Its Best

• Processes low frequencies for deeper and cleaner bass
• Enhances sub-bass response using bass harmonics enhancer logic
• Ideal for modern and older music formats

2. Flexible EQ Control with Dash-Mount Accessibility

• Comes with a dash-mounted bass controller for real-time bass adjustment
• Features a parametric bass EQ with adjustable sweep and bandwidth (Q)
• Select between 27 Hz and 63 Hz frequency centers for fine-tuned control

3. Audio Engineering Precision

• Balanced audio input for noise rejection up to 60 dB
• PWM power supply ensures consistent, high headroom output
• Frequency response spans from 10 Hz to 100 kHz
• Output level peaks at 13.5V with ultra-low THD of 0.003%

Compatibility with All Music Styles

Whether you're listening to EDM, Rock, Jazz, or Latin Banda, the BX-10 reconstructs sub-bass in real time. Its digital processing ensures that every beat and note retains its intended depth, regardless of the original recording quality or compression.

For OEM and Aftermarket Systems Alike

The BX-10 is the ideal solution for:

• Factory head units with limited bass output
• Sound systems missing subsonic response
• Any audio enthusiast seeking clean, responsive low-end

Built for System Integrators and Car Audio Builders

With simple integration, a complete wiring guide, and clear dash knob functionality, installers can confidently deploy the BX-10 into any build, while users retain intuitive control.

Why Choose the Soundstream BX-10?

Because it's not just about adding more bass — it's about restoring it. From subwoofer tuning to bass restoration, the BX-10 offers unmatched fidelity and flexible tuning for serious car audio users.

BX Features

Dash Mount Remote Control

Bass Restoration Lighted Display

Parametric Bass Control

PFM Subsonic Filter

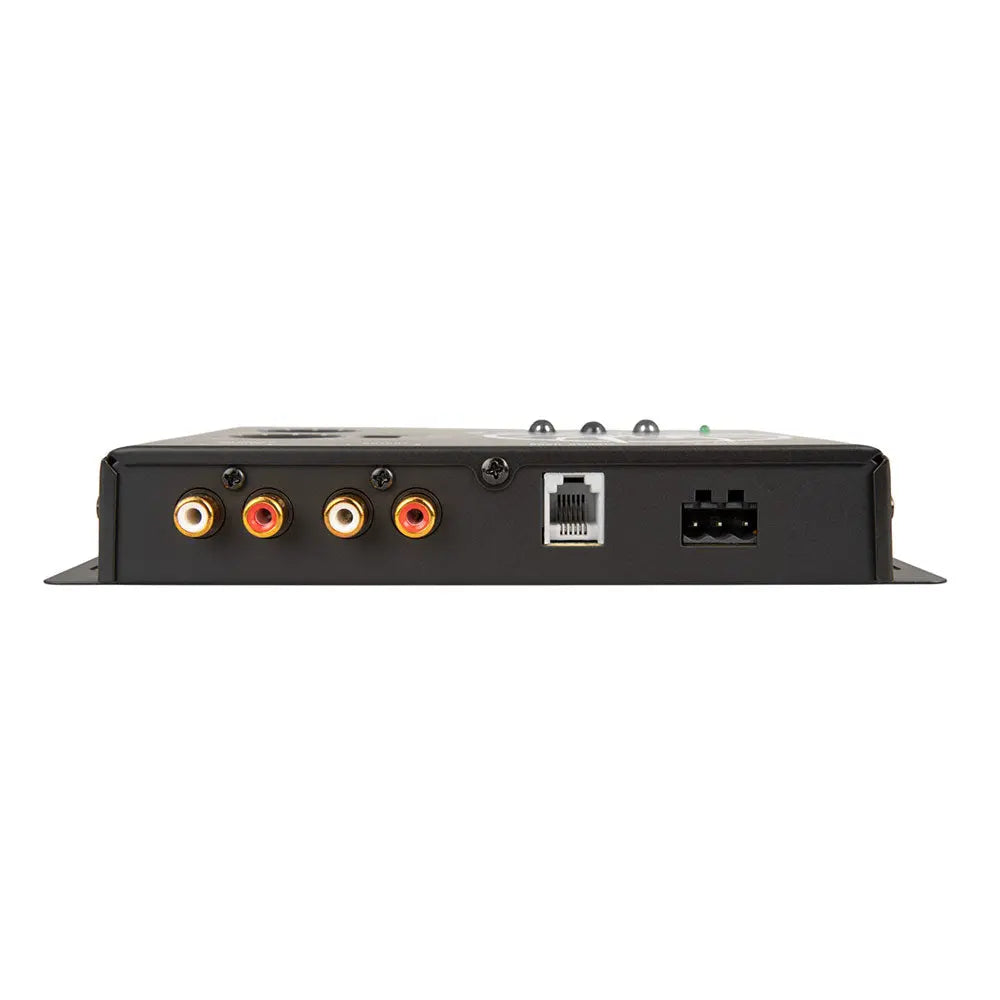

Balanced Inputs

Bass Output Control

PWM High Head Room Power Supply

Output Level: 13.5 volt

Frequency Response: 10Hz 100KHz

THD: 0.003%

S/N Ratio: 130dB

Balanced Input Noise Rejection: 60 dB

Owner's Manual [PDF]

QUICK HOW-TO INSTALL GUIDE
