EchoMaster PHDCAMJW is a vehicle camera. Review the mounting requirements, connections, and product specifications below for your vehicle installation.

• Brand: EchoMaster
• Manufacturer part number: PHDCAMJW

Features and product details

ADD A REAR CAMERA TO YOUR JEEP JK!
Increase visibility in back of your Wrangler with this rugged, weather-ready camera featuring selectable output resolution. Choose between Analog High Definition (AHD) or Standard (CVBS) resolution to provide high quality images of obstacles behind your vehicle.

SELECTABLE PARKING LINES View camera image with or without parking guide lines displayed

IP67 RATED Rugged enough for on-road or off-road use

STANDARD 5 PIN ECHOMASTER CONNECTOR 20 ft extension harness included

UNIVERSAL RCA VIDEO CONNECTOR Can connect to any monitor or headunit

AHD AVAILABLE ON COMPATIBLE HEIGH10® The newest revision of the HEIGH10 adds AHD capability giving you crisper, clearer details
for a full visual experience

INFRARED NIGHT VISION 4 IR LED’s for visibility in any lighting situation

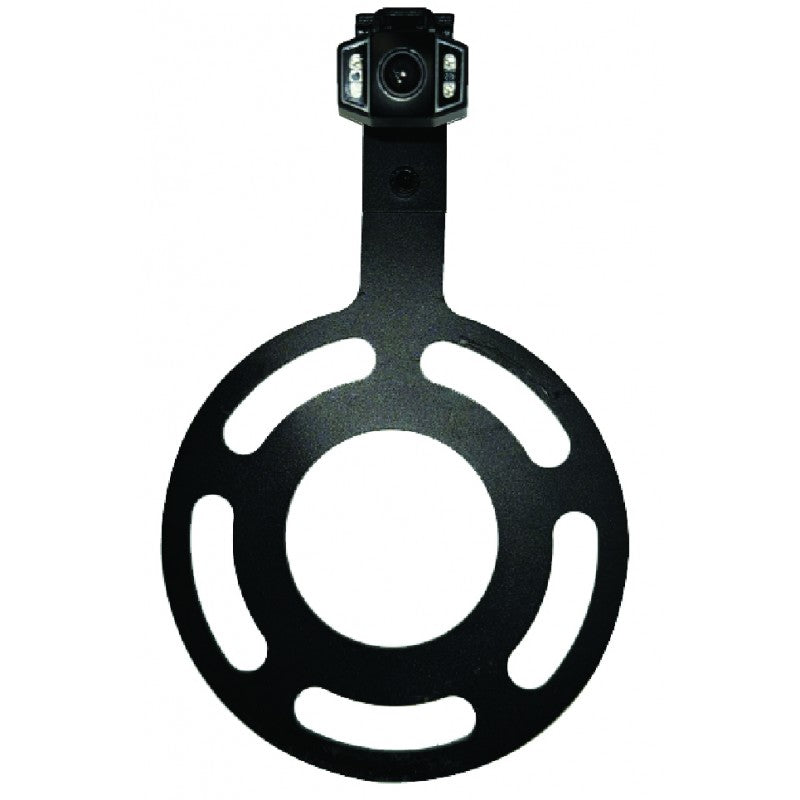

ADJUSTABLE MOUNT Able to adjust to different wheel patterns

WEATHERPROOF Dip-spin coating on bracket prevents rusting

DURABLE MOUNT 12 Gauge Steel Bracket

FULL 3-YEAR WARRANTY Worry-free performance

Features

• AHD (Analog High Definition) = 720P Output (selectable)
• CVBS = 480P Output (selectable)
• 1/3” CMOS sensor
• Operates at 0 LUX
• 170° viewing angle
• IP67 water/debris-proof rating
• Parking lines (selectable)
• Mirrored/non-mirrored image (selectable)
• 20 ft. Camera Extension Harness
• EchoMaster Standard 5-Pin Cable
• Hardware Pack
• 3-year warranty

What's in the box

• IP67 Rated Camera
• Tag Mounting Bracket
• Butterfly Mounting Bracket
• 20 Ft Camera Extension Cable
• Camera Power/Video Adapter
• Warranty Card
• Wheel Bracket
• Riser
• Large Camera Mount (Not Used)
• Camera Mount for PHDCAM10U
• Right Angle Bracket
• M6 x 1.00 Bolts, QTY 3
• M6 Lock Washers, QTY 3
• M3 x 0.5 Bolts, QTY 2
• M3 Lock Washers, QTY 2

Professional installation by an authorized EchoMaster dealer is recommended.
