A fuel pump can sound normal, a filter can look clean, and an engine can still be starving for fuel under load. That is why fuel pressure testing belongs ahead of the parts cannon when you are chasing a hard start, hesitation, lean condition, misfire, stalling issue, or no-start. A gauge reading takes minutes to collect and can keep you from replacing injectors, pumps, sensors, and regulators based on a guess.

For a stock daily driver, the test confirms that the factory fuel system is doing its job. For a boosted street car, tow rig, track build, or off-road Jeep, it is a baseline for determining whether the fuel system can support the demand you are placing on it. Pressure alone is not the whole story, but it is one of the quickest ways to narrow the problem.

What Fuel Pressure Testing Actually Tells You

Fuel pressure testing measures the pressure available at a specific point in the fuel system, usually at the fuel rail or a dedicated test port. The correct number is not universal. Port-injected engines, returnless systems, carbureted applications, mechanical pumps, and high-pressure direct-injection systems all operate differently. Start with the manufacturer specification for the exact vehicle and engine combination.

A reading that is too low may point to a weak pump, restricted filter or pickup, voltage drop at the pump, leaking pressure regulator, damaged fuel line, or insufficient pump capacity. If pressure falls during a hard pull, the issue may only show up when fuel demand rises. That is common on modified vehicles that have added boost, larger injectors, ethanol blends, or more aggressive tuning without matching the supporting fuel system.

High pressure can be just as useful a clue. Depending on the system design, it may indicate a restricted return line, failed regulator, incorrect regulator setup, or a control issue in an electronically regulated system. Excess pressure can make an engine run rich, foul plugs, hurt fuel economy, and create poor drivability.

Pressure retention matters, too. If pressure drops immediately after key-off, fuel may be bleeding back through a pump check valve, leaking past an injector, or escaping through a regulator fault. A rapid drop is not an automatic parts verdict, but it gives your diagnosis a direction.

Before You Connect a Fuel Pressure Gauge

Gasoline is flammable, and many modern fuel systems retain significant pressure after the engine is shut off. Work in a well-ventilated area away from sparks, open flames, hot exhaust components, and smoking materials. Wear safety glasses, keep a suitable fire extinguisher close, and clean up any spilled fuel immediately.

Use a gauge and adapter rated for the pressure range and fuel type you are testing. A basic low-pressure gauge may be appropriate for many port-injection and carbureted systems, but it is not a substitute for equipment designed for high-pressure gasoline direct injection. Do not attempt to connect a standard gauge to the high-pressure side of a direct-injection system unless the tool and procedure specifically support it.

Before opening a connection, relieve system pressure according to the service procedure for the vehicle. Some applications have a Schrader valve on the rail. Others require an inline adapter, a service fitting, or testing through a scan tool and pressure sensor data. Newer returnless systems may have no convenient rail port at all, so the right adapter is often the difference between a clean test and a damaged fuel line.

Inspect the gauge hose, fittings, O-rings, and adapters before use. A leaking test connection is not just messy. It is a safety issue and can make a healthy system look weak.

How to Perform Fuel Pressure Testing

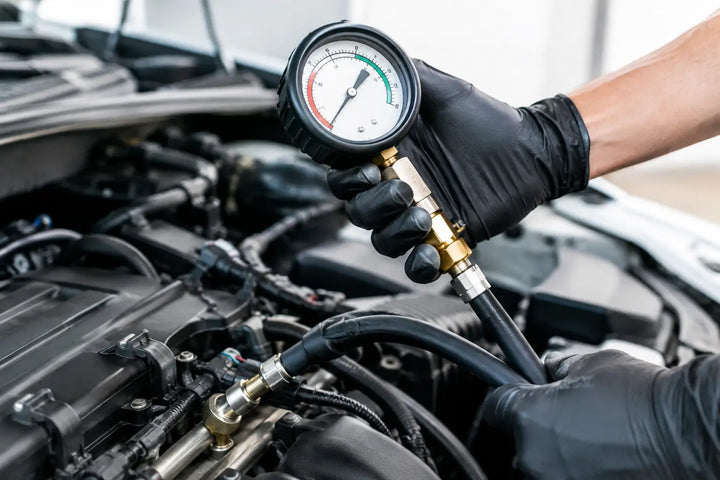

The exact process changes by vehicle, but a useful diagnostic test follows a consistent order. Connect the gauge securely, cycle the key to command the pump, and watch the initial prime pressure. Then start the engine and compare the running reading with the factory specification.

On a vacuum-referenced return-style system, pressure may change when engine vacuum changes. Disconnecting the regulator vacuum line may raise pressure, but only perform that check if the service information calls for it. If fuel is present in the vacuum hose, the regulator diaphragm may have failed.

Next, observe pressure through several operating conditions. Watch it at idle, during a quick throttle input, and under load if the setup allows safe monitoring. A vehicle that idles smoothly can still lose pressure on a pull, especially when the pump is weak, wiring is undersized, the filter is restrictive, or the tank pickup is uncovering during acceleration or off-camber driving.

For a road test, use equipment designed to be safely monitored or recorded. Do not route a fuel-filled mechanical gauge into the passenger compartment. A scan tool that reads the vehicle's low-side fuel pressure sensor, or a properly installed electronic pressure transducer, is often a better choice for capturing data under real load.

After shutdown, monitor pressure decay for the period listed in the service procedure. There is no single acceptable drop rate for every vehicle. Compare the result to the specification, then isolate the cause with additional checks rather than assuming the pump is bad.

Reading the Results Without Guessing

A low key-on prime reading usually means the system is failing to build enough pressure before the engine starts. Check battery voltage, pump relay operation, fuse condition, grounds, and voltage at the pump connector before ordering a new pump module. A pump that receives low voltage cannot deliver its rated pressure or flow.

If pressure is low at idle and stays low, inspect the filter, pump, pickup sock, lines, regulator, and electrical supply. On a return-style system, a pinched or leaking line and a stuck-open regulator can both reduce rail pressure. On returnless systems, diagnosis may include the fuel pump control module, pressure sensor, commanded pump duty cycle, and tank module assembly.

If pressure starts within spec but drops when RPM and load increase, think beyond pressure. A gauge only shows one part of fuel delivery. The pump may hold pressure with little flow demand but fall behind when the engine needs volume. Restricted filters, undersized feed lines, inadequate pump capacity, weak wiring, and a fuel system designed for pump gas but now running E85 are common causes.

High pressure often sends technicians toward the regulator or return side on older return-style systems. On electronically controlled returnless setups, do not bypass diagnostic steps. A faulty sensor, control module, wiring issue, or incorrect command can produce misleading readings.

A no-start with correct pressure does not clear the fuel system completely. You may still have injector pulse issues, poor fuel quality, injector clogging, incorrect cam or crank timing, inadequate compression, or an ignition fault. Verify spark, injector command, scan data, and mechanical condition before replacing major components.

Pressure Is Not the Same as Fuel Volume

This distinction matters most on performance builds. A fuel system can show acceptable rail pressure at idle and still fail to supply enough volume at wide-open throttle. That is why high-horsepower, boosted, and ethanol-fueled combinations need a complete plan: pump capacity, wiring, relay control, fuel hat, pickup design, feed and return line size, filter rating, regulator, injectors, and tune all need to work together.

A larger pump by itself is not always the fix. Some vehicles need upgraded wiring to avoid voltage loss. Others need a return-style conversion, a properly sized regulator, or a pump controller that matches the system. If you are building for future horsepower, choosing fuel delivery components around your real fuel type and power target is less expensive than redoing the system after the first lean pull.

For carbureted engines, pressure requirements are usually much lower than EFI, and too much pressure can overpower the needle and seat. For EFI, an adjustable regulator should not be used to mask an undersized pump or a clogged filter. Set pressure to the correct specification, then confirm stable delivery where the vehicle actually operates.

Common Testing Mistakes That Waste Time

The most common mistake is using a generic pressure number instead of the specification for the vehicle. Another is checking only at idle, then declaring the system healthy. Fuel problems frequently appear under heat, load, low tank level, or high boost.

Do not ignore electrical testing. Checking voltage drop at the pump under load can reveal a corroded connector, weak ground, tired relay, or undersized wiring that a static voltage check misses. Also confirm the gauge itself is accurate. A damaged or low-quality gauge can send the diagnosis in the wrong direction.

Avoid treating a fuel pressure result as a standalone answer. Pair it with fuel trims, commanded versus actual pressure data when available, injector pulse checks, and a visual inspection of lines and connections. The goal is not merely to find a number. The goal is to identify why the engine is not receiving the fuel it needs.

When the data points to a repair or upgrade, choose components that match the vehicle, fuel type, intended use, and horsepower target. The right gauge, adapter, pump module, regulator, filter, fuel line, or wiring upgrade turns fuel pressure testing from a quick check into a smarter build decision.
