Ultimate 12HB Train Horn Kit
SHIPPING - RETURNS - WARRANTY - CANCELLATION POLICY
*** Market Conditions after 2020 have changed the landscape of automotive parts. Although we try to stock 1000's of items in our multiple warehouse and use multiple distribution channels, having back-orders are unavoidable in today's market. If you are in need of a product quickly, we suggest email, message, or call us for availability so that we may explore your options.
Email: Sales@Speedzoneweb.com
Call: 407-846-8430
Text: 407-749-6314
Frequently Asked Questions
EVERYTHING BUT THE KITCHEN SINK.
Looking for a complete train horn kit with no shortcuts? The Ultimate 12HB Train Horn Kit is our most powerful and most capable kit to date. Designed for serious use, it gives you everything needed for maximum volume, long blast time, and onboard air flexibility. For the first time, you can choose between two of the loudest train horns we have ever offered: the King 5 or the Nathan Airchime K5.
Whether you want the raw, brand-new power of the King 5 or the history and tone of the reconditioned K5, this system gives you full performance either way. It is built for daily drivers, show trucks, off-road builds, or anyone who refuses to compromise on sound.
Kit includes:
-

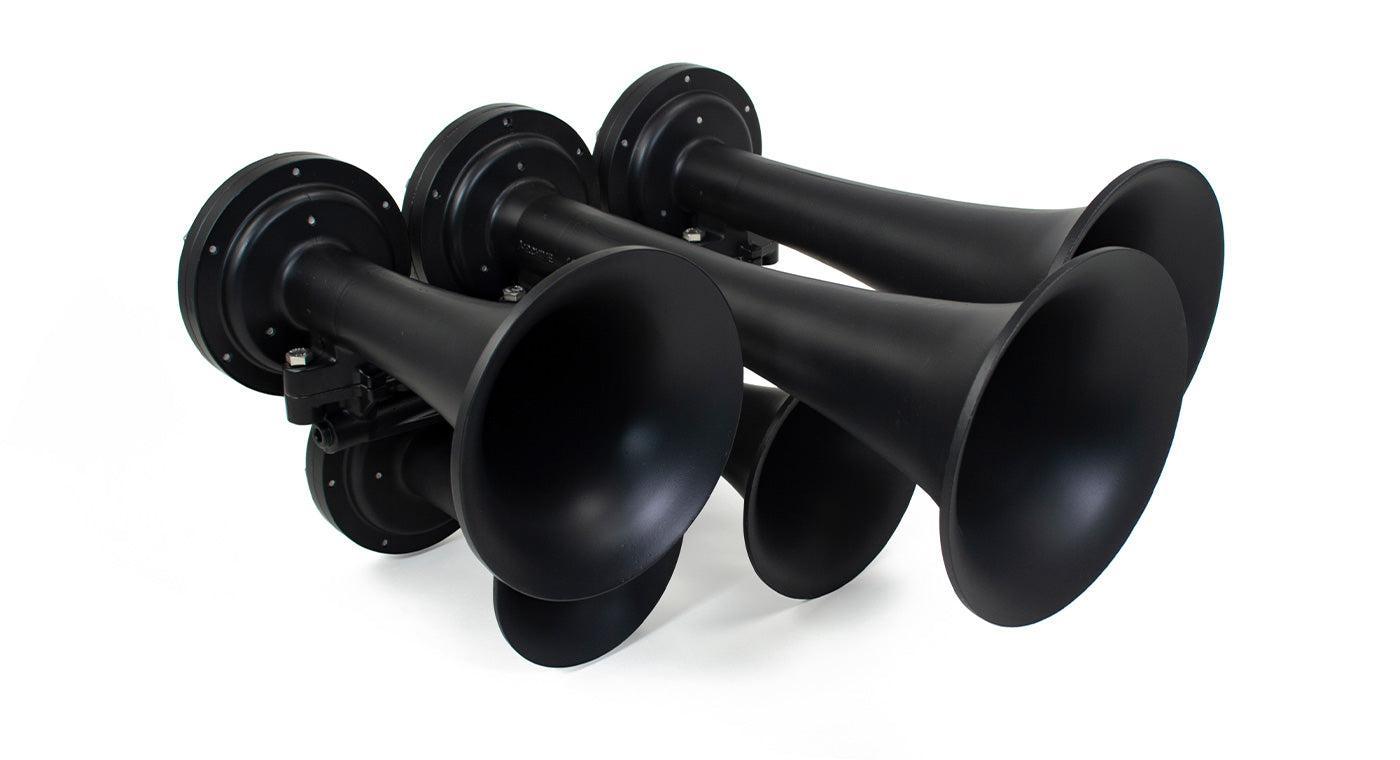

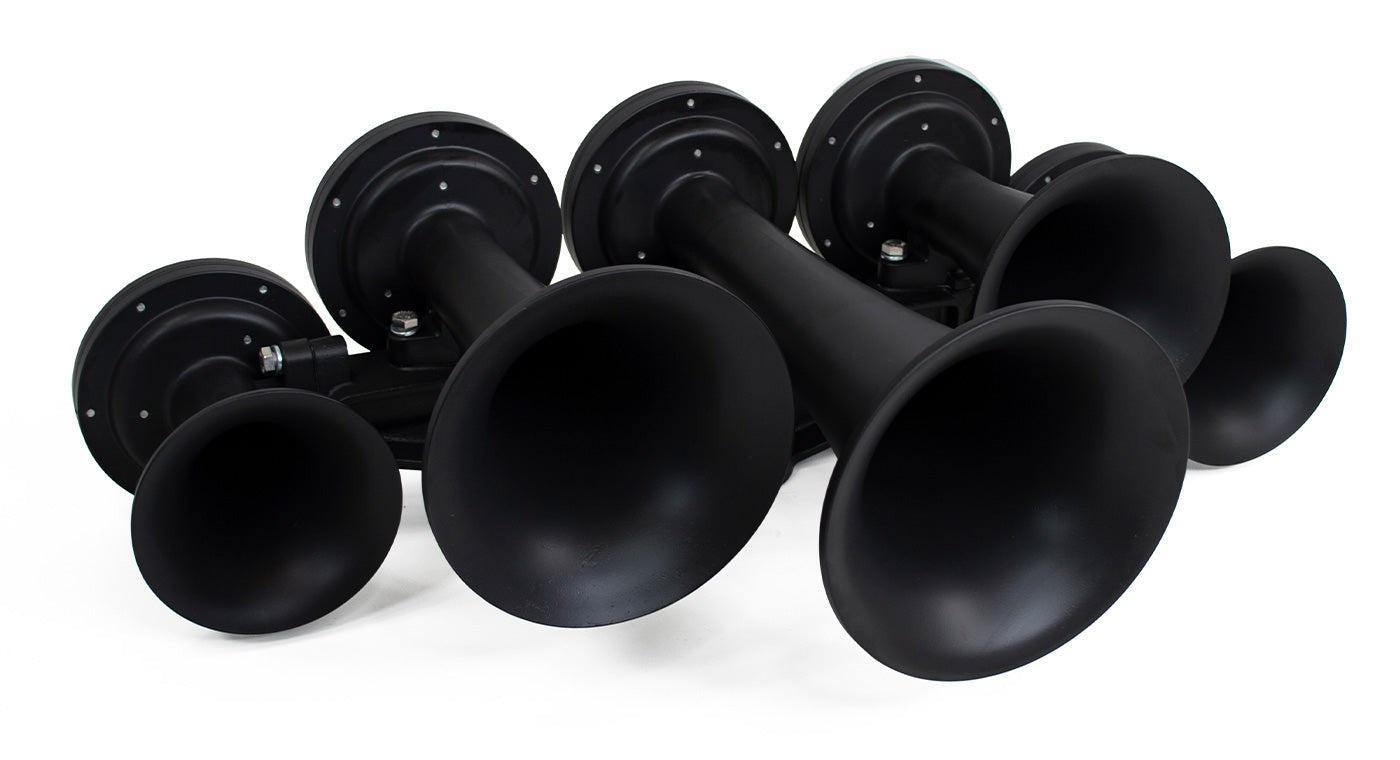

KING 5 OR NATHAN AIRCHIME K5:
Both are full-size five-chime horns with massive output. The King 5 is a brand-new die-cast horn with unmatched clarity. The Nathan K5 is pulled from real locomotives and fully restored for authentic tone and volume -
12-GALLON AIR TANK:
Seven half-inch ports and one three-quarter-inch port for maximum airflow and flexible setup. Rated for 150 PSI with a 300 PSI burst -
FOUR CONSTANT-DUTY COMPRESSORS:
High-output compressors fill the tank fast and recover quickly even under heavy use. Ideal for honking, air suspension, tire inflation, and onboard tools -
FULL ACCESSORY PACKAGE:
Includes an electric drain valve for moisture control, an air outlet relocation kit for easier access, a digital 220 PSI air pressure gauge, a 30-foot coil hose with tire inflation gun, a blowgun, and all the necessary fittings and wiring to complete the install
The Ultimate 12HB Kit is exactly what the name says. Maximum air volume, maximum compressor output, and the loudest train horns available. Your choice of either one. If you are looking for the best of everything in one box, this is it.
- NATHAN AIRCHIME K5LA TRAIN HORN or KING 5 TRAIN HORN
- 12-GALLON 8 PORT AIR TANK
- x4 AC-1NM AIR COMPRESSORS
- 110/150 PSI PRESSURE SWITCH

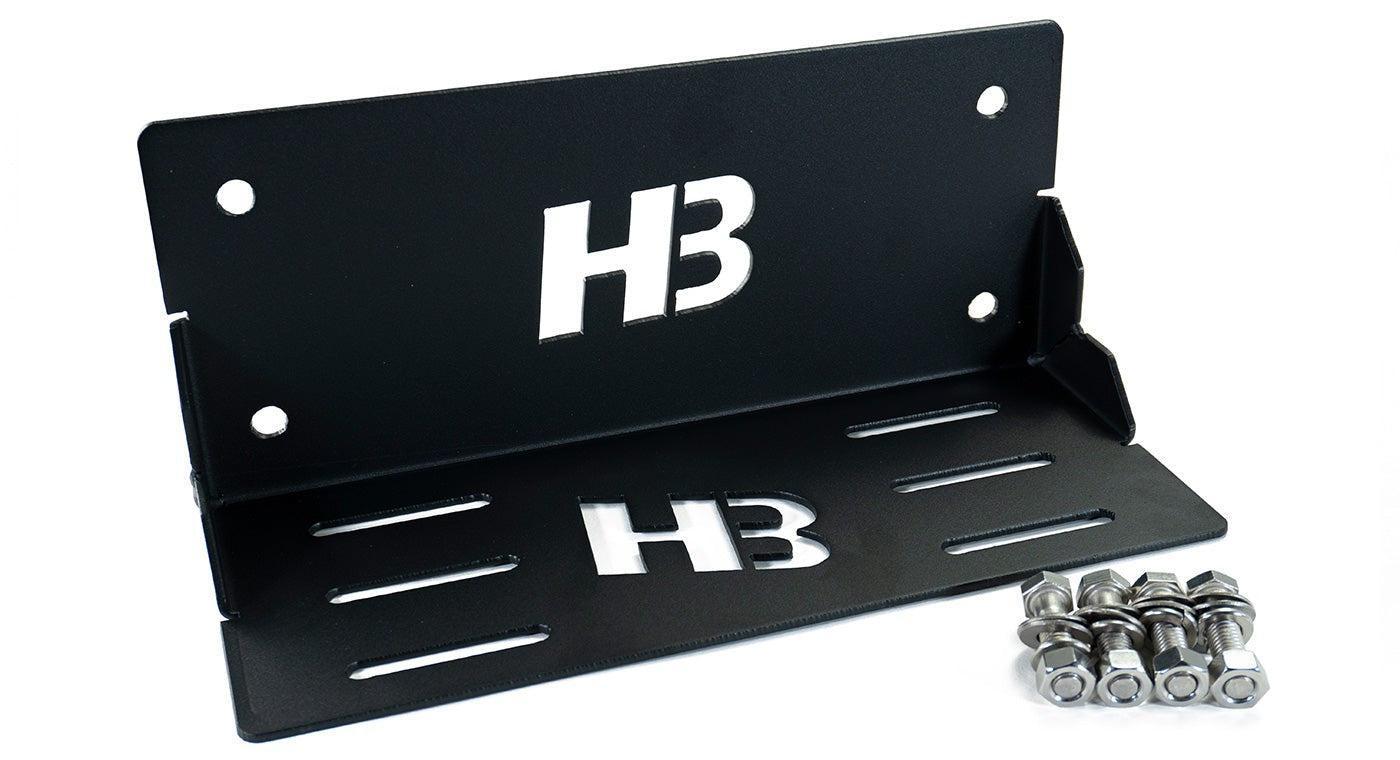

- x4 HORNBLASTERS AIR COMPRESSOR BRACKET

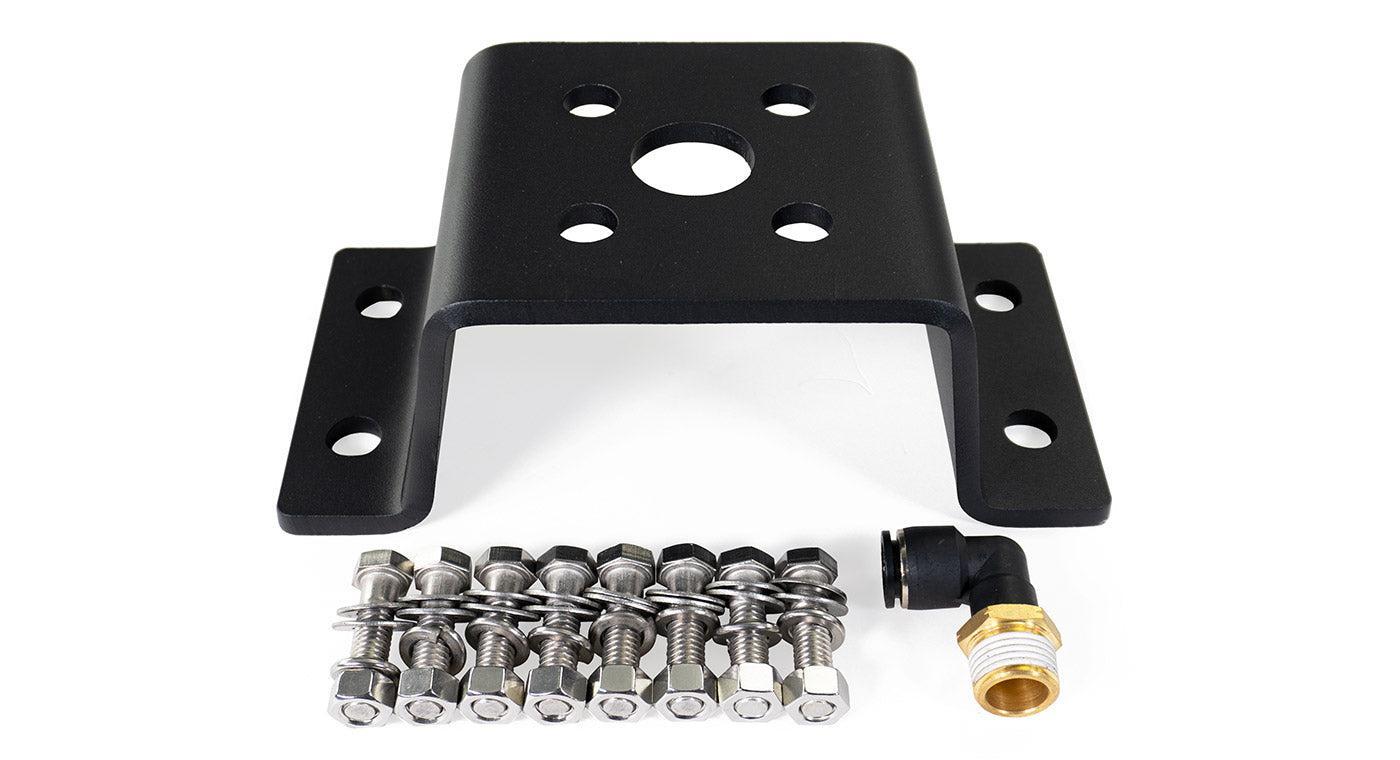

- NATHAN AIRCHIME MOUNTING BRACKET

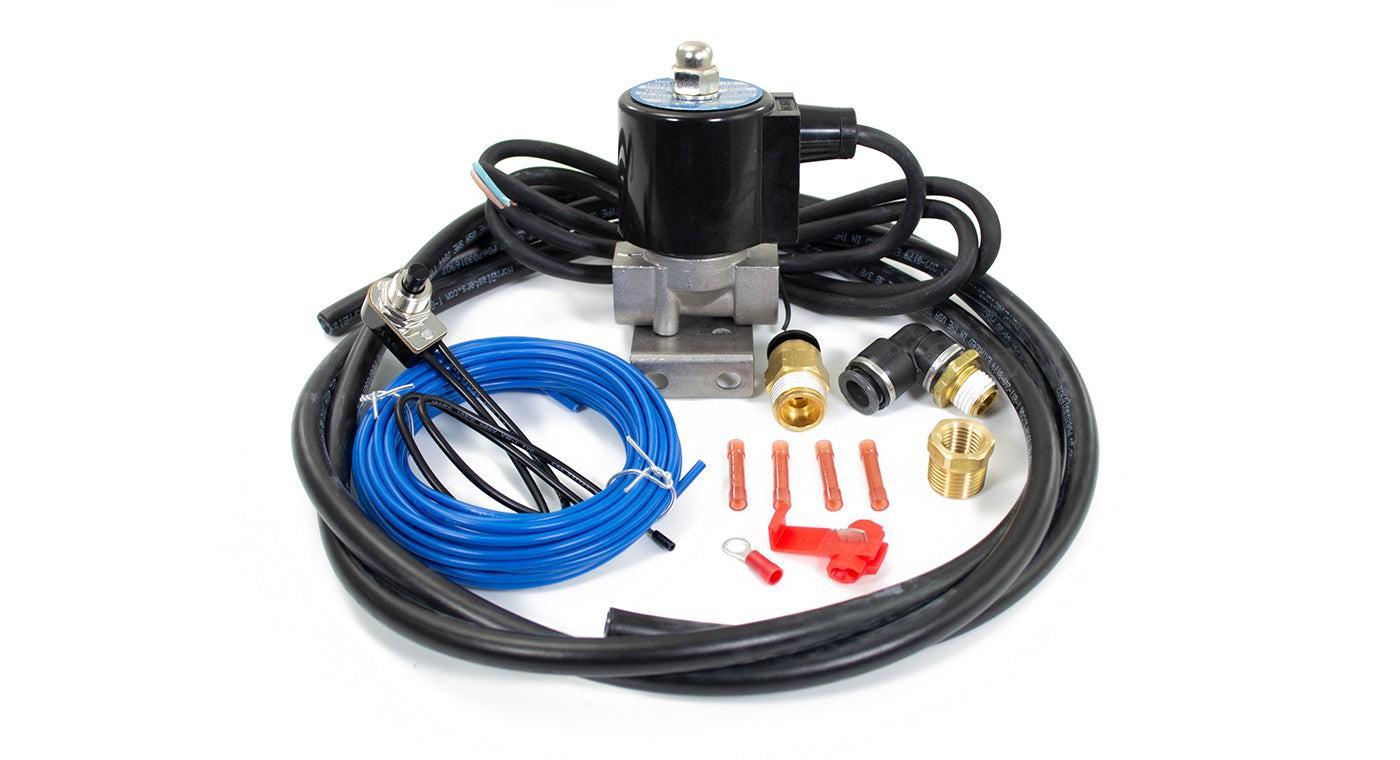

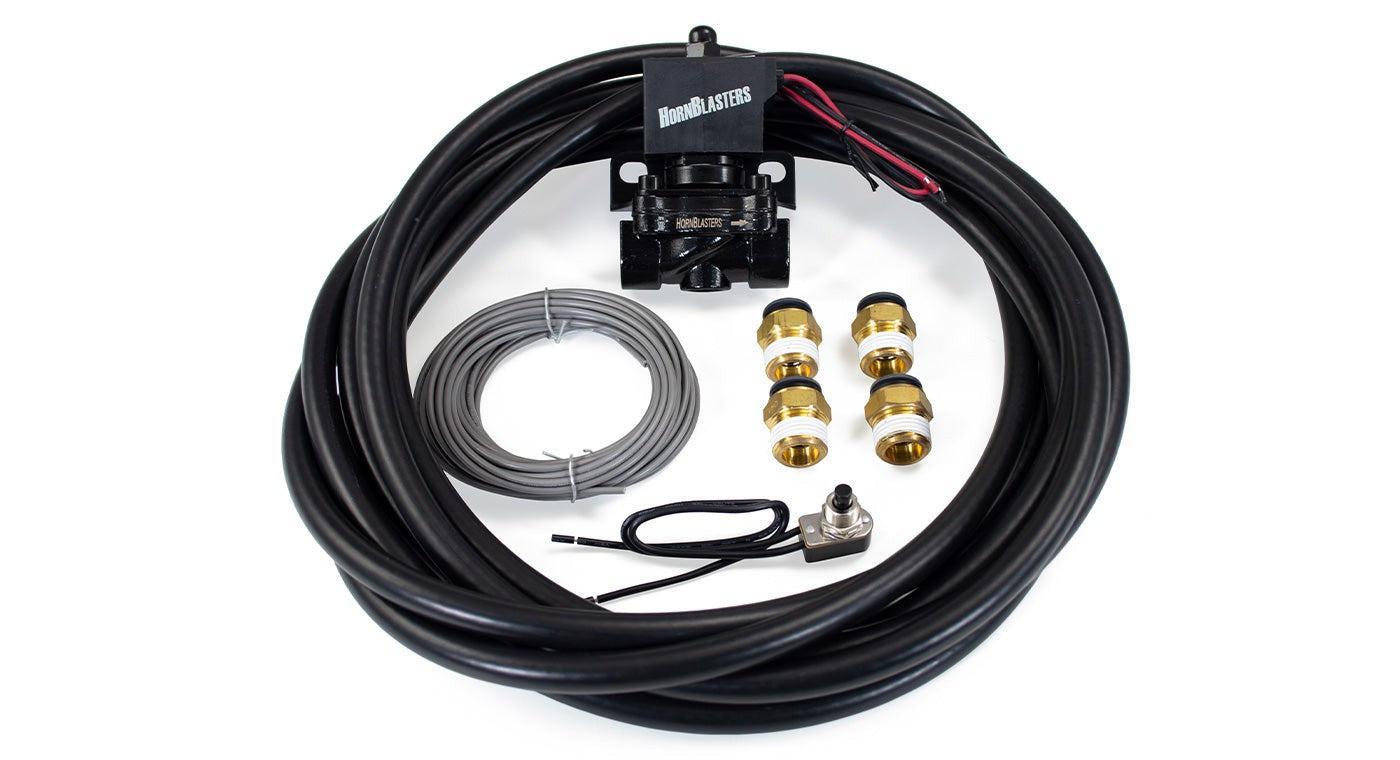

- 1/2" BLACK WIDOW ELECTRIC VALVE KIT
- ELECTRIC DRAIN VALVE KIT

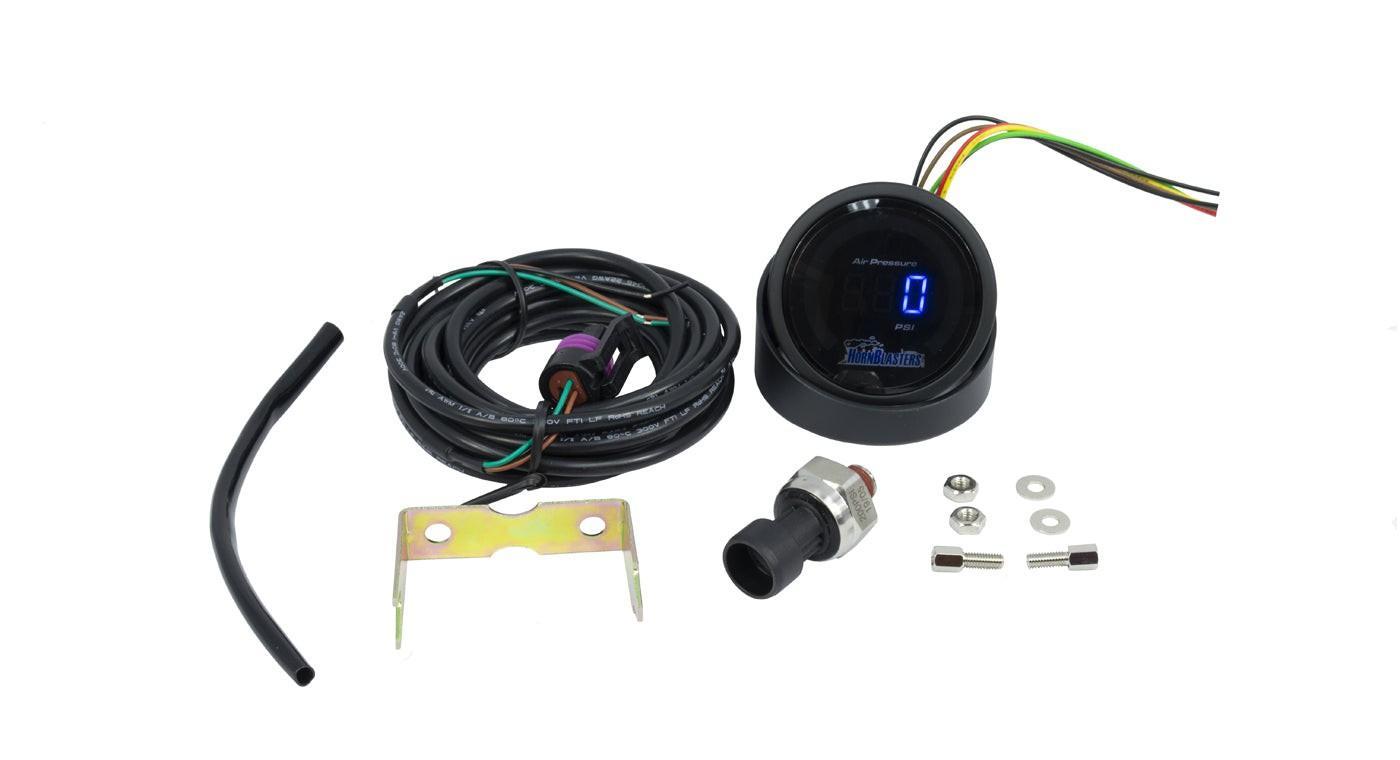

- HORNBLASTERS 220 PSI DIGITAL AIR PRESSURE GAUGE

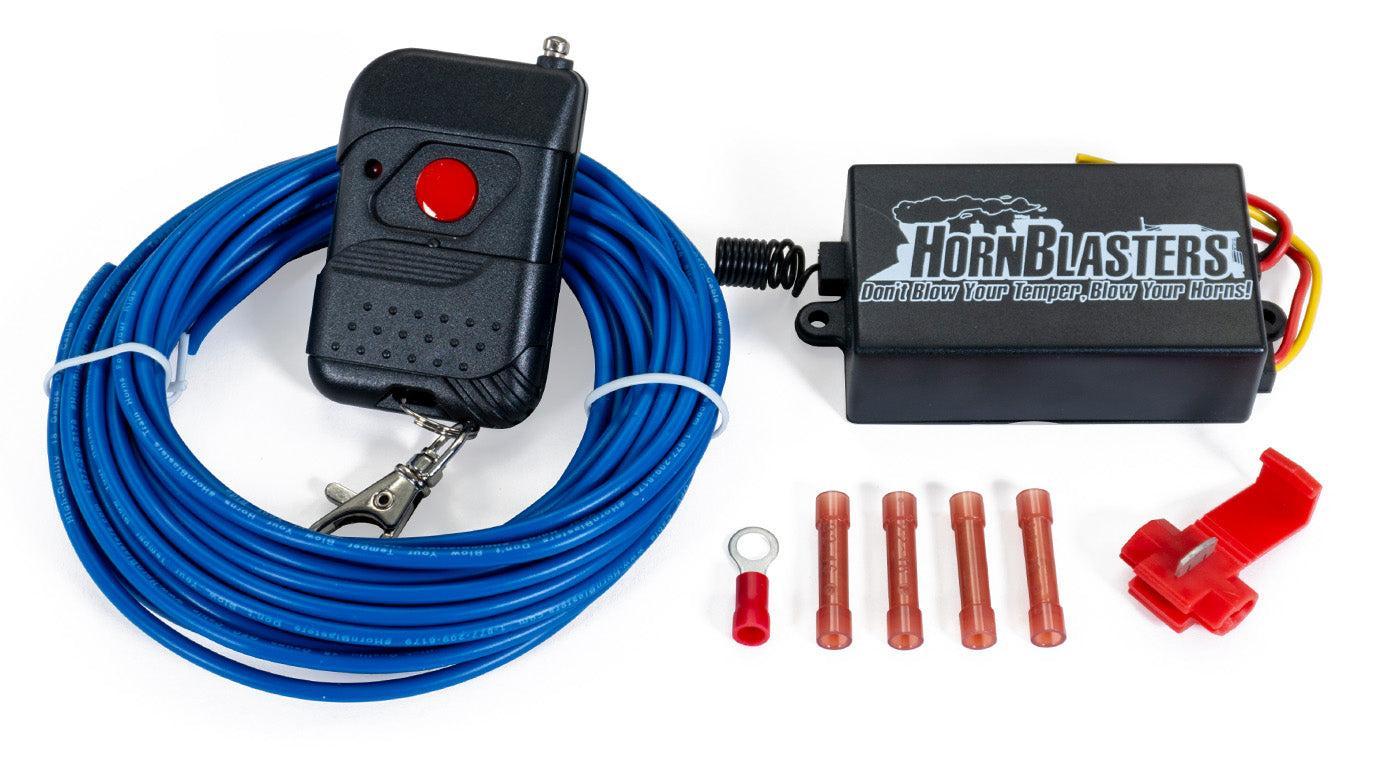

- HORNBLASTERS WIRELESS REMOTE

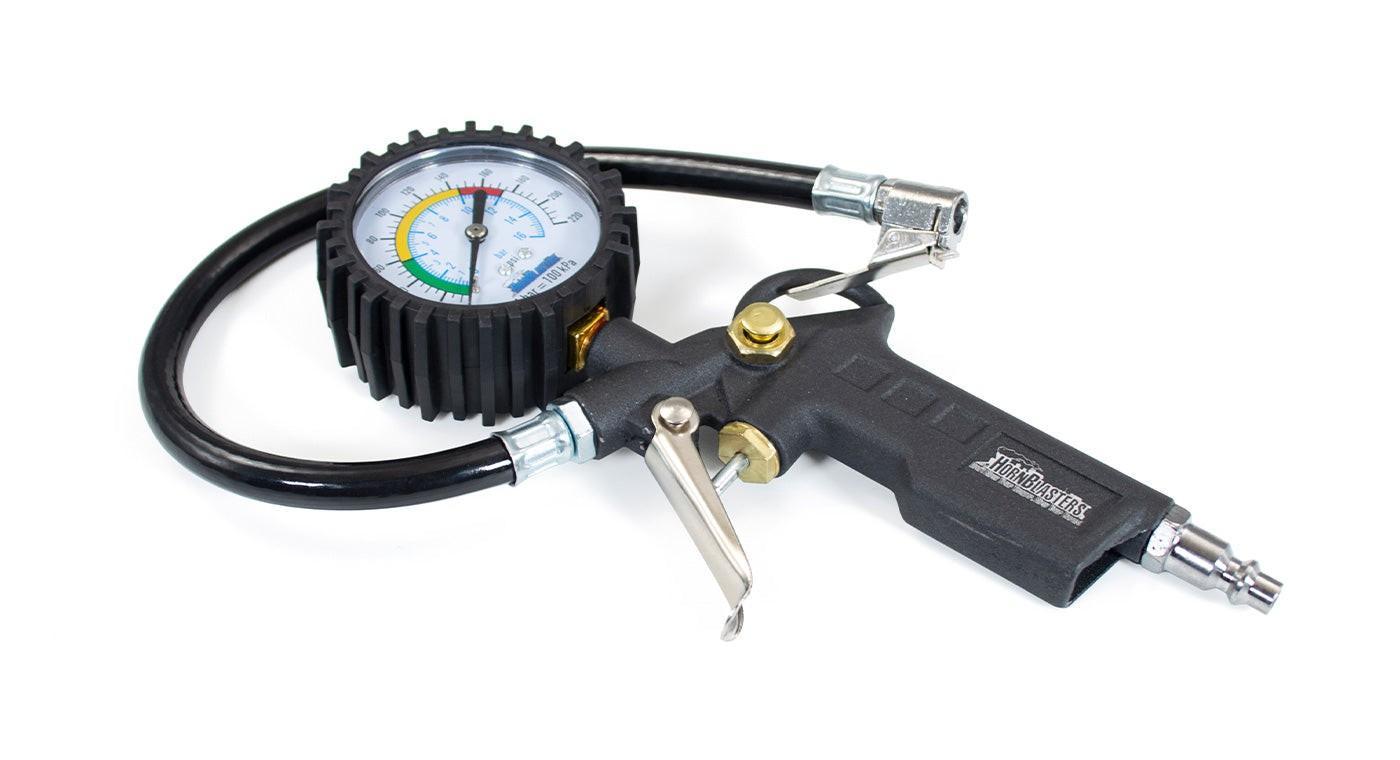

- HORNBLASTERS TIRE INFLATION GUN

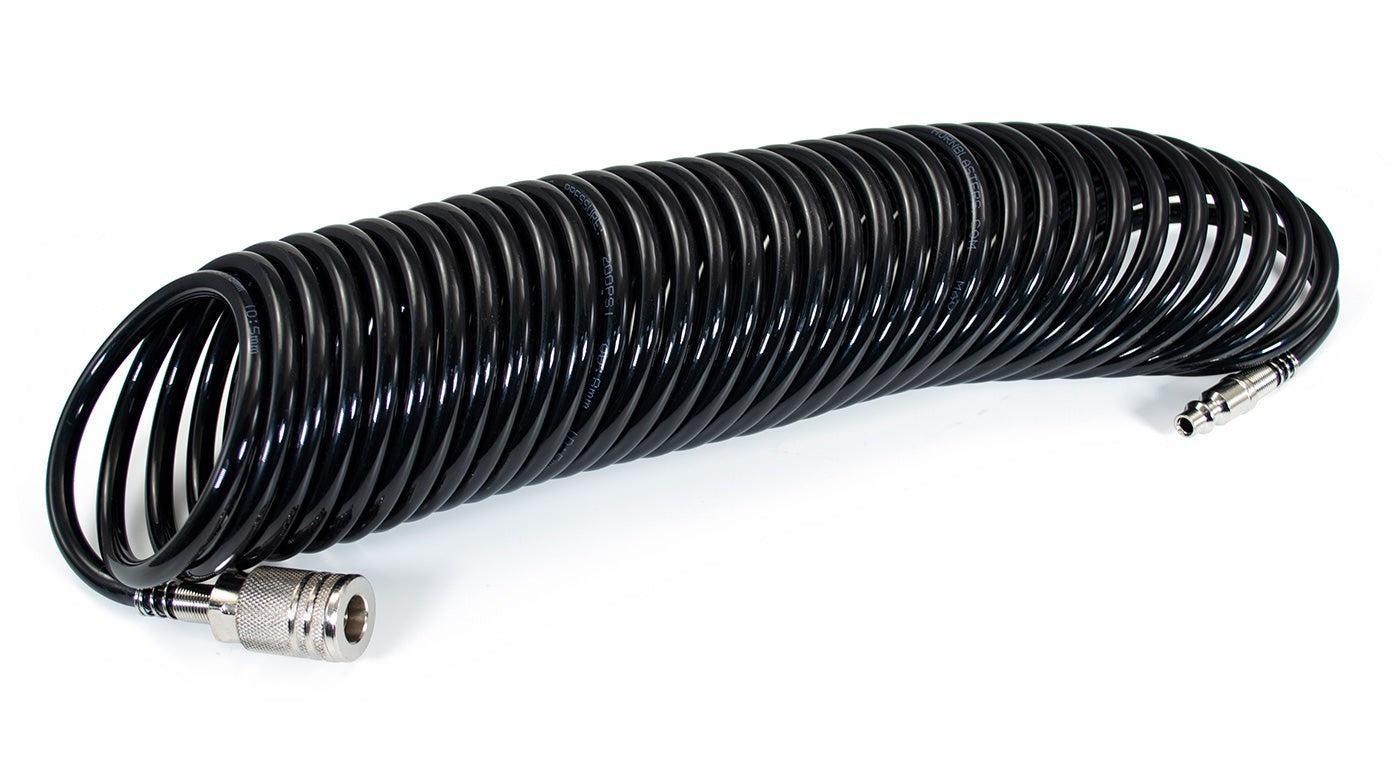

- HORNBLASTERS 30FT CLOSE-ENDED COIL HOSE

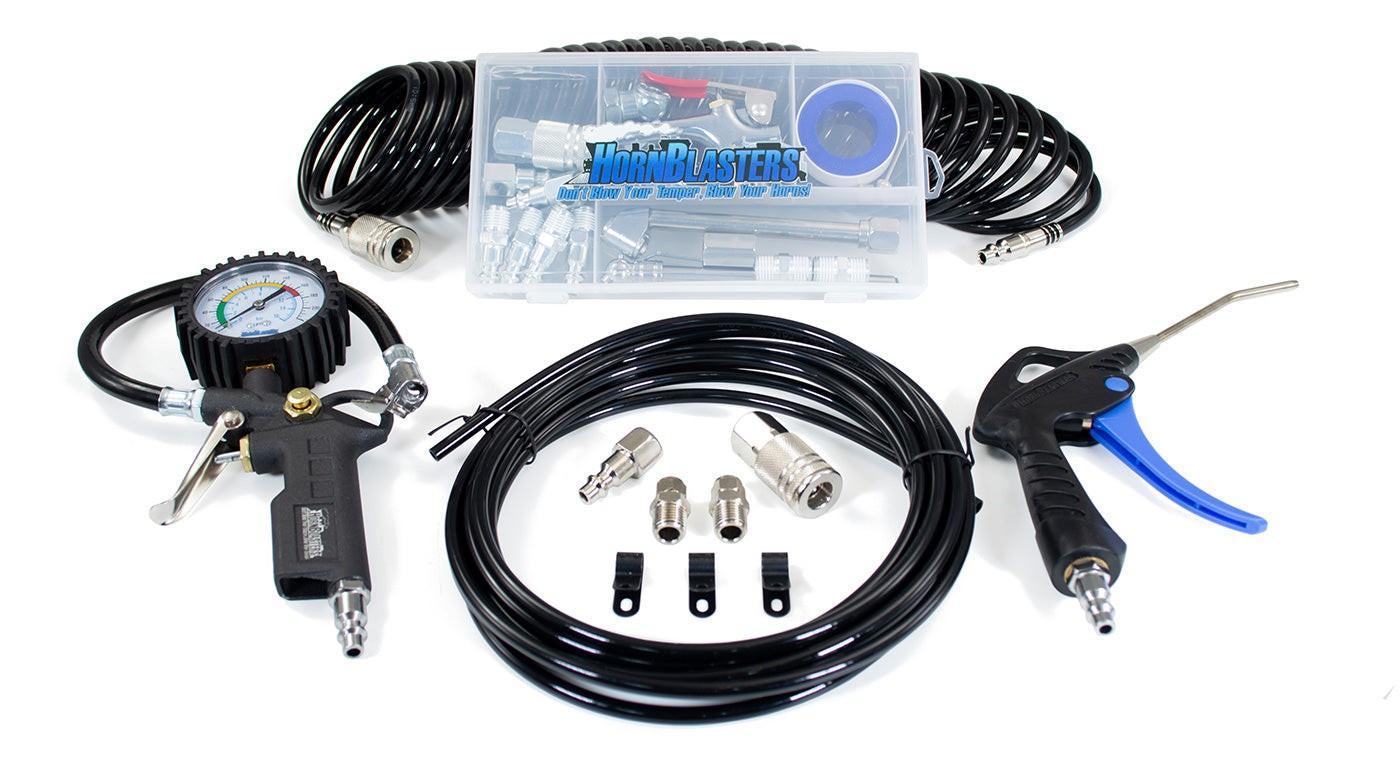

- HORNBLASTERS AIR RELOCATION KIT
- HORNBLASTERS BLOWGUN

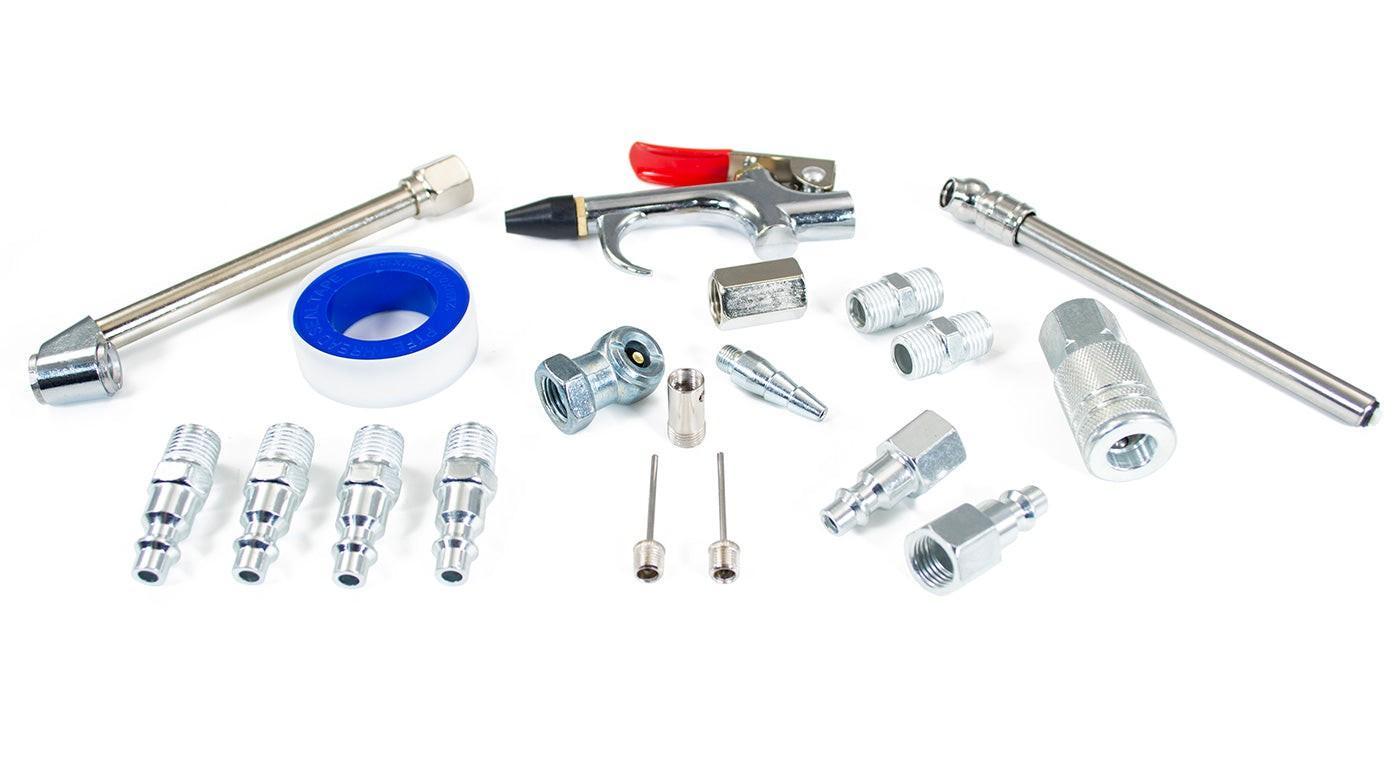

- HORNBLASTERS AIR ACCESSORY KIT
- SPARE AIR FILTER ELEMENTS
- BRASS NPT FITTINGS KIT INCLUDING SAFETY BLOW-OFF & DRAIN COCK
- COMPLETE WIRING KIT WITH FUSE HOLDER & FUSES
- DETAILED INSTALLATION INSTRUCTIONS
| Part Number | HK-K5-12HB / HK-H5-12HB |
| Material | Cast aluminum |
| Horn Length | 19″ (412.75 mm) |
| Horn Width | 29.75″ (755.65 mm) |
| Horn Height | 9.25″ (234.95 mm) |
| Horn Weight | 26.75 lb (12.13 Kg) |
| Horn Port | ½″ NPT |
| Tank | HornAir 12-gallon tank |
| Volume | 12 gals (45.42 L) |
| 1/2" NPT Ports | 7 |
| 3/4" NPT Ports | 1 |
| Tank Length | 44″ (1117.6 mm) |
| Tank Diameter | 10″ (254 mm) |
| Tank Height | 12.5″ (317.5 mm) (With Legs) |
| Tank Weight | 37 lb (16.78 Kg) |
| Voltage | 12 volts DC |
| Max Amperage | 100 amps (25 amps for each air compressor) |
| Maximum Duty Cycle | 50% @ 200 PSI / 100% @ 100 PSI |
| Maximum Working Pressure | 200 PSI |
| Compressor Length (Each) | 10.75″ (273.05 mm) |
| Compressor Width (Each) | 4″ (101.6 mm) |
| Compressor Height (Each) | 6.75″ (171.45 mm) |
| Compressor Weight (Each) | 11.1 lb (5.03 Kg) |
