THAT GUT-PUNCH DEEP SOUND
Elevate your vehicle's presence with the HornBlasters Tug-37 228H air horn kit. Delivering a deep, tugboat-inspired tone from its 37-inch black bell, this kit promises both style and standout sound.
Combined with the HornAir 228H unit, expect up to 6-7 seconds of honk time and a quick recovery, courtesy of the efficient AC-2 compressor. Beyond sound, its heavy-duty black finish ensures durability while enhancing your vehicle's aesthetic appeal. Experience unmatched auditory prowess on the road!
- Hassle-Free Installation: This kit includes everything needed from start to finish. With a pre-assembled air source unit, pre-installed fittings, and a horn with a pre-installed air valve, you'll be up and honking in no time.
- Optimal Pairing for Peak Performance: Paired with the HornAir 228H air source unit, the Tug-37 forms an unbeatable duo. The kit's 2-gallon air tank offers up to 7 seconds of honk time, and its 280C compressor, the system quickly recovers in roughly 75 seconds!
- Robust Build with Style: Durability meets design with the Tug-37 air horns. Its heavy-duty black finish ensures longevity while adding a touch of elegance to the aesthetics of your vehicle.
**Detaching the compressor from the tank will void your warranty on this kit. If you need a solution where the compressor is detached, please look at our 232 and higher models. **

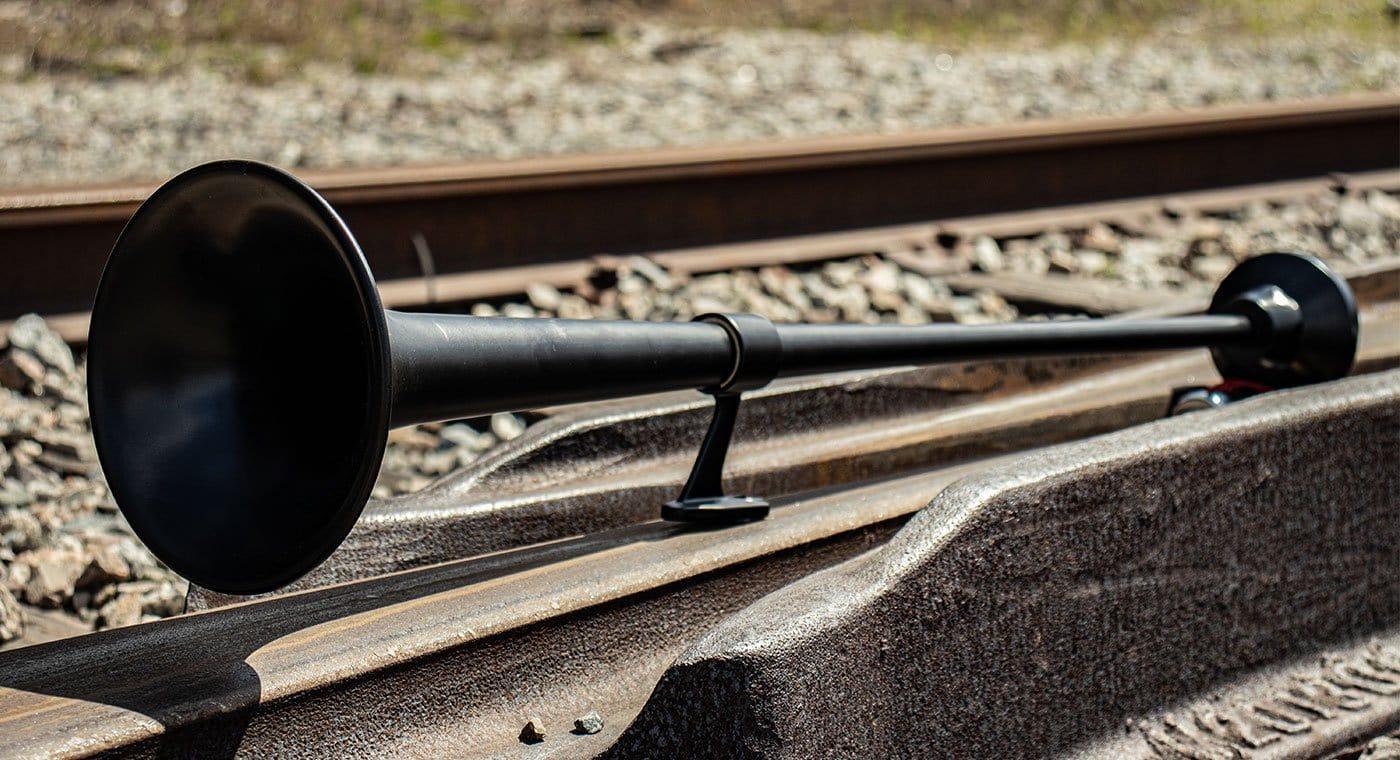

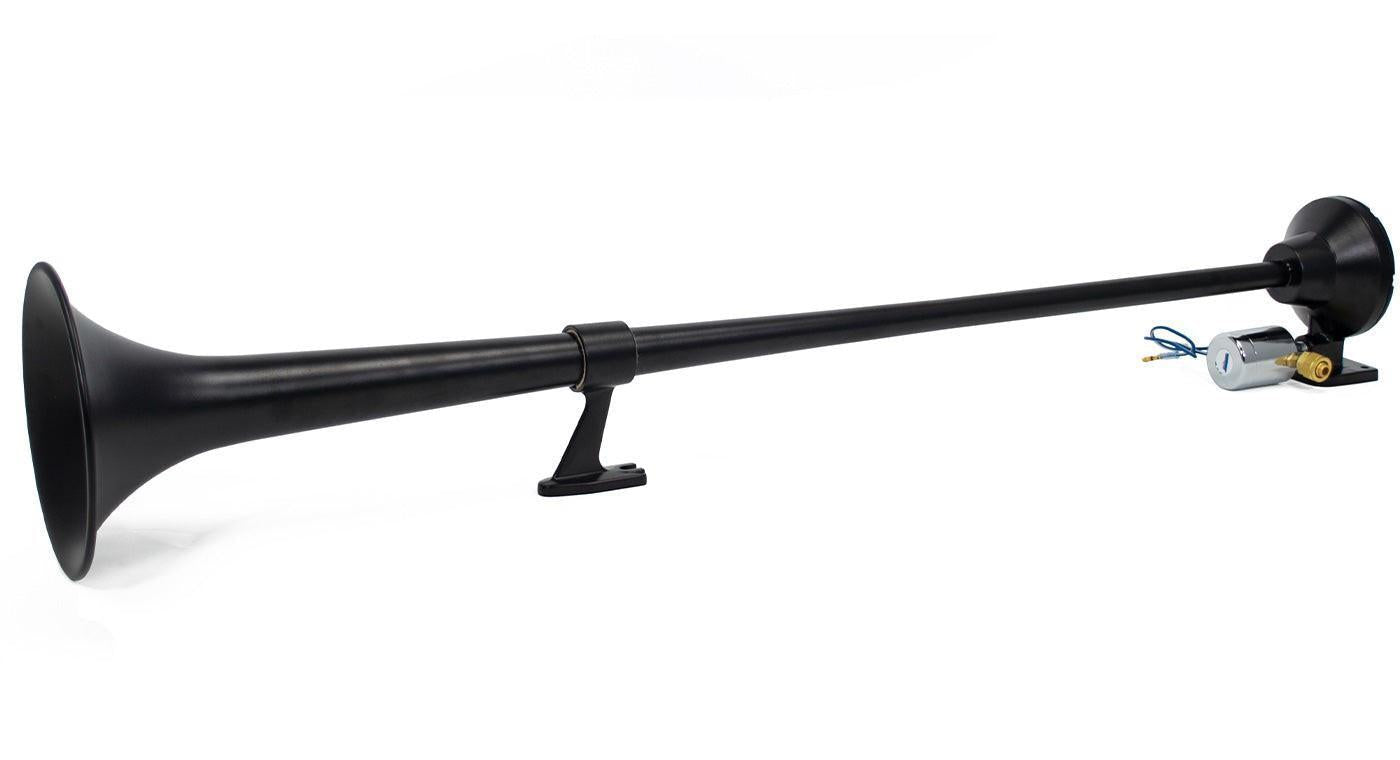

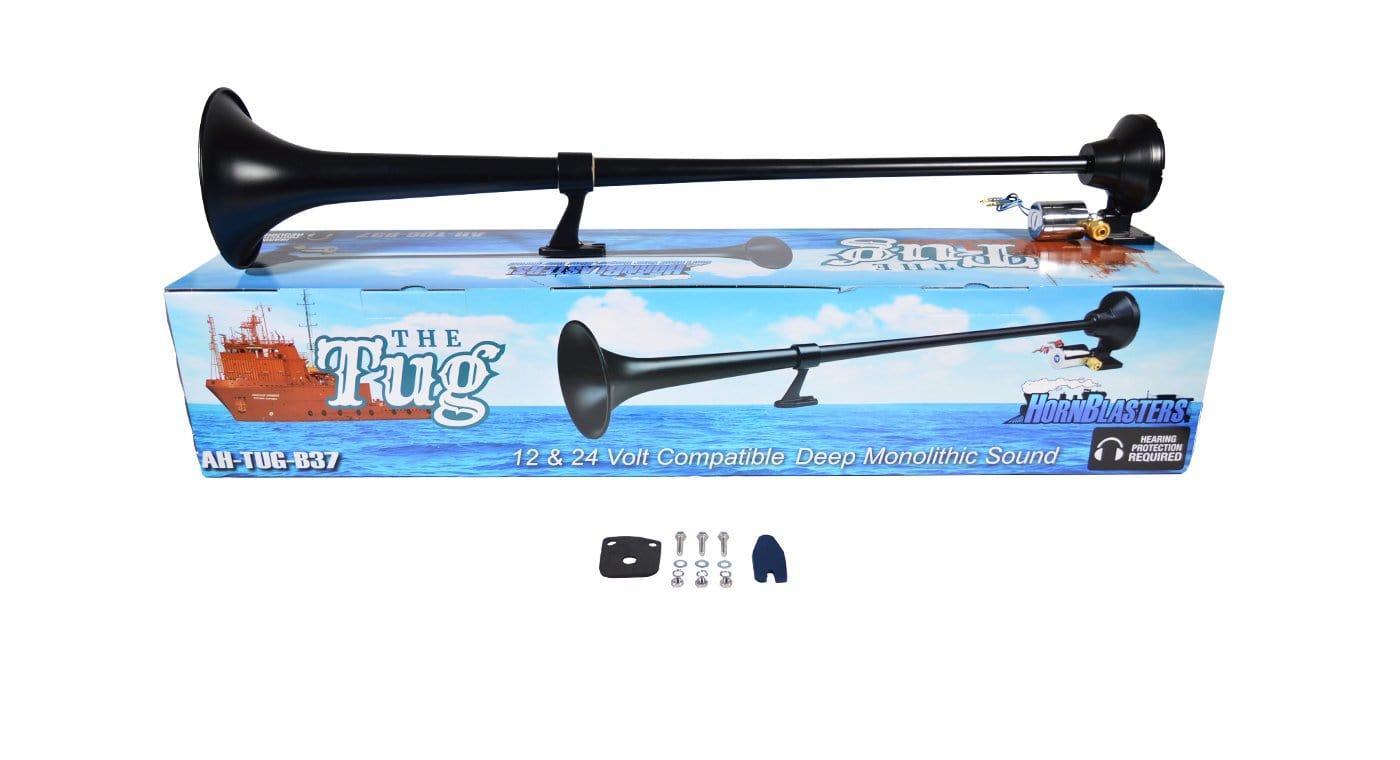

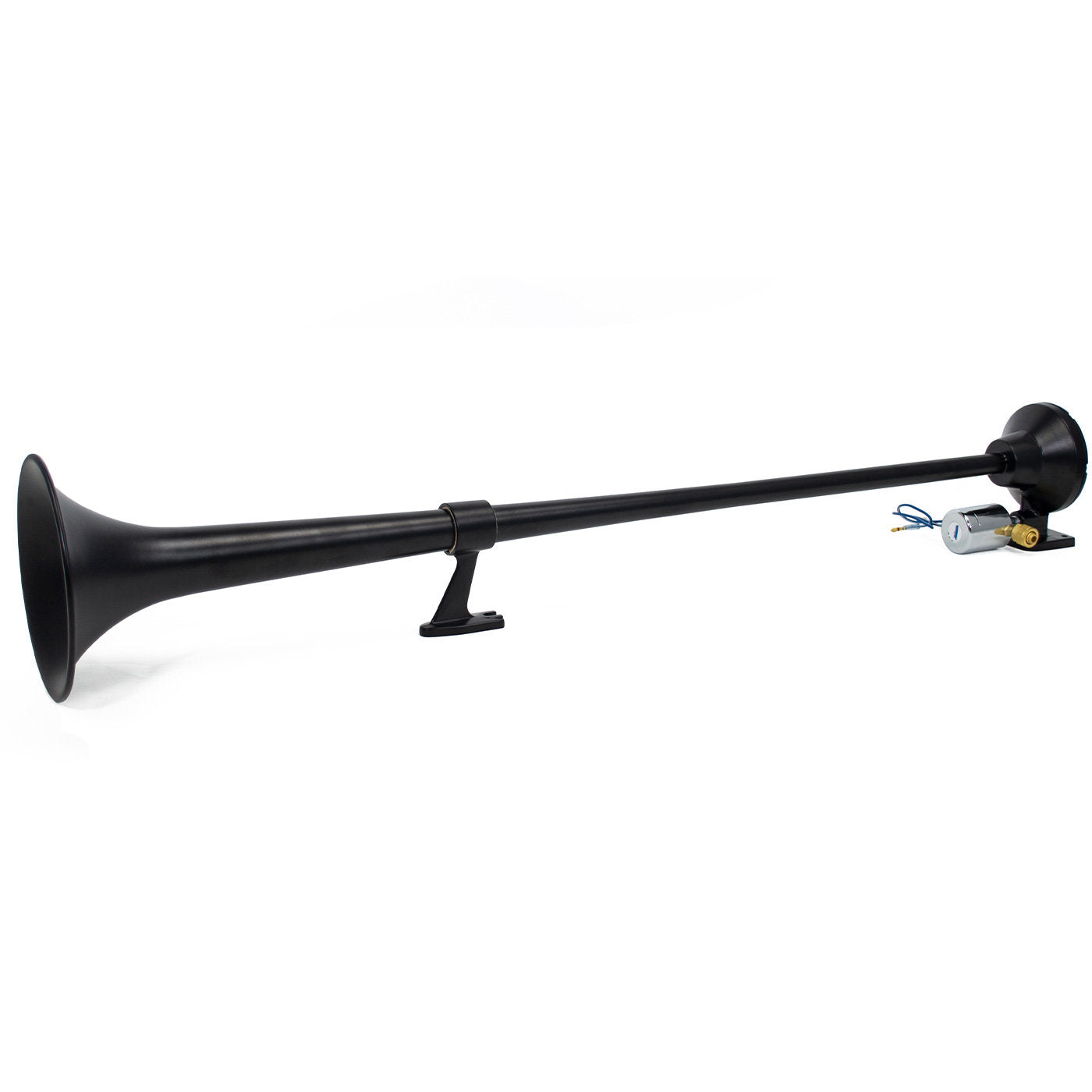

- HornBlasters Tug-37 Tugboat air horn

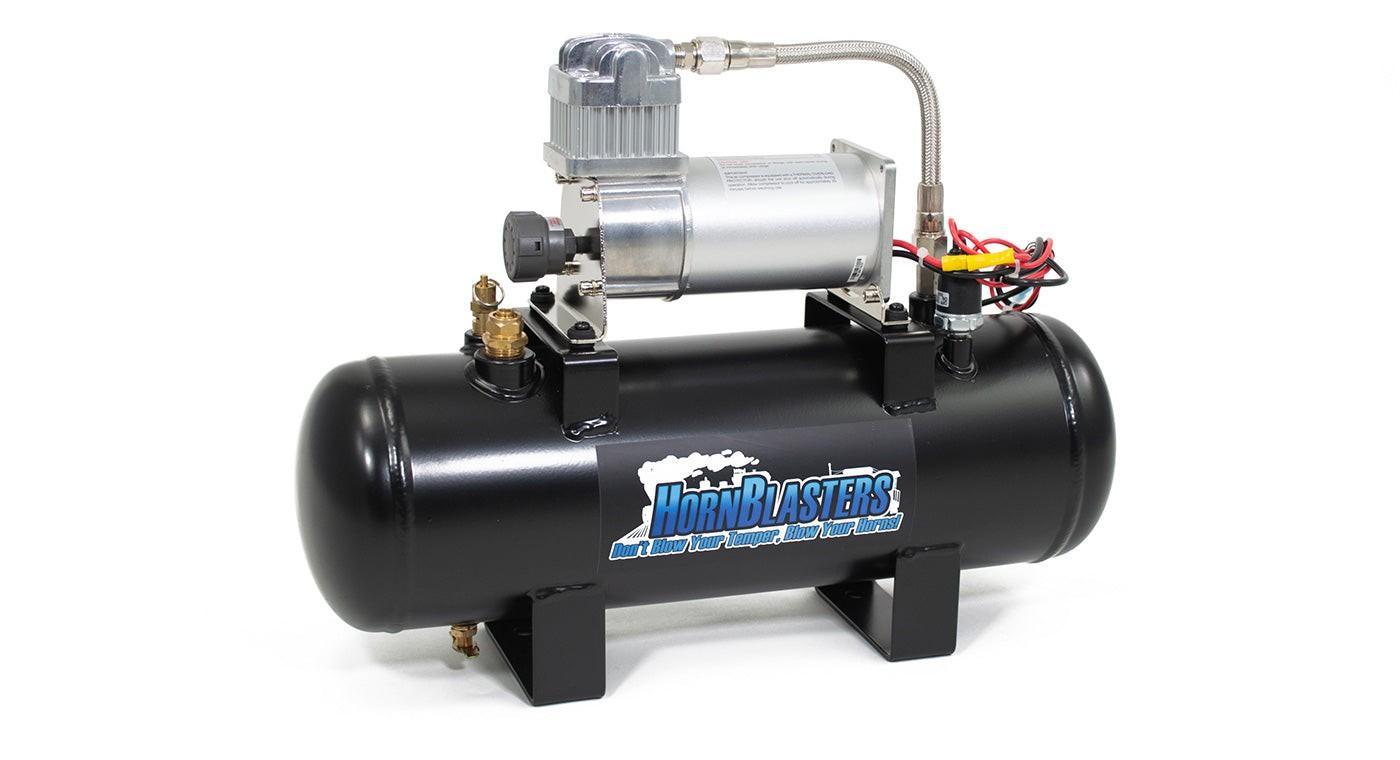

- HornBlasters 228H air source unit
- Pre-installed 1/4" electric air valve
- 17ft 1/2" DOT spec air line
- 22ft of 10-gauge red wire
- 22ft of 18-gauge blue wire
- 22ft of 18-gauge grey wire

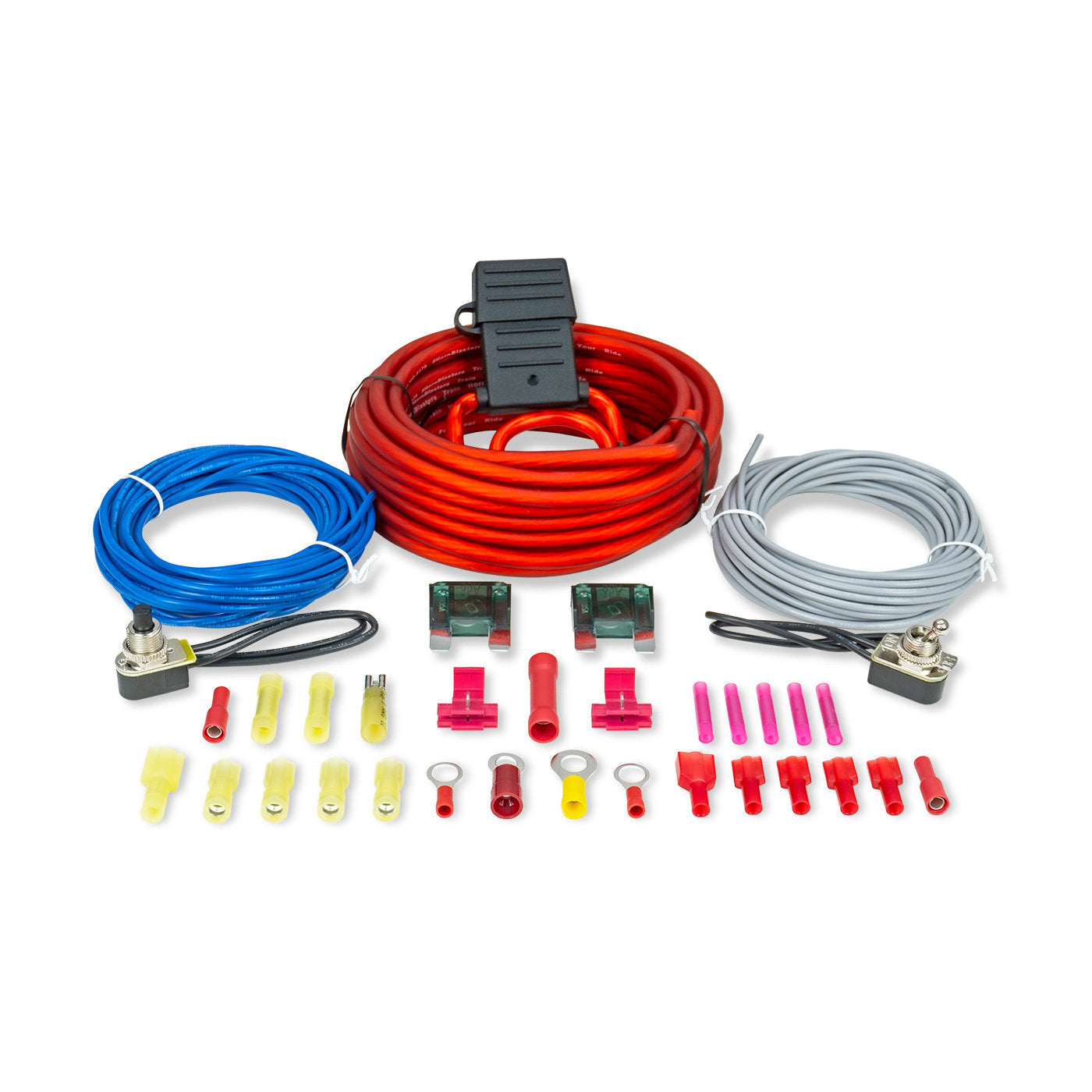

- Complete wiring kit with fuse holder & fuses
- All fittings & mounting hardware
- Detailed installation manual
- Air line cutter
- Earplugs
| Part Number | HK-T37-228H |
| Operating Pressure | 150 PSI |
| Restart Pressure | 110 PSI |
| Voltage | 12-Volt DC |
| Horn | Tug-37 Tugboat air horn |
| Horn Air Inlet | 1/2" NPT |
| Horn Length | 37" (939.8 mm) |
| Horn Base Height | 5.75" (146.05 mm) |
| Horn Flare | 7" (177.8 mm) |
| Horn Weight | 6.91 lb (3.17 Kg) |
| Air Source Kit | HornBlasters 228H air source unit |
| Operating Pressure | 145 PSI |
| Restart Pressure | 110 PSI |
| Air Source Length | 18.9" (480.6 mm) |
| Air Source Width | 5.9" (149.86 mm) |
| Air Source Height | 13.7" (347.98 mm) |
| Air Source Weight | 17.15 lb (7.78 Kg) |
| Air Tank | 2-gallon 5 port air tank |
| Volume | 2.0 gal (8.8 L) |
| Air Compressor | HB-2 air compressor |
| Max Amperage | 19 amps |
| Maximum Duty Cycle | 30% @ 100 PSI |
| 2.0 GALLON TANK | FILL RATE |
|---|---|
| 0 to 145 PSI | 3 min. 40 sec.(± 10 sec.) |
| 110 to 145 PSI | 1 min. 15 sec. (± 05 sec.) |
* Supply Voltage: 13.8 Volts
- Money-Back Guarantee/Refund Policy
All merchandise unless otherwise indicated may be returned within 30 days from the shipment arrival date for a refund. A Returned Merchandise Authorization (RMA) number is required for all returns. A 15% restocking fee may apply. Additional deductions may be made to reflect the products current market value. These terms apply to all refunds. Most products are shipped with a refund/replacement guarantee period unless otherwise noted in the product listing. Customers must inform HornBlasters.com of any order discrepancy within 7 days from the invoice date so that we may investigate and resolve the situation accordingly. - Warranty
This Kit is backed with a 1 Year Manufacturer's Defect Warranty! - HornBlasters.com Satisfaction Guarantee
HornBlasters.com offers our customers a 30-day satisfaction replacement or refund guarantee on all purchases, except when otherwise noted in the product listing. - Cross-Shipments
HornBlasters.com will not cross-ship returned merchandise. - Physical Damage Policy
Physical damage to any product purchased at HornBlasters.com will effectively void warranty coverage. Physical damage includes but is not limited to improper handling and/or any other type of damage sustained by irregular usage.
BOAT NOT INCLUDED
Tired of weak and unimpressive air horns? Step up your game with the Tug-37 2-gallon air horn kit. It boasts a booming, deep, and powerful tone that's sure to turn undies brown and leave a lasting impression. Think of it as a musical bazooka for your vehicle, a rocket-propelled grenade of sound that will make even the biggest skeptics take notice. Don't just take our word for it, give the sound sample a listen and get ready to be blown away!
- Hassle-Free Installation: This kit includes everything needed from start to finish. With a pre-assembled air source unit, pre-installed fittings, and a horn with a pre-installed air valve, you'll be up and honking in no time.
- Efficient & Quick Recovery: The 2-gallon air system ensures you have ample power, providing a honk time of 6-7 seconds, and it efficiently recovers in roughly 85 seconds.

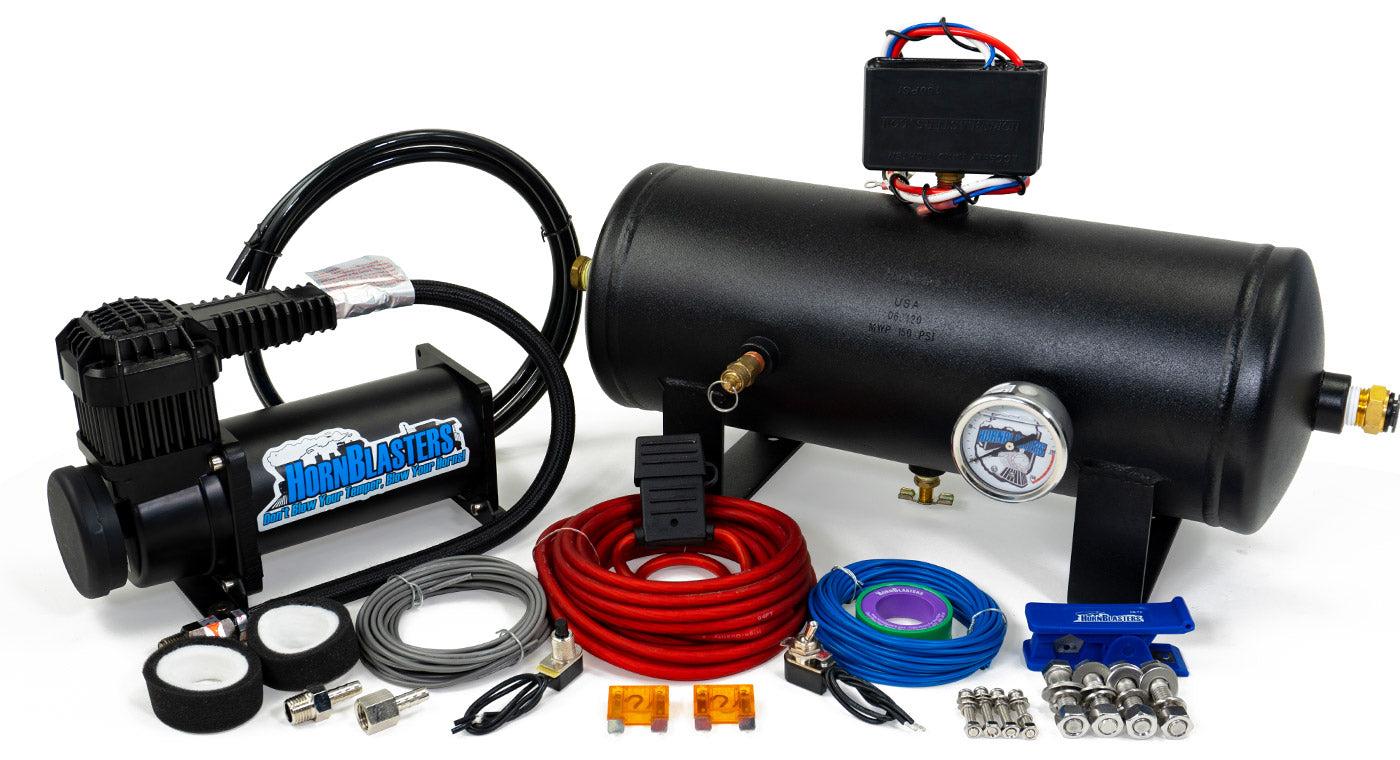

- TUG-37 AIR HORN
- 2-gallon 6 port air tank
- HB-2 Air compressor
- 110/150 PSI pressure switch w/ 40 amp relay
- Air filter relocation
- Spare air filters
- 17 ft of 1/2 in D.O.T. approved air line
- 22 ft of red 10 gauge power wire
- 22 ft of grey 18 gauge power wire
- 22 ft of blue 18 gauge power wire
- Pre-installed 3/8" electric air valve
- HornBlasters 200 PSI liquid-filled stainless steel air gauge
- Brass NPT fittings kit including a safety blow-off & drain cock
- Complete wiring kit with fuse holder & fuses
- Mounting hardware
- Detailed instructions
| Part Number | HK-T37-2HB |
| Operating Pressure | 150 PSI |
| Restart Pressure | 110 PSI |
| Voltage | 12-Volt DC |
| Horn | Tug air horn |
| Length | 37" (939.8 mm) |
| Flare | 7" (177.8 mm) |
| Base Height | 5.75" (146.05 mm) |
| Horn Air Inlet | 1/2" Air Line |
| Air Tank | HornAir 2-gallon 6 port air tank |
| Tank Length | 17" (431.8 mm) |
| Tank Diameter | 6" (152.4 mm) |
| Tank Height | 7" (177.8 mm) (With Legs) |
| Tank Weight | 10 lb (4.54 Kg) |
| Compressor Length | 8.75" (222.25 mm) |
| Compressor Width | 4" (101.6 mm) |
| Compressor Height | 6.6" (167.64 mm) |
| System Max Amp Draw | 25 Amps |
2-Gallon Air Tank Dimensional Drawing
- Money-Back Guarantee/Refund Policy
All merchandise unless otherwise indicated may be returned within 30 days from the shipment arrival date for a refund. A Returned Merchandise Authorization (RMA) number is required for all returns. A 15% restocking fee may apply. Additional deductions may be made to reflect the product's current market value. These terms apply to all refunds. Most products are shipped with a refund/replacement guarantee period unless otherwise noted in the product listing. Customers must inform HornBlasters.com of any order discrepancy within 7 days from the invoice date so that we may investigate and resolve the situation accordingly. - Warranty
The air compressor and tank in this kit features a two-year manufacturer's defect warranty. Everything else in this kit is backed by our one-year manufacturer's defect warranty! - HornBlasters.com Satisfaction Guarantee
HornBlasters.com offers our customers a 30-day satisfaction replacement or refund guarantee on all purchases, except when otherwise noted in the product listing. - Cross-Shipments
HornBlasters.com will not cross-ship returned merchandise. - Physical Damage Policy
Physical damage to any product purchased at HornBlasters.com will effectively void warranty coverage. Physical damage includes but is not limited to improper handling and/or any other type of damage sustained by irregular usage.
