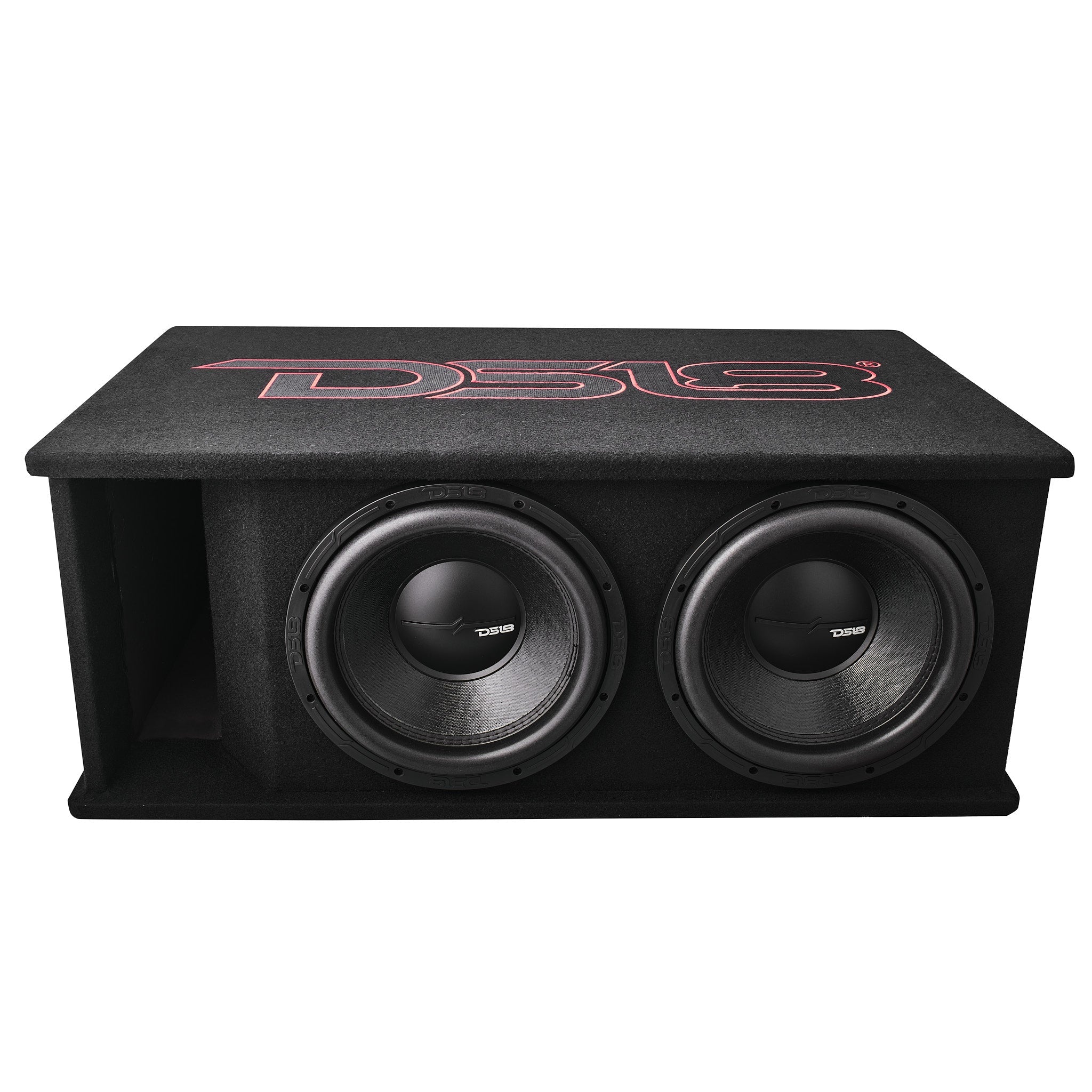

DS18 ZR212LD Bass Package 2 x ZR12.4D 12" Subwoofers In a Ported Box 3200 Watts
The ZR212LD provides dual 12 inch subwoofers loaded into a ported box for the listeners who like it loud!
The ported box is tuned to 29 Hz and helps get the most from your subwoofers by delivering a deeper, punchier bass. Included in the ported box are two ZR12.4D subwoofers, one of our bestselling car audio subs, designed with dual 4-Ohms voice coils wired in parallel for a nominal impedance of 1-Ohm.
This loaded subwoofer combo offers great sound through high-quality and high-power subwoofers in a prefabricated box that is guaranteed to last! The RMS requirement is 1600W RMS and 3200W max: so in order to power this combo to maximum potential, we recommend a 2000W RMS Amplifier like the ZR2000.1D, H-KO2, or EXL-P2000X1D.
HighlightsÂ
- The box is constructed of thick 3/4 inch MDF for great strength, resonance, and tuned to 29hz for low and hard hitting bass
- Dual 12 inch subwoofers with the cone area to blast great sounding bass more efficiently Subwoofers
Key Features
ZR12.4D
- Â Two 12 inch DVC subwoofer
- Â Max Power Handling: 1600 watts each
- Â RMS Power Handling: 800 watts each
- Â Frequency Response: 25hz-200hz
- Â Voice Coil Diameter: 2.5"
- Â Voice Coil Material: Copper
- Â Impedance: Dual Voice Coil 4-Ohm
- Â Sensitivity: 82 DB
- Â Magnet Weight: 100Â Oz
- Â Magnet Material: Ferrite
- Â Mounting Depth: 6.6"
- Â Xmax: 25mm one way
Box:
- Box Material: 3/4 inch MDF
- Â Box Covering: Carpet with DS18 logo
- Â Box Tuning: 29hz
- Â Box Type: Side Ported

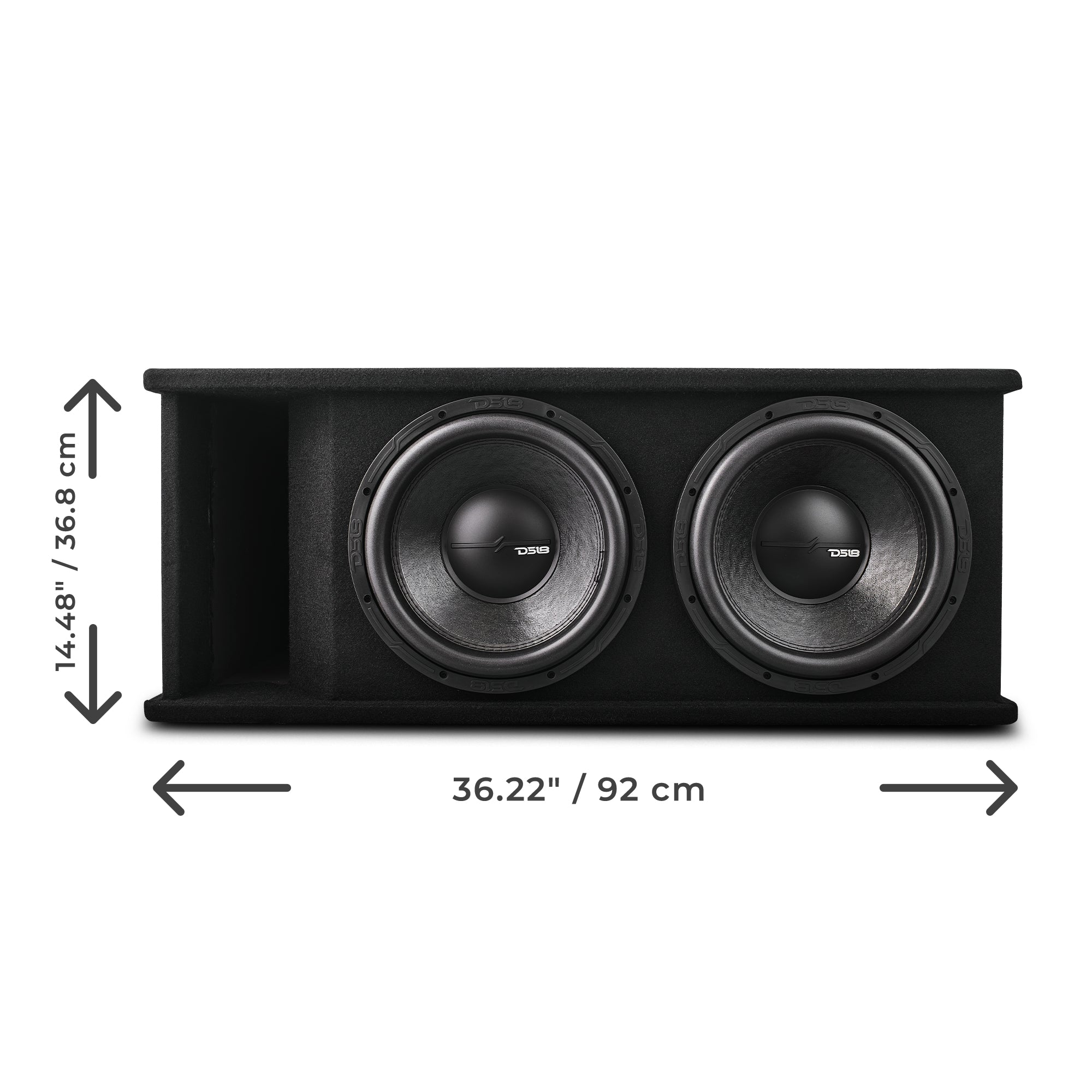

- Â Internal Volume: 5.3 ft3Demensions:
- Â Height: 14.48"
- Â Width: 36.22"
- Â Depth 1: 19.68"
- Â Depth 2: 21.65"
Great For:
- Car Audio
- Pro Audio
- Home Solutions
- Hi-Fi Installation
- DIY Projects
Technical DetailsÂ
| SPECIFICATIONS / ESPECIFICACIONES: | Â |
| Speaker Type/Size / Tipo/Tamaño de Altavoz | Dual 12" / 316mm |
| Total Impedance / Impedancia Total | 1 Ohm |
| Total RMS Power Handling / Manejo de Potencia RMS total.. | 1600W |
| Total MAX Power Handling / Manejo de Potencia MAX total | 3200W |
| Sensitivity (1w/1m) / Sensibilidad (1w/1m) | 86db |
| Frequency Response / Respuesta de Frecuencia | 20Hz-200Hz |
| Recommended Lo Pass Crossover / Crosover Paso Bajo Recomendado | 70Hz |
| MOTOR / MOTOR: | |
| Voice Coil Diameter / DiĂ¡metro de la Bobina de Voz.... |  2.5"/61.6mm |
| Voice Coil Former Material / Material Interior de Bobina MĂ³vil | Aluminum/Aluminio |
| Â Winding Material / Material de Bobinado . | Copper / Cobre |
| Â Cone Material / Material del Cono | Non-Pressed Paper / Papel no Prensado |
| Dustcap Material / Material de la Tapa Anti-polvo. | PPI |
| Surround Material / Material de la Suspension | Foam / Espuma |
| Basket Material / Material de la Canasta | Steel / Acero |
| Magnet Material / Material del ImĂ¡n | Ferrite / Ferrita |
| Magnet Weight / Peso del ImĂ¡n | 100 oz |
| MEASUREMENTS / MEDIDAS: | Â |
| Height / Altura | 14.48" / 368 cm |
| Width / Ancho | 36.22" / 920 cm |
| Depth 1 / Profundidad 1 | 19.68" / 500 mm |
| Depth 2 / Profundidad 2 | 21.65" / 550 mm |
