6.9" Touchscreen Double-DIN Headunit with DVD, Bluetooth, USB and Mirror Link
SHIPPING - RETURNS - WARRANTY - CANCELLATION POLICY
*** Market Conditions after 2020 have changed the landscape of automotive parts. Although we try to stock 1000's of items in our multiple warehouse and use multiple distribution channels, having back-orders are unavoidable in today's market. If you are in need of a product quickly, we suggest email, message, or call us for availability so that we may explore your options.
Email: Sales@Speedzoneweb.com
Call: 407-846-8430
Text: 407-749-6314
Frequently Asked Questions
SKU: DDX6.9

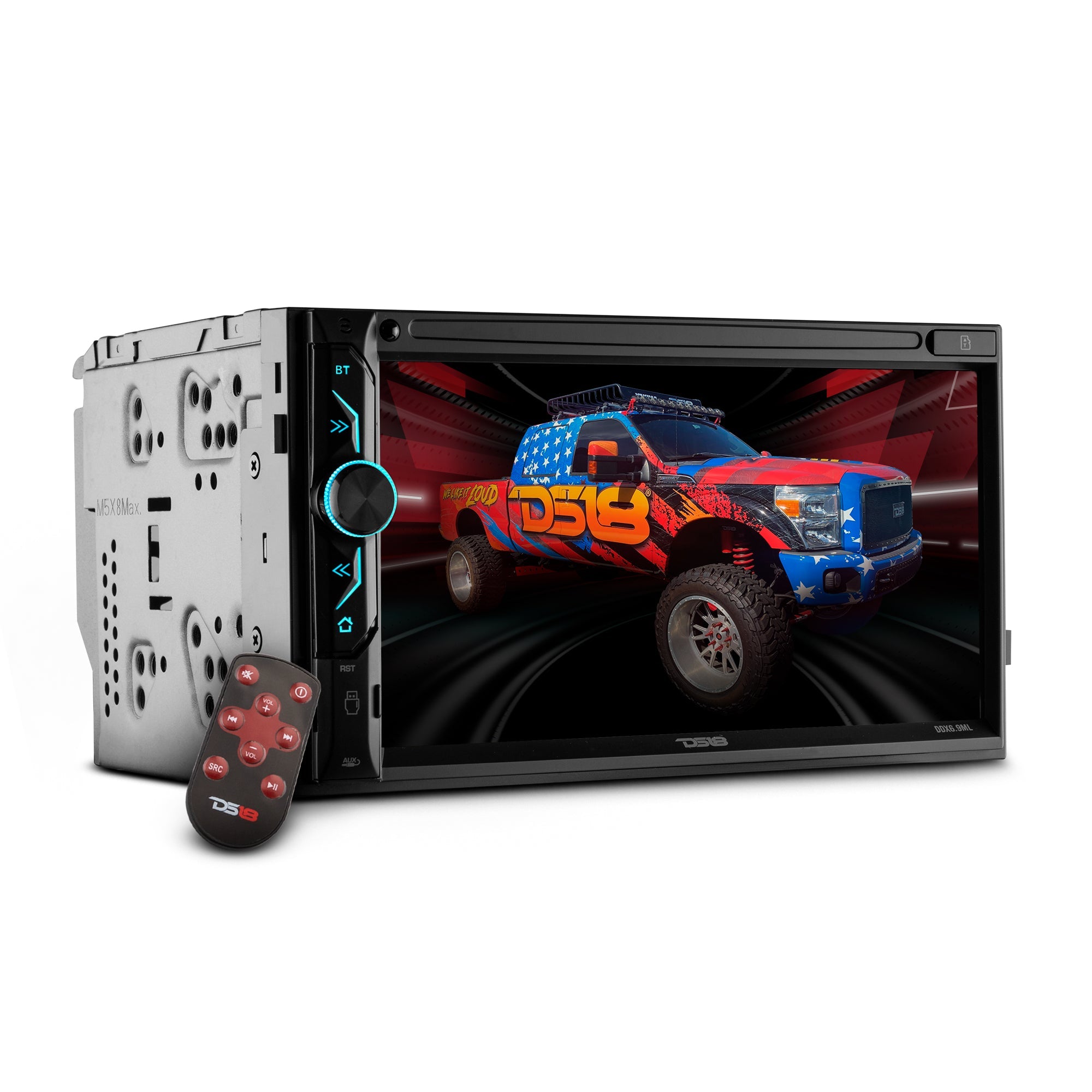

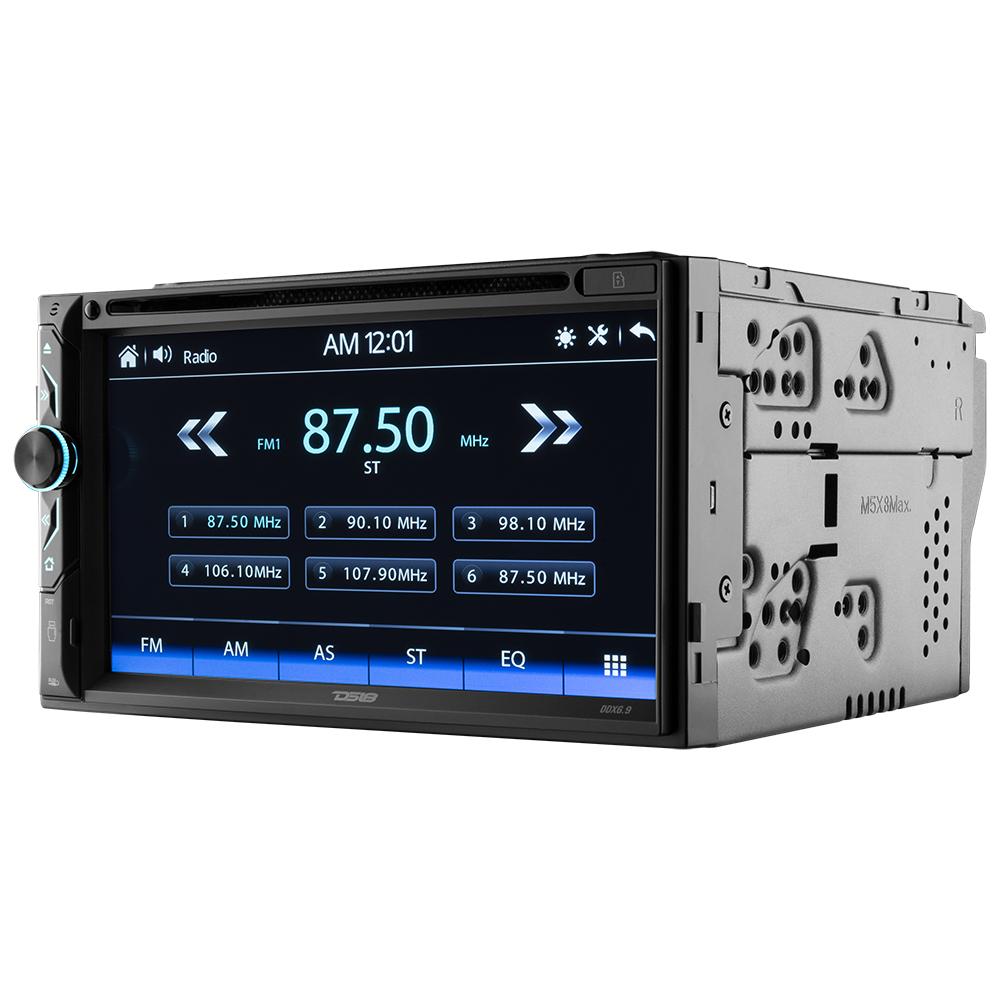

DS18 DDX6.9 6.9" Double-Din Digital Media Receiver Player,CD/DVD, Touchscreen, Bluetooth, USB, Mirror Link
DDX6.9 Double DIN Multimedia Receiver with 6.9-inch touch screen 1080p
Bigger and bolder than ever is DS18s new revision of our long line of amazing head units.
This receiver shares a lot of the characteristics that its little brothers share except one HUGE difference: We have upgraded the screen size from 6.2 inches to a whopping 6.9 inches with this huge screen! Now you and everyone in the vehicle can enjoy the crisp visuals along with goose bump worthy sound quality.
Maneuvering through the options is quite easy with the touch screen controls and will give you flawless and absolute control over all the media you are wanting to hear.
This receiver will include everything you need to bring your multimedia dreams into full fruition with Mirror Link, Bluetooth, AUX, USB, SD, phone controls, and all your AM / FM stations. Apps are also easily downloadable when you hook your head unit up to your cellular hot spot. The SD reader can use memory cards up to 64GB.

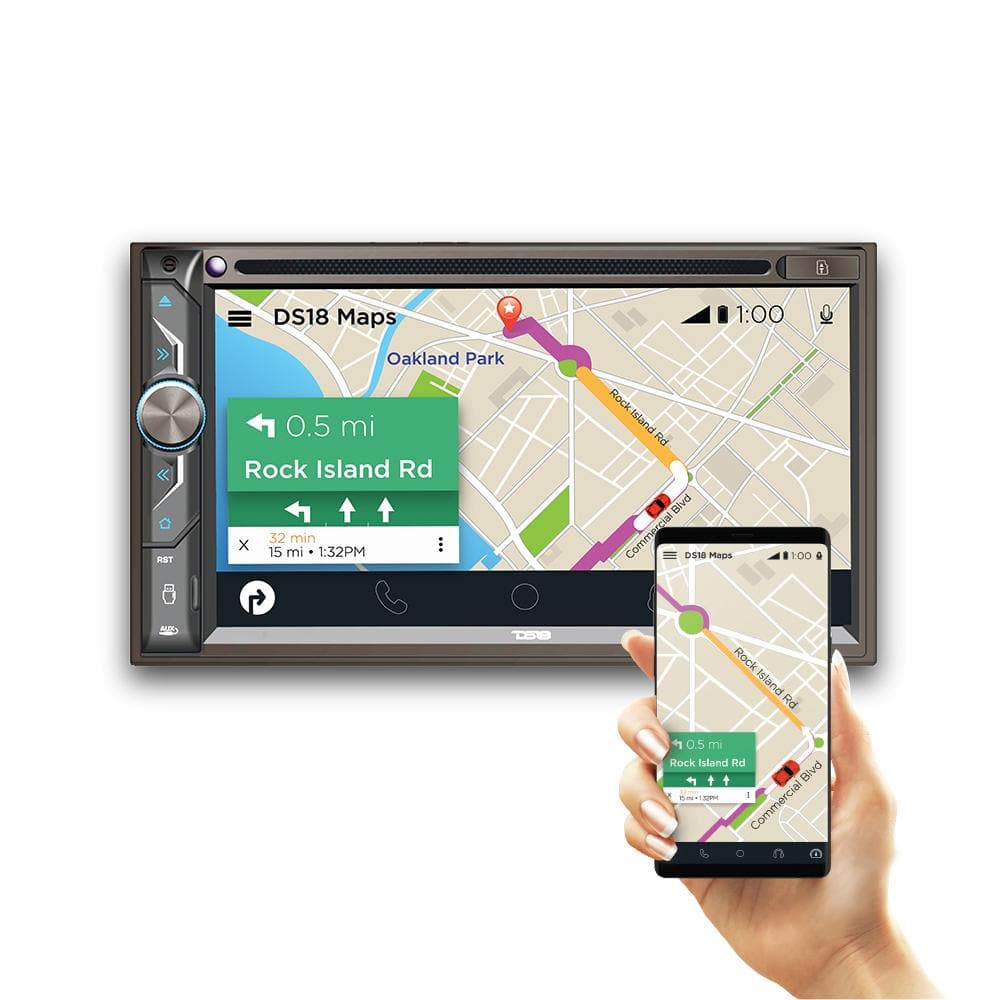

Your music can be set easily to your preferences with the easy to use and detailed manual and the DDXRC app equalizer can get you the sound that is specific to your tastes with easy access and settings. Mirror link is also easily set up in just a few steps so you can mirror all media from your phone to your device.
(PLEASE REMEMBER DO NOT WATCH MOVIES IN MOTION, WAIT UNTILL THE CAR IS PARKED)
There is plenty of power behind this versatile receiver. At 4 ohms this unit offers 4x15 watts RMS and 40x4 Max power which is generally enough to power all entry level speakers, but to get the maximum output from this amp, you will need amplifiers and higher quality speakers to handle the power. The PRE-AMP outputs will deliver a maximum of 4.5 volts so you can be reassured that you will have enough output voltage for your amplifiers to get the clearest and distortion free sound available. Also 3 sets of preamp outputs (SUB, Front, and Rear) will be there for you to configure to your specific setup.
Highlights
Technical Details
Download DDX6.9 Manual
| General | |
| Rated power source: | 14.4V DC (10.8V to 15V operation) |
| Maximum Current Consumption: | 10 Amp |
| Dimensions (W x H x D): | Chassis: 178mm x 100mm x 165mm Bezel frame: 170mm x 96mm x 5mm Weight: 1.52 Kg |
| Display | |
| Screen Size / Aspect Ratio: | 9 inch / Wide 16:9 |
| Pixels | 1024 x 600 |
| Display Type: | IPS / WSVGA / Capacitive Touch Screen |
| Temperature Operation: | -20o C to +60o C (14o F to 140o F) |
| Audio | |
| Maximum Power Output: | 40W x 4 Ch / 4 ohms |
| Continuous Power Output: | 15W x 4 Ch / 4 ohms |
| Pre-output Level: | 4.5 Volts (Front, Rear) 7 Volts (Subwoofer) |
| Equalizer: | 10 bands (35Hz, 60Hz, 80Hz, 120Hz, 160Hz, |
| 16 bands (35Hz, 60Hz, 80Hz, 120Hz, 160Hz, 250Hz, 320Hz, 400Hz, 600Hz, 800Hz, 1KHz, 3KHz, 5KHz, 8KHz, 12.5KHz, 16KHz) | |
| Gain: | +/- 12dB |
| Audio Control: | Volume / Balance / Fader / Subwoofer Level |
| Tuner | |
| Frequency Range: | FM: 87.5 ~ 107.9 KHz AM: 530 ~ 1710 KHz |
| Presets Memory: | 30 Stations (18 FM/12 AM) |
| Region: | Selectable (USA, Latin, Japan, Asia, Europe, OIRT, Australia, Mid-East) |
| Sensitivity Adjustment: | LOC (On/Off) / ST (On/Off) |
| DVD Player | |
| Format Files Supported: | DVD-V, VCD, SVCD, MP3, WMA, DivX, MPG4 |
| Region Number: | 1 / Multi Region Selectable |
| Usable Discs: | CD, CD-R, CD-RW, DVD-R, DVD-RW, DVD-RDL |
| USB / SD Player | |
| Type / Class: | V1.1 / V2.0 / MSC / MTP / FAT16 / FAT32 / NTFS |
| Format Files Supported: | RMVB, MPG4, AVI, MP3, WMA, JPEG, DivX |
| Resolution Supported: | 1080P Video |
| Memory Size Reader: | up to 64 Gb |
| Max Current Supply: | 1.5 Amp (USB) |
| Number of USB Ports: | 2 (1 x Front, 1 x Rear) |
| Connectivity | |
| Bluetooth Version / Services: | V4.1 / Audio Streaming / Hands Free calls |
| Wi-Fi: | Built-in |
| Camera Input: | RCA Analog Video up to HD 720p (Front/Rear) |
| Video Output: | Dual RCA (1 Volt/75 ohm) |
| A/V Aux Input: | Rear RCA Audio and Video / Front 3.5mm Jack Stereo Audio |
| Microphone: | 3.5mm Jack external MIC Input |
| Remote Control: | Frontal IR Receptor / Wired Input / CAN-Bus Protocol |
