BMS Oil Catch Can for 2020-2026 B58 Toyota Supra GR MK5
SHIPPING - RETURNS - WARRANTY - CANCELLATION POLICY
*** Market Conditions after 2020 have changed the landscape of automotive parts. Although we try to stock 1000's of items in our multiple warehouse and use multiple distribution channels, having back-orders are unavoidable in today's market. If you are in need of a product quickly, we suggest email, message, or call us for availability so that we may explore your options.
Email: Sales@Speedzoneweb.com
Call: 407-846-8430
Text: 407-749-6314
Frequently Asked Questions
Keep Oil Out of your B58 Toyota Supra Air Intake System!
It's no secret that the B58 turbo Supra motors can suffer from oil control problems causing the oil to blow through and coat the intercooler and charge piping, gunking up intake valves and the VANOS system, lowering the effective octane, and generally degrading engine performance. The higher your boost levels the more apparent these problems become.
The solution to this problem has finally arrived. The BMS oil catch can. While there are other catch cans on the market they all fall short in various areas. Some are mounted on the hot/turbo side of the motor preventing proper vapor condensation. Others utilize hoses that are too small and runs that are too long to allow proper PCV ventilation causing internal motor/ring sealing issues. Some have insufficient or no internal baffle system while others have internal baffles systems that are too restrictive. Some even bypass the PCV system all together venting crankcase gas and odor to the atmosphere.

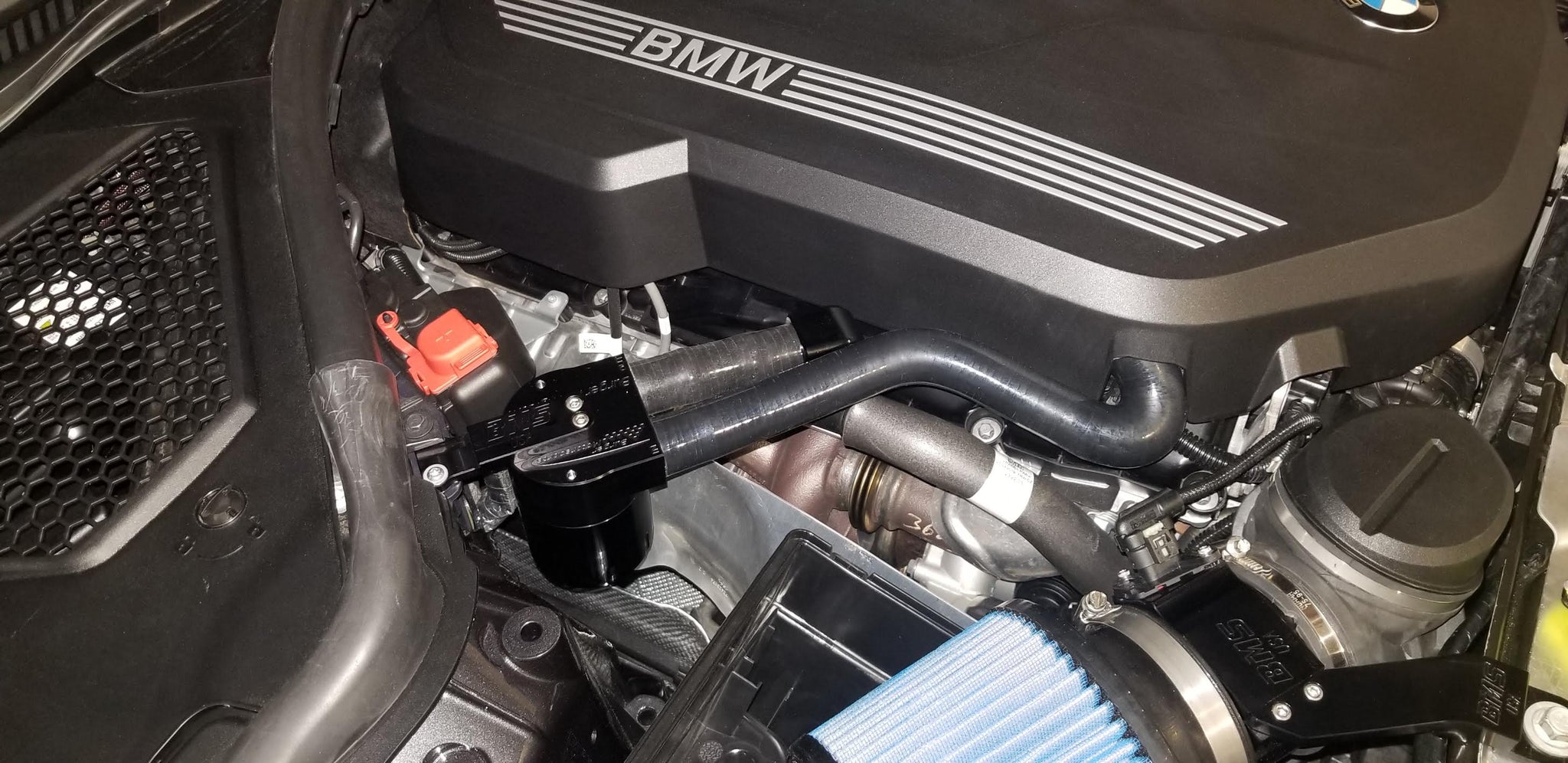

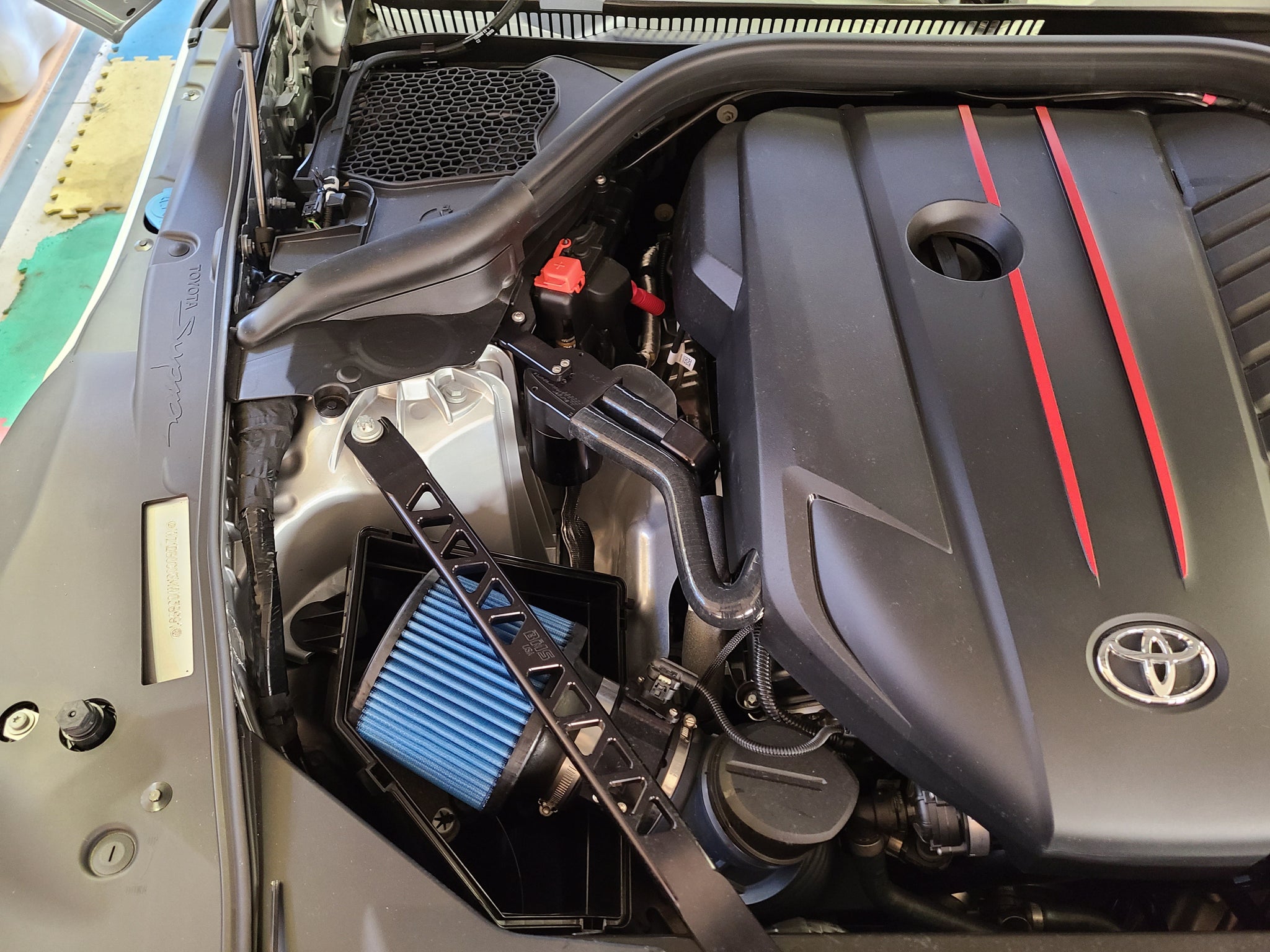

To solve these problems BMS designed their oil catch can kit from the ground up specifically for the turbo B58 application. It features 100% CNC machining with zero welding for a precision fit and long life. The can itself is guaranteed for the life of the vehicle. The hoses exceed the OEM PCV piping in diameter and that flow rate is maintained throughout the entire oil catch can ensuring no excessive crankcase pressure buildup. The BMS OCC retains the factory fully closed loop PCV operation preventing any PCV vapor from leaking to the atmosphere. The mounting locations are selected to minimize the line length, allow more efficient operation, and retain a stealth look. Install takes around 20 minutes, includes all required hardware, and is 100% reversible. Simply unscrew the base of the can or use the drain plug to safely dispose of captured oil with the rest of your used motor oil during oil changes. Made in the USA.
New transparent oil catch can base now available as an option or is sold separately as an upgrade here.
Requires either the BMS Supra Intake to fit or if you would like to keep the factory intake you can use the BMS B58 intake muffler delete to make room needed for the can.
Features & Benefits
• Increases Air Intake Efficiency
• Promotes Engine Longevity

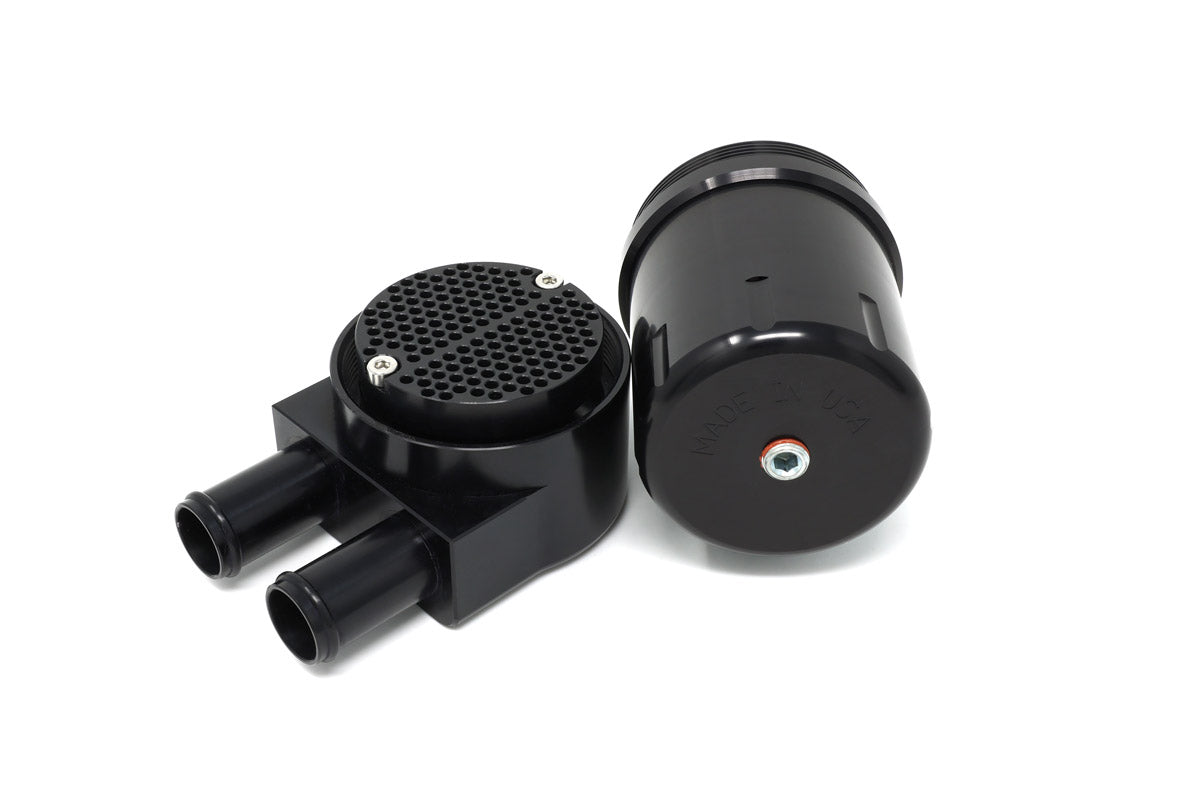

• Non-Clogging Air/Oil Separation Triple Baffle
• Free Flow Solid No Restriction Design
• Retains factory fully closed loop PCV operation
• Large Intake/Outlet No Tapering Down
• Anodized Black Aluminum
• Made in the USA & Guaranteed for Life
• Simply unscrew base every 3-6 months to empty or use the 1/8th NPT drain plug.
• Non-Clogging, No Service Needed Air/Oil Separation Triple Baffle
• High flow to eliminate crankcase pressure caused by more restrictive designs
• Large 16mm+ inlet and outlet exceeds OEM PCV sizing
• Precision CNC Machined from Solid Blocks of High-Grade Aluminum
Vehicle Fitment
Toyota Supra
• 2020-2026 Toyota Supra GR MK5 (B58 engine only)
Catch can dimensions and specs
Can dimensions with lid: 4.4" (111mm) Tall
Can diameter: 2.5" (63.7mm)
Lid length: Back to nozzle end: 4" (101mm)
Nozzle outer diameter: .75" (19.2mm)
Nozzle inner diameter: 0.669" (17mm)
Can Fluid Capacity: Up to 5.5 fl oz (162.6 mL)

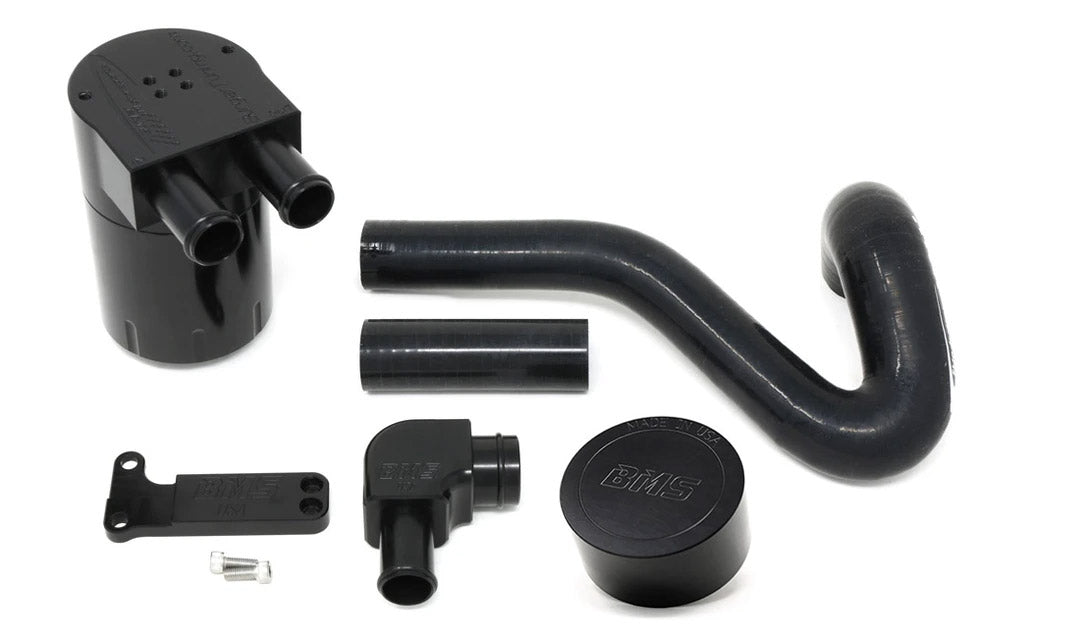

What's Included
(1) BMS Oil Catch Can (N54)
(1) Billet B58 bracket
(1) 90º billet fitting/nipple
(1) Custom silicone inlet hose
(1) 3.5" straight silicone hose
(2) Stainless steel bracket screws #10-32 x 1/2" internal hex socket head
Kit for factory intake includes the BMS B58 intake muffler delete
Take your B58 BMW or Supra’s crankcase ventilation performance to the next level with the BMS Oil Filler Cap Connection Kit = the missing link for ultimate catch can efficiency.
This precision-machined billet cap replaces the
factory oil filler cap and creates a second dedicated exit point for dirty PCV gases. That means both the crankcase vent and the valve cover breather can now be routed into your oil catch can. Twice the inputs into your catch can means twice the oil vapor capture, keeping harmful oil mist out of your intake tract. Cleaner air, cleaner intake valves, and a more efficient PCV system, it’s a simple upgrade with major payoffs.
The main advantage of a transparent can is that you can easily see the contents inside. This allows for quick checks on oil levels, contamination, and sludge buildup without needing to open the can.
⚠️ ATTENTION: The optional transparent can base is not suitable for use in regions where temperatures frequently drop to 32°F (0°C) or below.
